Toyota Corolla

2013-06 → present · chassis NDE180,NRE180,ZRE18#,ZRE21#,ZWE219 · catalogue 164320 · General

Supported model Data version 2019-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

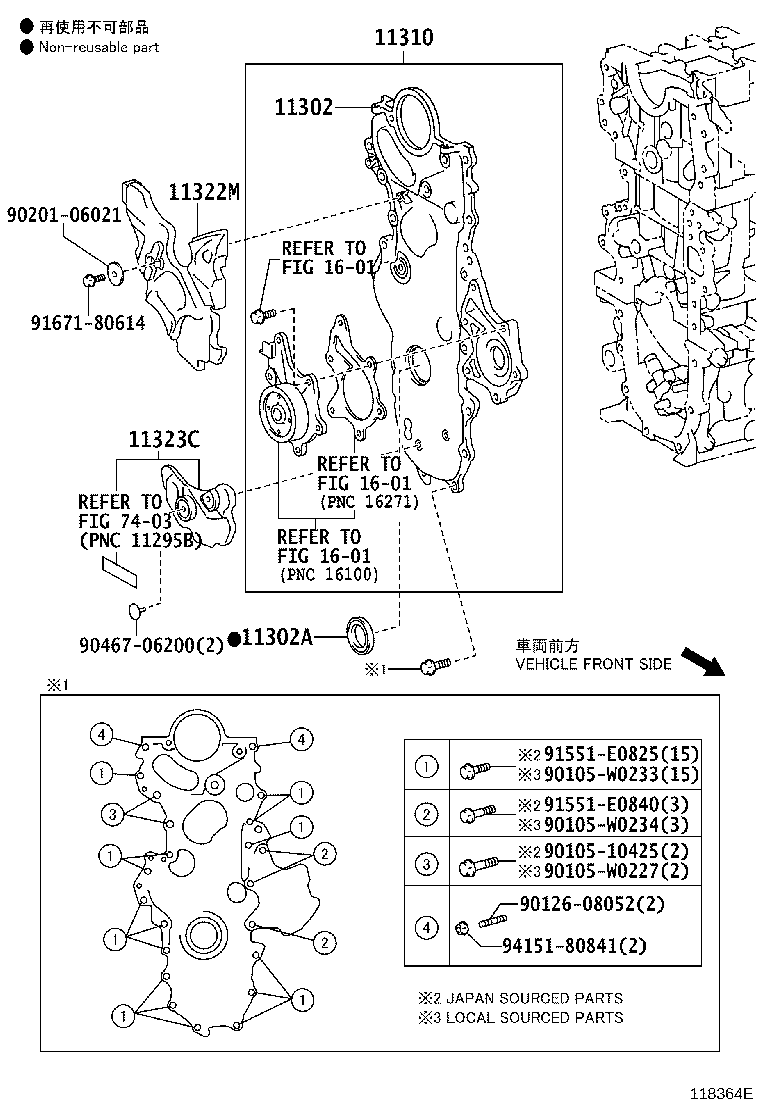

Exploded illustration 118364E 1601 — not listed in this catalogue 7403 — not listed in this catalogue 1601 — not listed in this catalogue 11310 — COVER ASSY, TIMING CHAIN (10 parts) 11302 — COVER SUB-ASSY, TIMING CHAIN OR BELT (13 parts) 11322M — COVER, TIMING CHAIN, NO.2 (3 parts) 9020106021 — not listed in this catalogue 9167180614 — not listed in this catalogue 11323C — COVER, TIMING CHAIN, NO.3 (3 parts) 9046706200 — not listed in this catalogue 1601 — not listed in this catalogue 11302A — SEAL, OIL(FOR TIMING CHAIN OR BELT COVER) (13 parts) 91551E0840 — not listed in this catalogue 90105W0234 — not listed in this catalogue 91551E0825 — not listed in this catalogue 90105W0233 — not listed in this catalogue 9010510425 — not listed in this catalogue 90105W0227 — not listed in this catalogue 9012608052 — not listed in this catalogue 9415180841 — not listed in this catalogue
118364E · 5 callouts, 15 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
42 parts on this figure
Part number Description Fitment Price
11302 — Cover Sub-assy, Timing Chain OR Belt
11310-0T070 note Cover Sub-assy, Timing Chain OR Belt
2014-01 → 2014-09 ended
1ZRFE,2ZRFE ZRE18# —
11310-0T071 note Cover Sub-assy, Timing Chain OR Belt
2014-10 → 2017-01 ended
1ZRFE,2ZRFE ZRE18# SAP —
11310-37011 note Cover Sub-assy, Timing Chain OR Belt
2014-01 → 2017-01 ended
1ZRFE,2ZRFE ZRE18# SAP —
11321-33020 Cover Sub-assy, Timing Chain OR Belt
2013-06 → 2015-07 ended
1NDTV NDE180 —
11321-33021 Cover Sub-assy, Timing Chain OR Belt
2015-07 → 2016-05 ended
1NDTV NDE180 TUP —
11321-33021 Cover Sub-assy, Timing Chain OR Belt
2015-07 → 2017-01 ended
1NDTV NDE180 SAP —
11310-0T071 note Cover Sub-assy, Timing Chain OR Belt
2016-06 → 2019-12 ended
1ZRFE,2ZRFE ZRE18# —
11310-37011 note Cover Sub-assy, Timing Chain OR Belt
2016-06 → 2019-12 ended
1ZRFE,2ZRFE ZRE18# —
11321-33021 Cover Sub-assy, Timing Chain OR Belt
2016-06 → 2019-01 ended
1NDTV NDE180 TUP —
11321-33021 Cover Sub-assy, Timing Chain OR Belt
2016-06 → —
1NDTV NDE180 SAP —
11310-0T071 note Cover Sub-assy, Timing Chain OR Belt
2019-12 → 2020-08 ended
2ZRFE ZRE182 —
11310-0T072 note Cover Sub-assy, Timing Chain OR Belt
2020-09 → —
2ZRFE ZRE182 —
11310-37011 note Cover Sub-assy, Timing Chain OR Belt
2019-12 → —
2ZRFE ZRE182 —
11302A — Seal, Oil(FOR TIMING CHAIN OR BELT COVER)
90311-25032 Seal, Oil(FOR TIMING CHAIN OR BELT COVER)
2014-01 → 2017-01 ended
1NRFE NRE180 SAP —
90311-38089 note Seal, Oil(FOR TIMING CHAIN OR BELT COVER)
2014-01 → 2014-06 ended
1ZRFE,2ZRFE ZRE18# —
90311-38096 Seal, Oil(FOR TIMING CHAIN OR BELT COVER)
2014-06 → 2017-01 ended
1ZRFE,2ZRFE ZRE18# SAP —
90311-40040 Seal, Oil(FOR TIMING CHAIN OR BELT COVER)
2013-06 → 2016-05 ended
1NDTV NDE180 TUP —
90311-40040 Seal, Oil(FOR TIMING CHAIN OR BELT COVER)
2013-06 → 2017-01 ended
1NDTV NDE180 SAP —
90311-W0012 note Seal, Oil(FOR TIMING CHAIN OR BELT COVER)
2014-01 → 2014-06 ended
1ZRFE,2ZRFE ZRE18# —
90311-25032 Seal, Oil(FOR TIMING CHAIN OR BELT COVER)
2016-06 → 2018-08 ended
1NRFE NRE180 TUP —
90311-25032 Seal, Oil(FOR TIMING CHAIN OR BELT COVER)
2016-06 → —
1NRFE NRE180 SAP —
90311-38096 Seal, Oil(FOR TIMING CHAIN OR BELT COVER)
2016-06 → 2019-01 ended
1ZRFE,2ZRFE ZRE18# TUP —
90311-38096 Seal, Oil(FOR TIMING CHAIN OR BELT COVER)
2016-06 → 2019-12 ended
1ZRFE,2ZRFE ZRE18# SAP —
90311-40040 Seal, Oil(FOR TIMING CHAIN OR BELT COVER)
2016-06 → 2019-01 ended
1NDTV NDE180 TUP —
90311-40040 Seal, Oil(FOR TIMING CHAIN OR BELT COVER)
2016-06 → —
1NDTV NDE180 SAP —
90311-38096 Seal, Oil(FOR TIMING CHAIN OR BELT COVER)
2019-12 → —
2ZRFE ZRE182 —
11310 — Cover Assy, Timing Chain
11310-33011 Cover Assy, Timing Chain
2013-06 → 2014-11 ended
1NDTV NDE180 —
11310-33012 Cover Assy, Timing Chain
2014-12 → 2015-07 ended
1NDTV NDE180 —
11310-33013 Cover Assy, Timing Chain
2015-07 → 2016-05 ended
1NDTV NDE180 TUP —
11310-33013 Cover Assy, Timing Chain
2015-07 → 2017-01 ended
1NDTV NDE180 SAP —
11310-47041 Cover Assy, Timing Chain
2014-01 → 2014-06 ended
1NRFE NRE180 —
11310-47042 Cover Assy, Timing Chain
2014-07 → 2017-01 ended
1NRFE NRE180 SAP —
11310-33013 Cover Assy, Timing Chain
2016-06 → 2019-01 ended
1NDTV NDE180 TUP —
11310-33013 Cover Assy, Timing Chain
2016-06 → —
1NDTV NDE180 SAP —
11310-47042 Cover Assy, Timing Chain
2016-06 → 2018-08 ended
1NRFE NRE180 TUP —
11310-47042 Cover Assy, Timing Chain
2016-06 → —
1NRFE NRE180 SAP —
11322M — Cover, Timing Chain, NO.2
11322-33020 Cover, Timing Chain, NO.2
2013-06 → 2017-01 ended
1NDTV NDE180 —
11322-33020 Cover, Timing Chain, NO.2
2016-06 → 2019-01 ended
1NDTV NDE180 TUP —
11322-33020 Cover, Timing Chain, NO.2
2016-06 → —
1NDTV NDE180 SAP —
11323C — Cover, Timing Chain, NO.3
11323-33010 Cover, Timing Chain, NO.3
2013-06 → 2017-01 ended
1NDTV NDE180 —
11323-33010 Cover, Timing Chain, NO.3
2016-06 → 2019-01 ended
1NDTV NDE180 TUP —
11323-33010 Cover, Timing Chain, NO.3
2016-06 → —
1NDTV NDE180 SAP —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
