Toyota Corolla
2013-06 → present · chassis NDE180,NRE180,ZRE18#,ZRE21#,ZWE219 · catalogue 164320 · General
Supported model
Data version 2019-11

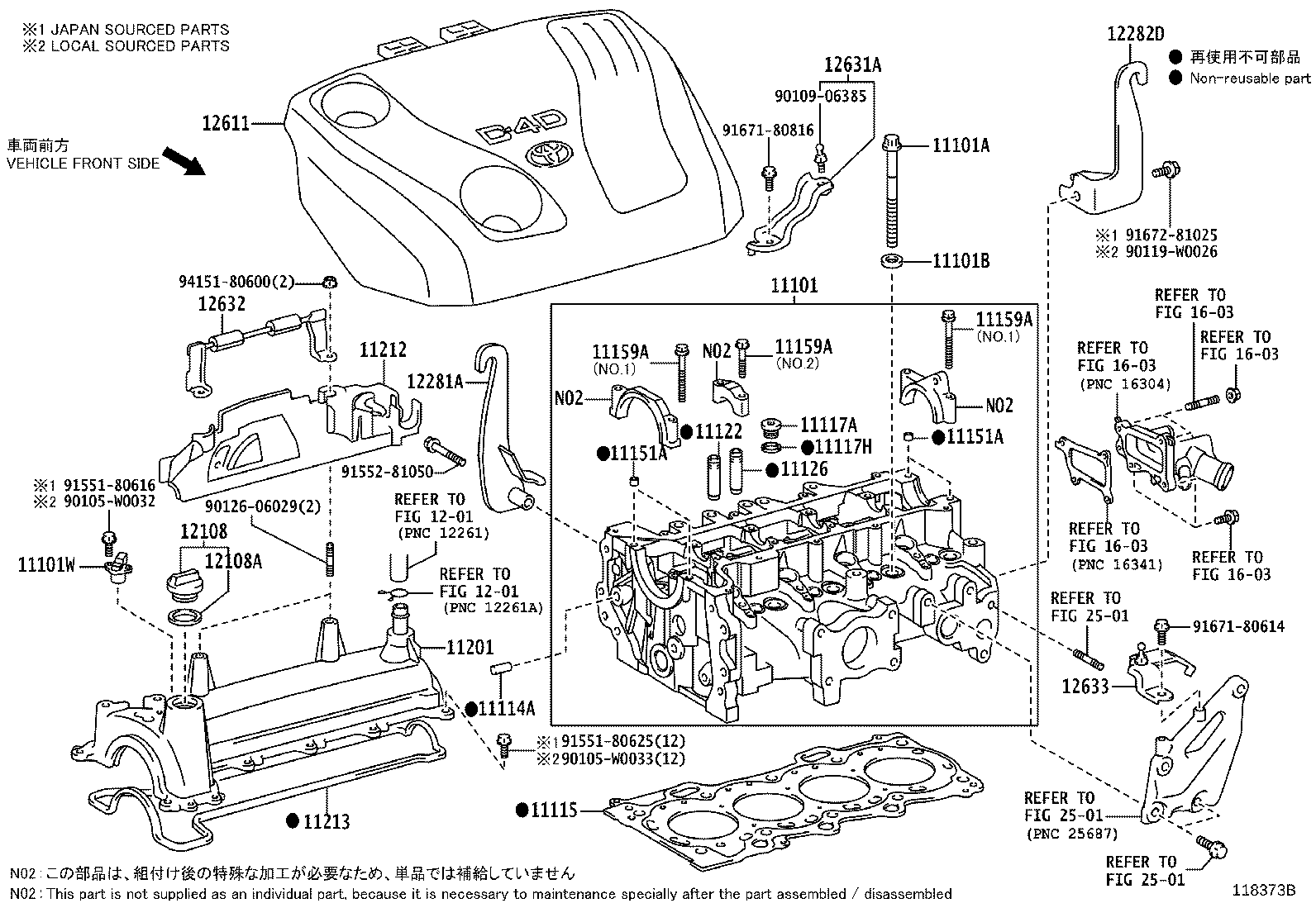

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 11101 — Head Sub-assy, Cylinder | ||||
| 11101-09300 note |
Head Sub-assy, Cylinder
2014-01 → 2017-01
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 11101-33061 |
Head Sub-assy, Cylinder
2013-06 → 2017-01
ended
|
1NDTV NDE180 SAP | — | |
| 11101-33061 |
Head Sub-assy, Cylinder
2013-06 → 2016-05
ended
|
1NDTV NDE180 TUP | — | |
| 11101-39686 note |
Head Sub-assy, Cylinder
2014-01 → 2017-01
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 11101-49465 |
Head Sub-assy, Cylinder
2014-01 → 2017-01
ended
|
1NRFE NRE180 SAP | — | |
| 11101-09300 note |
Head Sub-assy, Cylinder
2016-06 → 2019-01
ended
|
1ZRFE,2ZRFE ZRE18# TUP | — | |
| 11101-09300 note |
Head Sub-assy, Cylinder
2016-06 → 2019-12
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 11101-33061 |
Head Sub-assy, Cylinder
2016-06 → 2019-01
ended
|
1NDTV NDE180 TUP | — | |
| 11101-33061 |
Head Sub-assy, Cylinder
2016-06 → —
|
1NDTV NDE180 SAP | — | |
| 11101-39686 note |
Head Sub-assy, Cylinder
2016-06 → 2019-01
ended
|
1ZRFE,2ZRFE ZRE18# TUP | — | |
| 11101-39686 note |
Head Sub-assy, Cylinder
2016-06 → 2019-12
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 11101-49465 |
Head Sub-assy, Cylinder
2016-06 → 2017-08
ended
|
1NRFE NRE180 | — | |
| 11101-49466 |
Head Sub-assy, Cylinder
2017-08 → —
|
1NRFE NRE180 | — | |
| 11101-09300 note |
Head Sub-assy, Cylinder
2019-12 → —
|
2ZRFE ZRE182 | — | |
| 11101-39686 note |
Head Sub-assy, Cylinder
2019-12 → —
|
2ZRFE ZRE182 | — | |
| 11101A — Bolt(FOR CYLINDER HEAD SET) | ||||
| 90910-02166 |
Bolt(FOR CYLINDER HEAD SET)
2014-01 → 2017-01
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 90910-02171 |
Bolt(FOR CYLINDER HEAD SET)
2013-06 → 2016-05
ended
|
1NDTV NDE180 TUP | — | |
| 90910-02171 |
Bolt(FOR CYLINDER HEAD SET)
2013-06 → 2017-01
ended
|
1NDTV NDE180 SAP | — | |
| 90910-02174 |
Bolt(FOR CYLINDER HEAD SET)
2014-01 → 2017-01
ended
|
1NRFE NRE180 SAP | — | |
| 90910-02166 |
Bolt(FOR CYLINDER HEAD SET)
2016-06 → 2019-01
ended
|
1ZRFE,2ZRFE ZRE18# TUP | — | |
| 90910-02166 |
Bolt(FOR CYLINDER HEAD SET)
2016-06 → 2019-12
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 90910-02171 |
Bolt(FOR CYLINDER HEAD SET)
2016-06 → 2019-01
ended
|
1NDTV NDE180 TUP | — | |
| 90910-02171 |
Bolt(FOR CYLINDER HEAD SET)
2016-06 → —
|
1NDTV NDE180 SAP | — | |
| 90910-02174 |
Bolt(FOR CYLINDER HEAD SET)
2016-06 → 2018-08
ended
|
1NRFE NRE180 TUP | — | |
| 90910-02174 |
Bolt(FOR CYLINDER HEAD SET)
2016-06 → —
|
1NRFE NRE180 SAP | — | |
| 90910-02166 |
Bolt(FOR CYLINDER HEAD SET)
2019-12 → —
|
2ZRFE ZRE182 | — | |
| 11101B — Washer, Plate(FOR CYLINDER HEAD SET) | ||||
| 90201-10344 |
Washer, Plate(FOR CYLINDER HEAD SET)
2014-01 → 2017-01
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 90201-10344 |
Washer, Plate(FOR CYLINDER HEAD SET)
2014-01 → 2017-01
ended
|
1NRFE NRE180 SAP | — | |
| 90201-13042 |
Washer, Plate(FOR CYLINDER HEAD SET)
2013-06 → 2016-05
ended
|
1NDTV NDE180 TUP | — | |
| 90201-13042 |
Washer, Plate(FOR CYLINDER HEAD SET)
2013-06 → 2017-01
ended
|
1NDTV NDE180 SAP | — | |
| 90201-10344 |
Washer, Plate(FOR CYLINDER HEAD SET)
2016-06 → 2018-08
ended
|
1NRFE NRE180 TUP | — | |
| 90201-10344 |
Washer, Plate(FOR CYLINDER HEAD SET)
2016-06 → 2019-01
ended
|
1ZRFE,2ZRFE ZRE18# TUP | — | |
| 90201-10344 |
Washer, Plate(FOR CYLINDER HEAD SET)
2016-06 → 2019-12
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 90201-10344 |
Washer, Plate(FOR CYLINDER HEAD SET)
2016-06 → —
|
1NRFE NRE180 SAP | — | |
| 90201-13042 |
Washer, Plate(FOR CYLINDER HEAD SET)
2016-06 → 2019-01
ended
|
1NDTV NDE180 TUP | — | |
| 90201-13042 |
Washer, Plate(FOR CYLINDER HEAD SET)
2016-06 → —
|
1NDTV NDE180 SAP | — | |
| 90201-10344 |
Washer, Plate(FOR CYLINDER HEAD SET)
2019-12 → —
|
2ZRFE ZRE182 | — | |
| 11101W — Sensor, Crank Position, NO.1 | ||||
| 90919-05029 |
Sensor, Crank Position, NO.1
2013-06 → 2017-01
ended
|
1NDTV NDE180 SAP | — | |
| 90919-05029 |
Sensor, Crank Position, NO.1
2013-06 → 2016-05
ended
|
1NDTV NDE180 TUP | — | |
| 90919-05060 |
Sensor, Crank Position, NO.1
2014-01 → 2017-01
ended
|
1NRFE NRE180 SAP | — | |
| 90919-05029 |
Sensor, Crank Position, NO.1
2016-06 → 2019-01
ended
|
1NDTV NDE180 TUP | — | |
| 90919-05029 |
Sensor, Crank Position, NO.1
2016-06 → —
|
1NDTV NDE180 SAP | — | |
| 90919-05060 |
Sensor, Crank Position, NO.1
2016-06 → 2018-08
ended
|
1NRFE NRE180 TUP | — | |
| 90919-05060 |
Sensor, Crank Position, NO.1
2016-06 → —
|
1NRFE NRE180 SAP | — | |
| 11114A — Pin, Straight | ||||
| 90250-06001 note |
Pin, Straight
2014-01 → 2017-01
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 90250-10030 note |
Pin, Straight
2013-06 → 2016-05
ended
|
1NDTV NDE180 TUP | — | |
| 90250-10030 note |
Pin, Straight
2013-06 → 2017-01
ended
|
1NDTV NDE180 SAP | — | |
| 90250-06001 note |
Pin, Straight
2016-06 → 2019-01
ended
|
1ZRFE,2ZRFE ZRE18# TUP | — | |
| 90250-06001 note |
Pin, Straight
2016-06 → 2019-12
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 90250-10030 note |
Pin, Straight
2016-06 → 2019-01
ended
|
1NDTV NDE180 TUP | — | |
| 90250-10030 note |
Pin, Straight
2016-06 → —
|
1NDTV NDE180 SAP | — | |
| 90250-06001 note |
Pin, Straight
2019-12 → —
|
2ZRFE ZRE182 | — | |
| 11115 — Gasket, Cylinder Head | ||||
| 11115-33040-A0 note |
Gasket, Cylinder Head
2013-06 → 2015-01
ended
|
1NDTV NDE180 | — | |
| 11115-33040-B0 note |
Gasket, Cylinder Head
2013-06 → 2015-01
ended
|
1NDTV NDE180 | — | |
| 11115-33040-C0 note |
Gasket, Cylinder Head
2013-06 → 2015-01
ended
|
1NDTV NDE180 | — | |
| 11115-33040-D0 note |
Gasket, Cylinder Head
2013-06 → 2015-01
ended
|
1NDTV NDE180 | — | |
| 11115-33040-E0 note |
Gasket, Cylinder Head
2013-06 → 2015-01
ended
|
1NDTV NDE180 | — | |
| 11115-33041-A0 note |
Gasket, Cylinder Head
2015-02 → 2016-05
ended
|
1NDTV NDE180 TUP | — | |
| 11115-33041-A0 note |
Gasket, Cylinder Head
2015-02 → 2017-01
ended
|
1NDTV NDE180 SAP | — | |
| 11115-33041-B0 note |
Gasket, Cylinder Head
2015-02 → 2016-05
ended
|
1NDTV NDE180 TUP | — | |
| 11115-33041-B0 note |
Gasket, Cylinder Head
2015-02 → 2017-01
ended
|
1NDTV NDE180 SAP | — | |
| 11115-33041-C0 note |
Gasket, Cylinder Head
2015-02 → 2016-05
ended
|
1NDTV NDE180 TUP | — | |
| 11115-33041-C0 note |
Gasket, Cylinder Head
2015-02 → 2017-01
ended
|
1NDTV NDE180 SAP | — | |
| 11115-33041-D0 note |
Gasket, Cylinder Head
2015-02 → 2016-05
ended
|
1NDTV NDE180 TUP | — | |
| 11115-33041-D0 note |
Gasket, Cylinder Head
2015-02 → 2017-01
ended
|
1NDTV NDE180 SAP | — | |
| 11115-33041-E0 note |
Gasket, Cylinder Head
2015-02 → 2016-05
ended
|
1NDTV NDE180 TUP | — | |
| 11115-33041-E0 note |
Gasket, Cylinder Head
2015-02 → 2017-01
ended
|
1NDTV NDE180 SAP | — | |
| 11115-37060 |
Gasket, Cylinder Head
2014-01 → 2014-06
ended
|
1ZRFE,2ZRFE ZRE18# | — | |
| 11115-37061 |
Gasket, Cylinder Head
2014-07 → 2017-01
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 11115-47050 |
Gasket, Cylinder Head
2014-01 → 2017-01
ended
|
1NRFE NRE180 SAP | — | |
| 11115-33041-A0 note |
Gasket, Cylinder Head
2016-06 → —
|
1NDTV NDE180 SAP | — | |
| 11115-33041-A0 note |
Gasket, Cylinder Head
2016-06 → 2019-01
ended
|
1NDTV NDE180 TUP | — | |
| 11115-33041-B0 note |
Gasket, Cylinder Head
2016-06 → 2019-01
ended
|
1NDTV NDE180 TUP | — | |
| 11115-33041-B0 note |
Gasket, Cylinder Head
2016-06 → —
|
1NDTV NDE180 SAP | — | |
| 11115-33041-C0 note |
Gasket, Cylinder Head
2016-06 → 2019-01
ended
|
1NDTV NDE180 TUP | — | |
| 11115-33041-C0 note |
Gasket, Cylinder Head
2016-06 → —
|
1NDTV NDE180 SAP | — | |
| 11115-33041-D0 note |
Gasket, Cylinder Head
2016-06 → 2019-01
ended
|
1NDTV NDE180 TUP | — | |
| 11115-33041-D0 note |
Gasket, Cylinder Head
2016-06 → —
|
1NDTV NDE180 SAP | — | |
| 11115-33041-E0 note |
Gasket, Cylinder Head
2016-06 → 2019-01
ended
|
1NDTV NDE180 TUP | — | |
| 11115-33041-E0 note |
Gasket, Cylinder Head
2016-06 → —
|
1NDTV NDE180 SAP | — | |
| 11115-37061 |
Gasket, Cylinder Head
2016-06 → 2019-01
ended
|
1ZRFE,2ZRFE ZRE18# TUP | — | |
| 11115-37061 |
Gasket, Cylinder Head
2016-06 → 2019-12
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 11115-47050 |
Gasket, Cylinder Head
2016-06 → —
|
1NRFE NRE180 SAP | — | |
| 11115-47050 |
Gasket, Cylinder Head
2016-06 → 2018-08
ended
|
1NRFE NRE180 TUP | — | |
| 11115-37061 |
Gasket, Cylinder Head
2019-12 → 2021-09
ended
|
2ZRFE ZRE182 | — | |
| 11115-37062 |
Gasket, Cylinder Head
2021-10 → —
|
2ZRFE ZRE182 | — | |
| 11117A — Plug, W/Head Taper Screw, NO.1 | ||||
| 90341-14008 |
Plug, W/Head Taper Screw, NO.1
2013-06 → 2016-05
ended
|
1NDTV NDE180 TUP | — | |
| 90341-14008 |
Plug, W/Head Taper Screw, NO.1
2013-06 → 2017-01
ended
|
1NDTV NDE180 SAP | — | |
| 90341-14008 |
Plug, W/Head Taper Screw, NO.1
2016-06 → 2019-01
ended
|
1NDTV NDE180 TUP | — | |
| 90341-14008 |
Plug, W/Head Taper Screw, NO.1
2016-06 → —
|
1NDTV NDE180 SAP | — | |
| 11117H — Gasket(FOR WATER HOLE) | ||||
| 90430-14008 |
Gasket(FOR WATER HOLE)
2013-06 → 2016-05
ended
|
1NDTV NDE180 TUP | — | |
| 90430-14008 |
Gasket(FOR WATER HOLE)
2013-06 → 2017-01
ended
|
1NDTV NDE180 SAP | — | |
| 90430-20004 |
Gasket(FOR WATER HOLE)
2014-01 → 2017-01
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 90430-14008 |
Gasket(FOR WATER HOLE)
2016-06 → 2019-01
ended
|
1NDTV NDE180 TUP | — | |
| 90430-14008 |
Gasket(FOR WATER HOLE)
2016-06 → —
|
1NDTV NDE180 SAP | — | |
| 90430-20004 |
Gasket(FOR WATER HOLE)
2016-06 → 2019-01
ended
|
1ZRFE,2ZRFE ZRE18# TUP | — | |
| 90430-20004 |
Gasket(FOR WATER HOLE)
2016-06 → 2019-12
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 90430-20004 |
Gasket(FOR WATER HOLE)
2019-12 → —
|
2ZRFE ZRE182 | — | |
| 11122 — Bush, Intake Valve Guide | ||||
| 11122-31041 note |
Bush, Intake Valve Guide
2014-01 → 2017-01
ended
|
1NRFE NRE180 SAP | — | |
| 11122-31050 note |
Bush, Intake Valve Guide
2014-01 → 2017-01
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 11122-33030 note |
Bush, Intake Valve Guide
2013-06 → 2016-05
ended
|
1NDTV NDE180 TUP | — | |
| 11122-33030 note |
Bush, Intake Valve Guide
2013-06 → 2017-01
ended
|
1NDTV NDE180 SAP | — | |
| 11123-31041 note |
Bush, Intake Valve Guide
2014-01 → 2017-01
ended
|
1NRFE NRE180 SAP | — | |
| 11123-31050 note |
Bush, Intake Valve Guide
2014-01 → 2017-01
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 11123-33030 note |
Bush, Intake Valve Guide
2013-06 → 2017-01
ended
|
1NDTV NDE180 SAP | — | |
| 11123-33030 note |
Bush, Intake Valve Guide
2013-06 → 2016-05
ended
|
1NDTV NDE180 TUP | — | |
| 11122-31041 note |
Bush, Intake Valve Guide
2016-06 → 2017-07
ended
|
1NRFE NRE180 | — | |
| 11122-31050 note |
Bush, Intake Valve Guide
2016-06 → 2019-01
ended
|
1ZRFE,2ZRFE ZRE18# TUP | — | |
| 11122-31050 note |
Bush, Intake Valve Guide
2016-06 → 2019-04
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 11122-31090 note |
Bush, Intake Valve Guide
2019-04 → 2019-12
ended
|
1ZRFE,2ZRFE ZRE18# | — | |
| 11122-33030 note |
Bush, Intake Valve Guide
2016-06 → 2019-01
ended
|
1NDTV NDE180 TUP | — | |
| 11122-33030 note |
Bush, Intake Valve Guide
2016-06 → —
|
1NDTV NDE180 SAP | — | |
| 11122-47020 note |
Bush, Intake Valve Guide
2017-08 → 2018-08
ended
|
1NRFE NRE180 TUP | — | |
| 11122-47020 note |
Bush, Intake Valve Guide
2017-08 → —
|
1NRFE NRE180 SAP | — | |
| 11123-31041 note |
Bush, Intake Valve Guide
2016-06 → 2017-07
ended
|
1NRFE NRE180 | — | |
| 11123-31050 note |
Bush, Intake Valve Guide
2016-06 → 2019-01
ended
|
1ZRFE,2ZRFE ZRE18# TUP | — | |
| 11123-31050 note |
Bush, Intake Valve Guide
2016-06 → 2019-04
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 11123-31090 note |
Bush, Intake Valve Guide
2019-04 → 2019-12
ended
|
1ZRFE,2ZRFE ZRE18# | — | |
| 11123-33030 note |
Bush, Intake Valve Guide
2016-06 → 2019-01
ended
|
1NDTV NDE180 TUP | — | |
| 11123-33030 note |
Bush, Intake Valve Guide
2016-06 → —
|
1NDTV NDE180 SAP | — | |
| 11123-47020 note |
Bush, Intake Valve Guide
2017-08 → 2018-08
ended
|
1NRFE NRE180 TUP | — | |
| 11123-47020 note |
Bush, Intake Valve Guide
2017-08 → —
|
1NRFE NRE180 SAP | — | |
| 11122-31090 note |
Bush, Intake Valve Guide
2019-12 → —
|
2ZRFE ZRE182 | — | |
| 11123-31090 note |
Bush, Intake Valve Guide
2019-12 → —
|
2ZRFE ZRE182 | — | |
| 11126 — Bush, Exhaust Valve Guide | ||||
| 11122-31041 note |
Bush, Exhaust Valve Guide
2014-01 → 2017-01
ended
|
1NRFE NRE180 SAP | — | |
| 11122-33030 note |
Bush, Exhaust Valve Guide
2013-06 → 2017-01
ended
|
1NDTV NDE180 SAP | — | |
| 11122-33030 note |
Bush, Exhaust Valve Guide
2013-06 → 2016-05
ended
|
1NDTV NDE180 TUP | — | |
| 11123-31041 note |
Bush, Exhaust Valve Guide
2014-01 → 2017-01
ended
|
1NRFE NRE180 SAP | — | |
| 11123-33030 note |
Bush, Exhaust Valve Guide
2013-06 → 2017-01
ended
|
1NDTV NDE180 SAP | — | |
| 11123-33030 note |
Bush, Exhaust Valve Guide
2013-06 → 2016-05
ended
|
1NDTV NDE180 TUP | — | |
| 11126-31030 note |
Bush, Exhaust Valve Guide
2014-01 → 2017-01
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 11127-31030 note |
Bush, Exhaust Valve Guide
2014-01 → 2017-01
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 11122-31041 note |
Bush, Exhaust Valve Guide
2016-06 → 2017-07
ended
|
1NRFE NRE180 | — | |
| 11122-33030 note |
Bush, Exhaust Valve Guide
2016-06 → —
|
1NDTV NDE180 SAP | — | |
| 11122-33030 note |
Bush, Exhaust Valve Guide
2016-06 → 2019-01
ended
|
1NDTV NDE180 TUP | — | |
| 11122-47020 note |
Bush, Exhaust Valve Guide
2017-08 → 2018-08
ended
|
1NRFE NRE180 TUP | — | |
| 11122-47020 note |
Bush, Exhaust Valve Guide
2017-08 → —
|
1NRFE NRE180 SAP | — | |
| 11123-31041 note |
Bush, Exhaust Valve Guide
2016-06 → 2017-07
ended
|
1NRFE NRE180 | — | |
| 11123-33030 note |
Bush, Exhaust Valve Guide
2016-06 → 2019-01
ended
|
1NDTV NDE180 TUP | — | |
| 11123-33030 note |
Bush, Exhaust Valve Guide
2016-06 → —
|
1NDTV NDE180 SAP | — | |
| 11123-47020 note |
Bush, Exhaust Valve Guide
2017-08 → 2018-08
ended
|
1NRFE NRE180 TUP | — | |
| 11123-47020 note |
Bush, Exhaust Valve Guide
2017-08 → —
|
1NRFE NRE180 SAP | — | |
| 11126-31030 note |
Bush, Exhaust Valve Guide
2016-06 → 2019-01
ended
|
1ZRFE,2ZRFE ZRE18# TUP | — | |
| 11126-31030 note |
Bush, Exhaust Valve Guide
2016-06 → 2019-04
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 11126-31040 note |
Bush, Exhaust Valve Guide
2019-04 → 2019-12
ended
|
1ZRFE,2ZRFE ZRE18# | — | |
| 11127-31030 note |
Bush, Exhaust Valve Guide
2016-06 → 2019-01
ended
|
1ZRFE,2ZRFE ZRE18# TUP | — | |
| 11127-31030 note |
Bush, Exhaust Valve Guide
2016-06 → 2019-04
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 11127-31040 note |
Bush, Exhaust Valve Guide
2019-04 → 2019-12
ended
|
1ZRFE,2ZRFE ZRE18# | — | |
| 11126-31040 note |
Bush, Exhaust Valve Guide
2019-12 → —
|
2ZRFE ZRE182 | — | |
| 11127-31040 note |
Bush, Exhaust Valve Guide
2019-12 → —
|
2ZRFE ZRE182 | — | |
| 11151A — Pin, Ring(FOR CAMSHAFT BEARING CAP SETTING) | ||||
| 90253-10004 note |
Pin, Ring(FOR CAMSHAFT BEARING CAP SETTING)
2013-06 → 2016-05
ended
|
1NDTV NDE180 TUP | — | |
| 90253-10004 note |
Pin, Ring(FOR CAMSHAFT BEARING CAP SETTING)
2013-06 → 2017-01
ended
|
1NDTV NDE180 SAP | — | |
| 90253-13005 note |
Pin, Ring(FOR CAMSHAFT BEARING CAP SETTING)
2014-01 → 2017-01
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 90253-13005 note |
Pin, Ring(FOR CAMSHAFT BEARING CAP SETTING)
2014-01 → 2017-01
ended
|
1NRFE NRE180 SAP | — | |
| 90253-10004 note |
Pin, Ring(FOR CAMSHAFT BEARING CAP SETTING)
2016-06 → 2019-01
ended
|
1NDTV NDE180 TUP | — | |
| 90253-10004 note |
Pin, Ring(FOR CAMSHAFT BEARING CAP SETTING)
2016-06 → —
|
1NDTV NDE180 SAP | — | |
| 90253-13005 note |
Pin, Ring(FOR CAMSHAFT BEARING CAP SETTING)
2016-06 → 2018-08
ended
|
1NRFE NRE180 TUP | — | |
| 90253-13005 note |
Pin, Ring(FOR CAMSHAFT BEARING CAP SETTING)
2016-06 → —
|
1NRFE NRE180 SAP | — | |
| 90253-13005 note |
Pin, Ring(FOR CAMSHAFT BEARING CAP SETTING)
2016-06 → 2019-01
ended
|
1ZRFE,2ZRFE ZRE18# TUP | — | |
| 90253-13005 note |
Pin, Ring(FOR CAMSHAFT BEARING CAP SETTING)
2016-06 → 2019-12
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 90253-13005 note |
Pin, Ring(FOR CAMSHAFT BEARING CAP SETTING)
2019-12 → —
|
2ZRFE ZRE182 | — | |
| 11159A — Bolt(FOR HEAD TO CAMSHAFT BEARING CAP) | ||||
| 90105-06360 |
Bolt(FOR HEAD TO CAMSHAFT BEARING CAP)
2016-11 → 2017-01
ended
|
1NRFE NRE180 SAP | — | |
| 90105-T0347 |
Bolt(FOR HEAD TO CAMSHAFT BEARING CAP)
2016-06 → 2016-10
ended
|
1NRFE NRE180 SAP | — | |
| 90119-07008 note |
Bolt(FOR HEAD TO CAMSHAFT BEARING CAP)
2013-06 → 2017-01
ended
|
1NDTV NDE180 | — | |
| 90119-07009 note |
Bolt(FOR HEAD TO CAMSHAFT BEARING CAP)
2013-06 → 2017-01
ended
|
1NDTV NDE180 | — | |
| 91551-80635 |
Bolt(FOR HEAD TO CAMSHAFT BEARING CAP)
2014-01 → 2016-06
ended
|
1NRFE NRE180 | — | |
| 90105-06360 |
Bolt(FOR HEAD TO CAMSHAFT BEARING CAP)
2016-11 → 2017-05
ended
|
1NRFE NRE180 | — | |
| 90105-T0347 |
Bolt(FOR HEAD TO CAMSHAFT BEARING CAP)
2016-06 → 2016-10
ended
|
1NRFE NRE180 TUP | — | |
| 90119-07008 note |
Bolt(FOR HEAD TO CAMSHAFT BEARING CAP)
2016-06 → 2019-01
ended
|
1NDTV NDE180 TUP | — | |
| 90119-07008 note |
Bolt(FOR HEAD TO CAMSHAFT BEARING CAP)
2016-06 → —
|
1NDTV NDE180 SAP | — | |
| 90119-07009 note |
Bolt(FOR HEAD TO CAMSHAFT BEARING CAP)
2016-06 → 2019-01
ended
|
1NDTV NDE180 TUP | — | |
| 90119-07009 note |
Bolt(FOR HEAD TO CAMSHAFT BEARING CAP)
2016-06 → —
|
1NDTV NDE180 SAP | — | |
| 91551-80635 |
Bolt(FOR HEAD TO CAMSHAFT BEARING CAP)
2017-05 → 2018-08
ended
|
1NRFE NRE180 TUP | — | |
| 91551-80635 |
Bolt(FOR HEAD TO CAMSHAFT BEARING CAP)
2017-05 → —
|
1NRFE NRE180 SAP | — | |
| 11201 — Cover Sub-assy, Cylinder Head | ||||
| 11201-0N020 note |
Cover Sub-assy, Cylinder Head
2013-06 → 2017-01
ended
|
1NDTV NDE180 SAP | — | |
| 11201-0N020 note |
Cover Sub-assy, Cylinder Head
2013-06 → 2016-05
ended
|
1NDTV NDE180 TUP | — | |
| 11201-0T040 note |
Cover Sub-assy, Cylinder Head
2014-01 → 2017-01
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 11201-33041 note |
Cover Sub-assy, Cylinder Head
2013-06 → 2016-05
ended
|
1NDTV NDE180 TUP | — | |
| 11201-33041 note |
Cover Sub-assy, Cylinder Head
2013-06 → 2017-01
ended
|
1NDTV NDE180 SAP | — | |
| 11201-37022 note |
Cover Sub-assy, Cylinder Head
2014-01 → 2017-01
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 11201-47101 |
Cover Sub-assy, Cylinder Head
2014-01 → 2014-07
ended
|
1NRFE NRE180 | — | |
| 11201-47130 |
Cover Sub-assy, Cylinder Head
2014-07 → 2017-01
ended
|
1NRFE NRE180 SAP | — | |
| 11201-0N020 note |
Cover Sub-assy, Cylinder Head
2016-06 → —
|
1NDTV NDE180 SAP | — | |
| 11201-0N020 note |
Cover Sub-assy, Cylinder Head
2016-06 → 2019-01
ended
|
1NDTV NDE180 TUP | — | |
| 11201-0T040 note |
Cover Sub-assy, Cylinder Head
2016-06 → 2019-01
ended
|
1ZRFE,2ZRFE ZRE18# TUP | — | |
| 11201-0T040 note |
Cover Sub-assy, Cylinder Head
2016-06 → 2019-12
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 11201-33041 note |
Cover Sub-assy, Cylinder Head
2016-06 → 2019-01
ended
|
1NDTV NDE180 TUP | — | |
| 11201-33041 note |
Cover Sub-assy, Cylinder Head
2016-06 → —
|
1NDTV NDE180 SAP | — | |
| 11201-37022 note |
Cover Sub-assy, Cylinder Head
2016-06 → 2019-01
ended
|
1ZRFE,2ZRFE ZRE18# TUP | — | |
| 11201-37022 note |
Cover Sub-assy, Cylinder Head
2016-06 → 2019-12
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 11201-47130 |
Cover Sub-assy, Cylinder Head
2016-06 → 2018-08
ended
|
1NRFE NRE180 TUP | — | |
| 11201-47130 |
Cover Sub-assy, Cylinder Head
2016-06 → —
|
1NRFE NRE180 SAP | — | |
| 11201-0T040 note |
Cover Sub-assy, Cylinder Head
2019-12 → —
|
2ZRFE ZRE182 | — | |
| 11201-37022 note |
Cover Sub-assy, Cylinder Head
2019-12 → —
|
2ZRFE ZRE182 | — | |
| 11212 — Cover, Cylinder Head, NO.2 | ||||
| 11212-0T160 note |
Cover, Cylinder Head, NO.2
2015-04 → 2017-01
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 11212-33031 |
Cover, Cylinder Head, NO.2
2013-06 → 2016-05
ended
|
1NDTV NDE180 TUP | — | |
| 11212-33031 |
Cover, Cylinder Head, NO.2
2013-06 → 2017-01
ended
|
1NDTV NDE180 SAP | — | |
| 11212-37011 |
Cover, Cylinder Head, NO.2
2014-01 → 2015-04
ended
|
1ZRFE,2ZRFE ZRE18# | — | |
| 11212-37011 note |
Cover, Cylinder Head, NO.2
2015-04 → 2017-01
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 11212-0T160 note |
Cover, Cylinder Head, NO.2
2016-06 → 2019-01
ended
|
1ZRFE,2ZRFE ZRE18# TUP | — | |
| 11212-0T160 note |
Cover, Cylinder Head, NO.2
2016-06 → 2019-12
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 11212-33031 |
Cover, Cylinder Head, NO.2
2016-06 → 2019-01
ended
|
1NDTV NDE180 TUP | — | |
| 11212-33031 |
Cover, Cylinder Head, NO.2
2016-06 → —
|
1NDTV NDE180 SAP | — | |
| 11212-37011 note |
Cover, Cylinder Head, NO.2
2016-06 → 2019-01
ended
|
1ZRFE,2ZRFE ZRE18# TUP | — | |
| 11212-37011 note |
Cover, Cylinder Head, NO.2
2016-06 → 2019-12
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 11213 — Gasket, Cylinder Head Cover | ||||
| 11213-0T020 note |
Gasket, Cylinder Head Cover
2014-01 → 2015-05
ended
|
1ZRFE,2ZRFE ZRE18# | — | |
| 11213-0T021 note |
Gasket, Cylinder Head Cover
2015-06 → 2017-01
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 11213-33030 |
Gasket, Cylinder Head Cover
2013-06 → 2015-12
ended
|
1NDTV NDE180 | — | |
| 11213-33031 |
Gasket, Cylinder Head Cover
2016-01 → 2016-05
ended
|
1NDTV NDE180 TUP | — | |
| 11213-33031 |
Gasket, Cylinder Head Cover
2016-01 → 2017-01
ended
|
1NDTV NDE180 SAP | — | |
| 11213-37020 note |
Gasket, Cylinder Head Cover
2014-01 → 2015-05
ended
|
1ZRFE,2ZRFE ZRE18# | — | |
| 11213-37021 note |
Gasket, Cylinder Head Cover
2015-06 → 2017-01
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 11213-47020 |
Gasket, Cylinder Head Cover
2014-01 → 2017-01
ended
|
1NRFE NRE180 SAP | — | |
| 11213-0T021 note |
Gasket, Cylinder Head Cover
2016-06 → 2019-01
ended
|
1ZRFE,2ZRFE ZRE18# TUP | — | |
| 11213-0T021 note |
Gasket, Cylinder Head Cover
2016-06 → 2019-12
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 11213-33031 |
Gasket, Cylinder Head Cover
2016-06 → 2019-01
ended
|
1NDTV NDE180 TUP | — | |
| 11213-33031 |
Gasket, Cylinder Head Cover
2016-06 → —
|
1NDTV NDE180 SAP | — | |
| 11213-37021 note |
Gasket, Cylinder Head Cover
2016-06 → 2019-01
ended
|
1ZRFE,2ZRFE ZRE18# TUP | — | |
| 11213-37021 note |
Gasket, Cylinder Head Cover
2016-06 → 2019-12
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 11213-47020 |
Gasket, Cylinder Head Cover
2016-06 → 2018-08
ended
|
1NRFE NRE180 TUP | — | |
| 11213-47020 |
Gasket, Cylinder Head Cover
2016-06 → —
|
1NRFE NRE180 SAP | — | |
| 11213-0T021 note |
Gasket, Cylinder Head Cover
2019-12 → —
|
2ZRFE ZRE182 | — | |
| 11213-37021 note |
Gasket, Cylinder Head Cover
2019-12 → —
|
2ZRFE ZRE182 | — | |
| 12108 — Cap Sub-assy, Oil Filler | ||||
| 12180-38010 |
Cap Sub-assy, Oil Filler
2013-06 → 2016-05
ended
|
1NDTV NDE180 TUP | — | |
| 12180-38010 |
Cap Sub-assy, Oil Filler
2013-06 → 2017-01
ended
|
1N# NDE180,NRE180 SAP | — | |
| 12180-38010 |
Cap Sub-assy, Oil Filler
2014-01 → 2017-01
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 12180-38010 |
Cap Sub-assy, Oil Filler
2016-06 → —
|
1N# NDE180,NRE180 SAP | — | |
| 12180-38010 |
Cap Sub-assy, Oil Filler
2016-06 → 2019-12
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 12180-38010 |
Cap Sub-assy, Oil Filler
2016-06 → 2019-01
ended
|
1NDTV NDE180 TUP | — | |
| 12180-38010 |
Cap Sub-assy, Oil Filler
2016-06 → 2018-08
ended
|
1NRFE NRE180 TUP | — | |
| 12180-38010 |
Cap Sub-assy, Oil Filler
2016-06 → 2019-01
ended
|
1ZRFE,2ZRFE ZRE18# TUP | — | |
| 12180-38010 |
Cap Sub-assy, Oil Filler
2019-12 → —
|
2ZRFE ZRE182 | — | |
| 12108A — Gasket(FOR OIL FILLER CAP) | ||||
| 90430-35001 |
Gasket(FOR OIL FILLER CAP)
2013-06 → 2016-05
ended
|
1NDTV NDE180 TUP | — | |
| 90430-35001 |
Gasket(FOR OIL FILLER CAP)
2013-06 → 2017-01
ended
|
1N# NDE180,NRE180 SAP | — | |
| 90430-35001 |
Gasket(FOR OIL FILLER CAP)
2014-01 → 2017-01
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 90430-35001 |
Gasket(FOR OIL FILLER CAP)
2016-06 → 2019-01
ended
|
1ZRFE,2ZRFE ZRE18# TUP | — | |
| 90430-35001 |
Gasket(FOR OIL FILLER CAP)
2016-06 → —
|
1N# NDE180,NRE180 SAP | — | |
| 90430-35001 |
Gasket(FOR OIL FILLER CAP)
2016-06 → 2019-12
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 90430-35001 |
Gasket(FOR OIL FILLER CAP)
2016-06 → 2019-01
ended
|
1NDTV NDE180 TUP | — | |
| 90430-35001 |
Gasket(FOR OIL FILLER CAP)
2016-06 → 2018-08
ended
|
1NRFE NRE180 TUP | — | |
| 90430-35001 |
Gasket(FOR OIL FILLER CAP)
2019-12 → —
|
2ZRFE ZRE182 | — | |
| 12281A — Hanger, Engine, NO.1 | ||||
| 12281-0T040 note |
Hanger, Engine, NO.1
2016-08 → 2017-01
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 12281-33050 |
Hanger, Engine, NO.1
2013-06 → 2016-05
ended
|
1NDTV NDE180 TUP | — | |
| 12281-33050 |
Hanger, Engine, NO.1
2013-06 → 2017-01
ended
|
1NDTV NDE180 SAP | — | |
| 12281-37021 note |
Hanger, Engine, NO.1
2014-01 → 2017-01
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 12281-37050 note |
Hanger, Engine, NO.1
2014-01 → 2017-01
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 12281-47022 |
Hanger, Engine, NO.1
2014-01 → 2014-04
ended
|
1NRFE NRE180 | — | |
| 12281-47023 |
Hanger, Engine, NO.1
2014-04 → 2017-01
ended
|
1NRFE NRE180 SAP | — | |
| 12281-0T040 note |
Hanger, Engine, NO.1
2016-08 → 2019-01
ended
|
1ZRFE,2ZRFE ZRE18# TUP | — | |
| 12281-0T040 note |
Hanger, Engine, NO.1
2016-08 → 2019-12
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 12281-33050 |
Hanger, Engine, NO.1
2016-06 → 2019-01
ended
|
1NDTV NDE180 TUP | — | |
| 12281-33050 |
Hanger, Engine, NO.1
2016-06 → —
|
1NDTV NDE180 SAP | — | |
| 12281-37021 note |
Hanger, Engine, NO.1
2016-06 → 2019-01
ended
|
1ZRFE,2ZRFE ZRE18# TUP | — | |
| 12281-37021 note |
Hanger, Engine, NO.1
2016-06 → 2019-12
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 12281-47023 |
Hanger, Engine, NO.1
2016-06 → 2018-08
ended
|
1NRFE NRE180 TUP | — | |
| 12281-47023 |
Hanger, Engine, NO.1
2016-06 → —
|
1NRFE NRE180 SAP | — | |
| 12281-0T040 note |
Hanger, Engine, NO.1
2019-12 → —
|
2ZRFE ZRE182 | — | |
| 12281-37021 note |
Hanger, Engine, NO.1
2019-12 → —
|
2ZRFE ZRE182 | — | |
| 12282D — Hanger, Engine, NO.2 | ||||
| 12282-0T040 note |
Hanger, Engine, NO.2
2016-08 → 2017-01
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 12282-33022 |
Hanger, Engine, NO.2
2013-06 → 2016-05
ended
|
1NDTV NDE180 TUP | — | |
| 12282-33022 |
Hanger, Engine, NO.2
2013-06 → 2017-01
ended
|
1NDTV NDE180 SAP | — | |
| 12282-37011 note |
Hanger, Engine, NO.2
2014-01 → 2017-01
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 12282-37040 note |
Hanger, Engine, NO.2
2014-01 → 2017-01
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 12282-47010 |
Hanger, Engine, NO.2
2014-01 → 2017-01
ended
|
1NRFE NRE180 SAP | — | |
| 12282-0T040 note |
Hanger, Engine, NO.2
2016-08 → 2019-01
ended
|
1ZRFE,2ZRFE ZRE18# TUP | — | |
| 12282-0T040 note |
Hanger, Engine, NO.2
2016-08 → 2019-12
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 12282-33022 |
Hanger, Engine, NO.2
2016-06 → —
|
1NDTV NDE180 SAP | — | |
| 12282-33022 |
Hanger, Engine, NO.2
2016-06 → 2019-01
ended
|
1NDTV NDE180 TUP | — | |
| 12282-37011 note |
Hanger, Engine, NO.2
2016-06 → 2019-01
ended
|
1ZRFE,2ZRFE ZRE18# TUP | — | |
| 12282-37011 note |
Hanger, Engine, NO.2
2016-06 → 2019-12
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 12282-47010 |
Hanger, Engine, NO.2
2016-06 → 2018-08
ended
|
1NRFE NRE180 TUP | — | |
| 12282-47010 |
Hanger, Engine, NO.2
2016-06 → —
|
1NRFE NRE180 SAP | — | |
| 12282-0T040 note |
Hanger, Engine, NO.2
2019-12 → —
|
2ZRFE ZRE182 | — | |
| 12282-37011 note |
Hanger, Engine, NO.2
2019-12 → —
|
2ZRFE ZRE182 | — | |
| 12611 — Cover, Engine, NO.1 | ||||
| 12611-0N080 |
Cover, Engine, NO.1
2013-06 → 2016-05
ended
|
1NDTV NDE180 TUP | — | |
| 12611-0N080 |
Cover, Engine, NO.1
2013-06 → 2017-01
ended
|
1NDTV NDE180 SAP | — | |
| 12611-0Y040 |
Cover, Engine, NO.1
2014-01 → 2017-01
ended
|
1NRFE NRE180 SAP | — | |
| 12611-0N080 |
Cover, Engine, NO.1
2016-06 → 2019-01
ended
|
1NDTV NDE180 TUP | — | |
| 12611-0N080 |
Cover, Engine, NO.1
2016-06 → —
|
1NDTV NDE180 SAP | — | |
| 12611-0Y040 |
Cover, Engine, NO.1
2016-06 → 2018-08
ended
|
1NRFE NRE180 TUP | — | |
| 12611-0Y040 |
Cover, Engine, NO.1
2016-06 → —
|
1NRFE NRE180 SAP | — | |
| 12631A — Bracket, Engine Cover | ||||
| 12631-0N010 note |
Bracket, Engine Cover
2013-06 → 2016-05
ended
|
1NDTV NDE180 TUP | — | |
| 12631-0N010 note |
Bracket, Engine Cover
2013-06 → 2017-01
ended
|
1NDTV NDE180 SAP | — | |
| 12631-33020 note |
Bracket, Engine Cover
2013-06 → 2016-05
ended
|
1NDTV NDE180 TUP | — | |
| 12631-33020 note |
Bracket, Engine Cover
2013-06 → 2017-01
ended
|
1NDTV NDE180 SAP | — | |
| 12631-0N010 note |
Bracket, Engine Cover
2016-06 → —
|
1NDTV NDE180 SAP | — | |
| 12631-0N010 note |
Bracket, Engine Cover
2016-06 → 2019-01
ended
|
1NDTV NDE180 TUP | — | |
| 12631-33020 note |
Bracket, Engine Cover
2016-06 → —
|
1NDTV NDE180 SAP | — | |
| 12631-33020 note |
Bracket, Engine Cover
2016-06 → 2019-01
ended
|
1NDTV NDE180 TUP | — | |
| 12632 — Bracket, Engine Cover, NO.2 | ||||
| 12632-0N010 note |
Bracket, Engine Cover, NO.2
2013-06 → 2016-05
ended
|
1NDTV NDE180 TUP | — | |
| 12632-0N010 note |
Bracket, Engine Cover, NO.2
2013-06 → 2017-01
ended
|
1NDTV NDE180 SAP | — | |
| 12632-33041 note |
Bracket, Engine Cover, NO.2
2013-06 → 2016-05
ended
|
1NDTV NDE180 TUP | — | |
| 12632-33041 note |
Bracket, Engine Cover, NO.2
2013-06 → 2017-01
ended
|
1NDTV NDE180 SAP | — | |
| 12632-0N010 note |
Bracket, Engine Cover, NO.2
2016-06 → —
|
1NDTV NDE180 SAP | — | |
| 12632-0N010 note |
Bracket, Engine Cover, NO.2
2016-06 → 2019-01
ended
|
1NDTV NDE180 TUP | — | |
| 12632-33041 note |
Bracket, Engine Cover, NO.2
2016-06 → 2019-01
ended
|
1NDTV NDE180 TUP | — | |
| 12632-33041 note |
Bracket, Engine Cover, NO.2
2016-06 → —
|
1NDTV NDE180 SAP | — | |
| 12633 — Bracket, Engine Cover, NO.3 | ||||
| 12633-0N010 note |
Bracket, Engine Cover, NO.3
2013-06 → 2016-05
ended
|
1NDTV NDE180 TUP | — | |
| 12633-0N010 note |
Bracket, Engine Cover, NO.3
2013-06 → 2017-01
ended
|
1NDTV NDE180 SAP | — | |
| 12633-33020 note |
Bracket, Engine Cover, NO.3
2013-06 → 2016-05
ended
|
1NDTV NDE180 TUP | — | |
| 12633-33020 note |
Bracket, Engine Cover, NO.3
2013-06 → 2017-01
ended
|
1NDTV NDE180 SAP | — | |
| 12633-0N010 note |
Bracket, Engine Cover, NO.3
2016-06 → 2019-01
ended
|
1NDTV NDE180 TUP | — | |
| 12633-0N010 note |
Bracket, Engine Cover, NO.3
2016-06 → —
|
1NDTV NDE180 SAP | — | |
| 12633-33020 note |
Bracket, Engine Cover, NO.3
2016-06 → 2019-01
ended
|
1NDTV NDE180 TUP | — | |
| 12633-33020 note |
Bracket, Engine Cover, NO.3
2016-06 → —
|
1NDTV NDE180 SAP | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
