Toyota Corolla
2013-06 → present · chassis NDE180,NRE180,ZRE18#,ZRE21#,ZWE219 · catalogue 164320 · General
Supported model
Data version 2019-11

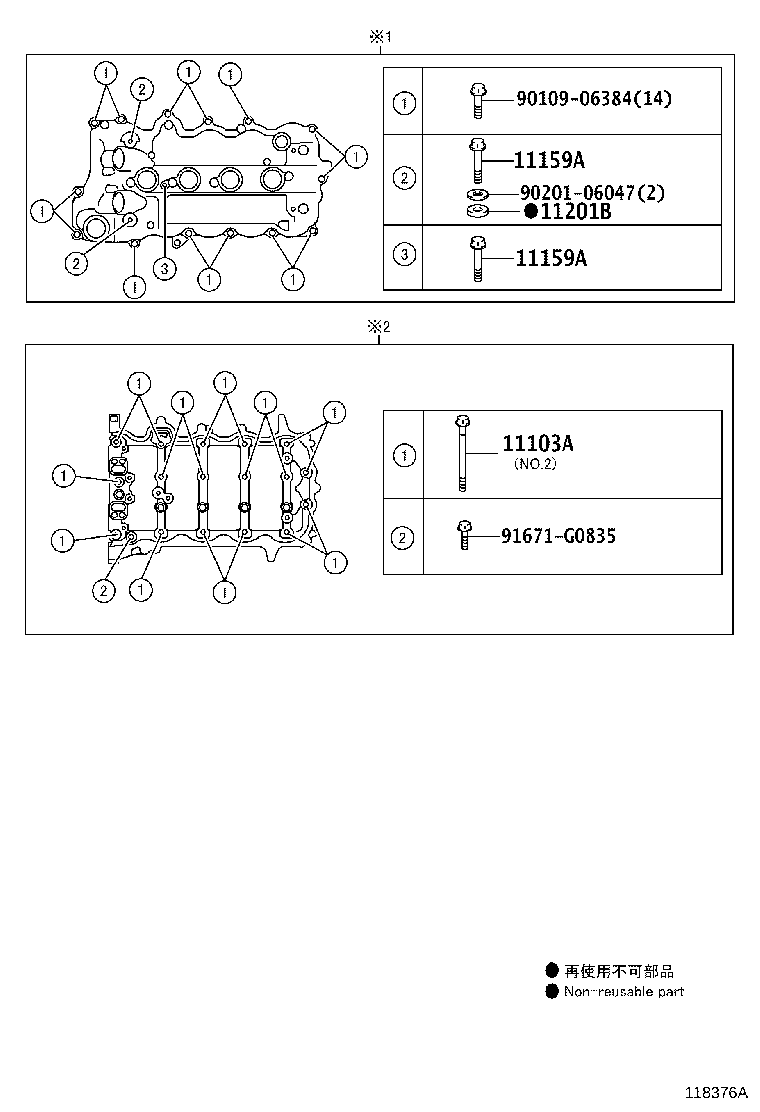

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 11103A — Bolt(FOR CAMSHAFT HOUSING SET) | ||||
| 90105-08455 note |
Bolt(FOR CAMSHAFT HOUSING SET)
2014-01 → 2017-01
ended
|
1NRFE NRE180 SAP | — | |
| 90119-07009 note |
Bolt(FOR CAMSHAFT HOUSING SET)
2014-01 → 2017-01
ended
|
1NRFE NRE180 SAP | — | |
| 90105-08455 note |
Bolt(FOR CAMSHAFT HOUSING SET)
2016-06 → 2018-08
ended
|
1NRFE NRE180 TUP | — | |
| 90105-08455 note |
Bolt(FOR CAMSHAFT HOUSING SET)
2016-06 → —
|
1NRFE NRE180 SAP | — | |
| 90119-07009 note |
Bolt(FOR CAMSHAFT HOUSING SET)
2016-06 → 2018-08
ended
|
1NRFE NRE180 TUP | — | |
| 90119-07009 note |
Bolt(FOR CAMSHAFT HOUSING SET)
2016-06 → —
|
1NRFE NRE180 SAP | — | |
| 11159A — Bolt(FOR HEAD TO CAMSHAFT BEARING CAP) | ||||
| 90105-06360 |
Bolt(FOR HEAD TO CAMSHAFT BEARING CAP)
2016-11 → 2017-01
ended
|
1NRFE NRE180 SAP | — | |
| 90105-T0347 |
Bolt(FOR HEAD TO CAMSHAFT BEARING CAP)
2016-06 → 2016-10
ended
|
1NRFE NRE180 SAP | — | |
| 90119-07008 note |
Bolt(FOR HEAD TO CAMSHAFT BEARING CAP)
2013-06 → 2017-01
ended
|
1NDTV NDE180 | — | |
| 90119-07009 note |
Bolt(FOR HEAD TO CAMSHAFT BEARING CAP)
2013-06 → 2017-01
ended
|
1NDTV NDE180 | — | |
| 91551-80635 |
Bolt(FOR HEAD TO CAMSHAFT BEARING CAP)
2014-01 → 2016-06
ended
|
1NRFE NRE180 | — | |
| 90105-06360 |
Bolt(FOR HEAD TO CAMSHAFT BEARING CAP)
2016-11 → 2017-05
ended
|
1NRFE NRE180 | — | |
| 90105-T0347 |
Bolt(FOR HEAD TO CAMSHAFT BEARING CAP)
2016-06 → 2016-10
ended
|
1NRFE NRE180 TUP | — | |
| 90119-07008 note |
Bolt(FOR HEAD TO CAMSHAFT BEARING CAP)
2016-06 → 2019-01
ended
|
1NDTV NDE180 TUP | — | |
| 90119-07008 note |
Bolt(FOR HEAD TO CAMSHAFT BEARING CAP)
2016-06 → —
|
1NDTV NDE180 SAP | — | |
| 90119-07009 note |
Bolt(FOR HEAD TO CAMSHAFT BEARING CAP)
2016-06 → 2019-01
ended
|
1NDTV NDE180 TUP | — | |
| 90119-07009 note |
Bolt(FOR HEAD TO CAMSHAFT BEARING CAP)
2016-06 → —
|
1NDTV NDE180 SAP | — | |
| 91551-80635 |
Bolt(FOR HEAD TO CAMSHAFT BEARING CAP)
2017-05 → 2018-08
ended
|
1NRFE NRE180 TUP | — | |
| 91551-80635 |
Bolt(FOR HEAD TO CAMSHAFT BEARING CAP)
2017-05 → —
|
1NRFE NRE180 SAP | — | |
| 11201B — Washer, Seal(FOR CYLINDER HEAD COVER) | ||||
| 16258-37010 note |
Washer, Seal(FOR CYLINDER HEAD COVER)
2014-01 → 2017-01
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 90210-06013 note |
Washer, Seal(FOR CYLINDER HEAD COVER)
2014-01 → 2017-01
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 90210-12011 |
Washer, Seal(FOR CYLINDER HEAD COVER)
2014-01 → 2017-01
ended
|
1NRFE NRE180 SAP | — | |
| 16258-37010 note |
Washer, Seal(FOR CYLINDER HEAD COVER)
2016-06 → 2019-01
ended
|
1ZRFE,2ZRFE ZRE18# TUP | — | |
| 16258-37010 note |
Washer, Seal(FOR CYLINDER HEAD COVER)
2016-06 → 2019-12
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 90210-06013 note |
Washer, Seal(FOR CYLINDER HEAD COVER)
2016-06 → 2019-01
ended
|
1ZRFE,2ZRFE ZRE18# TUP | — | |
| 90210-06013 note |
Washer, Seal(FOR CYLINDER HEAD COVER)
2016-06 → 2019-12
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 90210-12011 |
Washer, Seal(FOR CYLINDER HEAD COVER)
2016-06 → 2018-08
ended
|
1NRFE NRE180 TUP | — | |
| 90210-12011 |
Washer, Seal(FOR CYLINDER HEAD COVER)
2016-06 → —
|
1NRFE NRE180 SAP | — | |
| 16258-37010 note |
Washer, Seal(FOR CYLINDER HEAD COVER)
2019-12 → —
|
2ZRFE ZRE182 | — | |
| 90210-06013 note |
Washer, Seal(FOR CYLINDER HEAD COVER)
2019-12 → —
|
2ZRFE ZRE182 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
