Toyota Corolla
2013-06 → present · chassis NDE180,NRE180,ZRE18#,ZRE21#,ZWE219 · catalogue 164320 · General
Supported model
Data version 2019-11

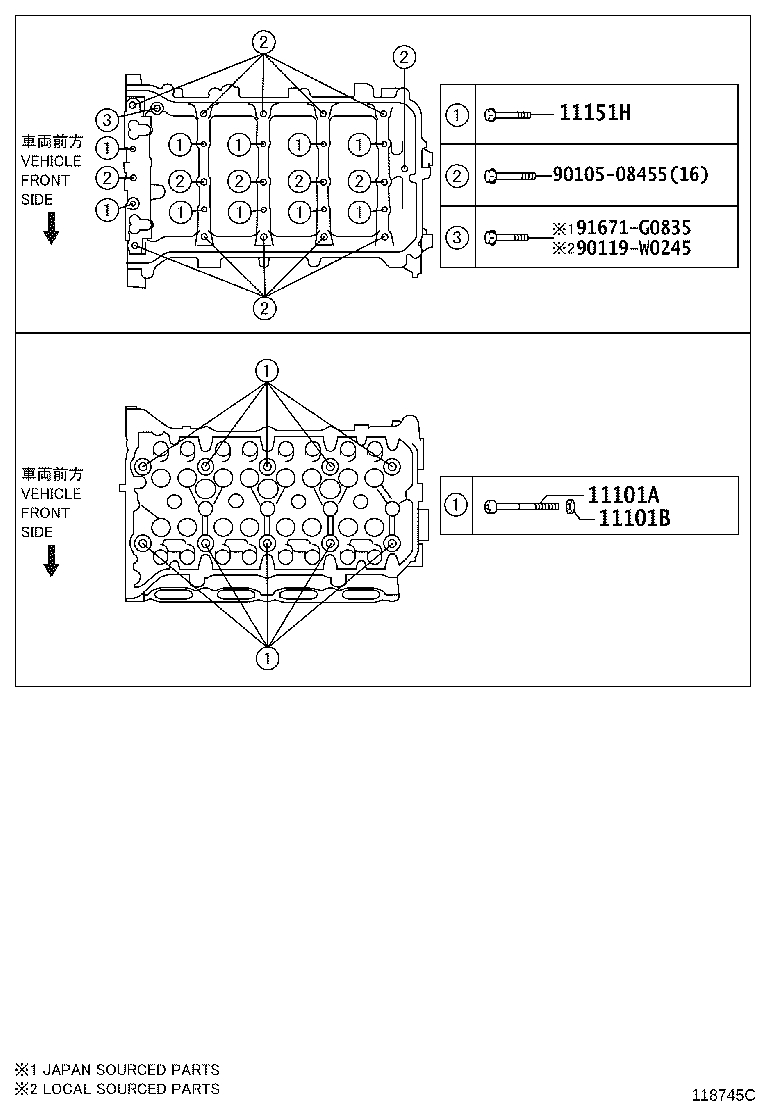

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 11101A — Bolt(FOR CYLINDER HEAD SET) | ||||
| 90910-02166 |
Bolt(FOR CYLINDER HEAD SET)
2014-01 → 2017-01
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 90910-02171 |
Bolt(FOR CYLINDER HEAD SET)
2013-06 → 2017-01
ended
|
1NDTV NDE180 SAP | — | |
| 90910-02171 |
Bolt(FOR CYLINDER HEAD SET)
2013-06 → 2016-05
ended
|
1NDTV NDE180 TUP | — | |
| 90910-02174 |
Bolt(FOR CYLINDER HEAD SET)
2014-01 → 2017-01
ended
|
1NRFE NRE180 SAP | — | |
| 90910-02166 |
Bolt(FOR CYLINDER HEAD SET)
2016-06 → 2019-01
ended
|
1ZRFE,2ZRFE ZRE18# TUP | — | |
| 90910-02166 |
Bolt(FOR CYLINDER HEAD SET)
2016-06 → 2019-12
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 90910-02171 |
Bolt(FOR CYLINDER HEAD SET)
2016-06 → 2019-01
ended
|
1NDTV NDE180 TUP | — | |
| 90910-02171 |
Bolt(FOR CYLINDER HEAD SET)
2016-06 → —
|
1NDTV NDE180 SAP | — | |
| 90910-02174 |
Bolt(FOR CYLINDER HEAD SET)
2016-06 → 2018-08
ended
|
1NRFE NRE180 TUP | — | |
| 90910-02174 |
Bolt(FOR CYLINDER HEAD SET)
2016-06 → —
|
1NRFE NRE180 SAP | — | |
| 90910-02166 |
Bolt(FOR CYLINDER HEAD SET)
2019-12 → —
|
2ZRFE ZRE182 | — | |
| 11101B — Washer, Plate(FOR CYLINDER HEAD SET) | ||||
| 90201-10344 |
Washer, Plate(FOR CYLINDER HEAD SET)
2014-01 → 2017-01
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 90201-10344 |
Washer, Plate(FOR CYLINDER HEAD SET)
2014-01 → 2017-01
ended
|
1NRFE NRE180 SAP | — | |
| 90201-13042 |
Washer, Plate(FOR CYLINDER HEAD SET)
2013-06 → 2017-01
ended
|
1NDTV NDE180 SAP | — | |
| 90201-13042 |
Washer, Plate(FOR CYLINDER HEAD SET)
2013-06 → 2016-05
ended
|
1NDTV NDE180 TUP | — | |
| 90201-10344 |
Washer, Plate(FOR CYLINDER HEAD SET)
2016-06 → 2018-08
ended
|
1NRFE NRE180 TUP | — | |
| 90201-10344 |
Washer, Plate(FOR CYLINDER HEAD SET)
2016-06 → 2019-01
ended
|
1ZRFE,2ZRFE ZRE18# TUP | — | |
| 90201-10344 |
Washer, Plate(FOR CYLINDER HEAD SET)
2016-06 → 2019-12
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 90201-10344 |
Washer, Plate(FOR CYLINDER HEAD SET)
2016-06 → —
|
1NRFE NRE180 SAP | — | |
| 90201-13042 |
Washer, Plate(FOR CYLINDER HEAD SET)
2016-06 → 2019-01
ended
|
1NDTV NDE180 TUP | — | |
| 90201-13042 |
Washer, Plate(FOR CYLINDER HEAD SET)
2016-06 → —
|
1NDTV NDE180 SAP | — | |
| 90201-10344 |
Washer, Plate(FOR CYLINDER HEAD SET)
2019-12 → —
|
2ZRFE ZRE182 | — | |
| 11151H — Bolt(FOR CAMSHAFT BEARING CAP TO HOUSING) | ||||
| 90119-07009 |
Bolt(FOR CAMSHAFT BEARING CAP TO HOUSING)
2014-01 → 2017-01
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 90119-07009 |
Bolt(FOR CAMSHAFT BEARING CAP TO HOUSING)
2016-06 → 2019-01
ended
|
1ZRFE,2ZRFE ZRE18# TUP | — | |
| 90119-07009 |
Bolt(FOR CAMSHAFT BEARING CAP TO HOUSING)
2016-06 → 2019-12
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 90119-07009 |
Bolt(FOR CAMSHAFT BEARING CAP TO HOUSING)
2019-12 → —
|
2ZRFE ZRE182 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
