Toyota Corolla
2013-06 → present · chassis NDE180,NRE180,ZRE18#,ZRE21#,ZWE219 · catalogue 164320 · General
Supported model
Data version 2019-11

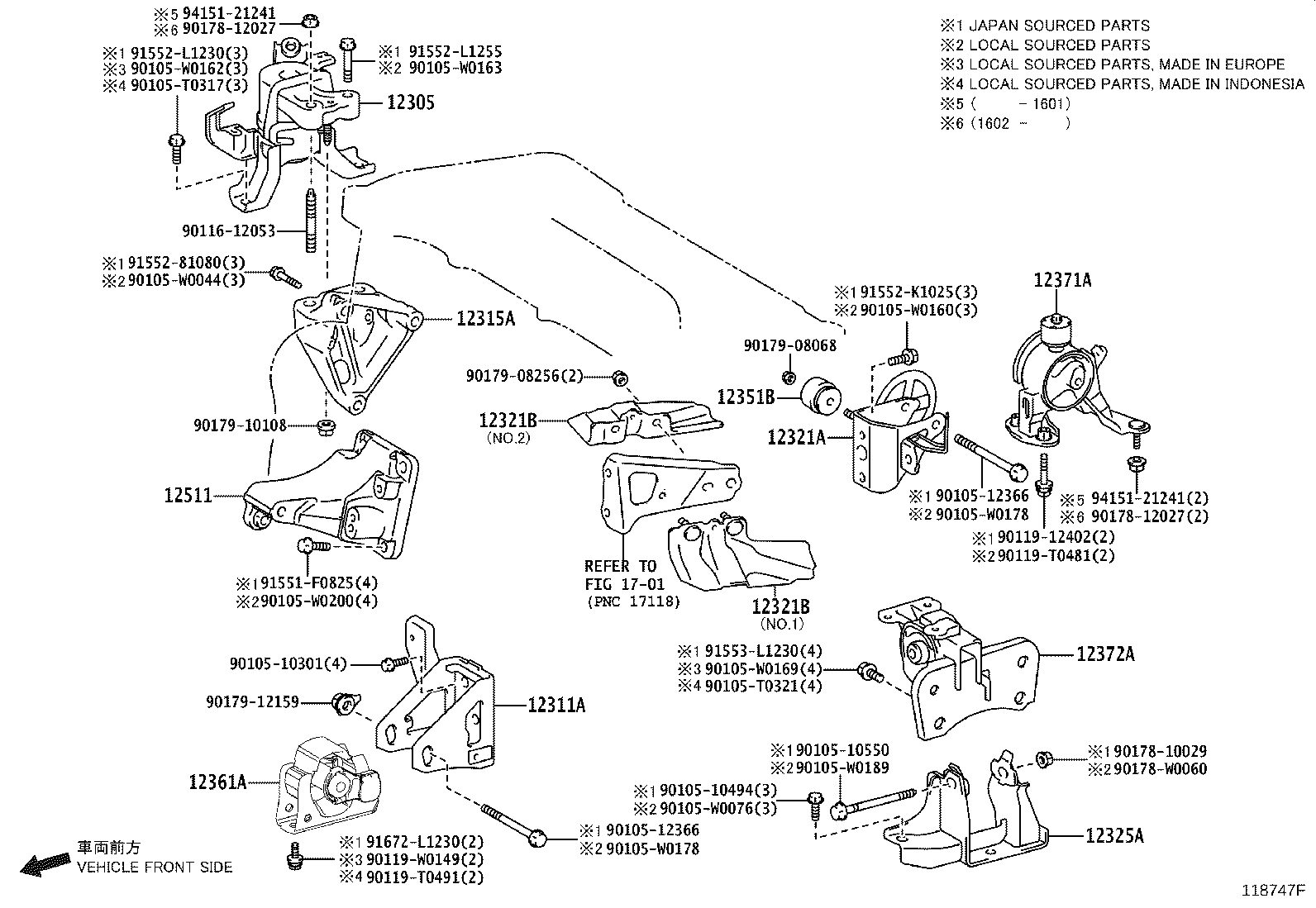

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 12305 — Insulator Sub-assy, Engine Mounting, RH | ||||
| 12305-0N090 |
Insulator Sub-assy, Engine Mounting, RH
2013-06 → 2017-01
ended
|
1NDTV NDE180 SAP | — | |
| 12305-0N090 |
Insulator Sub-assy, Engine Mounting, RH
2013-06 → 2016-05
ended
|
1NDTV NDE180 TUP | — | |
| 12305-0T150 |
Insulator Sub-assy, Engine Mounting, RH
2014-01 → 2017-01
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 12305-0Y070 |
Insulator Sub-assy, Engine Mounting, RH
2014-01 → 2017-01
ended
|
1NRFE NRE180 SAP | — | |
| 12305-0N090 |
Insulator Sub-assy, Engine Mounting, RH
2016-06 → 2019-01
ended
|
1NDTV NDE180 TUP | — | |
| 12305-0N090 |
Insulator Sub-assy, Engine Mounting, RH
2016-06 → —
|
1NDTV NDE180 SAP | — | |
| 12305-0T150 |
Insulator Sub-assy, Engine Mounting, RH
2016-06 → 2019-01
ended
|
1ZRFE,2ZRFE ZRE18# TUP | — | |
| 12305-0T150 |
Insulator Sub-assy, Engine Mounting, RH
2016-06 → 2019-12
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 12305-0Y070 |
Insulator Sub-assy, Engine Mounting, RH
2016-06 → 2018-08
ended
|
1NRFE NRE180 TUP | — | |
| 12305-0Y070 |
Insulator Sub-assy, Engine Mounting, RH
2016-06 → —
|
1NRFE NRE180 SAP | — | |
| 12305-0T150 |
Insulator Sub-assy, Engine Mounting, RH
2019-12 → —
|
2ZRFE ZRE182 | — | |
| 12311A — Bracket, Engine Mounting, Front(FOR TRANSVERSE ENGINE) | ||||
| 12311-0N070 note |
Bracket, Engine Mounting, Front(FOR TRANSVERSE ENGINE)
2013-06 → 2017-01
ended
|
1NDTV NDE180 SAP | — | |
| 12311-0N070 note |
Bracket, Engine Mounting, Front(FOR TRANSVERSE ENGINE)
2013-06 → 2016-05
ended
|
1NDTV NDE180 TUP | — | |
| 12311-0N080 note |
Bracket, Engine Mounting, Front(FOR TRANSVERSE ENGINE)
2014-01 → 2016-05
ended
|
1NDTV NDE180 TUP | — | |
| 12311-0N080 note |
Bracket, Engine Mounting, Front(FOR TRANSVERSE ENGINE)
2014-01 → 2017-01
ended
|
1NDTV NDE180 SAP | — | |
| 12311-0T340 note |
Bracket, Engine Mounting, Front(FOR TRANSVERSE ENGINE)
2014-01 → 2017-01
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 12311-0T340 note |
Bracket, Engine Mounting, Front(FOR TRANSVERSE ENGINE)
2014-01 → 2017-01
ended
|
1NRFE NRE180 SAP | — | |
| 12311-0T390 note |
Bracket, Engine Mounting, Front(FOR TRANSVERSE ENGINE)
2014-01 → 2017-01
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 12311-0T390 note |
Bracket, Engine Mounting, Front(FOR TRANSVERSE ENGINE)
2014-01 → 2017-01
ended
|
1NRFE NRE180 SAP | — | |
| 12311-0N070 note |
Bracket, Engine Mounting, Front(FOR TRANSVERSE ENGINE)
2016-06 → 2019-01
ended
|
1NDTV NDE180 | — | |
| 12311-0N080 note |
Bracket, Engine Mounting, Front(FOR TRANSVERSE ENGINE)
2016-06 → 2019-01
ended
|
1NDTV NDE180 TUP | — | |
| 12311-0N080 note |
Bracket, Engine Mounting, Front(FOR TRANSVERSE ENGINE)
2016-06 → —
|
1NDTV NDE180 SAP | — | |
| 12311-0T340 note |
Bracket, Engine Mounting, Front(FOR TRANSVERSE ENGINE)
2016-06 → 2018-08
ended
|
1NRFE NRE180 TUP | — | |
| 12311-0T340 note |
Bracket, Engine Mounting, Front(FOR TRANSVERSE ENGINE)
2016-06 → 2019-01
ended
|
1NRFE NRE180 SAP | — | |
| 12311-0T340 note |
Bracket, Engine Mounting, Front(FOR TRANSVERSE ENGINE)
2016-06 → 2019-01
ended
|
1ZRFE,2ZRFE ZRE18# | — | |
| 12311-0T390 note |
Bracket, Engine Mounting, Front(FOR TRANSVERSE ENGINE)
2016-06 → 2019-01
ended
|
1ZRFE,2ZRFE ZRE18# TUP | — | |
| 12311-0T390 note |
Bracket, Engine Mounting, Front(FOR TRANSVERSE ENGINE)
2016-06 → —
|
1NRFE NRE180 SAP | — | |
| 12311-0T390 note |
Bracket, Engine Mounting, Front(FOR TRANSVERSE ENGINE)
2016-06 → 2019-12
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 12311-0T390 note |
Bracket, Engine Mounting, Front(FOR TRANSVERSE ENGINE)
2016-06 → 2018-08
ended
|
1NRFE NRE180 TUP | — | |
| 12311-0T390 |
Bracket, Engine Mounting, Front(FOR TRANSVERSE ENGINE)
2019-12 → —
|
2ZRFE ZRE182 | — | |
| 12315A — Bracket, Engine Mounting, RH(FOR TRANSVERSE ENGINE) | ||||
| 12315-0N010 note |
Bracket, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
2013-06 → 2016-05
ended
|
1NDTV NDE180 TUP | — | |
| 12315-0N010 note |
Bracket, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
2013-06 → 2017-01
ended
|
1NDTV NDE180 SAP | — | |
| 12315-33050 note |
Bracket, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
2013-06 → 2016-05
ended
|
1NDTV NDE180 TUP | — | |
| 12315-33050 note |
Bracket, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
2013-06 → 2017-01
ended
|
1NDTV NDE180 SAP | — | |
| 12315-37030 |
Bracket, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
2014-01 → 2017-01
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 12315-47040 |
Bracket, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
2014-01 → 2017-01
ended
|
1NRFE NRE180 SAP | — | |
| 12315-0N010 note |
Bracket, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
2016-06 → 2019-01
ended
|
1NDTV NDE180 TUP | — | |
| 12315-0N010 note |
Bracket, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
2016-06 → —
|
1NDTV NDE180 SAP | — | |
| 12315-33050 note |
Bracket, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
2016-06 → 2019-01
ended
|
1NDTV NDE180 TUP | — | |
| 12315-33050 note |
Bracket, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
2016-06 → —
|
1NDTV NDE180 SAP | — | |
| 12315-37030 |
Bracket, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
2016-06 → 2019-12
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 12315-37030 |
Bracket, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
2016-06 → 2019-01
ended
|
1ZRFE,2ZRFE ZRE18# TUP | — | |
| 12315-47040 |
Bracket, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
2016-06 → 2018-08
ended
|
1NRFE NRE180 TUP | — | |
| 12315-47040 |
Bracket, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
2016-06 → —
|
1NRFE NRE180 SAP | — | |
| 12315-37030 |
Bracket, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
2019-12 → —
|
2ZRFE ZRE182 | — | |
| 12321A — Bracket, Engine Mounting, Rear(FOR TRANSVERSE ENGINE) | ||||
| 12321-0T090 |
Bracket, Engine Mounting, Rear(FOR TRANSVERSE ENGINE)
2014-01 → 2014-05
ended
|
1ZRFE,2ZRFE ZRE18# CVT | — | |
| 12321-0T130 note |
Bracket, Engine Mounting, Rear(FOR TRANSVERSE ENGINE)
2014-01 → 2017-01
ended
|
1ZRFE,2ZRFE ZRE18# 6F SAP | — | |
| 12321-0T140 |
Bracket, Engine Mounting, Rear(FOR TRANSVERSE ENGINE)
2014-05 → 2017-01
ended
|
1ZRFE,2ZRFE ZRE18# CVT SAP | — | |
| 12321-0T150 note |
Bracket, Engine Mounting, Rear(FOR TRANSVERSE ENGINE)
2014-01 → 2017-01
ended
|
1ZRFE,2ZRFE ZRE18# 6F SAP | — | |
| 12321-0Y010 note |
Bracket, Engine Mounting, Rear(FOR TRANSVERSE ENGINE)
2013-06 → 2017-01
ended
|
1N# NDE180,NRE180 SAP | — | |
| 12321-0Y010 note |
Bracket, Engine Mounting, Rear(FOR TRANSVERSE ENGINE)
2013-06 → 2016-05
ended
|
1NDTV NDE180 TUP | — | |
| 12321-0Y020 note |
Bracket, Engine Mounting, Rear(FOR TRANSVERSE ENGINE)
2014-01 → 2017-01
ended
|
1N# NDE180,NRE180 SAP | — | |
| 12321-0Y020 note |
Bracket, Engine Mounting, Rear(FOR TRANSVERSE ENGINE)
2014-01 → 2016-05
ended
|
1NDTV NDE180 TUP | — | |
| 12321-0T130 |
Bracket, Engine Mounting, Rear(FOR TRANSVERSE ENGINE)
2016-06 → 2019-01
ended
|
1ZRFE ZRE181 6F GCC | — | |
| 12321-0T130 note |
Bracket, Engine Mounting, Rear(FOR TRANSVERSE ENGINE)
2016-06 → 2019-01
ended
|
1ZRFE,2ZRFE ZRE18# 6F (GEN,SA) | — | |
| 12321-0T140 |
Bracket, Engine Mounting, Rear(FOR TRANSVERSE ENGINE)
2016-06 → 2019-01
ended
|
1ZRFE,2ZRFE ZRE18# CVT TUP | — | |
| 12321-0T140 |
Bracket, Engine Mounting, Rear(FOR TRANSVERSE ENGINE)
2016-06 → 2019-12
ended
|
1ZRFE,2ZRFE ZRE18# CVT SAP | — | |
| 12321-0T150 note |
Bracket, Engine Mounting, Rear(FOR TRANSVERSE ENGINE)
2016-06 → 2019-01
ended
|
1ZRFE ZRE181 6F GEN +1 | — | |
| 12321-0T150 note |
Bracket, Engine Mounting, Rear(FOR TRANSVERSE ENGINE)
2016-06 → 2019-12
ended
|
1ZRFE,2ZRFE ZRE18# 6F SAP | — | |
| 12321-0Y010 note |
Bracket, Engine Mounting, Rear(FOR TRANSVERSE ENGINE)
2016-06 → 2018-08
ended
|
1NRFE NRE180 TUP | — | |
| 12321-0Y010 note |
Bracket, Engine Mounting, Rear(FOR TRANSVERSE ENGINE)
2016-06 → —
|
1NRFE NRE180 SAP | — | |
| 12321-0Y010 note |
Bracket, Engine Mounting, Rear(FOR TRANSVERSE ENGINE)
2016-06 → 2019-01
ended
|
1NDTV NDE180 | — | |
| 12321-0Y020 note |
Bracket, Engine Mounting, Rear(FOR TRANSVERSE ENGINE)
2016-06 → 2019-01
ended
|
1NDTV NDE180 TUP | — | |
| 12321-0Y020 note |
Bracket, Engine Mounting, Rear(FOR TRANSVERSE ENGINE)
2016-06 → 2018-08
ended
|
1NRFE NRE180 TUP | — | |
| 12321-0Y020 note |
Bracket, Engine Mounting, Rear(FOR TRANSVERSE ENGINE)
2016-06 → —
|
1N# NDE180,NRE180 SAP | — | |
| 12321-0T140 |
Bracket, Engine Mounting, Rear(FOR TRANSVERSE ENGINE)
2019-12 → —
|
2ZRFE ZRE182 CVT | — | |
| 12321-0T150 note |
Bracket, Engine Mounting, Rear(FOR TRANSVERSE ENGINE)
2019-12 → —
|
2ZRFE ZRE182 6F | — | |
| 12321B — Insulator Sub-assy, Drive Shaft Heat | ||||
| 43409-12060 note |
Insulator Sub-assy, Drive Shaft Heat
2014-01 → 2017-01
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 43498-12051 note |
Insulator Sub-assy, Drive Shaft Heat
2014-01 → 2017-01
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 43409-02031 note |
Insulator Sub-assy, Drive Shaft Heat
2018-10 → 2019-12
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 43409-12060 note |
Insulator Sub-assy, Drive Shaft Heat
2016-06 → 2019-01
ended
|
1ZRFE,2ZRFE ZRE18# TUP | — | |
| 43409-12060 note |
Insulator Sub-assy, Drive Shaft Heat
2016-06 → 2018-10
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 43498-02061 note |
Insulator Sub-assy, Drive Shaft Heat
2018-10 → 2019-12
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 43498-12051 note |
Insulator Sub-assy, Drive Shaft Heat
2016-06 → 2019-01
ended
|
1ZRFE,2ZRFE ZRE18# TUP | — | |
| 43498-12051 note |
Insulator Sub-assy, Drive Shaft Heat
2016-06 → 2018-10
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 43409-02031 note |
Insulator Sub-assy, Drive Shaft Heat
2019-12 → —
|
2ZRFE ZRE182 | — | |
| 43498-02061 note |
Insulator Sub-assy, Drive Shaft Heat
2019-12 → —
|
2ZRFE ZRE182 | — | |
| 12325A — Bracket, Engine Mounting, LH(FOR TRANSVERSE ENGINE) | ||||
| 12325-0T140 note |
Bracket, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
2013-06 → 2016-05
ended
|
1NDTV NDE180 TUP | — | |
| 12325-0T140 note |
Bracket, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
2013-06 → 2017-01
ended
|
1NDTV NDE180 SAP | — | |
| 12325-0T140 note |
Bracket, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
2014-01 → 2017-01
ended
|
1ZRFE,2ZRFE ZRE18# 6F SAP | — | |
| 12325-0T150 |
Bracket, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
2014-01 → 2017-01
ended
|
1ZRFE,2ZRFE ZRE18# CVT SAP | — | |
| 12325-0T160 note |
Bracket, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
2014-01 → 2017-01
ended
|
1NDTV NDE180 SAP | — | |
| 12325-0T160 note |
Bracket, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
2014-01 → 2017-01
ended
|
1ZRFE,2ZRFE ZRE18# 6F SAP | — | |
| 12325-0T160 note |
Bracket, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
2014-01 → 2016-05
ended
|
1NDTV NDE180 TUP | — | |
| 12325-0Y080 note |
Bracket, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
2014-01 → 2017-01
ended
|
1NRFE NRE180 SAP | — | |
| 12325-0Y090 note |
Bracket, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
2014-01 → 2017-01
ended
|
1NRFE NRE180 SAP | — | |
| 12325-0T140 note |
Bracket, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
2016-06 → 2019-01
ended
|
1NDTV NDE180 | — | |
| 12325-0T140 note |
Bracket, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
2016-06 → 2019-01
ended
|
1ZRFE,2ZRFE ZRE18# 6F | — | |
| 12325-0T150 |
Bracket, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
2016-06 → 2019-01
ended
|
1ZRFE,2ZRFE ZRE18# CVT TUP | — | |
| 12325-0T150 |
Bracket, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
2016-06 → 2019-12
ended
|
1ZRFE,2ZRFE ZRE18# CVT SAP | — | |
| 12325-0T160 note |
Bracket, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
2016-06 → 2019-01
ended
|
1NDTV NDE180 TUP | — | |
| 12325-0T160 note |
Bracket, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
2016-06 → 2019-01
ended
|
1ZRFE ZRE181 6F TUP | — | |
| 12325-0T160 note |
Bracket, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
2016-06 → 2019-12
ended
|
1ZRFE,2ZRFE ZRE18# 6F SAP | — | |
| 12325-0T160 note |
Bracket, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
2016-06 → —
|
1NDTV NDE180 SAP | — | |
| 12325-0Y080 note |
Bracket, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
2016-06 → 2018-08
ended
|
1NRFE NRE180 TUP | — | |
| 12325-0Y080 note |
Bracket, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
2016-06 → —
|
1NRFE NRE180 SAP | — | |
| 12325-0Y090 note |
Bracket, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
2016-06 → 2018-08
ended
|
1NRFE NRE180 TUP | — | |
| 12325-0Y090 note |
Bracket, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
2016-06 → —
|
1NRFE NRE180 SAP | — | |
| 12325-0T150 |
Bracket, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
2019-12 → —
|
2ZRFE ZRE182 CVT | — | |
| 12325-0T160 note |
Bracket, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
2019-12 → —
|
2ZRFE ZRE182 6F | — | |
| 12351B — Damper, Engine Mounting | ||||
| 12351-0D080 |
Damper, Engine Mounting
2014-01 → 2017-01
ended
|
1ZRFE,2ZRFE ZRE18# CVT SAP | — | |
| 12351-0R010 note |
Damper, Engine Mounting
2013-06 → 2016-05
ended
|
1NDTV NDE180 TUP | — | |
| 12351-0R010 note |
Damper, Engine Mounting
2014-01 → 2017-01
ended
|
1ZRFE,2ZRFE ZRE18# 6F SAP | — | |
| 12351-0R010 note |
Damper, Engine Mounting
2013-06 → 2017-01
ended
|
1NDTV NDE180 SAP | — | |
| 12351-26010 note |
Damper, Engine Mounting
2014-01 → 2016-05
ended
|
1NDTV NDE180 TUP | — | |
| 12351-26010 note |
Damper, Engine Mounting
2014-01 → 2017-01
ended
|
1ZRFE,2ZRFE ZRE18# 6F SAP | — | |
| 12351-26010 note |
Damper, Engine Mounting
2014-01 → 2017-01
ended
|
1NDTV NDE180 SAP | — | |
| 12351-0D080 |
Damper, Engine Mounting
2016-06 → 2019-01
ended
|
1ZRFE,2ZRFE ZRE18# CVT TUP | — | |
| 12351-0D080 |
Damper, Engine Mounting
2016-06 → 2019-12
ended
|
1ZRFE,2ZRFE ZRE18# CVT SAP | — | |
| 12351-0R010 note |
Damper, Engine Mounting
2016-06 → 2019-01
ended
|
1NDTV NDE180 | — | |
| 12351-0R010 note |
Damper, Engine Mounting
2016-06 → 2019-01
ended
|
1ZRFE,2ZRFE ZRE18# 6F | — | |
| 12351-26010 note |
Damper, Engine Mounting
2016-06 → 2019-01
ended
|
1NDTV NDE180 TUP | — | |
| 12351-26010 note |
Damper, Engine Mounting
2016-06 → 2019-01
ended
|
1ZRFE ZRE181 6F TUP | — | |
| 12351-26010 note |
Damper, Engine Mounting
2016-06 → 2019-12
ended
|
1ZRFE,2ZRFE ZRE18# 6F SAP | — | |
| 12351-26010 note |
Damper, Engine Mounting
2016-06 → —
|
1NDTV NDE180 SAP | — | |
| 12351-0D080 |
Damper, Engine Mounting
2019-12 → —
|
2ZRFE ZRE182 CVT | — | |
| 12351-26010 note |
Damper, Engine Mounting
2019-12 → —
|
2ZRFE ZRE182 6F | — | |
| 12361A — Insulator, Engine Mounting, Front(FOR TRANSVERSE ENGINE) | ||||
| 12361-0T170 |
Insulator, Engine Mounting, Front(FOR TRANSVERSE ENGINE)
2014-01 → 2015-02
ended
|
1ZRFE,2ZRFE ZRE18# 6F | — | |
| 12361-0T170 |
Insulator, Engine Mounting, Front(FOR TRANSVERSE ENGINE)
2013-06 → 2015-02
ended
|
1N# NDE180,NRE180 | — | |
| 12361-0T171 |
Insulator, Engine Mounting, Front(FOR TRANSVERSE ENGINE)
2015-03 → 2016-05
ended
|
1NDTV NDE180 TUP | — | |
| 12361-0T171 |
Insulator, Engine Mounting, Front(FOR TRANSVERSE ENGINE)
2015-03 → 2017-01
ended
|
1ZRFE,2ZRFE ZRE18# 6F SAP | — | |
| 12361-0T171 |
Insulator, Engine Mounting, Front(FOR TRANSVERSE ENGINE)
2015-03 → 2017-01
ended
|
1N# NDE180,NRE180 SAP | — | |
| 12361-0T180 |
Insulator, Engine Mounting, Front(FOR TRANSVERSE ENGINE)
2014-01 → 2015-02
ended
|
1ZRFE,2ZRFE ZRE18# CVT | — | |
| 12361-0T181 |
Insulator, Engine Mounting, Front(FOR TRANSVERSE ENGINE)
2015-03 → 2017-01
ended
|
1ZRFE,2ZRFE ZRE18# CVT SAP | — | |
| 12361-0T171 |
Insulator, Engine Mounting, Front(FOR TRANSVERSE ENGINE)
2016-06 → 2018-08
ended
|
1NRFE NRE180 TUP | — | |
| 12361-0T171 |
Insulator, Engine Mounting, Front(FOR TRANSVERSE ENGINE)
2016-06 → 2019-01
ended
|
1NDTV NDE180 TUP | — | |
| 12361-0T171 |
Insulator, Engine Mounting, Front(FOR TRANSVERSE ENGINE)
2016-06 → 2019-01
ended
|
1ZRFE ZRE181 6F TUP | — | |
| 12361-0T171 |
Insulator, Engine Mounting, Front(FOR TRANSVERSE ENGINE)
2016-06 → 2019-12
ended
|
1ZRFE,2ZRFE ZRE18# 6F SAP | — | |
| 12361-0T171 |
Insulator, Engine Mounting, Front(FOR TRANSVERSE ENGINE)
2016-06 → —
|
1N# NDE180,NRE180 SAP | — | |
| 12361-0T181 |
Insulator, Engine Mounting, Front(FOR TRANSVERSE ENGINE)
2016-06 → 2019-01
ended
|
1ZRFE,2ZRFE ZRE18# CVT TUP | — | |
| 12361-0T181 |
Insulator, Engine Mounting, Front(FOR TRANSVERSE ENGINE)
2016-06 → 2019-12
ended
|
1ZRFE,2ZRFE ZRE18# CVT SAP | — | |
| 12361-0T171 |
Insulator, Engine Mounting, Front(FOR TRANSVERSE ENGINE)
2019-12 → —
|
2ZRFE ZRE182 6F | — | |
| 12361-0T181 |
Insulator, Engine Mounting, Front(FOR TRANSVERSE ENGINE)
2019-12 → —
|
2ZRFE ZRE182 CVT | — | |
| 12371A — Insulator, Engine Mounting, Rear | ||||
| 12371-0T200 |
Insulator, Engine Mounting, Rear
2013-06 → 2016-05
ended
|
1NDTV NDE180 TUP | — | |
| 12371-0T200 |
Insulator, Engine Mounting, Rear
2013-06 → 2017-01
ended
|
1NDTV NDE180 SAP | — | |
| 12371-0T200 |
Insulator, Engine Mounting, Rear
2014-01 → 2017-01
ended
|
1ZRFE,2ZRFE ZRE18# 6F SAP | — | |
| 12371-0T210 |
Insulator, Engine Mounting, Rear
2014-01 → 2017-01
ended
|
1ZRFE,2ZRFE ZRE18# CVT SAP | — | |
| 12371-0Y010 |
Insulator, Engine Mounting, Rear
2014-01 → 2017-01
ended
|
1NRFE NRE180 SAP | — | |
| 12371-0T200 |
Insulator, Engine Mounting, Rear
2016-06 → 2019-12
ended
|
1NDTV NDE180 | — | |
| 12371-0T200 |
Insulator, Engine Mounting, Rear
2016-06 → 2019-12
ended
|
1ZRFE,2ZRFE ZRE18# 6F (GEN,SA) | — | |
| 12371-0T210 |
Insulator, Engine Mounting, Rear
2016-06 → 2019-12
ended
|
1ZRFE,2ZRFE ZRE18# CVT (GEN,SA) | — | |
| 12371-0Y010 |
Insulator, Engine Mounting, Rear
2016-06 → 2019-12
ended
|
1NRFE NRE180 | — | |
| 12371-37132 |
Insulator, Engine Mounting, Rear
2016-06 → 2019-01
ended
|
1ZRFE ZRE181 6F GCC | — | |
| 12371-37142 |
Insulator, Engine Mounting, Rear
2016-06 → 2019-01
ended
|
1ZRFE,2ZRFE ZRE18# CVT GCC | — | |
| 12371-0T200 |
Insulator, Engine Mounting, Rear
2019-12 → 2020-05
ended
|
2ZRFE ZRE182 6F | — | |
| 12371-0T200 note |
Insulator, Engine Mounting, Rear
2020-05 → 2021-03
ended
|
2ZRFE ZRE182 6F | — | |
| 12371-0T200 |
Insulator, Engine Mounting, Rear
2021-03 → —
|
2ZRFE ZRE182 6F | — | |
| 12371-0T210 |
Insulator, Engine Mounting, Rear
2019-12 → 2020-05
ended
|
2ZRFE ZRE182 CVT | — | |
| 12371-0T210 note |
Insulator, Engine Mounting, Rear
2020-05 → 2021-03
ended
|
2ZRFE ZRE182 CVT | — | |
| 12371-0T210 |
Insulator, Engine Mounting, Rear
2021-03 → —
|
2ZRFE ZRE182 CVT | — | |
| 12371-37132 note |
Insulator, Engine Mounting, Rear
2020-05 → 2021-03
ended
|
2ZRFE ZRE182 6F | — | |
| 12371-37142 note |
Insulator, Engine Mounting, Rear
2020-05 → 2021-03
ended
|
2ZRFE ZRE182 CVT | — | |
| 12372A — Insulator, Engine Mounting, LH(FOR TRANSVERSE ENGINE) | ||||
| 12372-0N100 |
Insulator, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
2013-06 → 2016-05
ended
|
1NDTV NDE180 TUP | — | |
| 12372-0N100 |
Insulator, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
2013-06 → 2017-01
ended
|
1NDTV NDE180 SAP | — | |
| 12372-0T270 |
Insulator, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
2014-01 → 2017-01
ended
|
1ZRFE,2ZRFE ZRE18# 6F SAP | — | |
| 12372-0T280 |
Insulator, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
2014-01 → 2017-01
ended
|
1ZRFE,2ZRFE ZRE18# CVT SAP | — | |
| 12372-0Y070 |
Insulator, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
2014-01 → 2017-01
ended
|
1NRFE NRE180 SAP | — | |
| 12372-0N100 |
Insulator, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
2016-06 → 2019-01
ended
|
1NDTV NDE180 TUP | — | |
| 12372-0N100 |
Insulator, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
2016-06 → —
|
1NDTV NDE180 SAP | — | |
| 12372-0T270 |
Insulator, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
2016-06 → 2019-01
ended
|
1ZRFE ZRE181 6F TUP | — | |
| 12372-0T270 |
Insulator, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
2016-06 → 2019-12
ended
|
1ZRFE,2ZRFE ZRE18# 6F SAP | — | |
| 12372-0T280 |
Insulator, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
2016-06 → 2019-01
ended
|
1ZRFE,2ZRFE ZRE18# CVT TUP | — | |
| 12372-0T280 |
Insulator, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
2016-06 → 2019-12
ended
|
1ZRFE,2ZRFE ZRE18# CVT SAP | — | |
| 12372-0Y070 |
Insulator, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
2016-06 → —
|
1NRFE NRE180 SAP | — | |
| 12372-0Y070 |
Insulator, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
2016-06 → 2018-08
ended
|
1NRFE NRE180 TUP | — | |
| 12372-0T270 |
Insulator, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
2019-12 → —
|
2ZRFE ZRE182 6F | — | |
| 12372-0T280 |
Insulator, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
2019-12 → —
|
2ZRFE ZRE182 CVT | — | |
| 12511 — Bracket, Alternator, NO.1 | ||||
| 12511-0T020 note |
Bracket, Alternator, NO.1
2014-01 → 2017-01
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 12511-37010 note |
Bracket, Alternator, NO.1
2014-01 → 2017-01
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 12511-0T020 note |
Bracket, Alternator, NO.1
2016-06 → 2019-01
ended
|
1ZRFE,2ZRFE ZRE18# TUP | — | |
| 12511-0T020 note |
Bracket, Alternator, NO.1
2016-06 → 2019-12
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 12511-37010 note |
Bracket, Alternator, NO.1
2016-06 → 2019-01
ended
|
1ZRFE,2ZRFE ZRE18# TUP | — | |
| 12511-37010 note |
Bracket, Alternator, NO.1
2016-06 → 2019-12
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 12511-0T020 note |
Bracket, Alternator, NO.1
2019-12 → —
|
2ZRFE ZRE182 | — | |
| 12511-37010 note |
Bracket, Alternator, NO.1
2019-12 → —
|
2ZRFE ZRE182 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
