Toyota Corolla
2013-06 → present · chassis NDE180,NRE180,ZRE18#,ZRE21#,ZWE219 · catalogue 164320 · General
Supported model
Data version 2019-11

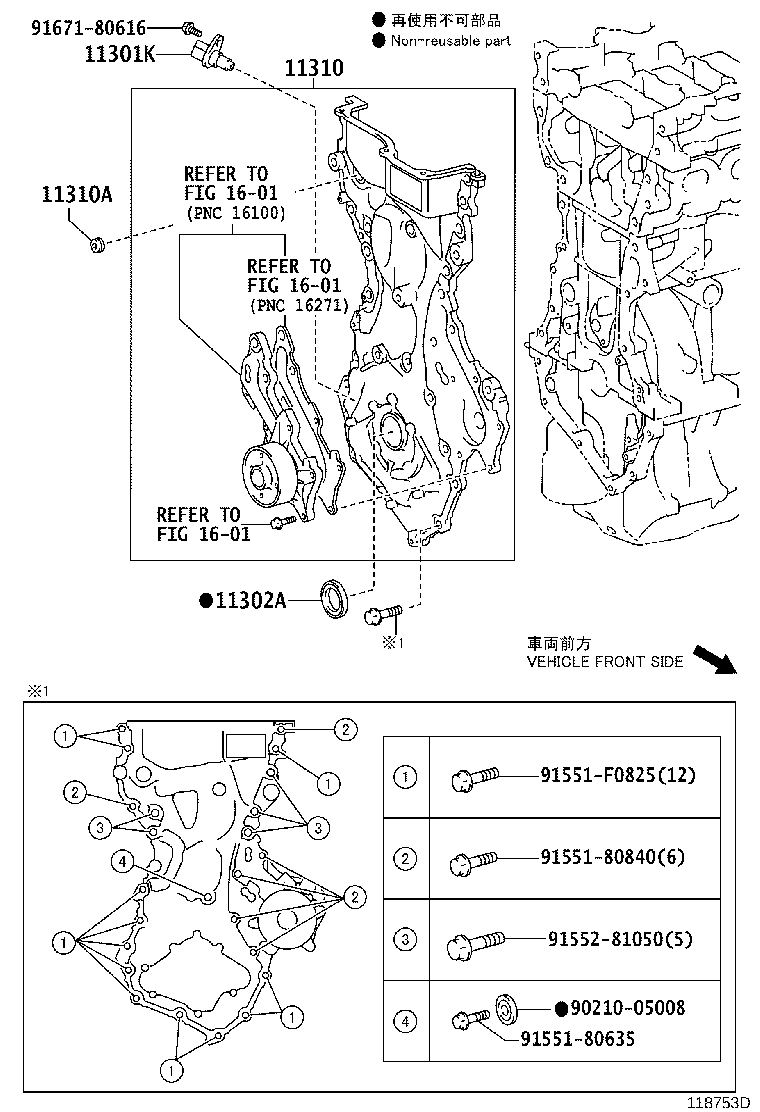

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 11301K — Sensor, Crank Position | ||||
| 90919-05073 |
Sensor, Crank Position
2014-01 → 2017-01
ended
|
1NRFE NRE180 SAP | — | |
| 90919-05073 |
Sensor, Crank Position
2016-06 → 2018-08
ended
|
1NRFE NRE180 TUP | — | |
| 90919-05073 |
Sensor, Crank Position
2016-06 → —
|
1NRFE NRE180 SAP | — | |
| 11302A — Seal, Oil(FOR TIMING CHAIN OR BELT COVER) | ||||
| 90311-25032 |
Seal, Oil(FOR TIMING CHAIN OR BELT COVER)
2014-01 → 2017-01
ended
|
1NRFE NRE180 SAP | — | |
| 90311-38089 note |
Seal, Oil(FOR TIMING CHAIN OR BELT COVER)
2014-01 → 2014-06
ended
|
1ZRFE,2ZRFE ZRE18# | — | |
| 90311-38096 |
Seal, Oil(FOR TIMING CHAIN OR BELT COVER)
2014-06 → 2017-01
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 90311-40040 |
Seal, Oil(FOR TIMING CHAIN OR BELT COVER)
2013-06 → 2016-05
ended
|
1NDTV NDE180 TUP | — | |
| 90311-40040 |
Seal, Oil(FOR TIMING CHAIN OR BELT COVER)
2013-06 → 2017-01
ended
|
1NDTV NDE180 SAP | — | |
| 90311-W0012 note |
Seal, Oil(FOR TIMING CHAIN OR BELT COVER)
2014-01 → 2014-06
ended
|
1ZRFE,2ZRFE ZRE18# | — | |
| 90311-25032 |
Seal, Oil(FOR TIMING CHAIN OR BELT COVER)
2016-06 → 2018-08
ended
|
1NRFE NRE180 TUP | — | |
| 90311-25032 |
Seal, Oil(FOR TIMING CHAIN OR BELT COVER)
2016-06 → —
|
1NRFE NRE180 SAP | — | |
| 90311-38096 |
Seal, Oil(FOR TIMING CHAIN OR BELT COVER)
2016-06 → 2019-01
ended
|
1ZRFE,2ZRFE ZRE18# TUP | — | |
| 90311-38096 |
Seal, Oil(FOR TIMING CHAIN OR BELT COVER)
2016-06 → 2019-12
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 90311-40040 |
Seal, Oil(FOR TIMING CHAIN OR BELT COVER)
2016-06 → 2019-01
ended
|
1NDTV NDE180 TUP | — | |
| 90311-40040 |
Seal, Oil(FOR TIMING CHAIN OR BELT COVER)
2016-06 → —
|
1NDTV NDE180 SAP | — | |
| 90311-38096 |
Seal, Oil(FOR TIMING CHAIN OR BELT COVER)
2019-12 → —
|
2ZRFE ZRE182 | — | |
| 11310 — Cover Assy, Timing Chain | ||||
| 11310-33011 |
Cover Assy, Timing Chain
2013-06 → 2014-11
ended
|
1NDTV NDE180 | — | |
| 11310-33012 |
Cover Assy, Timing Chain
2014-12 → 2015-07
ended
|
1NDTV NDE180 | — | |
| 11310-33013 |
Cover Assy, Timing Chain
2015-07 → 2016-05
ended
|
1NDTV NDE180 TUP | — | |
| 11310-33013 |
Cover Assy, Timing Chain
2015-07 → 2017-01
ended
|
1NDTV NDE180 SAP | — | |
| 11310-47041 |
Cover Assy, Timing Chain
2014-01 → 2014-06
ended
|
1NRFE NRE180 | — | |
| 11310-47042 |
Cover Assy, Timing Chain
2014-07 → 2017-01
ended
|
1NRFE NRE180 SAP | — | |
| 11310-33013 |
Cover Assy, Timing Chain
2016-06 → 2019-01
ended
|
1NDTV NDE180 TUP | — | |
| 11310-33013 |
Cover Assy, Timing Chain
2016-06 → —
|
1NDTV NDE180 SAP | — | |
| 11310-47042 |
Cover Assy, Timing Chain
2016-06 → 2018-08
ended
|
1NRFE NRE180 TUP | — | |
| 11310-47042 |
Cover Assy, Timing Chain
2016-06 → —
|
1NRFE NRE180 SAP | — | |
| 11310A — Plug, Taper Screw(FOR TIMING CHAIN COVER) | ||||
| 90344-53006 |
Plug, Taper Screw(FOR TIMING CHAIN COVER)
2014-01 → 2017-01
ended
|
NRE180 SAP | — | |
| 90344-53006 |
Plug, Taper Screw(FOR TIMING CHAIN COVER)
2016-06 → 2018-05
ended
|
1NRFE NRE180 | — | |
| 90344-53008 |
Plug, Taper Screw(FOR TIMING CHAIN COVER)
2018-05 → 2018-08
ended
|
1NRFE NRE180 TUP | — | |
| 90344-53008 |
Plug, Taper Screw(FOR TIMING CHAIN COVER)
2018-05 → —
|
1NRFE NRE180 SAP | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
