Toyota Corolla

2013-06 → present · chassis NDE180,NRE180,ZRE18#,ZRE21#,ZWE219 · catalogue 164320 · General

Supported model Data version 2019-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

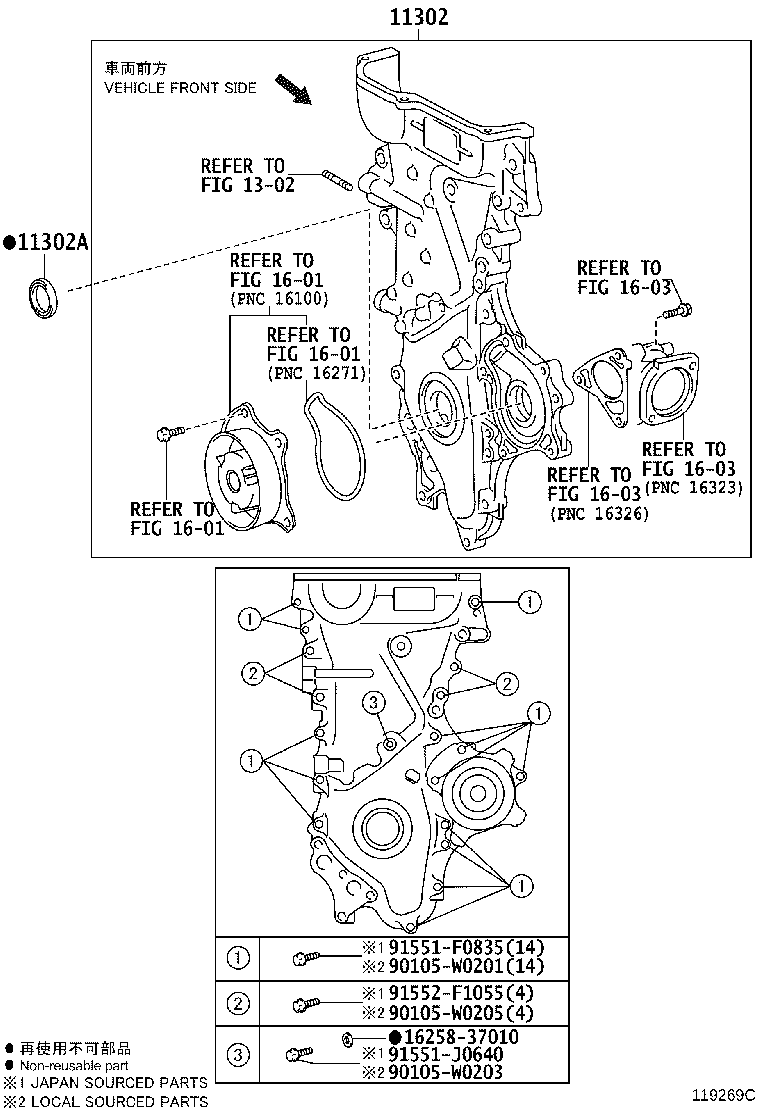

Exploded illustration 119269C 11302 — COVER SUB-ASSY, TIMING CHAIN OR BELT (13 parts) 11302A — SEAL, OIL(FOR TIMING CHAIN OR BELT COVER) (13 parts) 1625837010 — not listed in this catalogue 91551F0835 — not listed in this catalogue 90105W0201 — not listed in this catalogue 91551J0640 — not listed in this catalogue 90105W0203 — not listed in this catalogue 91552F1055 — not listed in this catalogue 90105W0205 — not listed in this catalogue 1302 — not listed in this catalogue 1603 — not listed in this catalogue 1601 — not listed in this catalogue 1601 — not listed in this catalogue 1601 — not listed in this catalogue 1603 — not listed in this catalogue 1603 — not listed in this catalogue
119269C · 2 callouts, 14 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
26 parts on this figure
Part number Description Fitment Price
11302 — Cover Sub-assy, Timing Chain OR Belt
11310-0T070 note Cover Sub-assy, Timing Chain OR Belt
2014-01 → 2014-09 ended
1ZRFE,2ZRFE ZRE18# —
11310-0T071 note Cover Sub-assy, Timing Chain OR Belt
2014-10 → 2017-01 ended
1ZRFE,2ZRFE ZRE18# SAP —
11310-37011 note Cover Sub-assy, Timing Chain OR Belt
2014-01 → 2017-01 ended
1ZRFE,2ZRFE ZRE18# SAP —
11321-33020 Cover Sub-assy, Timing Chain OR Belt
2013-06 → 2015-07 ended
1NDTV NDE180 —
11321-33021 Cover Sub-assy, Timing Chain OR Belt
2015-07 → 2016-05 ended
1NDTV NDE180 TUP —
11321-33021 Cover Sub-assy, Timing Chain OR Belt
2015-07 → 2017-01 ended
1NDTV NDE180 SAP —
11310-0T071 note Cover Sub-assy, Timing Chain OR Belt
2016-06 → 2019-12 ended
1ZRFE,2ZRFE ZRE18# —
11310-37011 note Cover Sub-assy, Timing Chain OR Belt
2016-06 → 2019-12 ended
1ZRFE,2ZRFE ZRE18# —
11321-33021 Cover Sub-assy, Timing Chain OR Belt
2016-06 → 2019-01 ended
1NDTV NDE180 TUP —
11321-33021 Cover Sub-assy, Timing Chain OR Belt
2016-06 → —
1NDTV NDE180 SAP —
11310-0T071 note Cover Sub-assy, Timing Chain OR Belt
2019-12 → 2020-08 ended
2ZRFE ZRE182 —
11310-0T072 note Cover Sub-assy, Timing Chain OR Belt
2020-09 → —
2ZRFE ZRE182 —
11310-37011 note Cover Sub-assy, Timing Chain OR Belt
2019-12 → —
2ZRFE ZRE182 —
11302A — Seal, Oil(FOR TIMING CHAIN OR BELT COVER)
90311-25032 Seal, Oil(FOR TIMING CHAIN OR BELT COVER)
2014-01 → 2017-01 ended
1NRFE NRE180 SAP —
90311-38089 note Seal, Oil(FOR TIMING CHAIN OR BELT COVER)
2014-01 → 2014-06 ended
1ZRFE,2ZRFE ZRE18# —
90311-38096 Seal, Oil(FOR TIMING CHAIN OR BELT COVER)
2014-06 → 2017-01 ended
1ZRFE,2ZRFE ZRE18# SAP —
90311-40040 Seal, Oil(FOR TIMING CHAIN OR BELT COVER)
2013-06 → 2016-05 ended
1NDTV NDE180 TUP —
90311-40040 Seal, Oil(FOR TIMING CHAIN OR BELT COVER)
2013-06 → 2017-01 ended
1NDTV NDE180 SAP —
90311-W0012 note Seal, Oil(FOR TIMING CHAIN OR BELT COVER)
2014-01 → 2014-06 ended
1ZRFE,2ZRFE ZRE18# —
90311-25032 Seal, Oil(FOR TIMING CHAIN OR BELT COVER)
2016-06 → 2018-08 ended
1NRFE NRE180 TUP —
90311-25032 Seal, Oil(FOR TIMING CHAIN OR BELT COVER)
2016-06 → —
1NRFE NRE180 SAP —
90311-38096 Seal, Oil(FOR TIMING CHAIN OR BELT COVER)
2016-06 → 2019-01 ended
1ZRFE,2ZRFE ZRE18# TUP —
90311-38096 Seal, Oil(FOR TIMING CHAIN OR BELT COVER)
2016-06 → 2019-12 ended
1ZRFE,2ZRFE ZRE18# SAP —
90311-40040 Seal, Oil(FOR TIMING CHAIN OR BELT COVER)
2016-06 → 2019-01 ended
1NDTV NDE180 TUP —
90311-40040 Seal, Oil(FOR TIMING CHAIN OR BELT COVER)
2016-06 → —
1NDTV NDE180 SAP —
90311-38096 Seal, Oil(FOR TIMING CHAIN OR BELT COVER)
2019-12 → —
2ZRFE ZRE182 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
