Toyota Corolla
2013-06 → present · chassis NDE180,NRE180,ZRE18#,ZRE21#,ZWE219 · catalogue 164320 · General
Supported model
Data version 2019-11

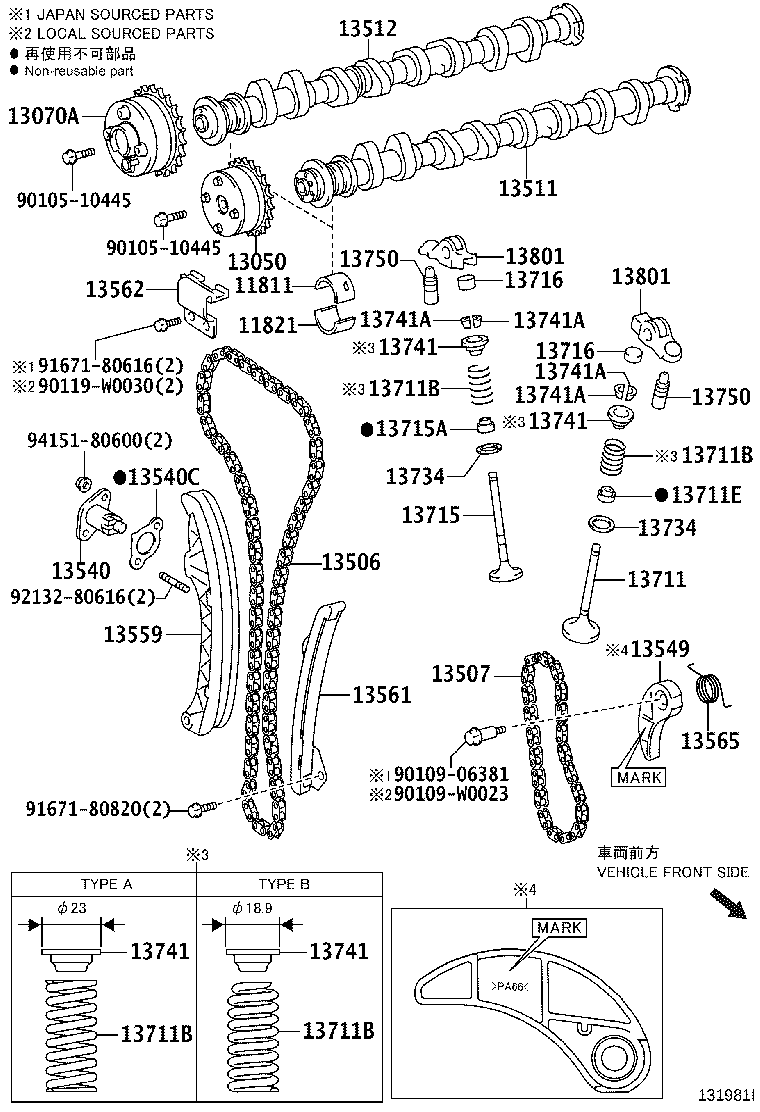

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 11811 — Bearing, Camshaft, NO.1 | ||||
| 11811-37010 |
Bearing, Camshaft, NO.1
2014-01 → 2017-01
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 11811-37010 |
Bearing, Camshaft, NO.1
2016-06 → 2019-01
ended
|
1ZRFE,2ZRFE ZRE18# TUP | — | |
| 11811-37010 |
Bearing, Camshaft, NO.1
2016-06 → 2019-12
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 11811-37010 |
Bearing, Camshaft, NO.1
2019-12 → —
|
2ZRFE ZRE182 | — | |
| 11821 — Bearing, Camshaft, NO.2 | ||||
| 11821-37010 |
Bearing, Camshaft, NO.2
2014-01 → 2017-01
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 11821-37010 |
Bearing, Camshaft, NO.2
2016-06 → 2019-01
ended
|
1ZRFE,2ZRFE ZRE18# TUP | — | |
| 11821-37010 |
Bearing, Camshaft, NO.2
2016-06 → 2019-12
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 11821-37010 |
Bearing, Camshaft, NO.2
2019-12 → —
|
2ZRFE ZRE182 | — | |
| 13050 — Gear Assy, Camshaft Timing | ||||
| 13050-0T080 note |
Gear Assy, Camshaft Timing
2014-01 → 2017-01
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 13050-37060 note |
Gear Assy, Camshaft Timing
2014-01 → 2017-01
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 13050-47011 |
Gear Assy, Camshaft Timing
2014-01 → 2017-01
ended
|
1NRFE NRE180 SAP | — | |
| 13050-0T080 note |
Gear Assy, Camshaft Timing
2016-06 → 2019-12
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 13050-0T080 note |
Gear Assy, Camshaft Timing
2016-06 → 2019-01
ended
|
1ZRFE,2ZRFE ZRE18# TUP | — | |
| 13050-37060 note |
Gear Assy, Camshaft Timing
2016-06 → 2019-01
ended
|
1ZRFE,2ZRFE ZRE18# TUP | — | |
| 13050-37060 note |
Gear Assy, Camshaft Timing
2016-06 → 2019-12
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 13050-47011 |
Gear Assy, Camshaft Timing
2016-06 → 2018-08
ended
|
1NRFE NRE180 TUP | — | |
| 13050-47011 |
Gear Assy, Camshaft Timing
2016-06 → —
|
1NRFE NRE180 SAP | — | |
| 13050-0T080 note |
Gear Assy, Camshaft Timing
2019-12 → —
|
2ZRFE ZRE182 | — | |
| 13050-37060 note |
Gear Assy, Camshaft Timing
2019-12 → —
|
2ZRFE ZRE182 | — | |
| 13070A — Gear Assy, Camshaft Timing Exhaust | ||||
| 13070-0T030 note |
Gear Assy, Camshaft Timing Exhaust
2014-01 → 2017-01
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 13070-37010 note |
Gear Assy, Camshaft Timing Exhaust
2014-01 → 2017-01
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 13070-47010 |
Gear Assy, Camshaft Timing Exhaust
2014-01 → 2017-01
ended
|
1NRFE NRE180 SAP | — | |
| 13070-0T030 note |
Gear Assy, Camshaft Timing Exhaust
2016-06 → 2019-12
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 13070-0T030 note |
Gear Assy, Camshaft Timing Exhaust
2016-06 → 2019-01
ended
|
1ZRFE,2ZRFE ZRE18# TUP | — | |
| 13070-37010 note |
Gear Assy, Camshaft Timing Exhaust
2016-06 → 2019-01
ended
|
1ZRFE,2ZRFE ZRE18# TUP | — | |
| 13070-37010 note |
Gear Assy, Camshaft Timing Exhaust
2016-06 → 2019-12
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 13070-47010 |
Gear Assy, Camshaft Timing Exhaust
2016-06 → 2018-08
ended
|
1NRFE NRE180 TUP | — | |
| 13070-47010 |
Gear Assy, Camshaft Timing Exhaust
2016-06 → —
|
1NRFE NRE180 SAP | — | |
| 13070-0T030 note |
Gear Assy, Camshaft Timing Exhaust
2019-12 → —
|
2ZRFE ZRE182 | — | |
| 13070-37010 note |
Gear Assy, Camshaft Timing Exhaust
2019-12 → —
|
2ZRFE ZRE182 | — | |
| 13506 — Chain Sub-assy | ||||
| 13506-0T110 note |
Chain Sub-assy
2014-06 → 2017-01
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 13506-33030 |
Chain Sub-assy
2013-06 → 2016-05
ended
|
1NDTV NDE180 TUP | — | |
| 13506-33030 |
Chain Sub-assy
2013-06 → 2017-01
ended
|
1NDTV NDE180 SAP | — | |
| 13506-37070 note |
Chain Sub-assy
2014-06 → 2017-01
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 13506-37070 |
Chain Sub-assy
2014-01 → 2014-06
ended
|
1ZRFE,2ZRFE ZRE18# | — | |
| 13506-47030 |
Chain Sub-assy
2014-01 → 2017-01
ended
|
1NRFE NRE180 SAP | — | |
| 13506-0T110 note |
Chain Sub-assy
2016-06 → 2019-01
ended
|
1ZRFE,2ZRFE ZRE18# TUP | — | |
| 13506-0T110 note |
Chain Sub-assy
2016-06 → 2019-12
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 13506-33030 |
Chain Sub-assy
2016-06 → 2019-01
ended
|
1NDTV NDE180 TUP | — | |
| 13506-33030 |
Chain Sub-assy
2016-06 → —
|
1NDTV NDE180 SAP | — | |
| 13506-37070 note |
Chain Sub-assy
2016-06 → 2019-01
ended
|
1ZRFE,2ZRFE ZRE18# TUP | — | |
| 13506-37070 note |
Chain Sub-assy
2016-06 → 2019-12
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 13506-47030 |
Chain Sub-assy
2016-06 → 2018-08
ended
|
1NRFE NRE180 TUP | — | |
| 13506-47030 |
Chain Sub-assy
2016-06 → —
|
1NRFE NRE180 SAP | — | |
| 13506-0T110 note |
Chain Sub-assy
2019-12 → 2024-10
ended
|
2ZRFE ZRE182 | — | |
| 13506-37070 note |
Chain Sub-assy
2019-12 → —
|
2ZRFE ZRE182 | — | |
| 13507 — Chain Sub-assy, NO.2 | ||||
| 13507-28010 |
Chain Sub-assy, NO.2
2014-01 → 2017-01
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 13507-33010 |
Chain Sub-assy, NO.2
2013-06 → 2017-01
ended
|
1NDTV NDE180 SAP | — | |
| 13507-33010 |
Chain Sub-assy, NO.2
2013-06 → 2016-05
ended
|
1NDTV NDE180 TUP | — | |
| 13507-28010 |
Chain Sub-assy, NO.2
2016-06 → 2019-12
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 13507-28010 |
Chain Sub-assy, NO.2
2016-06 → 2019-01
ended
|
1ZRFE,2ZRFE ZRE18# TUP | — | |
| 13507-33010 |
Chain Sub-assy, NO.2
2016-06 → 2019-01
ended
|
1NDTV NDE180 TUP | — | |
| 13507-33010 |
Chain Sub-assy, NO.2
2016-06 → —
|
1NDTV NDE180 SAP | — | |
| 13507-28010 |
Chain Sub-assy, NO.2
2019-12 → —
|
2ZRFE ZRE182 | — | |
| 13511 — Camshaft | ||||
| 13501-0T030 note |
Camshaft
2014-01 → 2017-01
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 13501-33042 |
Camshaft
2013-06 → 2016-05
ended
|
1NDTV NDE180 TUP | — | |
| 13501-33042 |
Camshaft
2013-06 → 2017-01
ended
|
1NDTV NDE180 SAP | — | |
| 13501-37011 note |
Camshaft
2014-01 → 2017-01
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 13501-47020 |
Camshaft
2014-01 → 2017-01
ended
|
1NRFE NRE180 SAP | — | |
| 13501-0T030 note |
Camshaft
2016-06 → 2019-01
ended
|
1ZRFE,2ZRFE ZRE18# TUP | — | |
| 13501-0T030 note |
Camshaft
2016-06 → 2019-12
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 13501-33042 |
Camshaft
2016-06 → 2019-01
ended
|
1NDTV NDE180 TUP | — | |
| 13501-33042 |
Camshaft
2016-06 → —
|
1NDTV NDE180 SAP | — | |
| 13501-37011 note |
Camshaft
2016-06 → 2019-01
ended
|
1ZRFE,2ZRFE ZRE18# TUP | — | |
| 13501-37011 note |
Camshaft
2016-06 → 2019-12
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 13501-47020 |
Camshaft
2016-06 → 2018-08
ended
|
1NRFE NRE180 TUP | — | |
| 13501-47020 |
Camshaft
2016-06 → —
|
1NRFE NRE180 SAP | — | |
| 13501-0T030 note |
Camshaft
2019-12 → —
|
2ZRFE ZRE182 | — | |
| 13501-37011 note |
Camshaft
2019-12 → 2022-10
ended
|
2ZRFE ZRE182 | — | |
| 13501-37040 note |
Camshaft
2022-10 → —
|
2ZRFE ZRE182 | — | |
| 13512 — Camshaft, NO.2 | ||||
| 13502-0T030 note |
Camshaft, NO.2
2014-01 → 2017-01
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 13502-37010 note |
Camshaft, NO.2
2014-01 → 2017-01
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 13502-47010 |
Camshaft, NO.2
2014-01 → 2017-01
ended
|
1NRFE NRE180 SAP | — | |
| 13502-0T030 note |
Camshaft, NO.2
2016-06 → 2019-01
ended
|
1ZRFE,2ZRFE ZRE18# TUP | — | |
| 13502-0T030 note |
Camshaft, NO.2
2016-06 → 2019-12
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 13502-37010 note |
Camshaft, NO.2
2016-06 → 2019-01
ended
|
1ZRFE,2ZRFE ZRE18# TUP | — | |
| 13502-37010 note |
Camshaft, NO.2
2016-06 → 2019-12
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 13502-47010 |
Camshaft, NO.2
2016-06 → 2018-08
ended
|
1NRFE NRE180 TUP | — | |
| 13502-47010 |
Camshaft, NO.2
2016-06 → —
|
1NRFE NRE180 SAP | — | |
| 13502-0T030 note |
Camshaft, NO.2
2019-12 → —
|
2ZRFE ZRE182 | — | |
| 13502-37010 note |
Camshaft, NO.2
2019-12 → 2022-10
ended
|
2ZRFE ZRE182 | — | |
| 13502-37050 note |
Camshaft, NO.2
2022-10 → —
|
2ZRFE ZRE182 | — | |
| 13540 — Tensioner Assy, Chain, NO.1 | ||||
| 13540-0T030 note |
Tensioner Assy, Chain, NO.1
2014-01 → 2017-01
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 13540-33030 |
Tensioner Assy, Chain, NO.1
2013-06 → 2016-05
ended
|
1NDTV NDE180 TUP | — | |
| 13540-33030 |
Tensioner Assy, Chain, NO.1
2013-06 → 2017-01
ended
|
1NDTV NDE180 SAP | — | |
| 13540-37030 note |
Tensioner Assy, Chain, NO.1
2014-01 → 2017-01
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 13540-47011 |
Tensioner Assy, Chain, NO.1
2014-01 → 2017-01
ended
|
1NRFE NRE180 SAP | — | |
| 13540-0T030 note |
Tensioner Assy, Chain, NO.1
2016-06 → 2019-01
ended
|
1ZRFE,2ZRFE ZRE18# TUP | — | |
| 13540-0T030 note |
Tensioner Assy, Chain, NO.1
2016-06 → 2019-12
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 13540-33030 |
Tensioner Assy, Chain, NO.1
2016-06 → —
|
1NDTV NDE180 SAP | — | |
| 13540-33030 |
Tensioner Assy, Chain, NO.1
2016-06 → 2019-01
ended
|
1NDTV NDE180 TUP | — | |
| 13540-37030 note |
Tensioner Assy, Chain, NO.1
2016-06 → 2019-01
ended
|
1ZRFE,2ZRFE ZRE18# TUP | — | |
| 13540-37030 note |
Tensioner Assy, Chain, NO.1
2016-06 → 2019-12
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 13540-47011 |
Tensioner Assy, Chain, NO.1
2016-06 → 2018-08
ended
|
1NRFE NRE180 TUP | — | |
| 13540-47011 |
Tensioner Assy, Chain, NO.1
2016-06 → —
|
1NRFE NRE180 SAP | — | |
| 13540-0T030 note |
Tensioner Assy, Chain, NO.1
2019-12 → 2024-10
ended
|
2ZRFE ZRE182 | — | |
| 13540-37030 note |
Tensioner Assy, Chain, NO.1
2019-12 → —
|
2ZRFE ZRE182 | — | |
| 13540C — Gasket(FOR CHAIN TENSIONER) | ||||
| 13552-0T030 note |
Gasket(FOR CHAIN TENSIONER)
2014-01 → 2017-01
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 13552-37010 note |
Gasket(FOR CHAIN TENSIONER)
2014-01 → 2017-01
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 13552-47010 |
Gasket(FOR CHAIN TENSIONER)
2014-01 → 2017-01
ended
|
1NRFE NRE180 SAP | — | |
| 13552-0T030 note |
Gasket(FOR CHAIN TENSIONER)
2016-06 → 2019-01
ended
|
1ZRFE,2ZRFE ZRE18# TUP | — | |
| 13552-0T030 note |
Gasket(FOR CHAIN TENSIONER)
2016-06 → 2019-12
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 13552-37010 note |
Gasket(FOR CHAIN TENSIONER)
2016-06 → 2019-01
ended
|
1ZRFE,2ZRFE ZRE18# TUP | — | |
| 13552-37010 note |
Gasket(FOR CHAIN TENSIONER)
2016-06 → 2019-12
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 13552-47010 |
Gasket(FOR CHAIN TENSIONER)
2016-06 → 2018-08
ended
|
1NRFE NRE180 TUP | — | |
| 13552-47010 |
Gasket(FOR CHAIN TENSIONER)
2016-06 → —
|
1NRFE NRE180 SAP | — | |
| 13552-0T030 note |
Gasket(FOR CHAIN TENSIONER)
2019-12 → —
|
2ZRFE ZRE182 | — | |
| 13552-37010 note |
Gasket(FOR CHAIN TENSIONER)
2019-12 → —
|
2ZRFE ZRE182 | — | |
| 13549 — Plate, Chain Tensioner | ||||
| 13549-0T030 note |
Plate, Chain Tensioner
2014-01 → 2016-04
ended
|
1ZRFE,2ZRFE ZRE18# | — | |
| 13549-0T050 note |
Plate, Chain Tensioner
2016-04 → 2017-01
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 13549-33010 |
Plate, Chain Tensioner
2013-06 → 2016-05
ended
|
1NDTV NDE180 TUP | — | |
| 13549-33010 |
Plate, Chain Tensioner
2013-06 → 2017-01
ended
|
1NDTV NDE180 SAP | — | |
| 13549-37010 note |
Plate, Chain Tensioner
2014-01 → 2015-01
ended
|
1ZRFE,2ZRFE ZRE18# | — | |
| 13549-37020 note |
Plate, Chain Tensioner
2015-02 → 2017-01
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 13549-0T050 note |
Plate, Chain Tensioner
2016-06 → 2019-01
ended
|
1ZRFE,2ZRFE ZRE18# TUP | — | |
| 13549-0T050 note |
Plate, Chain Tensioner
2016-06 → 2019-12
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 13549-33010 |
Plate, Chain Tensioner
2016-06 → 2019-01
ended
|
1NDTV NDE180 TUP | — | |
| 13549-33010 |
Plate, Chain Tensioner
2016-06 → —
|
1NDTV NDE180 SAP | — | |
| 13549-37020 note |
Plate, Chain Tensioner
2016-06 → 2019-12
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 13549-37020 note |
Plate, Chain Tensioner
2016-06 → 2019-01
ended
|
1ZRFE,2ZRFE ZRE18# TUP | — | |
| 13549-0T050 note |
Plate, Chain Tensioner
2019-12 → 2024-10
ended
|
2ZRFE ZRE182 | — | |
| 13549-37020 note |
Plate, Chain Tensioner
2019-12 → —
|
2ZRFE ZRE182 | — | |
| 13559 — Slipper, Chain Tensioner | ||||
| 13559-0T030 note |
Slipper, Chain Tensioner
2014-01 → 2016-05
ended
|
1ZRFE,2ZRFE ZRE18# | — | |
| 13559-0T080 note |
Slipper, Chain Tensioner
2016-06 → 2017-01
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 13559-33020 |
Slipper, Chain Tensioner
2013-06 → 2014-08
ended
|
1NDTV NDE180 | — | |
| 13559-33021 |
Slipper, Chain Tensioner
2014-09 → 2016-05
ended
|
1NDTV NDE180 TUP | — | |
| 13559-33021 |
Slipper, Chain Tensioner
2014-09 → 2017-01
ended
|
1NDTV NDE180 SAP | — | |
| 13559-37010 note |
Slipper, Chain Tensioner
2014-01 → 2015-01
ended
|
1ZRFE,2ZRFE ZRE18# | — | |
| 13559-37050 note |
Slipper, Chain Tensioner
2015-02 → 2017-01
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 13559-0T080 note |
Slipper, Chain Tensioner
2016-06 → 2019-01
ended
|
1ZRFE,2ZRFE ZRE18# TUP | — | |
| 13559-0T080 note |
Slipper, Chain Tensioner
2016-06 → 2019-12
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 13559-33021 |
Slipper, Chain Tensioner
2016-06 → 2019-01
ended
|
1NDTV NDE180 TUP | — | |
| 13559-33021 |
Slipper, Chain Tensioner
2016-06 → —
|
1NDTV NDE180 SAP | — | |
| 13559-37050 note |
Slipper, Chain Tensioner
2016-06 → 2019-12
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 13559-37050 note |
Slipper, Chain Tensioner
2016-06 → 2019-01
ended
|
1ZRFE,2ZRFE ZRE18# TUP | — | |
| 13559-0T080 note |
Slipper, Chain Tensioner
2019-12 → 2024-10
ended
|
2ZRFE ZRE182 | — | |
| 13559-37050 note |
Slipper, Chain Tensioner
2019-12 → —
|
2ZRFE ZRE182 | — | |
| 13561 — Damper, Chain Vibration, NO.1 | ||||
| 13561-0T020 note |
Damper, Chain Vibration, NO.1
2014-02 → 2016-05
ended
|
1ZRFE,2ZRFE ZRE18# | — | |
| 13561-0T080 note |
Damper, Chain Vibration, NO.1
2016-06 → 2017-01
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 13561-33030 |
Damper, Chain Vibration, NO.1
2013-06 → 2016-05
ended
|
1NDTV NDE180 TUP | — | |
| 13561-33030 |
Damper, Chain Vibration, NO.1
2013-06 → 2017-01
ended
|
1NDTV NDE180 SAP | — | |
| 13561-37020 note |
Damper, Chain Vibration, NO.1
2014-01 → 2015-01
ended
|
1ZRFE,2ZRFE ZRE18# | — | |
| 13561-37050 note |
Damper, Chain Vibration, NO.1
2015-02 → 2017-01
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 13561-0T080 note |
Damper, Chain Vibration, NO.1
2016-06 → 2019-01
ended
|
1ZRFE,2ZRFE ZRE18# TUP | — | |
| 13561-0T080 note |
Damper, Chain Vibration, NO.1
2016-06 → 2019-12
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 13561-33030 |
Damper, Chain Vibration, NO.1
2016-06 → 2019-01
ended
|
1NDTV NDE180 TUP | — | |
| 13561-33030 |
Damper, Chain Vibration, NO.1
2016-06 → —
|
1NDTV NDE180 SAP | — | |
| 13561-37050 note |
Damper, Chain Vibration, NO.1
2016-06 → 2019-01
ended
|
1ZRFE,2ZRFE ZRE18# TUP | — | |
| 13561-37050 note |
Damper, Chain Vibration, NO.1
2016-06 → 2019-12
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 13561-0T080 note |
Damper, Chain Vibration, NO.1
2019-12 → 2024-10
ended
|
2ZRFE ZRE182 | — | |
| 13561-37050 note |
Damper, Chain Vibration, NO.1
2019-12 → —
|
2ZRFE ZRE182 | — | |
| 13562 — Damper, Chain Vibration, NO.2 | ||||
| 13562-0T050 note |
Damper, Chain Vibration, NO.2
2016-06 → 2017-01
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 13562-37010 |
Damper, Chain Vibration, NO.2
2014-01 → 2015-01
ended
|
1ZRFE,2ZRFE ZRE18# | — | |
| 13562-37020 |
Damper, Chain Vibration, NO.2
2015-02 → 2016-06
ended
|
1ZRFE,2ZRFE ZRE18# | — | |
| 13562-37020 note |
Damper, Chain Vibration, NO.2
2016-06 → 2017-01
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 13562-47020 |
Damper, Chain Vibration, NO.2
2014-01 → 2017-01
ended
|
1NRFE NRE180 SAP | — | |
| 13562-0T050 note |
Damper, Chain Vibration, NO.2
2016-06 → 2019-01
ended
|
1ZRFE,2ZRFE ZRE18# TUP | — | |
| 13562-0T050 note |
Damper, Chain Vibration, NO.2
2016-06 → 2019-12
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 13562-37020 note |
Damper, Chain Vibration, NO.2
2016-06 → 2019-01
ended
|
1ZRFE,2ZRFE ZRE18# TUP | — | |
| 13562-37020 note |
Damper, Chain Vibration, NO.2
2016-06 → 2019-12
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 13562-47020 |
Damper, Chain Vibration, NO.2
2016-06 → —
|
1NRFE NRE180 SAP | — | |
| 13562-47020 |
Damper, Chain Vibration, NO.2
2016-06 → 2018-08
ended
|
1NRFE NRE180 TUP | — | |
| 13562-0T050 note |
Damper, Chain Vibration, NO.2
2019-12 → 2024-10
ended
|
2ZRFE ZRE182 | — | |
| 13562-37020 note |
Damper, Chain Vibration, NO.2
2019-12 → —
|
2ZRFE ZRE182 | — | |
| 13565 — Spring, Chain Damper | ||||
| 13565-0T030 note |
Spring, Chain Damper
2014-01 → 2017-01
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 13565-33010 |
Spring, Chain Damper
2013-06 → 2016-05
ended
|
1NDTV NDE180 TUP | — | |
| 13565-33010 |
Spring, Chain Damper
2013-06 → 2017-01
ended
|
1NDTV NDE180 SAP | — | |
| 13565-37010 note |
Spring, Chain Damper
2014-01 → 2017-01
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 13565-0T030 note |
Spring, Chain Damper
2016-06 → 2019-01
ended
|
1ZRFE,2ZRFE ZRE18# TUP | — | |
| 13565-0T030 note |
Spring, Chain Damper
2016-06 → 2019-12
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 13565-33010 |
Spring, Chain Damper
2016-06 → 2019-01
ended
|
1NDTV NDE180 TUP | — | |
| 13565-33010 |
Spring, Chain Damper
2016-06 → —
|
1NDTV NDE180 SAP | — | |
| 13565-37010 note |
Spring, Chain Damper
2016-06 → 2019-12
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 13565-37010 note |
Spring, Chain Damper
2016-06 → 2019-01
ended
|
1ZRFE,2ZRFE ZRE18# TUP | — | |
| 13565-0T030 note |
Spring, Chain Damper
2019-12 → 2024-10
ended
|
2ZRFE ZRE182 | — | |
| 13565-37010 note |
Spring, Chain Damper
2019-12 → —
|
2ZRFE ZRE182 | — | |
| 13711 — Valve, Intake | ||||
| 13711-0N030 |
Valve, Intake
2015-04 → 2016-05
ended
|
1NDTV NDE180 TUP | — | |
| 13711-0N030 |
Valve, Intake
2015-04 → 2017-01
ended
|
1NDTV NDE180 SAP | — | |
| 13711-0T040 note |
Valve, Intake
2014-01 → 2017-01
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 13711-33031 |
Valve, Intake
2013-06 → 2015-04
ended
|
1NDTV NDE180 | — | |
| 13711-37020 note |
Valve, Intake
2014-01 → 2017-01
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 13711-47010 |
Valve, Intake
2014-01 → 2017-01
ended
|
1NRFE NRE180 SAP | — | |
| 13711-0N030 |
Valve, Intake
2016-06 → 2019-01
ended
|
1NDTV NDE180 TUP | — | |
| 13711-0N030 |
Valve, Intake
2016-06 → —
|
1NDTV NDE180 SAP | — | |
| 13711-0T040 note |
Valve, Intake
2016-06 → 2019-01
ended
|
1ZRFE,2ZRFE ZRE18# TUP | — | |
| 13711-0T040 note |
Valve, Intake
2016-06 → 2019-12
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 13711-37020 note |
Valve, Intake
2016-06 → 2019-01
ended
|
1ZRFE,2ZRFE ZRE18# TUP | — | |
| 13711-37020 note |
Valve, Intake
2016-06 → 2019-12
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 13711-47010 |
Valve, Intake
2016-06 → —
|
1NRFE NRE180 SAP | — | |
| 13711-47010 |
Valve, Intake
2016-06 → 2018-08
ended
|
1NRFE NRE180 TUP | — | |
| 13711-0T040 note |
Valve, Intake
2019-12 → —
|
2ZRFE ZRE182 | — | |
| 13711-37020 note |
Valve, Intake
2019-12 → —
|
2ZRFE ZRE182 | — | |
| 13711B — Spring, Compression(FOR INNER) | ||||
| 90501-31027 |
Spring, Compression(FOR INNER)
2014-01 → 2014-05
ended
|
1ZRFE,2ZRFE ZRE18# | — | |
| 90501-31028 note |
Spring, Compression(FOR INNER)
2014-05 → 2014-08
ended
|
1ZRFE,2ZRFE ZRE18# | — | |
| 90501-32071 note |
Spring, Compression(FOR INNER)
2014-05 → 2014-08
ended
|
1ZRFE,2ZRFE ZRE18# | — | |
| 90501-32072 note |
Spring, Compression(FOR INNER)
2014-08 → 2017-01
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 90501-32072 note |
Spring, Compression(FOR INNER)
2016-06 → 2019-01
ended
|
1ZRFE,2ZRFE ZRE18# TUP | — | |
| 90501-32072 note |
Spring, Compression(FOR INNER)
2016-06 → 2019-12
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 90501-32072 note |
Spring, Compression(FOR INNER)
2019-12 → —
|
2ZRFE ZRE182 | — | |
| 13711E — Seal, Intake Valve Stem Oil | ||||
| 90080-31061 note |
Seal, Intake Valve Stem Oil
2014-01 → 2017-01
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 90913-02101 note |
Seal, Intake Valve Stem Oil
2014-01 → 2017-01
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 90913-02101 |
Seal, Intake Valve Stem Oil
2014-01 → 2017-01
ended
|
1NRFE NRE180 SAP | — | |
| 90913-02124 |
Seal, Intake Valve Stem Oil
2013-06 → 2017-01
ended
|
1NDTV NDE180 SAP | — | |
| 90913-02124 |
Seal, Intake Valve Stem Oil
2013-06 → 2016-05
ended
|
1NDTV NDE180 TUP | — | |
| 90080-31061 note |
Seal, Intake Valve Stem Oil
2016-06 → 2019-12
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 90080-31061 note |
Seal, Intake Valve Stem Oil
2016-06 → 2019-01
ended
|
1ZRFE,2ZRFE ZRE18# TUP | — | |
| 90913-02101 note |
Seal, Intake Valve Stem Oil
2016-06 → 2019-01
ended
|
1ZRFE,2ZRFE ZRE18# TUP | — | |
| 90913-02101 |
Seal, Intake Valve Stem Oil
2016-06 → 2018-08
ended
|
1NRFE NRE180 TUP | — | |
| 90913-02101 note |
Seal, Intake Valve Stem Oil
2016-06 → 2019-12
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 90913-02101 |
Seal, Intake Valve Stem Oil
2016-06 → —
|
1NRFE NRE180 SAP | — | |
| 90913-02124 |
Seal, Intake Valve Stem Oil
2016-06 → 2019-01
ended
|
1NDTV NDE180 TUP | — | |
| 90913-02124 |
Seal, Intake Valve Stem Oil
2016-06 → —
|
1NDTV NDE180 SAP | — | |
| 90080-31061 note |
Seal, Intake Valve Stem Oil
2019-12 → —
|
2ZRFE ZRE182 | — | |
| 90913-02101 note |
Seal, Intake Valve Stem Oil
2019-12 → —
|
2ZRFE ZRE182 | — | |
| 13715 — Valve, Exhaust | ||||
| 13715-0N030 note |
Valve, Exhaust
2015-04 → 2017-01
ended
|
1NDTV NDE180 SAP | — | |
| 13715-0N030 note |
Valve, Exhaust
2015-04 → 2016-05
ended
|
1NDTV NDE180 TUP | — | |
| 13715-0T040 note |
Valve, Exhaust
2014-01 → 2017-01
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 13715-33041 |
Valve, Exhaust
2013-06 → 2015-04
ended
|
1NDTV NDE180 | — | |
| 13715-33041 note |
Valve, Exhaust
2015-04 → 2017-01
ended
|
1NDTV NDE180 SAP | — | |
| 13715-33041 note |
Valve, Exhaust
2015-04 → 2016-05
ended
|
1NDTV NDE180 TUP | — | |
| 13715-37030 note |
Valve, Exhaust
2014-01 → 2017-01
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 13715-47010 |
Valve, Exhaust
2014-01 → 2017-01
ended
|
1NRFE NRE180 SAP | — | |
| 13715-0N030 note |
Valve, Exhaust
2016-06 → 2019-01
ended
|
1NDTV NDE180 TUP | — | |
| 13715-0N030 note |
Valve, Exhaust
2016-06 → —
|
1NDTV NDE180 SAP | — | |
| 13715-0T040 note |
Valve, Exhaust
2016-06 → 2019-12
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 13715-0T040 note |
Valve, Exhaust
2016-06 → 2019-01
ended
|
1ZRFE,2ZRFE ZRE18# TUP | — | |
| 13715-33041 note |
Valve, Exhaust
2016-06 → 2019-01
ended
|
1NDTV NDE180 TUP | — | |
| 13715-33041 note |
Valve, Exhaust
2016-06 → —
|
1NDTV NDE180 SAP | — | |
| 13715-37030 note |
Valve, Exhaust
2016-06 → 2019-01
ended
|
1ZRFE,2ZRFE ZRE18# TUP | — | |
| 13715-37030 note |
Valve, Exhaust
2016-06 → 2019-12
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 13715-47010 |
Valve, Exhaust
2016-06 → —
|
1NRFE NRE180 SAP | — | |
| 13715-47010 |
Valve, Exhaust
2016-06 → 2018-08
ended
|
1NRFE NRE180 TUP | — | |
| 13715-0T040 note |
Valve, Exhaust
2019-12 → —
|
2ZRFE ZRE182 | — | |
| 13715-37030 note |
Valve, Exhaust
2019-12 → —
|
2ZRFE ZRE182 | — | |
| 13715A — Seal, Exhaust Valve Stem Oil | ||||
| 90080-31062 note |
Seal, Exhaust Valve Stem Oil
2014-01 → 2017-01
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 90913-02112 |
Seal, Exhaust Valve Stem Oil
2014-01 → 2017-01
ended
|
1NRFE NRE180 SAP | — | |
| 90913-02112 note |
Seal, Exhaust Valve Stem Oil
2014-01 → 2017-01
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 90913-02124 |
Seal, Exhaust Valve Stem Oil
2013-06 → 2016-05
ended
|
1NDTV NDE180 TUP | — | |
| 90913-02124 |
Seal, Exhaust Valve Stem Oil
2013-06 → 2017-01
ended
|
1NDTV NDE180 SAP | — | |
| 90080-31062 note |
Seal, Exhaust Valve Stem Oil
2016-06 → 2019-01
ended
|
1ZRFE,2ZRFE ZRE18# TUP | — | |
| 90080-31062 note |
Seal, Exhaust Valve Stem Oil
2016-06 → 2019-12
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 90913-02112 |
Seal, Exhaust Valve Stem Oil
2016-06 → 2018-08
ended
|
1NRFE NRE180 TUP | — | |
| 90913-02112 note |
Seal, Exhaust Valve Stem Oil
2016-06 → 2019-01
ended
|
1ZRFE,2ZRFE ZRE18# TUP | — | |
| 90913-02112 note |
Seal, Exhaust Valve Stem Oil
2016-06 → 2019-12
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 90913-02112 |
Seal, Exhaust Valve Stem Oil
2016-06 → —
|
1NRFE NRE180 SAP | — | |
| 90913-02124 |
Seal, Exhaust Valve Stem Oil
2016-06 → 2019-01
ended
|
1NDTV NDE180 TUP | — | |
| 90913-02124 |
Seal, Exhaust Valve Stem Oil
2016-06 → —
|
1NDTV NDE180 SAP | — | |
| 90080-31062 note |
Seal, Exhaust Valve Stem Oil
2019-12 → —
|
2ZRFE ZRE182 | — | |
| 90913-02112 note |
Seal, Exhaust Valve Stem Oil
2019-12 → —
|
2ZRFE ZRE182 | — | |
| 13716 — Cap, Valve Stem | ||||
| 13716-0T020 note |
Cap, Valve Stem
2014-01 → 2017-01
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 13716-33010 |
Cap, Valve Stem
2013-06 → 2016-05
ended
|
1NDTV NDE180 TUP | — | |
| 13716-33010 |
Cap, Valve Stem
2013-06 → 2017-01
ended
|
1NDTV NDE180 SAP | — | |
| 13716-75020 note |
Cap, Valve Stem
2014-01 → 2017-01
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 13716-75020 |
Cap, Valve Stem
2014-01 → 2017-01
ended
|
1NRFE NRE180 SAP | — | |
| 13716-0T020 note |
Cap, Valve Stem
2016-06 → 2019-01
ended
|
1ZRFE,2ZRFE ZRE18# TUP | — | |
| 13716-0T020 note |
Cap, Valve Stem
2016-06 → 2019-12
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 13716-33010 |
Cap, Valve Stem
2016-06 → 2019-01
ended
|
1NDTV NDE180 TUP | — | |
| 13716-33010 |
Cap, Valve Stem
2016-06 → —
|
1NDTV NDE180 SAP | — | |
| 13716-75020 |
Cap, Valve Stem
2016-06 → —
|
1NRFE NRE180 SAP | — | |
| 13716-75020 note |
Cap, Valve Stem
2016-06 → 2019-12
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 13716-75020 |
Cap, Valve Stem
2016-06 → 2018-08
ended
|
1NRFE NRE180 TUP | — | |
| 13716-75020 note |
Cap, Valve Stem
2016-06 → 2019-01
ended
|
1ZRFE,2ZRFE ZRE18# TUP | — | |
| 13716-0T020 note |
Cap, Valve Stem
2019-12 → —
|
2ZRFE ZRE182 | — | |
| 13716-75020 note |
Cap, Valve Stem
2019-12 → —
|
2ZRFE ZRE182 | — | |
| 13734 — Seat, Valve Spring | ||||
| 13734-0P010 note |
Seat, Valve Spring
2014-02 → 2017-01
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 13734-33020 |
Seat, Valve Spring
2013-06 → 2016-05
ended
|
1NDTV NDE180 TUP | — | |
| 13734-33020 |
Seat, Valve Spring
2013-06 → 2017-01
ended
|
1NDTV NDE180 SAP | — | |
| 13734-62020 |
Seat, Valve Spring
2014-01 → 2014-02
ended
|
1ZRFE,2ZRFE ZRE18# | — | |
| 13734-62020 |
Seat, Valve Spring
2014-01 → 2017-01
ended
|
1NRFE NRE180 SAP | — | |
| 13734-62020 note |
Seat, Valve Spring
2014-02 → 2017-01
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 13734-0P010 note |
Seat, Valve Spring
2016-06 → 2019-01
ended
|
1ZRFE,2ZRFE ZRE18# TUP | — | |
| 13734-0P010 note |
Seat, Valve Spring
2016-06 → 2019-12
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 13734-33020 |
Seat, Valve Spring
2016-06 → 2019-01
ended
|
1NDTV NDE180 TUP | — | |
| 13734-33020 |
Seat, Valve Spring
2016-06 → —
|
1NDTV NDE180 SAP | — | |
| 13734-62020 note |
Seat, Valve Spring
2016-06 → 2019-12
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 13734-62020 |
Seat, Valve Spring
2016-06 → —
|
1NRFE NRE180 SAP | — | |
| 13734-62020 note |
Seat, Valve Spring
2016-06 → 2019-01
ended
|
1ZRFE,2ZRFE ZRE18# TUP | — | |
| 13734-62020 |
Seat, Valve Spring
2016-06 → 2018-08
ended
|
1NRFE NRE180 TUP | — | |
| 13734-0P010 note |
Seat, Valve Spring
2019-12 → —
|
2ZRFE ZRE182 | — | |
| 13734-62020 note |
Seat, Valve Spring
2019-12 → —
|
2ZRFE ZRE182 | — | |
| 13741 — Retainer, Valve Spring | ||||
| 13741-0N010 note |
Retainer, Valve Spring
2015-04 → 2016-05
ended
|
1NDTV NDE180 TUP | — | |
| 13741-0N010 note |
Retainer, Valve Spring
2015-04 → 2017-01
ended
|
1NDTV NDE180 SAP | — | |
| 13741-20021 |
Retainer, Valve Spring
2014-01 → 2014-05
ended
|
1ZRFE,2ZRFE ZRE18# | — | |
| 13741-20021 note |
Retainer, Valve Spring
2014-05 → 2014-08
ended
|
1ZRFE,2ZRFE ZRE18# | — | |
| 13741-33020 |
Retainer, Valve Spring
2013-06 → 2015-04
ended
|
1NDTV NDE180 | — | |
| 13741-33020 note |
Retainer, Valve Spring
2015-04 → 2016-05
ended
|
1NDTV NDE180 TUP | — | |
| 13741-33020 note |
Retainer, Valve Spring
2015-04 → 2017-01
ended
|
1NDTV NDE180 SAP | — | |
| 13741-36010 note |
Retainer, Valve Spring
2014-05 → 2014-08
ended
|
1ZRFE,2ZRFE ZRE18# | — | |
| 13741-36010 |
Retainer, Valve Spring
2014-08 → 2017-01
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 13741-36010 |
Retainer, Valve Spring
2014-01 → 2017-01
ended
|
1NRFE NRE180 SAP | — | |
| 13741-0N010 note |
Retainer, Valve Spring
2016-06 → 2019-01
ended
|
1NDTV NDE180 TUP | — | |
| 13741-0N010 note |
Retainer, Valve Spring
2016-06 → —
|
1NDTV NDE180 SAP | — | |
| 13741-33020 note |
Retainer, Valve Spring
2016-06 → 2019-01
ended
|
1NDTV NDE180 TUP | — | |
| 13741-33020 note |
Retainer, Valve Spring
2016-06 → —
|
1NDTV NDE180 SAP | — | |
| 13741-36010 |
Retainer, Valve Spring
2016-06 → 2018-08
ended
|
1NRFE NRE180 TUP | — | |
| 13741-36010 note |
Retainer, Valve Spring
2016-06 → 2019-01
ended
|
1ZRFE,2ZRFE ZRE18# TUP | — | |
| 13741-36010 note |
Retainer, Valve Spring
2016-06 → 2019-12
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 13741-36010 |
Retainer, Valve Spring
2016-06 → —
|
1NRFE NRE180 SAP | — | |
| 13741-36010 note |
Retainer, Valve Spring
2019-12 → —
|
2ZRFE ZRE182 | — | |
| 13741A — Lock, Valve Spring Retainer | ||||
| 90913-03021 |
Lock, Valve Spring Retainer
2013-06 → 2016-05
ended
|
1NDTV NDE180 TUP | — | |
| 90913-03021 |
Lock, Valve Spring Retainer
2013-06 → 2017-01
ended
|
1NDTV NDE180 SAP | — | |
| 90913-03028 note |
Lock, Valve Spring Retainer
2014-06 → 2017-01
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 90913-03028 |
Lock, Valve Spring Retainer
2014-01 → 2017-01
ended
|
1NRFE NRE180 SAP | — | |
| 90913-03028 |
Lock, Valve Spring Retainer
2014-01 → 2014-06
ended
|
1ZRFE,2ZRFE ZRE18# | — | |
| 90913-W3001 note |
Lock, Valve Spring Retainer
2014-06 → 2017-01
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 90913-03021 |
Lock, Valve Spring Retainer
2016-06 → 2019-01
ended
|
1NDTV NDE180 TUP | — | |
| 90913-03021 |
Lock, Valve Spring Retainer
2016-06 → —
|
1NDTV NDE180 SAP | — | |
| 90913-03028 |
Lock, Valve Spring Retainer
2016-06 → 2018-08
ended
|
1NRFE NRE180 TUP | — | |
| 90913-03028 note |
Lock, Valve Spring Retainer
2016-06 → 2019-01
ended
|
1ZRFE,2ZRFE ZRE18# TUP | — | |
| 90913-03028 note |
Lock, Valve Spring Retainer
2016-06 → 2019-12
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 90913-03028 |
Lock, Valve Spring Retainer
2016-06 → —
|
1NRFE NRE180 SAP | — | |
| 90913-W3001 note |
Lock, Valve Spring Retainer
2016-06 → 2019-01
ended
|
1ZRFE,2ZRFE ZRE18# TUP | — | |
| 90913-W3001 note |
Lock, Valve Spring Retainer
2016-06 → 2019-12
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 90913-03028 note |
Lock, Valve Spring Retainer
2019-12 → —
|
2ZRFE ZRE182 | — | |
| 90913-W3001 note |
Lock, Valve Spring Retainer
2019-12 → —
|
2ZRFE ZRE182 | — | |
| 13750 — Adjuster Assy, Valve Lash | ||||
| 13750-0T010 note |
Adjuster Assy, Valve Lash
2014-01 → 2015-01
ended
|
1ZRFE,2ZRFE ZRE18# | — | |
| 13750-0T040 note |
Adjuster Assy, Valve Lash
2015-01 → 2017-01
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 13750-21010 |
Adjuster Assy, Valve Lash
2014-01 → 2017-01
ended
|
1NRFE NRE180 SAP | — | |
| 13750-21010 note |
Adjuster Assy, Valve Lash
2015-01 → 2017-01
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 13750-75020 note |
Adjuster Assy, Valve Lash
2014-01 → 2015-01
ended
|
1ZRFE,2ZRFE ZRE18# | — | |
| 13750-0T040 note |
Adjuster Assy, Valve Lash
2016-06 → 2019-01
ended
|
1ZRFE,2ZRFE ZRE18# TUP | — | |
| 13750-0T040 note |
Adjuster Assy, Valve Lash
2016-06 → 2019-12
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 13750-21010 |
Adjuster Assy, Valve Lash
2016-06 → —
|
1NRFE NRE180 SAP | — | |
| 13750-21010 note |
Adjuster Assy, Valve Lash
2016-06 → 2019-12
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 13750-21010 |
Adjuster Assy, Valve Lash
2016-06 → 2018-08
ended
|
1NRFE NRE180 TUP | — | |
| 13750-21010 note |
Adjuster Assy, Valve Lash
2016-06 → 2019-01
ended
|
1ZRFE,2ZRFE ZRE18# TUP | — | |
| 13750-0T040 note |
Adjuster Assy, Valve Lash
2019-12 → —
|
2ZRFE ZRE182 | — | |
| 13750-21010 note |
Adjuster Assy, Valve Lash
2019-12 → —
|
2ZRFE ZRE182 | — | |
| 13801 — Arm Sub-assy, Valve Rocker, NO.1 | ||||
| 13801-0T020 note |
Arm Sub-assy, Valve Rocker, NO.1
2014-01 → 2014-12
ended
|
1ZRFE,2ZRFE ZRE18# | — | |
| 13801-0T030 note |
Arm Sub-assy, Valve Rocker, NO.1
2015-01 → 2017-01
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 13801-23011 note |
Arm Sub-assy, Valve Rocker, NO.1
2014-01 → 2014-04
ended
|
1ZRFE,2ZRFE ZRE18# | — | |
| 13801-33020 |
Arm Sub-assy, Valve Rocker, NO.1
2013-06 → 2016-05
ended
|
1NDTV NDE180 TUP | — | |
| 13801-33020 |
Arm Sub-assy, Valve Rocker, NO.1
2013-06 → 2017-01
ended
|
1NDTV NDE180 SAP | — | |
| 13801-36020 |
Arm Sub-assy, Valve Rocker, NO.1
2014-01 → 2017-01
ended
|
1NRFE NRE180 SAP | — | |
| 13801-36020 note |
Arm Sub-assy, Valve Rocker, NO.1
2014-05 → 2017-01
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 13801-0T030 note |
Arm Sub-assy, Valve Rocker, NO.1
2016-06 → 2019-01
ended
|
1ZRFE,2ZRFE ZRE18# TUP | — | |
| 13801-0T030 note |
Arm Sub-assy, Valve Rocker, NO.1
2016-06 → 2019-12
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 13801-33020 |
Arm Sub-assy, Valve Rocker, NO.1
2016-06 → 2019-01
ended
|
1NDTV NDE180 TUP | — | |
| 13801-33020 |
Arm Sub-assy, Valve Rocker, NO.1
2016-06 → —
|
1NDTV NDE180 SAP | — | |
| 13801-36020 |
Arm Sub-assy, Valve Rocker, NO.1
2016-06 → 2018-08
ended
|
1NRFE NRE180 TUP | — | |
| 13801-36020 note |
Arm Sub-assy, Valve Rocker, NO.1
2016-06 → 2019-01
ended
|
1ZRFE,2ZRFE ZRE18# TUP | — | |
| 13801-36020 note |
Arm Sub-assy, Valve Rocker, NO.1
2016-06 → 2019-12
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 13801-36020 |
Arm Sub-assy, Valve Rocker, NO.1
2016-06 → —
|
1NRFE NRE180 SAP | — | |
| 13801-0T030 note |
Arm Sub-assy, Valve Rocker, NO.1
2019-12 → —
|
2ZRFE ZRE182 | — | |
| 13801-36020 note |
Arm Sub-assy, Valve Rocker, NO.1
2019-12 → —
|
2ZRFE ZRE182 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
