Toyota Corolla
2013-06 → present · chassis NDE180,NRE180,ZRE18#,ZRE21#,ZWE219 · catalogue 164320 · General
Supported model
Data version 2019-11

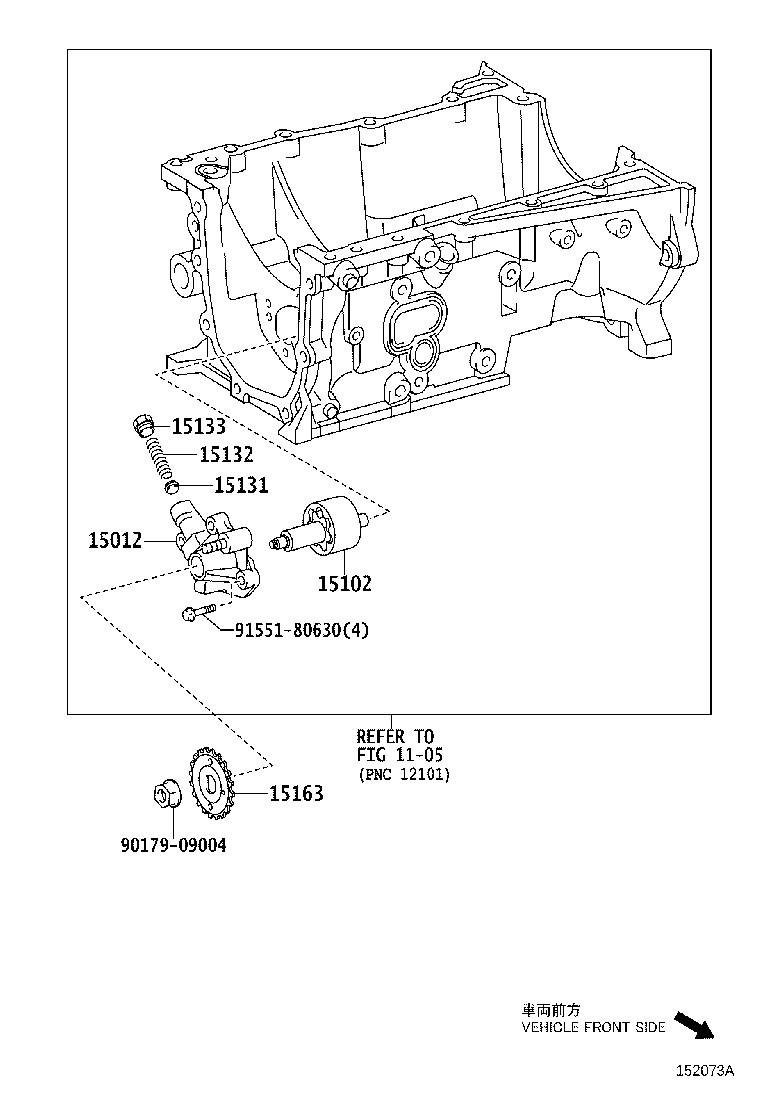

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 15012 — Cover Sub-assy, Oil Pump | ||||
| 15012-0T030 note |
Cover Sub-assy, Oil Pump
2014-01 → 2017-01
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 15012-33060 |
Cover Sub-assy, Oil Pump
2013-06 → 2017-01
ended
|
1NDTV NDE180 SAP | — | |
| 15012-33060 |
Cover Sub-assy, Oil Pump
2013-06 → 2016-05
ended
|
1NDTV NDE180 TUP | — | |
| 15012-37010 note |
Cover Sub-assy, Oil Pump
2014-01 → 2017-01
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 15012-0T030 note |
Cover Sub-assy, Oil Pump
2016-06 → 2019-01
ended
|
1ZRFE,2ZRFE ZRE18# TUP | — | |
| 15012-0T030 note |
Cover Sub-assy, Oil Pump
2016-06 → 2019-12
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 15012-33060 |
Cover Sub-assy, Oil Pump
2016-06 → 2019-01
ended
|
1NDTV NDE180 TUP | — | |
| 15012-33060 |
Cover Sub-assy, Oil Pump
2016-06 → —
|
1NDTV NDE180 SAP | — | |
| 15012-37010 note |
Cover Sub-assy, Oil Pump
2016-06 → 2019-01
ended
|
1ZRFE,2ZRFE ZRE18# TUP | — | |
| 15012-37010 note |
Cover Sub-assy, Oil Pump
2016-06 → 2019-12
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 15012-0T030 note |
Cover Sub-assy, Oil Pump
2019-12 → —
|
2ZRFE ZRE182 | — | |
| 15012-37010 note |
Cover Sub-assy, Oil Pump
2019-12 → —
|
2ZRFE ZRE182 | — | |
| 15102 — Rotor Set, Oil Pump | ||||
| 15102-33060 |
Rotor Set, Oil Pump
2013-06 → 2016-05
ended
|
1NDTV NDE180 TUP | — | |
| 15102-33060 |
Rotor Set, Oil Pump
2013-06 → 2017-01
ended
|
1NDTV NDE180 SAP | — | |
| 15102-33060 |
Rotor Set, Oil Pump
2016-06 → 2019-01
ended
|
1NDTV NDE180 TUP | — | |
| 15102-33060 |
Rotor Set, Oil Pump
2016-06 → —
|
1NDTV NDE180 SAP | — | |
| 15131 — Valve, Oil Pump Relief | ||||
| 15131-0A040 |
Valve, Oil Pump Relief
2014-01 → 2017-01
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 15131-38010 |
Valve, Oil Pump Relief
2013-06 → 2016-05
ended
|
1NDTV NDE180 TUP | — | |
| 15131-38010 |
Valve, Oil Pump Relief
2013-06 → 2017-01
ended
|
1NDTV NDE180 SAP | — | |
| 15131-0A040 |
Valve, Oil Pump Relief
2016-06 → 2019-01
ended
|
1ZRFE,2ZRFE ZRE18# TUP | — | |
| 15131-0A040 |
Valve, Oil Pump Relief
2016-06 → 2019-12
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 15131-38010 |
Valve, Oil Pump Relief
2016-06 → 2019-01
ended
|
1NDTV NDE180 TUP | — | |
| 15131-38010 |
Valve, Oil Pump Relief
2016-06 → —
|
1NDTV NDE180 SAP | — | |
| 15131-0A040 |
Valve, Oil Pump Relief
2019-12 → —
|
2ZRFE ZRE182 | — | |
| 15132 — Spring, Oil Pump Relief Valve | ||||
| 15132-33020 |
Spring, Oil Pump Relief Valve
2013-06 → 2016-05
ended
|
1NDTV NDE180 TUP | — | |
| 15132-33020 |
Spring, Oil Pump Relief Valve
2013-06 → 2017-01
ended
|
1NDTV NDE180 SAP | — | |
| 15132-46060 |
Spring, Oil Pump Relief Valve
2014-01 → 2017-01
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 15132-33020 |
Spring, Oil Pump Relief Valve
2016-06 → 2019-01
ended
|
1NDTV NDE180 TUP | — | |
| 15132-33020 |
Spring, Oil Pump Relief Valve
2016-06 → —
|
1NDTV NDE180 SAP | — | |
| 15132-46060 |
Spring, Oil Pump Relief Valve
2016-06 → 2019-01
ended
|
1ZRFE,2ZRFE ZRE18# TUP | — | |
| 15132-46060 |
Spring, Oil Pump Relief Valve
2016-06 → 2019-12
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 15132-46060 |
Spring, Oil Pump Relief Valve
2019-12 → —
|
2ZRFE ZRE182 | — | |
| 15133 — Plug, Oil Pump Relief Valve | ||||
| 15133-20010 |
Plug, Oil Pump Relief Valve
2013-06 → 2016-05
ended
|
1NDTV NDE180 TUP | — | |
| 15133-20010 |
Plug, Oil Pump Relief Valve
2013-06 → 2017-01
ended
|
1NDTV NDE180 SAP | — | |
| 15133-28020 |
Plug, Oil Pump Relief Valve
2014-01 → 2017-01
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 15133-20010 |
Plug, Oil Pump Relief Valve
2016-06 → 2019-01
ended
|
1NDTV NDE180 TUP | — | |
| 15133-20010 |
Plug, Oil Pump Relief Valve
2016-06 → —
|
1NDTV NDE180 SAP | — | |
| 15133-28020 |
Plug, Oil Pump Relief Valve
2016-06 → 2019-01
ended
|
1ZRFE,2ZRFE ZRE18# TUP | — | |
| 15133-28020 |
Plug, Oil Pump Relief Valve
2016-06 → 2019-12
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 15133-28020 |
Plug, Oil Pump Relief Valve
2019-12 → —
|
2ZRFE ZRE182 | — | |
| 15163 — Gear, Oil Pump Drive Shaft | ||||
| 15163-0H010 note |
Gear, Oil Pump Drive Shaft
2014-02 → 2017-01
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 15163-28010 |
Gear, Oil Pump Drive Shaft
2014-01 → 2014-02
ended
|
1ZRFE,2ZRFE ZRE18# | — | |
| 15163-28010 note |
Gear, Oil Pump Drive Shaft
2014-02 → 2017-01
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 15163-33010 |
Gear, Oil Pump Drive Shaft
2013-06 → 2016-05
ended
|
1NDTV NDE180 TUP | — | |
| 15163-33010 |
Gear, Oil Pump Drive Shaft
2013-06 → 2017-01
ended
|
1NDTV NDE180 SAP | — | |
| 15163-0H010 note |
Gear, Oil Pump Drive Shaft
2016-06 → 2019-01
ended
|
1ZRFE,2ZRFE ZRE18# TUP | — | |
| 15163-0H010 note |
Gear, Oil Pump Drive Shaft
2016-06 → 2019-12
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 15163-28010 note |
Gear, Oil Pump Drive Shaft
2016-06 → 2019-01
ended
|
1ZRFE,2ZRFE ZRE18# TUP | — | |
| 15163-28010 note |
Gear, Oil Pump Drive Shaft
2016-06 → 2019-12
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 15163-33010 note |
Gear, Oil Pump Drive Shaft
2016-06 → 2019-01
ended
|
1NDTV NDE180 TUP | — | |
| 15163-33010 note |
Gear, Oil Pump Drive Shaft
2016-06 → —
|
1NDTV NDE180 SAP | — | |
| 15163-0H010 note |
Gear, Oil Pump Drive Shaft
2019-12 → 2023-01
ended
|
2ZRFE ZRE182 | — | |
| 15163-0T030 note |
Gear, Oil Pump Drive Shaft
2023-01 → —
|
2ZRFE ZRE182 | — | |
| 15163-28010 note |
Gear, Oil Pump Drive Shaft
2019-12 → —
|
2ZRFE ZRE182 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
