Toyota Corolla
2013-06 → present · chassis NDE180,NRE180,ZRE18#,ZRE21#,ZWE219 · catalogue 164320 · General
Supported model
Data version 2019-11

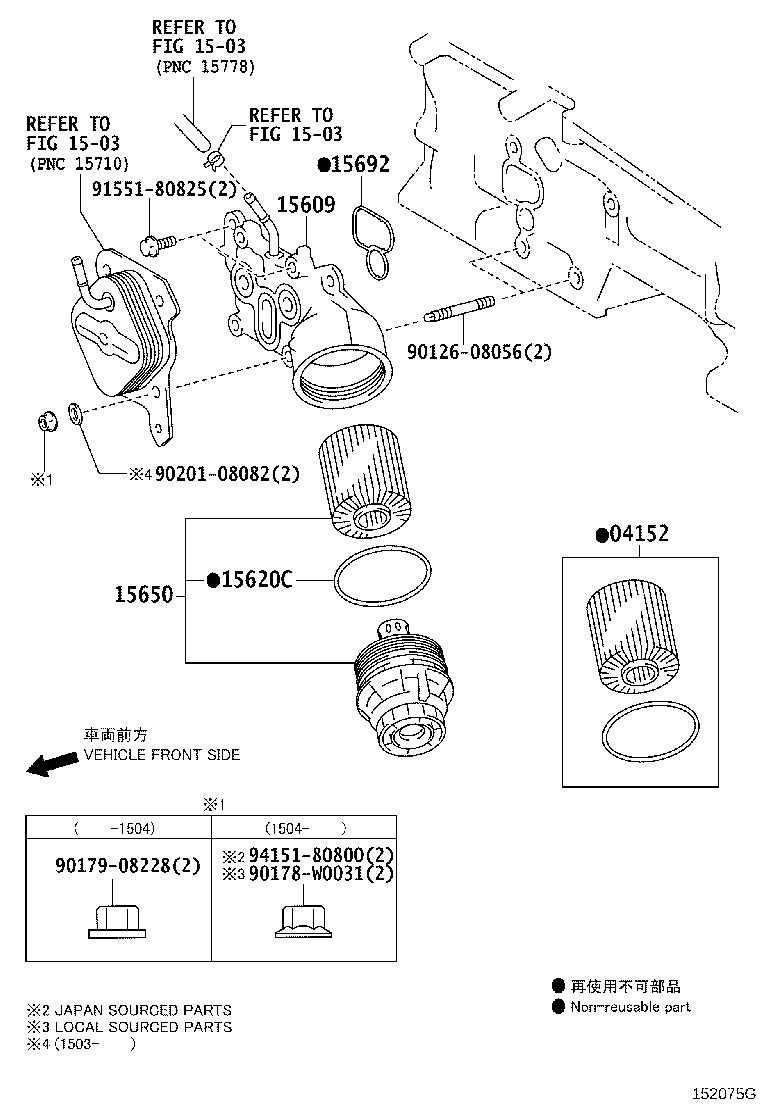

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 04152 — Element Kit, Oil Filter | ||||
| 04152-31110 |
Element Kit, Oil Filter
2013-06 → 2017-01
ended
|
1NDTV NDE180 SAP | — | |
| 04152-31110 |
Element Kit, Oil Filter
2013-06 → 2016-05
ended
|
1NDTV NDE180 TUP | — | |
| 04152-37010 note |
Element Kit, Oil Filter
2014-01 → 2017-01
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 04152-40060 |
Element Kit, Oil Filter
2014-01 → 2017-01
ended
|
1NRFE NRE180 SAP | — | |
| 04152-31110 |
Element Kit, Oil Filter
2016-06 → 2019-01
ended
|
1NDTV NDE180 TUP | — | |
| 04152-31110 |
Element Kit, Oil Filter
2016-06 → —
|
1NDTV NDE180 SAP | — | |
| 04152-37010 note |
Element Kit, Oil Filter
2016-06 → 2018-10
ended
|
1ZRFE,2ZRFE ZRE18# | — | |
| 04152-40060 |
Element Kit, Oil Filter
2016-06 → 2018-08
ended
|
1NRFE NRE180 TUP | — | |
| 04152-40060 |
Element Kit, Oil Filter
2016-06 → —
|
1NRFE NRE180 SAP | — | |
| 15609 — Bracket Sub-assy, Oil Filter | ||||
| 15609-0N010 note |
Bracket Sub-assy, Oil Filter
2013-06 → 2016-05
ended
|
1NDTV NDE180 TUP | — | |
| 15609-0N010 note |
Bracket Sub-assy, Oil Filter
2013-06 → 2017-01
ended
|
1NDTV NDE180 SAP | — | |
| 15609-0T030 note |
Bracket Sub-assy, Oil Filter
2014-01 → 2017-01
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 15609-33030 note |
Bracket Sub-assy, Oil Filter
2013-06 → 2017-01
ended
|
1NDTV NDE180 SAP | — | |
| 15609-33030 note |
Bracket Sub-assy, Oil Filter
2013-06 → 2016-05
ended
|
1NDTV NDE180 TUP | — | |
| 15609-37041 note |
Bracket Sub-assy, Oil Filter
2014-01 → 2017-01
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 15609-0N010 note |
Bracket Sub-assy, Oil Filter
2016-06 → 2019-01
ended
|
1NDTV NDE180 TUP | — | |
| 15609-0N010 note |
Bracket Sub-assy, Oil Filter
2016-06 → —
|
1NDTV NDE180 SAP | — | |
| 15609-0T030 note |
Bracket Sub-assy, Oil Filter
2016-06 → 2018-10
ended
|
1ZRFE,2ZRFE ZRE18# | — | |
| 15609-0T080 note |
Bracket Sub-assy, Oil Filter
2018-07 → 2019-01
ended
|
1ZRFE,2ZRFE ZRE18# TUP | — | |
| 15609-0T080 note |
Bracket Sub-assy, Oil Filter
2018-07 → 2019-12
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 15609-33030 note |
Bracket Sub-assy, Oil Filter
2016-06 → 2019-01
ended
|
1NDTV NDE180 TUP | — | |
| 15609-33030 note |
Bracket Sub-assy, Oil Filter
2016-06 → —
|
1NDTV NDE180 SAP | — | |
| 15609-37041 note |
Bracket Sub-assy, Oil Filter
2016-06 → 2018-10
ended
|
1ZRFE,2ZRFE ZRE18# | — | |
| 15609-37060 note |
Bracket Sub-assy, Oil Filter
2018-07 → 2019-12
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 15609-37060 note |
Bracket Sub-assy, Oil Filter
2018-07 → 2019-01
ended
|
1ZRFE,2ZRFE ZRE18# TUP | — | |
| 15609-0T080 note |
Bracket Sub-assy, Oil Filter
2019-12 → —
|
2ZRFE ZRE182 | — | |
| 15609-37060 note |
Bracket Sub-assy, Oil Filter
2019-12 → —
|
2ZRFE ZRE182 | — | |
| 15620C — Gasket(FOR OIL FILTER CAP) | ||||
| 90301-69011 note |
Gasket(FOR OIL FILTER CAP)
2014-01 → 2017-01
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 90301-69011 |
Gasket(FOR OIL FILTER CAP)
2014-01 → 2017-01
ended
|
1NRFE NRE180 SAP | — | |
| 90301-79006 |
Gasket(FOR OIL FILTER CAP)
2013-06 → 2016-05
ended
|
1NDTV NDE180 TUP | — | |
| 90301-79006 |
Gasket(FOR OIL FILTER CAP)
2013-06 → 2017-01
ended
|
1NDTV NDE180 SAP | — | |
| 90301-69011 |
Gasket(FOR OIL FILTER CAP)
2016-06 → —
|
1NRFE NRE180 SAP | — | |
| 90301-69011 note |
Gasket(FOR OIL FILTER CAP)
2016-06 → 2018-10
ended
|
1ZRFE,2ZRFE ZRE18# | — | |
| 90301-69011 |
Gasket(FOR OIL FILTER CAP)
2016-06 → 2018-08
ended
|
1NRFE NRE180 TUP | — | |
| 90301-79006 |
Gasket(FOR OIL FILTER CAP)
2016-06 → 2019-01
ended
|
1NDTV NDE180 TUP | — | |
| 90301-79006 |
Gasket(FOR OIL FILTER CAP)
2016-06 → —
|
1NDTV NDE180 SAP | — | |
| 15650 — Cap Assy, Oil Filter W/Elememt | ||||
| 15650-33010 |
Cap Assy, Oil Filter W/Elememt
2013-06 → 2016-05
ended
|
1NDTV NDE180 TUP | — | |
| 15650-33010 |
Cap Assy, Oil Filter W/Elememt
2013-06 → 2017-01
ended
|
1NDTV NDE180 SAP | — | |
| 15650-33010 |
Cap Assy, Oil Filter W/Elememt
2016-06 → 2019-01
ended
|
1NDTV NDE180 TUP | — | |
| 15650-33010 |
Cap Assy, Oil Filter W/Elememt
2016-06 → —
|
1NDTV NDE180 SAP | — | |
| 15692 — Gasket, Oil Filter Bracket | ||||
| 15692-33010 |
Gasket, Oil Filter Bracket
2013-06 → 2016-05
ended
|
1NDTV NDE180 TUP | — | |
| 15692-33010 |
Gasket, Oil Filter Bracket
2013-06 → 2017-01
ended
|
1NDTV NDE180 SAP | — | |
| 15692-33010 |
Gasket, Oil Filter Bracket
2016-06 → 2019-01
ended
|
1NDTV NDE180 TUP | — | |
| 15692-33010 |
Gasket, Oil Filter Bracket
2016-06 → —
|
1NDTV NDE180 SAP | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
