Toyota Corolla
2013-06 → present · chassis NDE180,NRE180,ZRE18#,ZRE21#,ZWE219 · catalogue 164320 · General
Supported model
Data version 2019-11

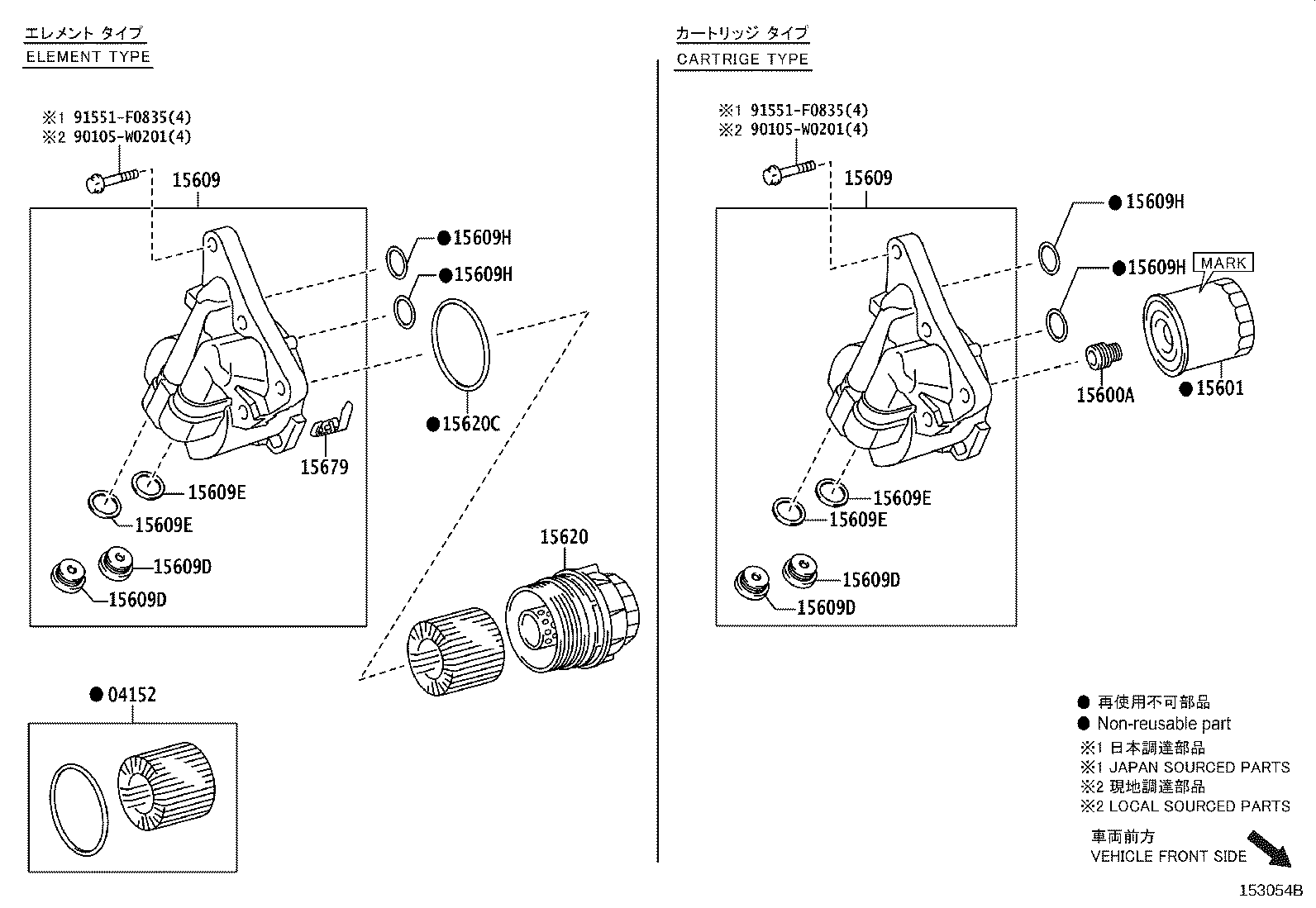

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 04152 — Element Kit, Oil Filter | ||||
| 04152-31110 |
Element Kit, Oil Filter
2013-06 → 2017-01
ended
|
1NDTV NDE180 SAP | — | |
| 04152-31110 |
Element Kit, Oil Filter
2013-06 → 2016-05
ended
|
1NDTV NDE180 TUP | — | |
| 04152-37010 note |
Element Kit, Oil Filter
2014-01 → 2017-01
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 04152-40060 |
Element Kit, Oil Filter
2014-01 → 2017-01
ended
|
1NRFE NRE180 SAP | — | |
| 04152-31110 |
Element Kit, Oil Filter
2016-06 → 2019-01
ended
|
1NDTV NDE180 TUP | — | |
| 04152-31110 |
Element Kit, Oil Filter
2016-06 → —
|
1NDTV NDE180 SAP | — | |
| 04152-37010 note |
Element Kit, Oil Filter
2016-06 → 2018-10
ended
|
1ZRFE,2ZRFE ZRE18# | — | |
| 04152-40060 |
Element Kit, Oil Filter
2016-06 → 2018-08
ended
|
1NRFE NRE180 TUP | — | |
| 04152-40060 |
Element Kit, Oil Filter
2016-06 → —
|
1NRFE NRE180 SAP | — | |
| 15600A — Union(FOR OIL FILTER) | ||||
| 90904-04006 note |
Union(FOR OIL FILTER)
2018-07 → 2019-12
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 90904-04006 note |
Union(FOR OIL FILTER)
2018-07 → 2019-01
ended
|
1ZRFE,2ZRFE ZRE18# TUP | — | |
| 90904-04006 note |
Union(FOR OIL FILTER)
2019-12 → —
|
2ZRFE ZRE182 | — | |
| 15601 — Filter Sub-assy, Oil | ||||
| 90915-10003 note |
Filter Sub-assy, Oil
2018-07 → 2019-01
ended
|
1ZRFE,2ZRFE ZRE18# TUP | — | |
| 90915-10003 note |
Filter Sub-assy, Oil
2018-07 → 2019-12
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 90915-CA003 note |
Filter Sub-assy, Oil
2018-07 → 2019-01
ended
|
1ZRFE,2ZRFE ZRE18# TUP | — | |
| 90915-CA003 note |
Filter Sub-assy, Oil
2018-07 → 2019-12
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 90915-TA001 note |
Filter Sub-assy, Oil
2018-07 → 2019-01
ended
|
1ZRFE,2ZRFE ZRE18# TUP | — | |
| 90915-TA001 note |
Filter Sub-assy, Oil
2018-07 → 2019-12
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 90915-10003 note |
Filter Sub-assy, Oil
2019-12 → 2023-02
ended
|
2ZRFE ZRE182 | — | |
| 90915-10009 note |
Filter Sub-assy, Oil
2023-03 → —
|
2ZRFE ZRE182 | — | |
| 90915-CA003 note |
Filter Sub-assy, Oil
2019-12 → 2023-02
ended
|
2ZRFE ZRE182 | — | |
| 90915-CA004 note |
Filter Sub-assy, Oil
2023-03 → —
|
2ZRFE ZRE182 | — | |
| 90915-TA001 note |
Filter Sub-assy, Oil
2019-12 → 2023-03
ended
|
2ZRFE ZRE182 | — | |
| 15609 — Bracket Sub-assy, Oil Filter | ||||
| 15609-0N010 note |
Bracket Sub-assy, Oil Filter
2013-06 → 2016-05
ended
|
1NDTV NDE180 TUP | — | |
| 15609-0N010 note |
Bracket Sub-assy, Oil Filter
2013-06 → 2017-01
ended
|
1NDTV NDE180 SAP | — | |
| 15609-0T030 note |
Bracket Sub-assy, Oil Filter
2014-01 → 2017-01
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 15609-33030 note |
Bracket Sub-assy, Oil Filter
2013-06 → 2016-05
ended
|
1NDTV NDE180 TUP | — | |
| 15609-33030 note |
Bracket Sub-assy, Oil Filter
2013-06 → 2017-01
ended
|
1NDTV NDE180 SAP | — | |
| 15609-37041 note |
Bracket Sub-assy, Oil Filter
2014-01 → 2017-01
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 15609-0N010 note |
Bracket Sub-assy, Oil Filter
2016-06 → —
|
1NDTV NDE180 SAP | — | |
| 15609-0N010 note |
Bracket Sub-assy, Oil Filter
2016-06 → 2019-01
ended
|
1NDTV NDE180 TUP | — | |
| 15609-0T030 note |
Bracket Sub-assy, Oil Filter
2016-06 → 2018-10
ended
|
1ZRFE,2ZRFE ZRE18# | — | |
| 15609-0T080 note |
Bracket Sub-assy, Oil Filter
2018-07 → 2019-01
ended
|
1ZRFE,2ZRFE ZRE18# TUP | — | |
| 15609-0T080 note |
Bracket Sub-assy, Oil Filter
2018-07 → 2019-12
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 15609-33030 note |
Bracket Sub-assy, Oil Filter
2016-06 → 2019-01
ended
|
1NDTV NDE180 TUP | — | |
| 15609-33030 note |
Bracket Sub-assy, Oil Filter
2016-06 → —
|
1NDTV NDE180 SAP | — | |
| 15609-37041 note |
Bracket Sub-assy, Oil Filter
2016-06 → 2018-10
ended
|
1ZRFE,2ZRFE ZRE18# | — | |
| 15609-37060 note |
Bracket Sub-assy, Oil Filter
2018-07 → 2019-12
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 15609-37060 note |
Bracket Sub-assy, Oil Filter
2018-07 → 2019-01
ended
|
1ZRFE,2ZRFE ZRE18# TUP | — | |
| 15609-0T080 note |
Bracket Sub-assy, Oil Filter
2019-12 → —
|
2ZRFE ZRE182 | — | |
| 15609-37060 note |
Bracket Sub-assy, Oil Filter
2019-12 → —
|
2ZRFE ZRE182 | — | |
| 15609D — Plug, W/Head Straight Screw(FOR OIL FILTER BRACKET) | ||||
| 90341-20002 note |
Plug, W/Head Straight Screw(FOR OIL FILTER BRACKET)
2014-01 → 2017-01
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 90341-20002 note |
Plug, W/Head Straight Screw(FOR OIL FILTER BRACKET)
2016-06 → 2018-10
ended
|
1ZRFE,2ZRFE ZRE18# | — | |
| 90341-20002 note |
Plug, W/Head Straight Screw(FOR OIL FILTER BRACKET)
2018-07 → 2019-01
ended
|
1ZRFE,2ZRFE ZRE18# TUP | — | |
| 90341-20002 note |
Plug, W/Head Straight Screw(FOR OIL FILTER BRACKET)
2018-07 → 2019-12
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 90341-20002 note |
Plug, W/Head Straight Screw(FOR OIL FILTER BRACKET)
2019-12 → —
|
2ZRFE ZRE182 | — | |
| 15609E — Gasket, W/Head Straight Screw Plug | ||||
| 90430-20004 note |
Gasket, W/Head Straight Screw Plug
2014-01 → 2017-01
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 90430-20004 note |
Gasket, W/Head Straight Screw Plug
2016-06 → 2018-10
ended
|
1ZRFE,2ZRFE ZRE18# | — | |
| 90430-20018 note |
Gasket, W/Head Straight Screw Plug
2018-07 → 2019-01
ended
|
1ZRFE,2ZRFE ZRE18# TUP | — | |
| 90430-20018 note |
Gasket, W/Head Straight Screw Plug
2018-07 → 2019-12
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 90430-20018 note |
Gasket, W/Head Straight Screw Plug
2019-12 → —
|
2ZRFE ZRE182 | — | |
| 15609H — Ring, O(FOR OIL FILTER BRACKET) | ||||
| 96723-24020 note |
Ring, O(FOR OIL FILTER BRACKET)
2014-01 → 2017-01
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 96723-24020 note |
Ring, O(FOR OIL FILTER BRACKET)
2016-06 → 2018-10
ended
|
1ZRFE,2ZRFE ZRE18# | — | |
| 96723-24020 note |
Ring, O(FOR OIL FILTER BRACKET)
2018-07 → 2019-01
ended
|
1ZRFE,2ZRFE ZRE18# TUP | — | |
| 96723-24020 note |
Ring, O(FOR OIL FILTER BRACKET)
2018-07 → 2019-12
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 96723-24020 note |
Ring, O(FOR OIL FILTER BRACKET)
2019-12 → —
|
2ZRFE ZRE182 | — | |
| 15620 — Cap Assy, Oil Filter | ||||
| 15620-37010 note |
Cap Assy, Oil Filter
2014-01 → 2017-01
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 15620-40030 |
Cap Assy, Oil Filter
2014-01 → 2017-01
ended
|
1NRFE NRE180 SAP | — | |
| 15620-37010 note |
Cap Assy, Oil Filter
2016-06 → 2018-10
ended
|
1ZRFE,2ZRFE ZRE18# | — | |
| 15620-40030 |
Cap Assy, Oil Filter
2016-06 → 2018-08
ended
|
1NRFE NRE180 TUP | — | |
| 15620-40030 |
Cap Assy, Oil Filter
2016-06 → —
|
1NRFE NRE180 SAP | — | |
| 15620C — Gasket(FOR OIL FILTER CAP) | ||||
| 90301-69011 |
Gasket(FOR OIL FILTER CAP)
2014-01 → 2017-01
ended
|
1NRFE NRE180 SAP | — | |
| 90301-69011 note |
Gasket(FOR OIL FILTER CAP)
2014-01 → 2017-01
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 90301-79006 |
Gasket(FOR OIL FILTER CAP)
2013-06 → 2017-01
ended
|
1NDTV NDE180 SAP | — | |
| 90301-79006 |
Gasket(FOR OIL FILTER CAP)
2013-06 → 2016-05
ended
|
1NDTV NDE180 TUP | — | |
| 90301-69011 |
Gasket(FOR OIL FILTER CAP)
2016-06 → 2018-08
ended
|
1NRFE NRE180 TUP | — | |
| 90301-69011 note |
Gasket(FOR OIL FILTER CAP)
2016-06 → 2018-10
ended
|
1ZRFE,2ZRFE ZRE18# | — | |
| 90301-69011 |
Gasket(FOR OIL FILTER CAP)
2016-06 → —
|
1NRFE NRE180 SAP | — | |
| 90301-79006 |
Gasket(FOR OIL FILTER CAP)
2016-06 → 2019-01
ended
|
1NDTV NDE180 TUP | — | |
| 90301-79006 |
Gasket(FOR OIL FILTER CAP)
2016-06 → —
|
1NDTV NDE180 SAP | — | |
| 15679 — Clip, Oil Filter Bracket | ||||
| 15679-37010 note |
Clip, Oil Filter Bracket
2014-01 → 2014-08
ended
|
1ZRFE,2ZRFE ZRE18# | — | |
| 15679-37011 note |
Clip, Oil Filter Bracket
2014-09 → 2017-01
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 15679-37011 note |
Clip, Oil Filter Bracket
2016-06 → 2018-10
ended
|
1ZRFE,2ZRFE ZRE18# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
