Toyota Corolla
2013-06 → present · chassis NDE180,NRE180,ZRE18#,ZRE21#,ZWE219 · catalogue 164320 · General
Supported model
Data version 2019-11

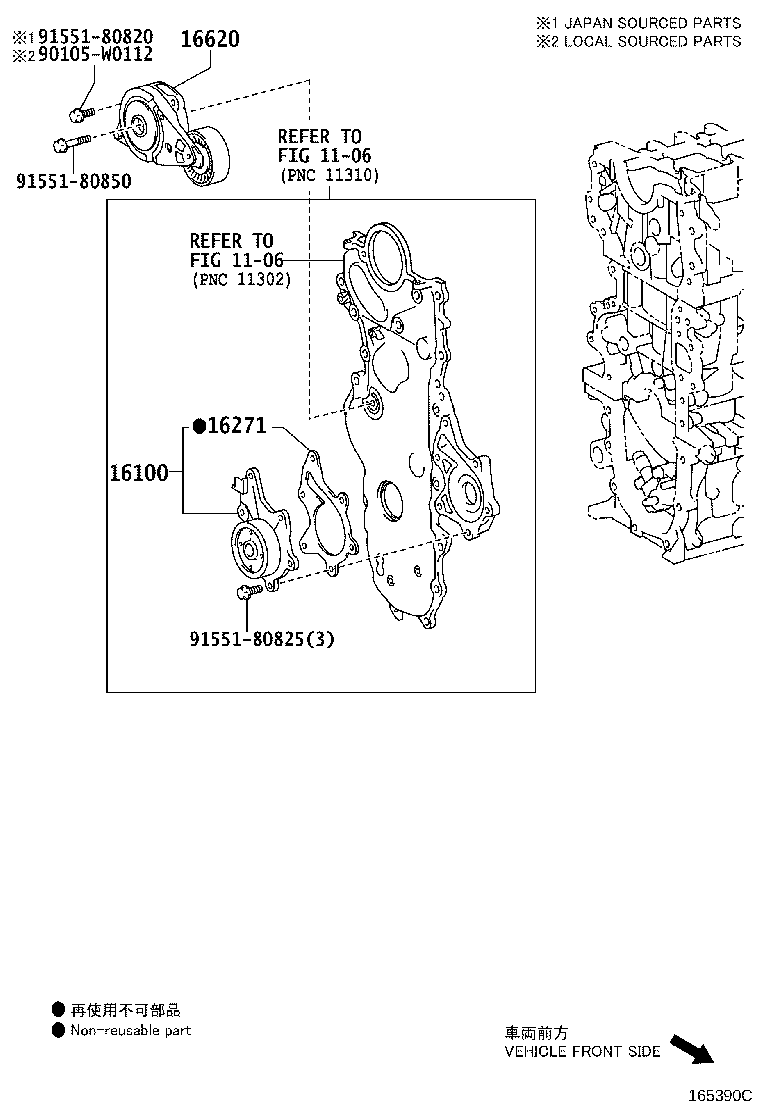

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 16100 — Pump Assy, Engine Water | ||||
| 16100-09501 note |
Pump Assy, Engine Water
2014-01 → 2017-01
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 16100-39466 note |
Pump Assy, Engine Water
2014-01 → 2017-01
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 16100-39525 |
Pump Assy, Engine Water
2013-06 → 2016-07
ended
|
1NDTV NDE180 SAP | — | |
| 16100-39525 |
Pump Assy, Engine Water
2013-06 → 2016-05
ended
|
1NDTV NDE180 TUP | — | |
| 16100-39526 |
Pump Assy, Engine Water
2016-07 → 2017-01
ended
|
1NDTV NDE180 SAP | — | |
| 16100-80010 |
Pump Assy, Engine Water
2014-01 → 2017-01
ended
|
1NRFE NRE180 SAP | — | |
| 16100-09501 note |
Pump Assy, Engine Water
2016-06 → 2019-12
ended
|
1ZRFE,2ZRFE ZRE18# | — | |
| 16100-39466 note |
Pump Assy, Engine Water
2016-06 → 2019-12
ended
|
1ZRFE,2ZRFE ZRE18# | — | |
| 16100-39525 |
Pump Assy, Engine Water
2016-06 → 2016-07
ended
|
1NDTV NDE180 TUP | — | |
| 16100-39526 |
Pump Assy, Engine Water
2016-07 → 2019-12
ended
|
1NDTV NDE180 | — | |
| 16100-80010 |
Pump Assy, Engine Water
2016-06 → 2019-12
ended
|
1NRFE NRE180 | — | |
| 16100-09501 note |
Pump Assy, Engine Water
2019-12 → 2020-09
ended
|
2ZRFE ZRE182 | — | |
| 16100-09502 note |
Pump Assy, Engine Water
2020-09 → —
|
2ZRFE ZRE182 | — | |
| 16100-39466 note |
Pump Assy, Engine Water
2019-12 → —
|
2ZRFE ZRE182 | — | |
| 16271 — Gasket, Water Pump | ||||
| 16271-33030 |
Gasket, Water Pump
2013-06 → 2016-05
ended
|
1NDTV NDE180 TUP | — | |
| 16271-33030 |
Gasket, Water Pump
2013-06 → 2017-01
ended
|
1NDTV NDE180 SAP | — | |
| 16271-37010 |
Gasket, Water Pump
2014-01 → 2017-01
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 16271-47031 |
Gasket, Water Pump
2014-01 → 2017-01
ended
|
1NRFE NRE180 SAP | — | |
| 16271-33030 |
Gasket, Water Pump
2016-06 → 2019-01
ended
|
1NDTV NDE180 TUP | — | |
| 16271-33030 |
Gasket, Water Pump
2016-06 → —
|
1NDTV NDE180 SAP | — | |
| 16271-37010 |
Gasket, Water Pump
2016-06 → 2019-12
ended
|
1ZRFE,2ZRFE ZRE18# | — | |
| 16271-47031 |
Gasket, Water Pump
2016-06 → 2018-08
ended
|
1NRFE NRE180 TUP | — | |
| 16271-47031 |
Gasket, Water Pump
2016-06 → —
|
1NRFE NRE180 SAP | — | |
| 16271-37010 |
Gasket, Water Pump
2019-12 → —
|
2ZRFE ZRE182 | — | |
| 16620 — Tensioner Assy, V-ribbed Belt | ||||
| 16620-33021 |
Tensioner Assy, V-ribbed Belt
2013-06 → 2014-11
ended
|
1NDTV NDE180 | — | |
| 16620-33022 |
Tensioner Assy, V-ribbed Belt
2014-12 → 2015-12
ended
|
1NDTV NDE180 | — | |
| 16620-33023 |
Tensioner Assy, V-ribbed Belt
2016-01 → 2016-05
ended
|
1NDTV NDE180 TUP | — | |
| 16620-33023 |
Tensioner Assy, V-ribbed Belt
2016-01 → 2017-01
ended
|
1NDTV NDE180 SAP | — | |
| 16620-47030 |
Tensioner Assy, V-ribbed Belt
2014-01 → 2017-01
ended
|
1NRFE NRE180 SAP | — | |
| 16620-33023 |
Tensioner Assy, V-ribbed Belt
2016-06 → 2017-03
ended
|
1NDTV NDE180 | — | |
| 16620-33024 |
Tensioner Assy, V-ribbed Belt
2017-04 → 2018-01
ended
|
1NDTV NDE180 | — | |
| 16620-33025 |
Tensioner Assy, V-ribbed Belt
2018-02 → 2019-12
ended
|
1NDTV NDE180 | — | |
| 16620-47030 |
Tensioner Assy, V-ribbed Belt
2016-06 → 2019-12
ended
|
1NRFE NRE180 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
