Toyota Corolla
2013-06 → present · chassis NDE180,NRE180,ZRE18#,ZRE21#,ZWE219 · catalogue 164320 · General
Supported model
Data version 2019-11

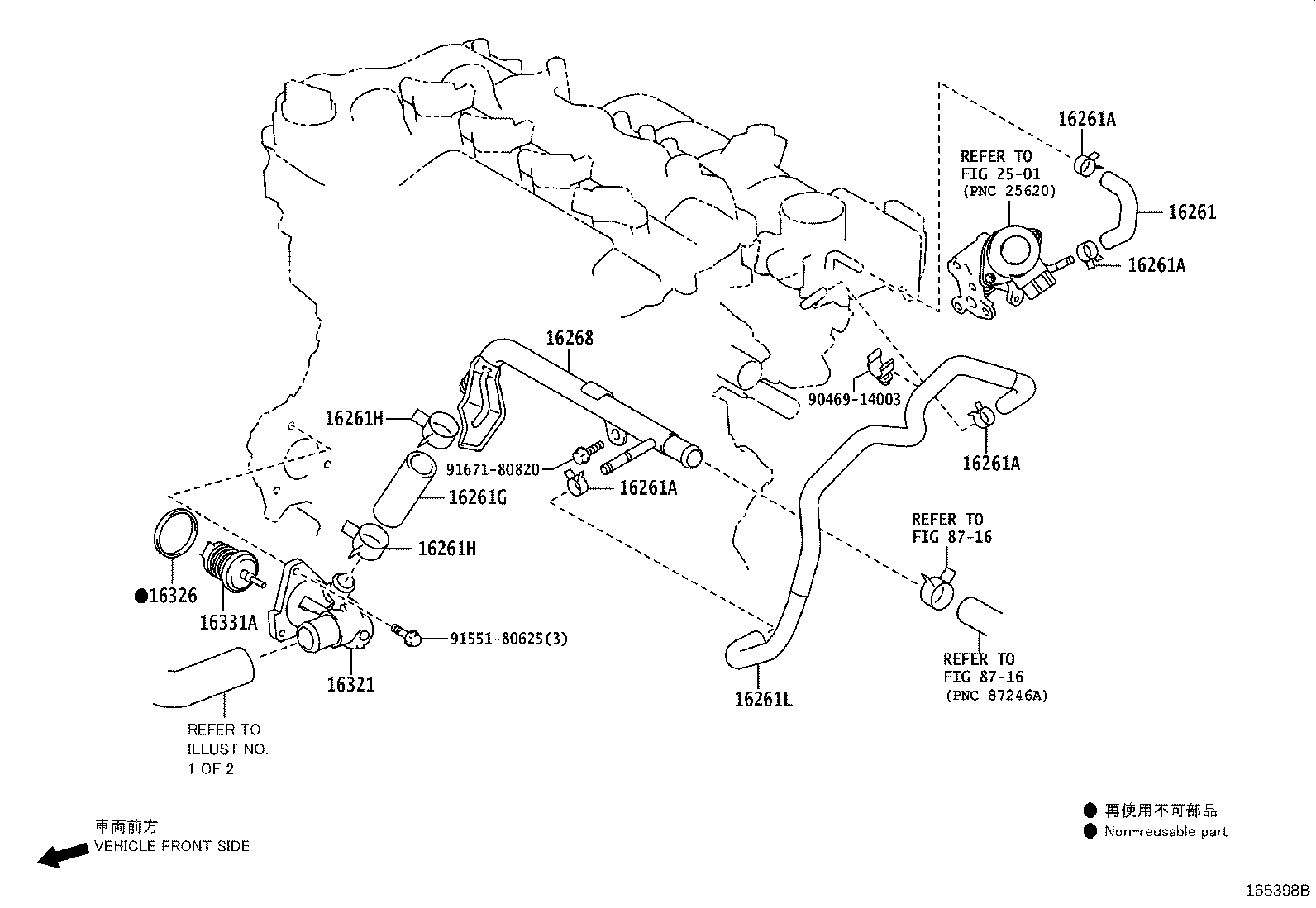

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 16261 — Hose, Water By-pass | ||||
| 16261-0N050 note |
Hose, Water By-pass
2013-06 → 2016-05
ended
|
1NDTV NDE180 TUP | — | |
| 16261-0N050 note |
Hose, Water By-pass
2013-06 → 2017-01
ended
|
1NDTV NDE180 SAP | — | |
| 16261-0T240 note |
Hose, Water By-pass
2014-06 → 2017-01
ended
|
2ZRFE ZRE182 SAP | — | |
| 16261-33050 note |
Hose, Water By-pass
2013-06 → 2016-05
ended
|
1NDTV NDE180 TUP | — | |
| 16261-33050 note |
Hose, Water By-pass
2013-06 → 2017-01
ended
|
1NDTV NDE180 SAP | — | |
| 16261-37022 |
Hose, Water By-pass
2014-01 → 2017-01
ended
|
1ZRFE ZRE181 SAP | — | |
| 16261-37052 |
Hose, Water By-pass
2014-01 → 2014-06
ended
|
2ZRFE ZRE182 | — | |
| 16261-37052 note |
Hose, Water By-pass
2014-06 → 2017-01
ended
|
2ZRFE ZRE182 SAP | — | |
| 16261-47010 |
Hose, Water By-pass
2014-01 → 2017-01
ended
|
1NRFE NRE180 SAP | — | |
| 16261-0N050 note |
Hose, Water By-pass
2016-06 → 2019-01
ended
|
1NDTV NDE180 TUP | — | |
| 16261-0N050 note |
Hose, Water By-pass
2016-06 → —
|
1NDTV NDE180 SAP | — | |
| 16261-0T240 note |
Hose, Water By-pass
2016-06 → 2019-01
ended
|
2ZRFE ZRE182 TUP | — | |
| 16261-0T240 note |
Hose, Water By-pass
2016-06 → 2019-12
ended
|
2ZRFE ZRE182 SAP | — | |
| 16261-33050 note |
Hose, Water By-pass
2016-06 → 2019-01
ended
|
1NDTV NDE180 TUP | — | |
| 16261-33050 note |
Hose, Water By-pass
2016-06 → —
|
1NDTV NDE180 SAP | — | |
| 16261-37022 |
Hose, Water By-pass
2016-06 → 2019-01
ended
|
1ZRFE ZRE181 TUP | — | |
| 16261-37022 |
Hose, Water By-pass
2016-06 → 2019-12
ended
|
1ZRFE ZRE181 SAP | — | |
| 16261-37052 note |
Hose, Water By-pass
2016-06 → 2019-01
ended
|
2ZRFE ZRE182 TUP | — | |
| 16261-37052 note |
Hose, Water By-pass
2016-06 → 2019-12
ended
|
2ZRFE ZRE182 SAP | — | |
| 16261-47010 |
Hose, Water By-pass
2016-06 → —
|
1NRFE NRE180 SAP | — | |
| 16261-47010 |
Hose, Water By-pass
2016-06 → 2018-08
ended
|
1NRFE NRE180 TUP | — | |
| 16261-0T240 note |
Hose, Water By-pass
2019-12 → —
|
2ZRFE ZRE182 | — | |
| 16261-37052 note |
Hose, Water By-pass
2019-12 → —
|
2ZRFE ZRE182 | — | |
| 16261A — Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE) | ||||
| 96136-41501 |
Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
2014-01 → 2017-01
ended
|
1NRFE NRE180 SAP | — | |
| 96137-41501 |
Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
2014-01 → 2017-01
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 96137-41701 note |
Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
2013-06 → 2016-05
ended
|
1NDTV NDE180 TUP | — | |
| 96137-41701 note |
Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
2013-06 → 2017-01
ended
|
1NDTV NDE180 SAP | — | |
| 96137-41901 note |
Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
2013-06 → 2017-01
ended
|
1NDTV NDE180 SAP | — | |
| 96137-41901 note |
Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
2013-06 → 2016-05
ended
|
1NDTV NDE180 TUP | — | |
| 96136-41501 |
Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
2016-06 → 2018-08
ended
|
1NRFE NRE180 TUP | — | |
| 96136-41501 |
Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
2016-06 → —
|
1NRFE NRE180 SAP | — | |
| 96137-41501 |
Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
2016-06 → 2019-01
ended
|
1ZRFE,2ZRFE ZRE18# TUP | — | |
| 96137-41501 |
Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
2016-06 → 2019-12
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 96137-41701 note |
Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
2016-06 → 2019-01
ended
|
1NDTV NDE180 TUP | — | |
| 96137-41701 note |
Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
2016-06 → —
|
1NDTV NDE180 SAP | — | |
| 96137-41901 note |
Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
2016-06 → 2019-01
ended
|
1NDTV NDE180 TUP | — | |
| 96137-41901 note |
Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
2016-06 → —
|
1NDTV NDE180 SAP | — | |
| 96137-41501 |
Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
2019-12 → —
|
2ZRFE ZRE182 | — | |
| 16261G — Hose, Water By-pass, NO.1 | ||||
| 16261-47020 |
Hose, Water By-pass, NO.1
2014-01 → 2017-01
ended
|
1NRFE NRE180 SAP | — | |
| 16261-47020 |
Hose, Water By-pass, NO.1
2016-06 → —
|
1NRFE NRE180 SAP | — | |
| 16261-47020 |
Hose, Water By-pass, NO.1
2016-06 → 2018-08
ended
|
1NRFE NRE180 TUP | — | |
| 16261H — Clip(FOR WATER BY-PASS HOSE NO.1) | ||||
| 96136-42901 |
Clip(FOR WATER BY-PASS HOSE NO.1)
2014-01 → 2017-01
ended
|
1NRFE NRE180 SAP | — | |
| 96136-42901 |
Clip(FOR WATER BY-PASS HOSE NO.1)
2016-06 → 2018-08
ended
|
1NRFE NRE180 TUP | — | |
| 96136-42901 |
Clip(FOR WATER BY-PASS HOSE NO.1)
2016-06 → —
|
1NRFE NRE180 SAP | — | |
| 16261L — Hose, Water By-pass | ||||
| 16261-47030 |
Hose, Water By-pass
2014-01 → 2017-01
ended
|
1NRFE NRE180 SAP | — | |
| 16261-47030 |
Hose, Water By-pass
2016-06 → 2018-08
ended
|
1NRFE NRE180 TUP | — | |
| 16261-47030 |
Hose, Water By-pass
2016-06 → —
|
1NRFE NRE180 SAP | — | |
| 16268 — Pipe, Water By-pass, NO.1 | ||||
| 16268-37021 |
Pipe, Water By-pass, NO.1
2014-01 → 2017-01
ended
|
1ZRFE,2ZRFE ZRE18# CVT SAP | — | |
| 16268-37031 |
Pipe, Water By-pass, NO.1
2014-01 → 2017-01
ended
|
1ZRFE,2ZRFE ZRE18# 6F SAP | — | |
| 16268-47031 |
Pipe, Water By-pass, NO.1
2014-01 → 2017-01
ended
|
1NRFE NRE180 SAP | — | |
| 16268-37021 |
Pipe, Water By-pass, NO.1
2016-06 → 2019-01
ended
|
1ZRFE,2ZRFE ZRE18# CVT TUP | — | |
| 16268-37021 |
Pipe, Water By-pass, NO.1
2016-06 → 2019-12
ended
|
1ZRFE,2ZRFE ZRE18# CVT SAP | — | |
| 16268-37031 |
Pipe, Water By-pass, NO.1
2016-06 → 2019-01
ended
|
1ZRFE ZRE181 6F TUP | — | |
| 16268-37031 |
Pipe, Water By-pass, NO.1
2016-06 → 2019-12
ended
|
1ZRFE,2ZRFE ZRE18# 6F SAP | — | |
| 16268-47031 |
Pipe, Water By-pass, NO.1
2016-06 → —
|
1NRFE NRE180 | — | |
| 16268-37021 note |
Pipe, Water By-pass, NO.1
2021-12 → 2022-08
ended
|
2ZRFE ZRE182 CVT | — | |
| 16268-37021 |
Pipe, Water By-pass, NO.1
2019-12 → 2021-12
ended
|
2ZRFE ZRE182 CVT | — | |
| 16268-37031 |
Pipe, Water By-pass, NO.1
2019-12 → 2021-12
ended
|
2ZRFE ZRE182 6F | — | |
| 16268-37031 note |
Pipe, Water By-pass, NO.1
2021-12 → 2022-08
ended
|
2ZRFE ZRE182 6F | — | |
| 16268-37060 note |
Pipe, Water By-pass, NO.1
2021-12 → —
|
2ZRFE ZRE182 CVT | — | |
| 16268-37070 note |
Pipe, Water By-pass, NO.1
2021-12 → —
|
2ZRFE ZRE182 6F | — | |
| 16321 — Inlet, Water | ||||
| 16321-0T010 note |
Inlet, Water
2014-01 → 2017-01
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 16321-33040 |
Inlet, Water
2013-06 → 2016-05
ended
|
1NDTV NDE180 TUP | — | |
| 16321-33040 |
Inlet, Water
2013-06 → 2017-01
ended
|
1NDTV NDE180 SAP | — | |
| 16321-37010 note |
Inlet, Water
2014-01 → 2017-01
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 16321-47011 |
Inlet, Water
2014-01 → 2017-01
ended
|
1NRFE NRE180 SAP | — | |
| 16321-0T010 note |
Inlet, Water
2016-06 → 2019-01
ended
|
1ZRFE,2ZRFE ZRE18# TUP | — | |
| 16321-0T010 note |
Inlet, Water
2016-06 → 2019-12
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 16321-33040 |
Inlet, Water
2016-06 → 2019-01
ended
|
1NDTV NDE180 TUP | — | |
| 16321-33040 |
Inlet, Water
2016-06 → —
|
1NDTV NDE180 SAP | — | |
| 16321-37010 note |
Inlet, Water
2016-06 → 2019-01
ended
|
1ZRFE,2ZRFE ZRE18# TUP | — | |
| 16321-37010 note |
Inlet, Water
2016-06 → 2019-12
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 16321-47011 |
Inlet, Water
2016-06 → 2018-08
ended
|
1NRFE NRE180 TUP | — | |
| 16321-47011 |
Inlet, Water
2016-06 → —
|
1NRFE NRE180 SAP | — | |
| 16321-0T010 note |
Inlet, Water
2019-12 → —
|
2ZRFE ZRE182 | — | |
| 16321-37010 note |
Inlet, Water
2019-12 → —
|
2ZRFE ZRE182 | — | |
| 16326 — Gasket, Water Inlet Housing, NO.2 | ||||
| 16326-33030 |
Gasket, Water Inlet Housing, NO.2
2013-06 → 2017-01
ended
|
1NDTV NDE180 SAP | — | |
| 16326-33030 |
Gasket, Water Inlet Housing, NO.2
2013-06 → 2016-05
ended
|
1NDTV NDE180 TUP | — | |
| 16326-37010 |
Gasket, Water Inlet Housing, NO.2
2014-01 → 2017-01
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 16326-47010 |
Gasket, Water Inlet Housing, NO.2
2014-01 → 2015-09
ended
|
1NRFE NRE180 | — | |
| 16326-47020 |
Gasket, Water Inlet Housing, NO.2
2015-10 → 2017-01
ended
|
1NRFE NRE180 SAP | — | |
| 16326-33030 |
Gasket, Water Inlet Housing, NO.2
2016-06 → 2019-01
ended
|
1NDTV NDE180 TUP | — | |
| 16326-33030 |
Gasket, Water Inlet Housing, NO.2
2016-06 → —
|
1NDTV NDE180 SAP | — | |
| 16326-37010 |
Gasket, Water Inlet Housing, NO.2
2016-06 → 2019-12
ended
|
1ZRFE,2ZRFE ZRE18# | — | |
| 16326-47020 |
Gasket, Water Inlet Housing, NO.2
2016-06 → 2018-08
ended
|
1NRFE NRE180 TUP | — | |
| 16326-47020 |
Gasket, Water Inlet Housing, NO.2
2016-06 → —
|
1NRFE NRE180 SAP | — | |
| 16326-37010 |
Gasket, Water Inlet Housing, NO.2
2019-12 → —
|
2ZRFE ZRE182 | — | |
| 16331A — Thermostat | ||||
| 90916-03144 note |
Thermostat
2014-01 → 2017-01
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 90916-03145 note |
Thermostat
2014-01 → 2017-01
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 90916-03147 note |
Thermostat
2014-01 → 2017-01
ended
|
1NRFE NRE180 SAP | — | |
| 90916-A3003 note |
Thermostat
2014-02 → 2017-01
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 90916-03144 note |
Thermostat
2016-06 → 2019-01
ended
|
1ZRFE,2ZRFE ZRE18# TUP | — | |
| 90916-03144 note |
Thermostat
2016-06 → 2019-12
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 90916-03145 note |
Thermostat
2016-06 → 2019-01
ended
|
1ZRFE,2ZRFE ZRE18# TUP | — | |
| 90916-03145 note |
Thermostat
2016-06 → 2019-12
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 90916-03147 note |
Thermostat
2016-06 → 2018-08
ended
|
1NRFE NRE180 TUP | — | |
| 90916-03147 note |
Thermostat
2016-06 → —
|
1NRFE NRE180 SAP | — | |
| 90916-A3003 note |
Thermostat
2016-06 → 2019-01
ended
|
1ZRFE,2ZRFE ZRE18# TUP | — | |
| 90916-A3003 note |
Thermostat
2016-06 → 2019-12
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 90916-03144 note |
Thermostat
2019-12 → —
|
2ZRFE ZRE182 | — | |
| 90916-03145 note |
Thermostat
2019-12 → —
|
2ZRFE ZRE182 | — | |
| 90916-A3003 note |
Thermostat
2019-12 → —
|
2ZRFE ZRE182 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
