Toyota Corolla
2013-06 → present · chassis NDE180,NRE180,ZRE18#,ZRE21#,ZWE219 · catalogue 164320 · General
Supported model
Data version 2019-11

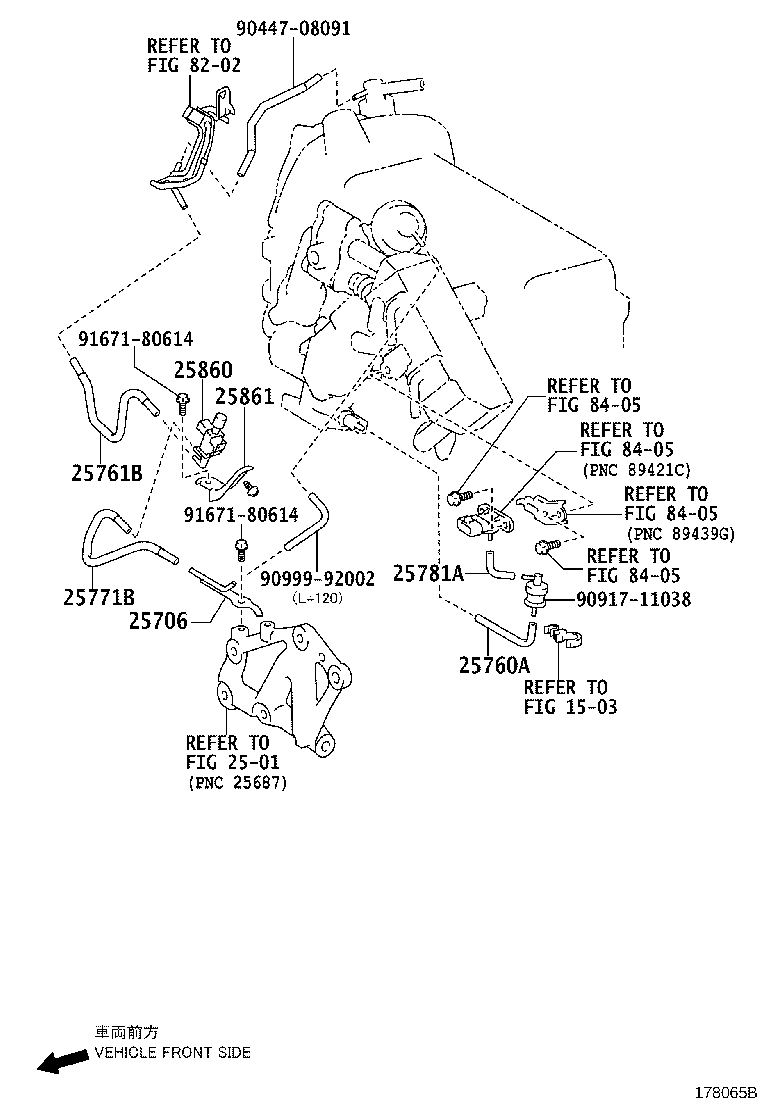

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 25706 — Pipe Sub-assy, Vacuum Transmitting, NO.1 | ||||
| 25706-33080 |
Pipe Sub-assy, Vacuum Transmitting, NO.1
2013-06 → 2017-01
ended
|
1NDTV NDE180 SAP | — | |
| 25706-33080 |
Pipe Sub-assy, Vacuum Transmitting, NO.1
2013-06 → 2016-05
ended
|
1NDTV NDE180 TUP | — | |
| 25706-33080 |
Pipe Sub-assy, Vacuum Transmitting, NO.1
2016-06 → —
|
1NDTV NDE180 SAP | — | |
| 25706-33080 |
Pipe Sub-assy, Vacuum Transmitting, NO.1
2016-06 → 2019-01
ended
|
1NDTV NDE180 TUP | — | |
| 25760A — Hose Assy, Vacuum Transmitting | ||||
| 257A1-33010 |
Hose Assy, Vacuum Transmitting
2013-06 → 2016-05
ended
|
1NDTV NDE180 TUP | — | |
| 257A1-33010 |
Hose Assy, Vacuum Transmitting
2013-06 → 2017-01
ended
|
1NDTV NDE180 SAP | — | |
| 257A1-33010 |
Hose Assy, Vacuum Transmitting
2016-06 → 2019-01
ended
|
1NDTV NDE180 TUP | — | |
| 257A1-33010 |
Hose Assy, Vacuum Transmitting
2016-06 → —
|
1NDTV NDE180 SAP | — | |
| 25761B — Hose, Vaccum Transmitting, NO.1 | ||||
| 25761-33060 |
Hose, Vaccum Transmitting, NO.1
2013-06 → 2014-10
ended
|
1NDTV NDE180 | — | |
| 25761-33080 |
Hose, Vaccum Transmitting, NO.1
2014-11 → 2016-05
ended
|
1NDTV NDE180 TUP | — | |
| 25761-33080 |
Hose, Vaccum Transmitting, NO.1
2014-11 → 2017-01
ended
|
1NDTV NDE180 SAP | — | |
| 25761-37011 |
Hose, Vaccum Transmitting, NO.1
2014-01 → 2017-01
ended
|
1ZRFE ZRE181 SAP | — | |
| 25761-37080 |
Hose, Vaccum Transmitting, NO.1
2014-01 → 2017-01
ended
|
2ZRFE ZRE182 SAP | — | |
| 25761-33080 |
Hose, Vaccum Transmitting, NO.1
2016-06 → 2019-01
ended
|
1NDTV NDE180 TUP | — | |
| 25761-33080 |
Hose, Vaccum Transmitting, NO.1
2016-06 → —
|
1NDTV NDE180 SAP | — | |
| 25761-37011 |
Hose, Vaccum Transmitting, NO.1
2016-06 → 2019-12
ended
|
1ZRFE ZRE181 SAP | — | |
| 25761-37011 |
Hose, Vaccum Transmitting, NO.1
2016-06 → 2019-01
ended
|
1ZRFE ZRE181 TUP | — | |
| 25761-37080 |
Hose, Vaccum Transmitting, NO.1
2016-06 → 2019-01
ended
|
2ZRFE ZRE182 TUP | — | |
| 25761-37080 |
Hose, Vaccum Transmitting, NO.1
2016-06 → 2019-12
ended
|
2ZRFE ZRE182 SAP | — | |
| 25761-37080 |
Hose, Vaccum Transmitting, NO.1
2019-12 → —
|
2ZRFE ZRE182 | — | |
| 25771B — Hose, Vaccum Transmitting, NO.2 | ||||
| 25771-33050 |
Hose, Vaccum Transmitting, NO.2
2013-06 → 2014-10
ended
|
1NDTV NDE180 | — | |
| 25791-33020 |
Hose, Vaccum Transmitting, NO.2
2014-11 → 2016-05
ended
|
1NDTV NDE180 TUP | — | |
| 25791-33020 |
Hose, Vaccum Transmitting, NO.2
2014-11 → 2017-01
ended
|
1NDTV NDE180 SAP | — | |
| 25791-33020 |
Hose, Vaccum Transmitting, NO.2
2016-06 → —
|
1NDTV NDE180 SAP | — | |
| 25791-33020 |
Hose, Vaccum Transmitting, NO.2
2016-06 → 2019-01
ended
|
1NDTV NDE180 TUP | — | |
| 25781A — Hose, Vacuum Transmitting, NO.3 | ||||
| 25791-33010 |
Hose, Vacuum Transmitting, NO.3
2013-06 → 2016-05
ended
|
1NDTV NDE180 TUP | — | |
| 25791-33010 |
Hose, Vacuum Transmitting, NO.3
2013-06 → 2017-01
ended
|
1NDTV NDE180 SAP | — | |
| 25791-33010 |
Hose, Vacuum Transmitting, NO.3
2016-06 → 2019-01
ended
|
1NDTV NDE180 TUP | — | |
| 25791-33010 |
Hose, Vacuum Transmitting, NO.3
2016-06 → —
|
1NDTV NDE180 SAP | — | |
| 25860 — Valve Assy, Vacuum Switching, NO.1 | ||||
| 25860-30070 |
Valve Assy, Vacuum Switching, NO.1
2013-06 → 2016-05
ended
|
1NDTV NDE180 TUP | — | |
| 25860-30070 |
Valve Assy, Vacuum Switching, NO.1
2013-06 → 2017-01
ended
|
1NDTV NDE180 SAP | — | |
| 25860-47010 |
Valve Assy, Vacuum Switching, NO.1
2014-01 → 2017-01
ended
|
1NRFE NRE180 SAP | — | |
| 90910-12281 |
Valve Assy, Vacuum Switching, NO.1
2014-01 → 2017-01
ended
|
2ZRFE ZRE182 SAP | — | |
| 25860-0Y020 |
Valve Assy, Vacuum Switching, NO.1
2016-06 → 2018-08
ended
|
1NRFE NRE180 TUP | — | |
| 25860-30070 |
Valve Assy, Vacuum Switching, NO.1
2016-06 → 2019-01
ended
|
1NDTV NDE180 TUP | — | |
| 25860-30070 |
Valve Assy, Vacuum Switching, NO.1
2016-06 → —
|
1NDTV NDE180 SAP | — | |
| 25860-47010 |
Valve Assy, Vacuum Switching, NO.1
2017-01 → —
|
1NRFE NRE180 SAP | — | |
| 90910-12281 |
Valve Assy, Vacuum Switching, NO.1
2016-06 → 2019-12
ended
|
2ZRFE ZRE182 SAP | — | |
| 90910-12281 |
Valve Assy, Vacuum Switching, NO.1
2016-06 → 2019-01
ended
|
2ZRFE ZRE182 TUP | — | |
| 90910-12281 |
Valve Assy, Vacuum Switching, NO.1
2019-12 → —
|
2ZRFE ZRE182 | — | |
| 25861 — Bracket, Vacuum Switching Valve | ||||
| 25861-33020 |
Bracket, Vacuum Switching Valve
2013-06 → 2016-05
ended
|
1NDTV NDE180 TUP | — | |
| 25861-33020 |
Bracket, Vacuum Switching Valve
2013-06 → 2017-01
ended
|
1NDTV NDE180 SAP | — | |
| 25861-37010 |
Bracket, Vacuum Switching Valve
2014-01 → 2017-01
ended
|
2ZRFE ZRE182 SAP | — | |
| 25861-33020 |
Bracket, Vacuum Switching Valve
2016-06 → 2019-01
ended
|
1NDTV NDE180 TUP | — | |
| 25861-33020 |
Bracket, Vacuum Switching Valve
2016-06 → —
|
1NDTV NDE180 SAP | — | |
| 25861-37010 |
Bracket, Vacuum Switching Valve
2016-06 → 2019-01
ended
|
2ZRFE ZRE182 TUP | — | |
| 25861-37010 |
Bracket, Vacuum Switching Valve
2016-06 → 2019-12
ended
|
2ZRFE ZRE182 SAP | — | |
| 25861-37010 |
Bracket, Vacuum Switching Valve
2019-12 → —
|
2ZRFE ZRE182 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
