Toyota Corolla
2013-06 → present · chassis NDE180,NRE180,ZRE18#,ZRE21#,ZWE219 · catalogue 164320 · General
Supported model
Data version 2019-11

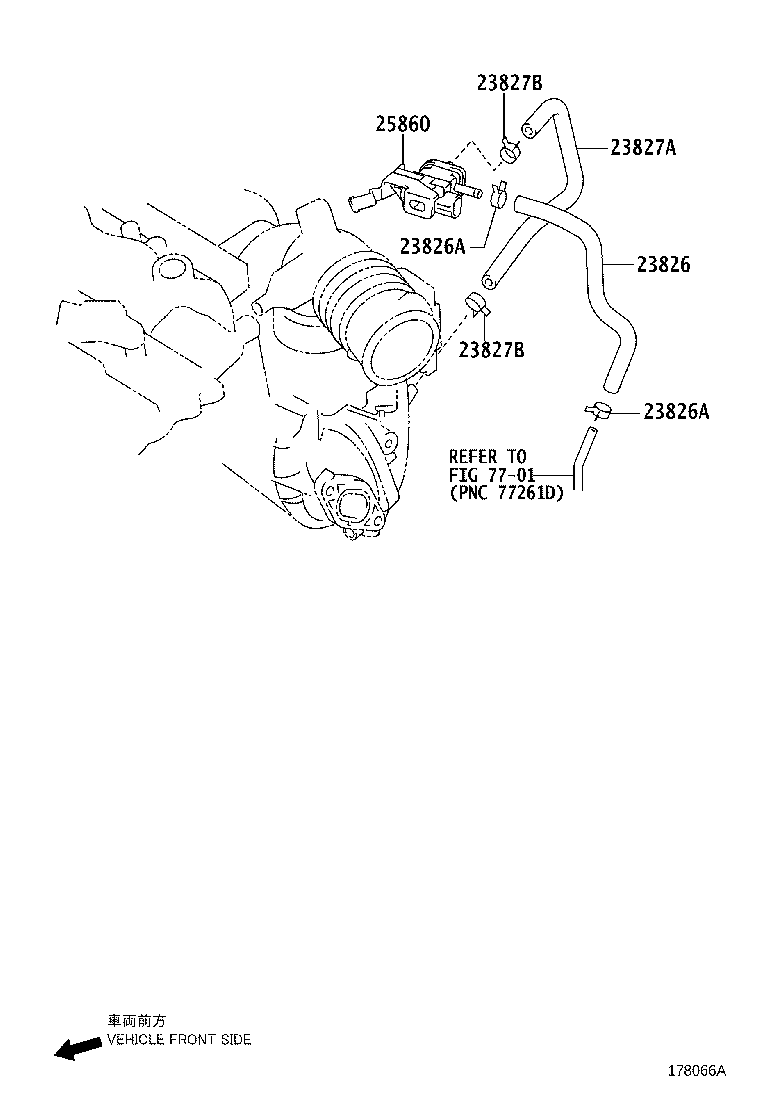

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 23826 — Hose, Fuel Vapor Feed, NO.1 | ||||
| 23826-0Y021 |
Hose, Fuel Vapor Feed, NO.1
2014-01 → 2017-01
ended
|
1NRFE NRE180 SAP | — | |
| 23826-37021 |
Hose, Fuel Vapor Feed, NO.1
2014-01 → 2017-01
ended
|
1ZRFE ZRE181 SAP | — | |
| 23826-37190 |
Hose, Fuel Vapor Feed, NO.1
2014-01 → 2017-01
ended
|
2ZRFE ZRE182 SAP | — | |
| 23826-0Y021 |
Hose, Fuel Vapor Feed, NO.1
2016-06 → 2018-08
ended
|
1NRFE NRE180 TUP | — | |
| 23826-0Y021 |
Hose, Fuel Vapor Feed, NO.1
2016-06 → —
|
1NRFE NRE180 SAP | — | |
| 23826-37021 |
Hose, Fuel Vapor Feed, NO.1
2016-06 → 2019-01
ended
|
1ZRFE ZRE181 TUP | — | |
| 23826-37021 |
Hose, Fuel Vapor Feed, NO.1
2016-06 → 2019-12
ended
|
1ZRFE ZRE181 SAP | — | |
| 23826-37190 |
Hose, Fuel Vapor Feed, NO.1
2016-06 → 2019-01
ended
|
2ZRFE ZRE182 TUP | — | |
| 23826-37190 |
Hose, Fuel Vapor Feed, NO.1
2016-06 → 2019-12
ended
|
2ZRFE ZRE182 SAP | — | |
| 23826-37190 |
Hose, Fuel Vapor Feed, NO.1
2019-12 → —
|
2ZRFE ZRE182 | — | |
| 23826A — Clip(FOR FUEL VAPOR FEED HOSE, NO.1) | ||||
| 96132-51300 |
Clip(FOR FUEL VAPOR FEED HOSE, NO.1)
2014-01 → 2017-01
ended
|
1NRFE NRE180 SAP | — | |
| 96132-51300 |
Clip(FOR FUEL VAPOR FEED HOSE, NO.1)
2016-06 → 2018-08
ended
|
1NRFE NRE180 TUP | — | |
| 96132-51300 |
Clip(FOR FUEL VAPOR FEED HOSE, NO.1)
2016-06 → —
|
1NRFE NRE180 SAP | — | |
| 23827A — Hose, Fuel Vapor Feed, NO.2 | ||||
| 23827-0Y020 |
Hose, Fuel Vapor Feed, NO.2
2014-01 → 2017-01
ended
|
1NRFE NRE180 SAP | — | |
| 23827-37020 |
Hose, Fuel Vapor Feed, NO.2
2014-01 → 2017-01
ended
|
1ZRFE ZRE181 SAP | — | |
| 23827-37060 |
Hose, Fuel Vapor Feed, NO.2
2014-01 → 2017-01
ended
|
2ZRFE ZRE182 SAP | — | |
| 23827-0Y020 |
Hose, Fuel Vapor Feed, NO.2
2016-06 → 2018-08
ended
|
1NRFE NRE180 TUP | — | |
| 23827-0Y020 |
Hose, Fuel Vapor Feed, NO.2
2016-06 → —
|
1NRFE NRE180 SAP | — | |
| 23827-37020 |
Hose, Fuel Vapor Feed, NO.2
2016-06 → 2019-01
ended
|
1ZRFE ZRE181 TUP | — | |
| 23827-37020 |
Hose, Fuel Vapor Feed, NO.2
2016-06 → 2019-12
ended
|
1ZRFE ZRE181 SAP | — | |
| 23827-37060 |
Hose, Fuel Vapor Feed, NO.2
2016-06 → 2019-01
ended
|
2ZRFE ZRE182 TUP | — | |
| 23827-37060 |
Hose, Fuel Vapor Feed, NO.2
2016-06 → 2019-12
ended
|
2ZRFE ZRE182 SAP | — | |
| 23827-37060 |
Hose, Fuel Vapor Feed, NO.2
2019-12 → —
|
2ZRFE ZRE182 | — | |
| 23827B — Clip(FOR FUEL VAPOR FEED HOSE, NO.2) | ||||
| 96132-51300 |
Clip(FOR FUEL VAPOR FEED HOSE, NO.2)
2014-01 → 2017-01
ended
|
1NRFE NRE180 SAP | — | |
| 96132-51300 |
Clip(FOR FUEL VAPOR FEED HOSE, NO.2)
2016-06 → 2018-08
ended
|
1NRFE NRE180 TUP | — | |
| 96132-51300 |
Clip(FOR FUEL VAPOR FEED HOSE, NO.2)
2016-06 → —
|
1NRFE NRE180 SAP | — | |
| 25860 — Valve Assy, Vacuum Switching, NO.1 | ||||
| 25860-30070 |
Valve Assy, Vacuum Switching, NO.1
2013-06 → 2016-05
ended
|
1NDTV NDE180 TUP | — | |
| 25860-30070 |
Valve Assy, Vacuum Switching, NO.1
2013-06 → 2017-01
ended
|
1NDTV NDE180 SAP | — | |
| 25860-47010 |
Valve Assy, Vacuum Switching, NO.1
2014-01 → 2017-01
ended
|
1NRFE NRE180 SAP | — | |
| 90910-12281 |
Valve Assy, Vacuum Switching, NO.1
2014-01 → 2017-01
ended
|
2ZRFE ZRE182 SAP | — | |
| 25860-0Y020 |
Valve Assy, Vacuum Switching, NO.1
2016-06 → 2018-08
ended
|
1NRFE NRE180 TUP | — | |
| 25860-30070 |
Valve Assy, Vacuum Switching, NO.1
2016-06 → 2019-01
ended
|
1NDTV NDE180 TUP | — | |
| 25860-30070 |
Valve Assy, Vacuum Switching, NO.1
2016-06 → —
|
1NDTV NDE180 SAP | — | |
| 25860-47010 |
Valve Assy, Vacuum Switching, NO.1
2017-01 → —
|
1NRFE NRE180 SAP | — | |
| 90910-12281 |
Valve Assy, Vacuum Switching, NO.1
2016-06 → 2019-01
ended
|
2ZRFE ZRE182 TUP | — | |
| 90910-12281 |
Valve Assy, Vacuum Switching, NO.1
2016-06 → 2019-12
ended
|
2ZRFE ZRE182 SAP | — | |
| 90910-12281 |
Valve Assy, Vacuum Switching, NO.1
2019-12 → —
|
2ZRFE ZRE182 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
