Toyota Corolla

2013-06 → present · chassis NDE180,NRE180,ZRE18#,ZRE21#,ZWE219 · catalogue 164320 · General

Supported model Data version 2019-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

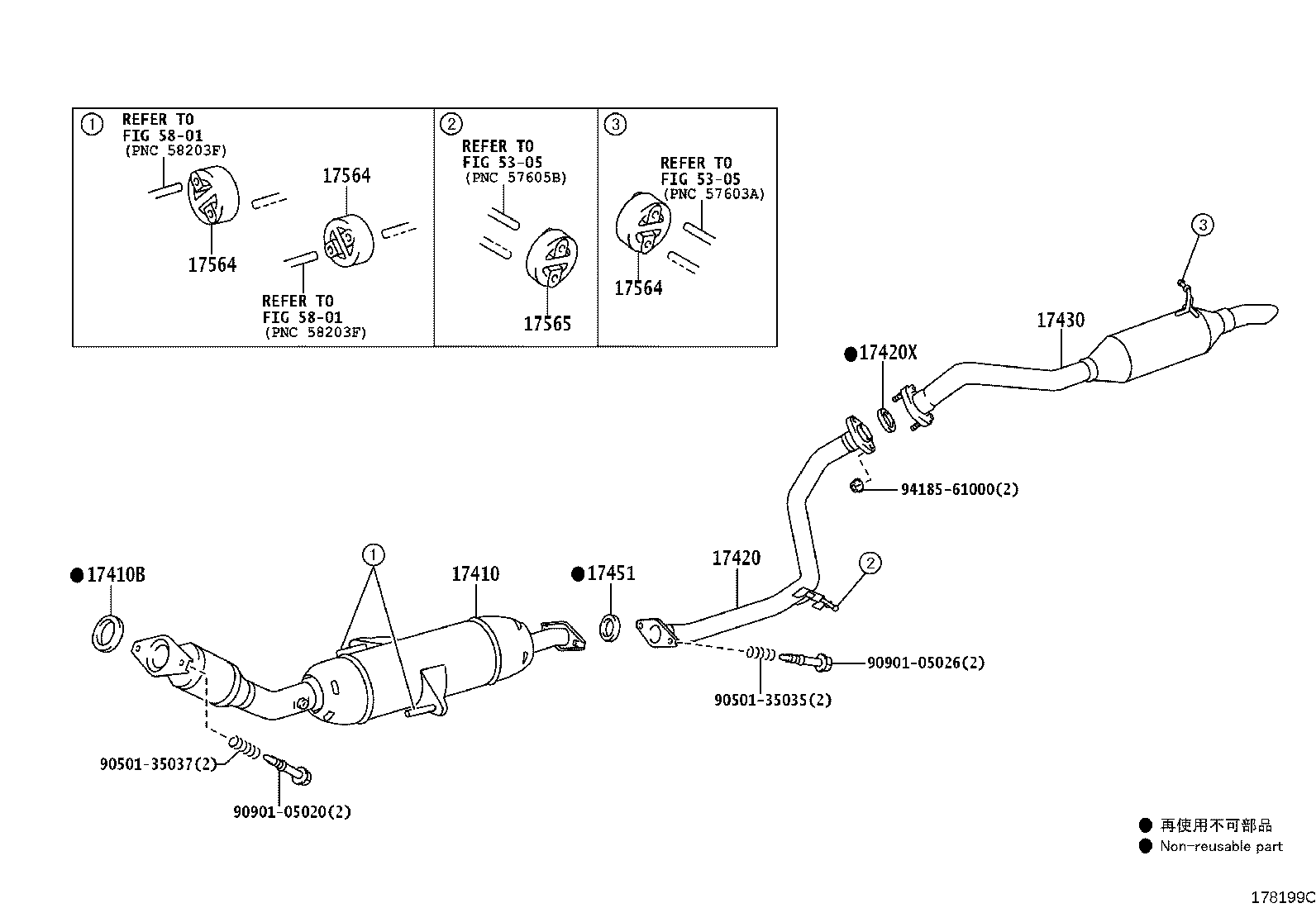

Exploded illustration 178199C 5801 — not listed in this catalogue 5305 — not listed in this catalogue 5305 — not listed in this catalogue 5801 — not listed in this catalogue 17564 — SUPPORT,EXHAUST PIPE, NO.4 (6 parts) 17564 — SUPPORT,EXHAUST PIPE, NO.4 (6 parts) 17565 — SUPPORT, EXHAUST PIPE, NO.5 (6 parts) 17564 — SUPPORT,EXHAUST PIPE, NO.4 (6 parts) 17410 — PIPE ASSY, EXHAUST, FRONT (12 parts) 17451 — GASKET, EXHAUST PIPE (6 parts) 17410B — GASKET, EXHAUST PIPE (9 parts) 17420X — GASKET, EXHAUST PIPE, CENTER (6 parts) 17420 — PIPE ASSY, EXHAUST, CENTER (11 parts) 17430 — PIPE ASSY, EXHAUST, TAIL (9 parts) 9090105026 — not listed in this catalogue 9418561000 — not listed in this catalogue 9050135037 — not listed in this catalogue 9050135035 — not listed in this catalogue 9090105020 — not listed in this catalogue
178199C · 10 callouts, 9 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
65 parts on this figure
Part number Description Fitment Price
17410 — Pipe Assy, Exhaust, Front
17410-0N080 Pipe Assy, Exhaust, Front
2013-06 → 2016-05 ended
1NDTV NDE180 TUP —
17410-0N090 Pipe Assy, Exhaust, Front
2014-01 → 2017-01 ended
1NDTV NDE180 SAP —
17410-0T580 Pipe Assy, Exhaust, Front
2014-01 → 2017-01 ended
1ZRFE,2ZRFE ZRE18# SAP —
17410-0Y090 note Pipe Assy, Exhaust, Front
2014-01 → 2017-01 ended
1NRFE NRE180 SAP —
17410-0N080 Pipe Assy, Exhaust, Front
2016-06 → 2019-01 ended
1NDTV NDE180 TUP —
17410-0N090 Pipe Assy, Exhaust, Front
2017-01 → 2019-12 ended
1NDTV NDE180 SAP —
17410-0T450 note Pipe Assy, Exhaust, Front
2016-06 → 2019-01 ended
1ZRFE ZRE181 GEN TUP;2ZRFE +4 —
17410-0T570 note Pipe Assy, Exhaust, Front
2016-06 → 2019-01 ended
1ZRFE,2ZRFE ZRE18# TUP —
17410-0T580 Pipe Assy, Exhaust, Front
2017-01 → 2019-12 ended
1ZRFE,2ZRFE ZRE18# SAP —
17410-0Y080 note Pipe Assy, Exhaust, Front
2016-06 → 2018-08 ended
1NRFE NRE180 TUP —
17410-0Y090 note Pipe Assy, Exhaust, Front
2017-01 → 2019-12 ended
1NRFE NRE180 SAP —
17410-0T580 Pipe Assy, Exhaust, Front
2019-12 → —
2ZRFE ZRE182 —
17410B — Gasket, Exhaust Pipe
17451-0R010 Gasket, Exhaust Pipe
2013-06 → 2016-05 ended
1NDTV NDE180 TUP —
17451-28040 Gasket, Exhaust Pipe
2014-01 → 2017-01 ended
1NDTV,1ZRFE,2ZRFE NDE180,ZRE18# SAP —
17451-47020 Gasket, Exhaust Pipe
2014-01 → 2017-01 ended
1NRFE NRE180 SAP —
17451-0R010 Gasket, Exhaust Pipe
2016-06 → 2019-01 ended
1NDTV,1ZRFE,2ZRFE NDE180,ZRE18# TUP —
17451-28040 Gasket, Exhaust Pipe
2017-01 → 2019-12 ended
1NDTV,1ZRFE,2ZRFE NDE180,ZRE18# SAP —
17451-47020 Gasket, Exhaust Pipe
2016-06 → 2019-12 ended
1NRFE NRE180 SAP —
17451-47020 Gasket, Exhaust Pipe
2016-06 → 2018-08 ended
1NRFE NRE180 TUP —
17451-28040 Gasket, Exhaust Pipe
2019-12 → 2023-11 ended
2ZRFE ZRE182 —
17451-28041 Gasket, Exhaust Pipe
2023-11 → —
2ZRFE ZRE182 —
17420 — Pipe Assy, Exhaust, Center
17420-0N010 Pipe Assy, Exhaust, Center
2013-06 → 2016-05 ended
1NDTV NDE180 TUP —
17420-0N020 Pipe Assy, Exhaust, Center
2014-01 → 2017-01 ended
1NDTV NDE180 SAP —
17420-0T040 Pipe Assy, Exhaust, Center
2014-01 → 2017-01 ended
1ZRFE,2ZRFE ZRE18# SAP —
17420-0Y020 Pipe Assy, Exhaust, Center
2014-01 → 2017-01 ended
1NRFE NRE180 SAP —
17420-0N010 Pipe Assy, Exhaust, Center
2016-06 → 2019-01 ended
1NDTV NDE180 TUP —
17420-0N020 Pipe Assy, Exhaust, Center
2017-01 → 2019-12 ended
1NDTV NDE180 SAP —
17420-0T030 Pipe Assy, Exhaust, Center
2016-06 → 2019-01 ended
1ZRFE,2ZRFE ZRE18# TUP —
17420-0T040 Pipe Assy, Exhaust, Center
2017-01 → 2019-12 ended
1ZRFE,2ZRFE ZRE18# SAP —
17420-0Y010 Pipe Assy, Exhaust, Center
2016-06 → 2018-08 ended
1NRFE NRE180 TUP —
17420-0Y020 Pipe Assy, Exhaust, Center
2017-01 → 2019-12 ended
1NRFE NRE180 SAP —
17420-0T040 Pipe Assy, Exhaust, Center
2019-12 → —
2ZRFE ZRE182 —
17420X — Gasket, Exhaust Pipe, Center
90917-06089 Gasket, Exhaust Pipe, Center
2013-06 → 2016-05 ended
1NDTV NDE180 TUP —
90917-06089 Gasket, Exhaust Pipe, Center
2013-06 → 2017-01 ended
1N#,1ZRFE,2ZRFE NDE180,NRE180,ZRE18# SAP —
90917-06089 Gasket, Exhaust Pipe, Center
2016-06 → 2018-08 ended
1NRFE NRE180 TUP —
90917-06089 Gasket, Exhaust Pipe, Center
2016-06 → 2019-12 ended
1N#,1ZRFE,2ZRFE NDE180,NRE180,ZRE18# SAP —
90917-06089 Gasket, Exhaust Pipe, Center
2016-06 → 2019-01 ended
1NDTV,1ZRFE,2ZRFE NDE180,ZRE18# TUP —
90917-06089 Gasket, Exhaust Pipe, Center
2019-12 → —
2ZRFE ZRE182 —
17430 — Pipe Assy, Exhaust, Tail
17430-0N130 Pipe Assy, Exhaust, Tail
2014-01 → 2017-01 ended
1NDTV NDE180 SAP —
17430-0N160 Pipe Assy, Exhaust, Tail
2013-06 → 2016-05 ended
1NDTV NDE180 TUP —
17430-0T280 Pipe Assy, Exhaust, Tail
2014-01 → 2017-01 ended
1NRFE,1ZRFE,2ZRFE NRE180,ZRE18# SAP —
17430-0N130 Pipe Assy, Exhaust, Tail
2017-01 → 2019-12 ended
1NDTV NDE180 SAP —
17430-0N160 Pipe Assy, Exhaust, Tail
2016-06 → 2019-01 ended
1NDTV NDE180 TUP —
17430-0T270 Pipe Assy, Exhaust, Tail
2016-06 → 2018-08 ended
1NRFE NRE180 TUP —
17430-0T270 Pipe Assy, Exhaust, Tail
2016-06 → 2019-01 ended
1ZRFE,2ZRFE ZRE18# TUP —
17430-0T280 Pipe Assy, Exhaust, Tail
2017-01 → 2019-12 ended
1NRFE,1ZRFE,2ZRFE NRE180,ZRE18# SAP —
17430-0T280 Pipe Assy, Exhaust, Tail
2019-12 → —
2ZRFE ZRE182 —
17451 — Gasket, Exhaust Pipe
17451-0D112 Gasket, Exhaust Pipe
2013-06 → 2016-05 ended
1NDTV NDE180 TUP —
17451-28032 Gasket, Exhaust Pipe
2014-01 → 2017-01 ended
1N#,1ZRFE,2ZRFE NDE180,NRE180,ZRE18# SAP —
17451-0D112 Gasket, Exhaust Pipe
2016-06 → 2018-08 ended
1NRFE NRE180 TUP —
17451-0D112 Gasket, Exhaust Pipe
2016-06 → 2019-01 ended
1NDTV,1ZRFE,2ZRFE NDE180,ZRE18# TUP —
17451-28032 Gasket, Exhaust Pipe
2017-01 → 2019-12 ended
1N#,1ZRFE,2ZRFE NDE180,NRE180,ZRE18# SAP —
17451-28032 Gasket, Exhaust Pipe
2019-12 → —
2ZRFE ZRE182 —
17564 — Support,Exhaust Pipe, NO.4
17565-0J031 Support,Exhaust Pipe, NO.4
2013-06 → 2016-05 ended
1NDTV NDE180 TUP —
17565-22040 Support,Exhaust Pipe, NO.4
2014-01 → 2017-01 ended
1N#,1ZRFE,2ZRFE NDE180,NRE180,ZRE18# SAP —
17565-0J031 Support,Exhaust Pipe, NO.4
2016-06 → 2018-08 ended
1NRFE NRE180 TUP —
17565-0J031 Support,Exhaust Pipe, NO.4
2016-06 → 2019-01 ended
1NDTV,1ZRFE,2ZRFE NDE180,ZRE18# TUP —
17565-22040 Support,Exhaust Pipe, NO.4
2017-01 → 2019-12 ended
1N#,1ZRFE,2ZRFE NDE180,NRE180,ZRE18# SAP —
17565-22040 Support,Exhaust Pipe, NO.4
2019-12 → —
2ZRFE ZRE182 —
17565 — Support, Exhaust Pipe, NO.5
17565-0D100 Support, Exhaust Pipe, NO.5
2013-06 → 2016-05 ended
1NDTV NDE180 TUP —
17565-22030 Support, Exhaust Pipe, NO.5
2014-01 → 2017-01 ended
1N#,1ZRFE,2ZRFE NDE180,NRE180,ZRE18# SAP —
17565-0D100 Support, Exhaust Pipe, NO.5
2016-06 → 2018-08 ended
1NRFE NRE180 TUP —
17565-0D100 Support, Exhaust Pipe, NO.5
2016-06 → 2019-01 ended
1NDTV,1ZRFE,2ZRFE NDE180,ZRE18# TUP —
17565-22030 Support, Exhaust Pipe, NO.5
2017-01 → 2019-12 ended
1N#,1ZRFE,2ZRFE NDE180,NRE180,ZRE18# SAP —
17565-22030 Support, Exhaust Pipe, NO.5
2019-12 → —
2ZRFE ZRE182 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
