Toyota Corolla
2013-06 → present · chassis NDE180,NRE180,ZRE18#,ZRE21#,ZWE219 · catalogue 164320 · General
Supported model
Data version 2019-11

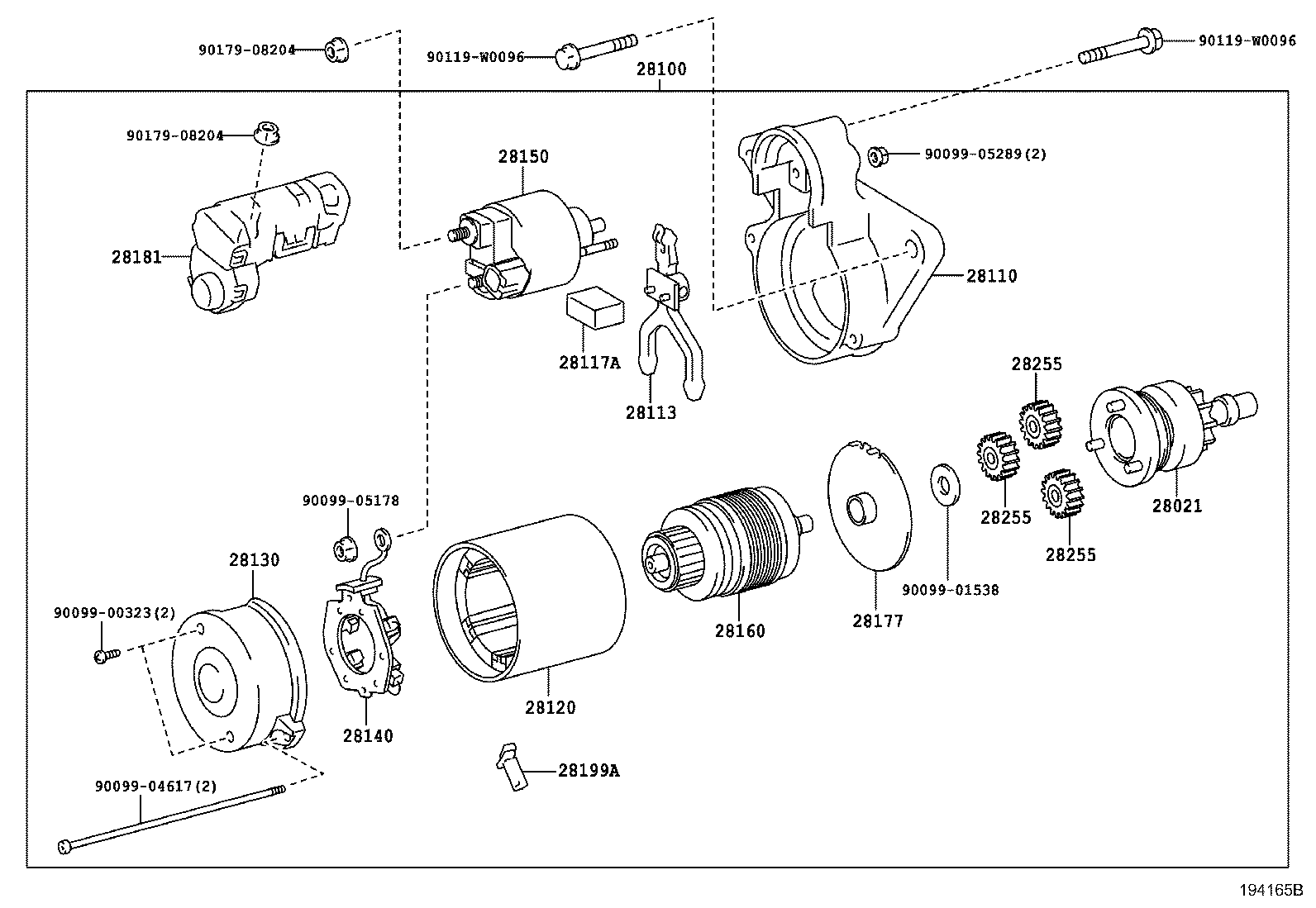

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 28021 — Clutch Sub-assy, Starter Center Bearing | ||||
| 28021-33090 |
Clutch Sub-assy, Starter Center Bearing
2013-06 → 2017-01
ended
|
1NDTV NDE180 SAP | — | |
| 28021-33090 |
Clutch Sub-assy, Starter Center Bearing
2013-06 → 2016-05
ended
|
1NDTV NDE180 TUP | — | |
| 28021-47170 |
Clutch Sub-assy, Starter Center Bearing
2016-07 → 2017-01
ended
|
1NRFE NRE180 SAP | — | |
| 28021-33090 |
Clutch Sub-assy, Starter Center Bearing
2016-06 → 2019-01
ended
|
1NDTV NDE180 TUP | — | |
| 28021-33090 |
Clutch Sub-assy, Starter Center Bearing
2016-06 → 2019-12
ended
|
1NDTV NDE180 SAP | — | |
| 28021-47170 |
Clutch Sub-assy, Starter Center Bearing
2016-12 → 2018-08
ended
|
1NRFE NRE180 TUP | — | |
| 28021-47170 |
Clutch Sub-assy, Starter Center Bearing
2016-12 → 2019-12
ended
|
1NRFE NRE180 SAP | — | |
| 28100 — Starter Assy | ||||
| 28100-0N040 note |
Starter Assy
2013-06 → 2016-05
ended
|
1NDTV NDE180 TUP | — | |
| 28100-0N060 note |
Starter Assy
2014-01 → 2017-01
ended
|
1NDTV NDE180 SAP | — | |
| 28100-0T010 note |
Starter Assy
2014-01 → 2017-01
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 28100-47170 note |
Starter Assy
2014-01 → 2014-07
ended
|
1NRFE NRE180 | — | |
| 28100-47171 note |
Starter Assy
2014-08 → 2017-01
ended
|
1NRFE NRE180 SAP | — | |
| 28100-0N040 note |
Starter Assy
2016-06 → 2019-01
ended
|
1NDTV NDE180 TUP | — | |
| 28100-0N060 note |
Starter Assy
2017-01 → 2019-12
ended
|
1NDTV NDE180 SAP | — | |
| 28100-0N110 note |
Starter Assy
2016-11 → 2019-01
ended
|
1NDTV NDE180 TUP | — | |
| 28100-0T010 note |
Starter Assy
2017-01 → 2019-12
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 28100-0T030 note |
Starter Assy
2016-06 → 2019-01
ended
|
1ZRFE,2ZRFE ZRE18# TUP | — | |
| 28100-0Y091 note |
Starter Assy
2016-06 → 2018-08
ended
|
1NRFE NRE180 TUP | — | |
| 28100-0Y101 note |
Starter Assy
2016-06 → 2018-05
ended
|
1NRFE NRE180 TUP | — | |
| 28100-47171 note |
Starter Assy
2017-01 → 2019-12
ended
|
1NRFE NRE180 SAP | — | |
| 28100-0T010 note |
Starter Assy
2019-12 → —
|
2ZRFE ZRE182 | — | |
| 28110 — Housing Assy, Starter Drive | ||||
| 28110-0T010 |
Housing Assy, Starter Drive
2014-01 → 2017-01
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 28110-33110 |
Housing Assy, Starter Drive
2013-06 → 2016-05
ended
|
1NDTV NDE180 TUP | — | |
| 28110-0T010 |
Housing Assy, Starter Drive
2017-01 → 2019-12
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 28110-0T030 |
Housing Assy, Starter Drive
2016-06 → 2019-01
ended
|
1ZRFE,2ZRFE ZRE18# TUP | — | |
| 28110-33110 |
Housing Assy, Starter Drive
2016-06 → 2019-01
ended
|
1NDTV NDE180 TUP | — | |
| 28110-0T010 |
Housing Assy, Starter Drive
2019-12 → —
|
2ZRFE ZRE182 | — | |
| 28113 — Lever, Starter Pinion Drive | ||||
| 28113-0D160 |
Lever, Starter Pinion Drive
2014-01 → 2017-01
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 28113-37050 |
Lever, Starter Pinion Drive
2013-06 → 2016-05
ended
|
1NDTV NDE180 TUP | — | |
| 28113-0D130 |
Lever, Starter Pinion Drive
2016-06 → 2019-01
ended
|
1ZRFE,2ZRFE ZRE18# TUP | — | |
| 28113-0D160 |
Lever, Starter Pinion Drive
2017-01 → 2019-12
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 28113-37050 |
Lever, Starter Pinion Drive
2016-06 → 2019-01
ended
|
1NDTV NDE180 TUP | — | |
| 28113-0D160 |
Lever, Starter Pinion Drive
2019-12 → —
|
2ZRFE ZRE182 | — | |
| 28117A — Seal, Rubber | ||||
| 28117-37050 |
Seal, Rubber
2013-06 → 2016-05
ended
|
1NDTV NDE180 TUP | — | |
| 28117-37050 |
Seal, Rubber
2016-06 → 2019-01
ended
|
1NDTV NDE180 TUP | — | |
| 28120 — Yoke Assy, Starter | ||||
| 28120-33110 |
Yoke Assy, Starter
2013-06 → 2016-05
ended
|
1NDTV NDE180 TUP | — | |
| 28120-33110 |
Yoke Assy, Starter
2013-06 → 2017-01
ended
|
1NDTV NDE180 SAP | — | |
| 28120-0D130 |
Yoke Assy, Starter
2016-06 → 2019-01
ended
|
1ZRFE,2ZRFE ZRE18# TUP | — | |
| 28120-0N110 note |
Yoke Assy, Starter
2016-11 → 2019-01
ended
|
1NDTV NDE180 TUP | — | |
| 28120-33110 |
Yoke Assy, Starter
2016-06 → 2019-01
ended
|
1NDTV NDE180 TUP | — | |
| 28120-33110 |
Yoke Assy, Starter
2016-06 → 2019-12
ended
|
1NDTV NDE180 SAP | — | |
| 28130 — Frame Assy, Starter Commutator End | ||||
| 28130-0D160 |
Frame Assy, Starter Commutator End
2014-01 → 2017-01
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 28130-33110 |
Frame Assy, Starter Commutator End
2013-06 → 2016-05
ended
|
1NDTV NDE180 TUP | — | |
| 28130-0D130 |
Frame Assy, Starter Commutator End
2016-06 → 2019-01
ended
|
1ZRFE,2ZRFE ZRE18# TUP | — | |
| 28130-0D160 |
Frame Assy, Starter Commutator End
2017-01 → 2019-12
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 28130-33110 |
Frame Assy, Starter Commutator End
2016-06 → 2019-01
ended
|
1NDTV NDE180 TUP | — | |
| 28130-0D160 |
Frame Assy, Starter Commutator End
2019-12 → —
|
2ZRFE ZRE182 | — | |
| 28140 — Holder Assy, Starter Brush | ||||
| 28140-0D160 |
Holder Assy, Starter Brush
2014-01 → 2017-01
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 28140-21070 |
Holder Assy, Starter Brush
2014-01 → 2017-01
ended
|
1NRFE NRE180 SAP | — | |
| 28140-37050 |
Holder Assy, Starter Brush
2013-06 → 2016-05
ended
|
1NDTV NDE180 TUP | — | |
| 28140-37050 |
Holder Assy, Starter Brush
2013-06 → 2017-01
ended
|
1NDTV NDE180 SAP | — | |
| 28140-0D130 |
Holder Assy, Starter Brush
2016-06 → 2019-01
ended
|
1ZRFE,2ZRFE ZRE18# TUP | — | |
| 28140-0D160 |
Holder Assy, Starter Brush
2017-01 → 2019-12
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 28140-21070 |
Holder Assy, Starter Brush
2016-06 → 2019-12
ended
|
1NRFE NRE180 SAP | — | |
| 28140-21070 |
Holder Assy, Starter Brush
2016-06 → 2018-08
ended
|
1NRFE NRE180 TUP | — | |
| 28140-37050 |
Holder Assy, Starter Brush
2016-06 → 2019-12
ended
|
1NDTV NDE180 SAP | — | |
| 28140-37050 |
Holder Assy, Starter Brush
2016-06 → 2019-01
ended
|
1NDTV NDE180 TUP | — | |
| 28140-38070 note |
Holder Assy, Starter Brush
2016-11 → 2019-01
ended
|
1NDTV NDE180 TUP | — | |
| 28140-0D160 |
Holder Assy, Starter Brush
2019-12 → —
|
2ZRFE ZRE182 | — | |
| 28150 — Switch Assy, Magnet Starter | ||||
| 28150-0D160 |
Switch Assy, Magnet Starter
2014-01 → 2017-01
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 28150-37020 |
Switch Assy, Magnet Starter
2013-06 → 2017-01
ended
|
1NDTV NDE180 SAP | — | |
| 28150-37020 |
Switch Assy, Magnet Starter
2013-06 → 2016-05
ended
|
1NDTV NDE180 TUP | — | |
| 28150-0D130 |
Switch Assy, Magnet Starter
2016-06 → 2019-01
ended
|
1ZRFE,2ZRFE ZRE18# TUP | — | |
| 28150-0D160 |
Switch Assy, Magnet Starter
2017-01 → 2019-12
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 28150-37020 |
Switch Assy, Magnet Starter
2016-06 → 2019-01
ended
|
1NDTV NDE180 TUP | — | |
| 28150-37020 |
Switch Assy, Magnet Starter
2016-06 → 2019-12
ended
|
1NDTV NDE180 SAP | — | |
| 28150-0D160 |
Switch Assy, Magnet Starter
2019-12 → —
|
2ZRFE ZRE182 | — | |
| 28160 — Armature Assy, Starter | ||||
| 28160-0D160 |
Armature Assy, Starter
2014-01 → 2017-01
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 28160-21070 |
Armature Assy, Starter
2014-01 → 2017-01
ended
|
1NRFE NRE180 SAP | — | |
| 28160-33090 |
Armature Assy, Starter
2013-06 → 2017-01
ended
|
1NDTV NDE180 SAP | — | |
| 28160-33090 |
Armature Assy, Starter
2013-06 → 2016-05
ended
|
1NDTV NDE180 TUP | — | |
| 28160-0D130 |
Armature Assy, Starter
2016-06 → 2019-01
ended
|
1ZRFE,2ZRFE ZRE18# TUP | — | |
| 28160-0D160 |
Armature Assy, Starter
2017-01 → 2019-12
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 28160-0N110 note |
Armature Assy, Starter
2016-11 → 2018-07
ended
|
1NDTV NDE180 TUP | — | |
| 28160-21070 |
Armature Assy, Starter
2016-06 → 2018-08
ended
|
1NRFE NRE180 TUP | — | |
| 28160-21070 |
Armature Assy, Starter
2016-06 → 2019-12
ended
|
1NRFE NRE180 SAP | — | |
| 28160-21080 note |
Armature Assy, Starter
2016-06 → 2018-05
ended
|
1NRFE NRE180 TUP | — | |
| 28160-26180 note |
Armature Assy, Starter
2016-11 → 2019-01
ended
|
1NDTV NDE180 TUP | — | |
| 28160-33090 |
Armature Assy, Starter
2016-06 → 2019-01
ended
|
1NDTV NDE180 TUP | — | |
| 28160-33090 |
Armature Assy, Starter
2016-06 → 2019-12
ended
|
1NDTV NDE180 SAP | — | |
| 28160-0D160 |
Armature Assy, Starter
2019-12 → —
|
2ZRFE ZRE182 | — | |
| 28177 — Plate(FOR STARTER ARMATURE) | ||||
| 28177-37050 |
Plate(FOR STARTER ARMATURE)
2013-06 → 2016-05
ended
|
1NDTV NDE180 TUP | — | |
| 28177-37050 |
Plate(FOR STARTER ARMATURE)
2016-06 → 2019-01
ended
|
1NDTV NDE180 TUP | — | |
| 28181 — Terminal, Starter | ||||
| 28181-33010 |
Terminal, Starter
2013-06 → 2016-05
ended
|
1NDTV NDE180 TUP | — | |
| 28181-33010 |
Terminal, Starter
2013-06 → 2017-01
ended
|
1NDTV NDE180 SAP | — | |
| 28181-33010 |
Terminal, Starter
2016-06 → 2019-01
ended
|
1NDTV NDE180 TUP | — | |
| 28181-33010 |
Terminal, Starter
2016-06 → 2019-12
ended
|
1NDTV NDE180 SAP | — | |
| 28199A — Protector, Dust Starter | ||||
| 28199-33110 |
Protector, Dust Starter
2013-06 → 2016-05
ended
|
1NDTV NDE180 TUP | — | |
| 28199-33110 |
Protector, Dust Starter
2016-06 → 2019-01
ended
|
1NDTV NDE180 TUP | — | |
| 28255 — Gear, Planet | ||||
| 28255-33090 |
Gear, Planet
2013-06 → 2016-05
ended
|
1NDTV NDE180 TUP | — | |
| 28255-33090 |
Gear, Planet
2016-06 → 2019-01
ended
|
1NDTV NDE180 TUP | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
