Toyota Corolla
2013-06 → present · chassis NDE180,NRE180,ZRE18#,ZRE21#,ZWE219 · catalogue 164320 · General
Supported model
Data version 2019-11

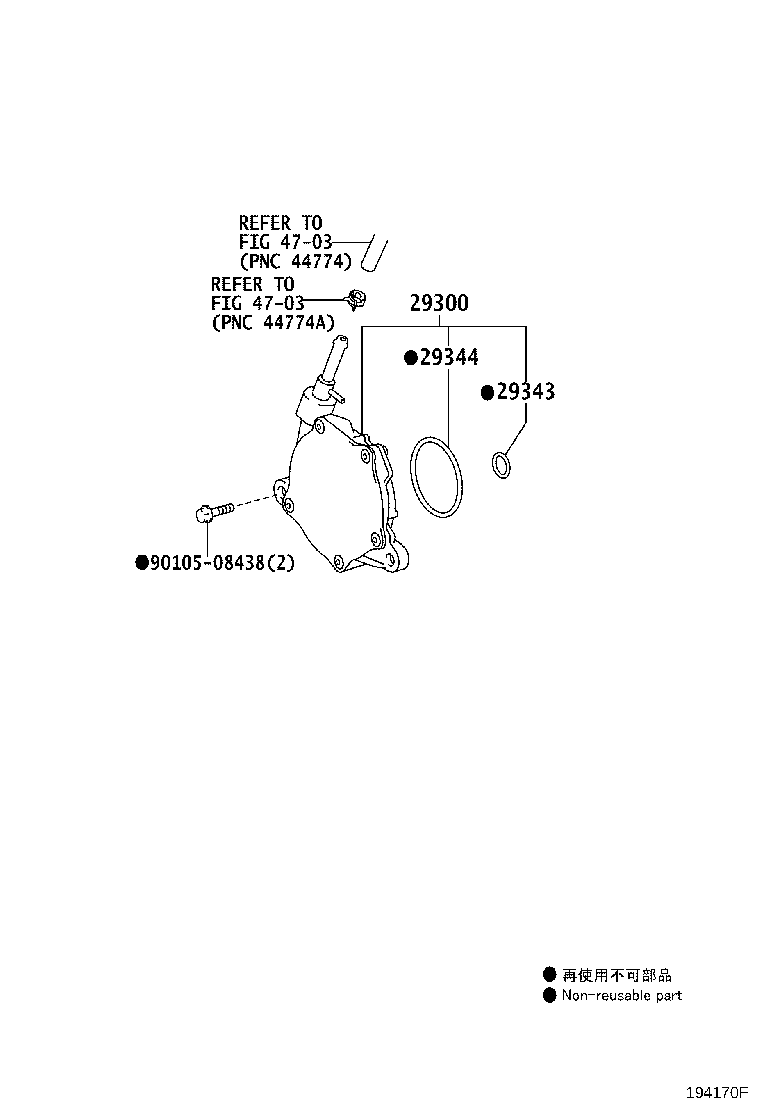

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 29300 — Pump Assy, Vacuum | ||||
| 29300-0W072 |
Pump Assy, Vacuum
2013-06 → 2015-02
ended
|
1NDTV NDE180 | — | |
| 29300-0W120 |
Pump Assy, Vacuum
2015-03 → 2016-05
ended
|
1NDTV NDE180 TUP | — | |
| 29300-0W120 |
Pump Assy, Vacuum
2015-03 → 2017-01
ended
|
1NDTV NDE180 SAP | — | |
| 29300-0W120 |
Pump Assy, Vacuum
2016-06 → 2019-01
ended
|
1NDTV NDE180 TUP | — | |
| 29300-0W120 |
Pump Assy, Vacuum
2016-06 → —
|
1NDTV NDE180 SAP | — | |
| 29343 — Ring, O Vacuum Pump, NO.1 | ||||
| 29343-0W060 |
Ring, O Vacuum Pump, NO.1
2013-06 → 2016-05
ended
|
1NDTV NDE180 TUP | — | |
| 29343-0W060 |
Ring, O Vacuum Pump, NO.1
2013-06 → 2017-01
ended
|
1NDTV NDE180 SAP | — | |
| 29343-0W060 |
Ring, O Vacuum Pump, NO.1
2016-06 → 2019-01
ended
|
1NDTV NDE180 TUP | — | |
| 29343-0W060 |
Ring, O Vacuum Pump, NO.1
2016-06 → —
|
1NDTV NDE180 SAP | — | |
| 29344 — Ring, O Vacuum Pump, NO.2 | ||||
| 29344-0W060 |
Ring, O Vacuum Pump, NO.2
2013-06 → 2015-03
ended
|
1NDTV NDE180 | — | |
| 29344-0W100 |
Ring, O Vacuum Pump, NO.2
2015-03 → 2016-05
ended
|
1NDTV NDE180 TUP | — | |
| 29344-0W100 |
Ring, O Vacuum Pump, NO.2
2015-03 → 2017-01
ended
|
1NDTV NDE180 SAP | — | |
| 29344-0W100 |
Ring, O Vacuum Pump, NO.2
2016-06 → 2019-01
ended
|
1NDTV NDE180 TUP | — | |
| 29344-0W100 |
Ring, O Vacuum Pump, NO.2
2016-06 → —
|
1NDTV NDE180 SAP | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
