Toyota Corolla
2013-06 → present · chassis NDE180,NRE180,ZRE18#,ZRE21#,ZWE219 · catalogue 164320 · General
Supported model
Data version 2019-11

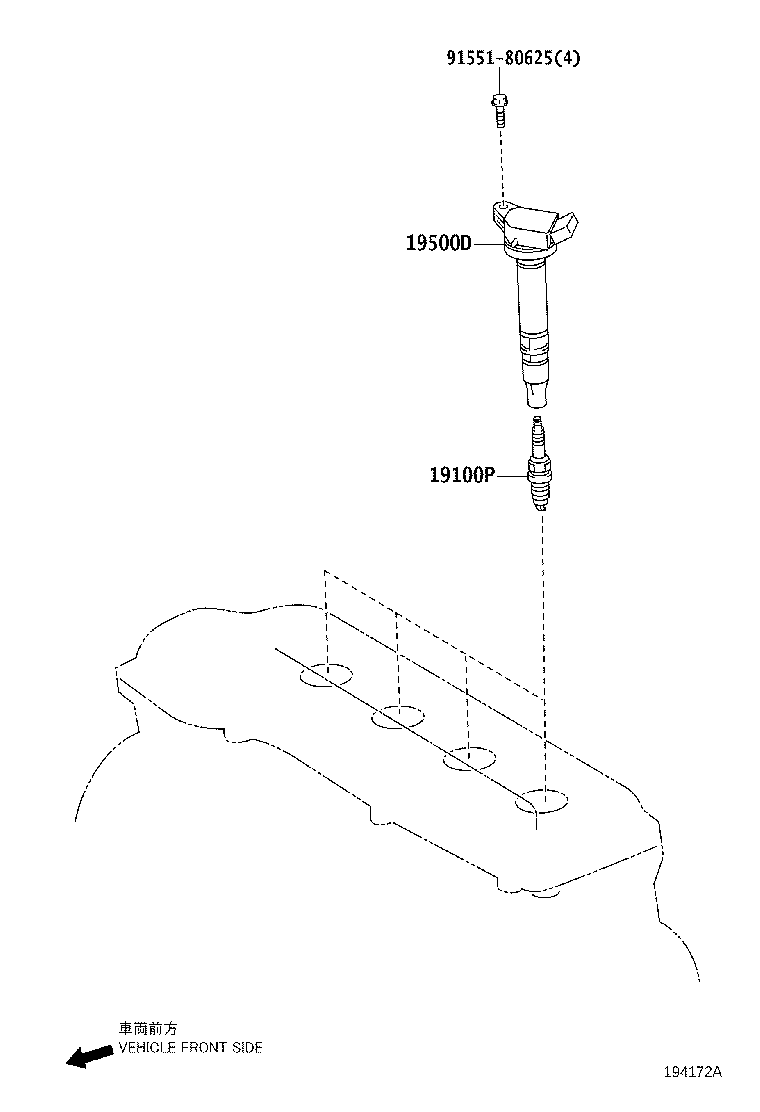

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 19100P — Plug, Spark | ||||
| 90919-01253 note |
Plug, Spark
2014-06 → 2015-03
ended
|
1ZRFE,2ZRFE ZRE18# | — | |
| 90919-01253 note |
Plug, Spark
2014-01 → 2014-06
ended
|
1ZRFE,2ZRFE ZRE18# | — | |
| 90919-01275 note |
Plug, Spark
2014-01 → 2017-01
ended
|
1NRFE NRE180 SAP | — | |
| 90919-01275 note |
Plug, Spark
2015-04 → 2017-01
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 90919-W1006 note |
Plug, Spark
2014-06 → 2016-05
ended
|
1ZRFE,2ZRFE ZRE18# | — | |
| 90919-W1007 note |
Plug, Spark
2016-06 → 2017-01
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 90919-01275 note |
Plug, Spark
2016-06 → 2018-08
ended
|
1NRFE NRE180 TUP | — | |
| 90919-01275 note |
Plug, Spark
2016-06 → 2019-01
ended
|
1ZRFE,2ZRFE ZRE18# TUP | — | |
| 90919-01275 note |
Plug, Spark
2016-06 → 2019-12
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 90919-01275 note |
Plug, Spark
2016-06 → —
|
1NRFE NRE180 SAP | — | |
| 90919-W1007 note |
Plug, Spark
2016-06 → 2019-01
ended
|
1ZRFE,2ZRFE ZRE18# TUP | — | |
| 90919-W1007 note |
Plug, Spark
2016-06 → 2019-12
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 90919-01275 note |
Plug, Spark
2019-12 → —
|
2ZRFE ZRE182 | — | |
| 90919-W1007 note |
Plug, Spark
2019-12 → —
|
2ZRFE ZRE182 | — | |
| 19500D — Coil, Ignition, NO.1 | ||||
| 90919-02257 |
Coil, Ignition, NO.1
2014-01 → 2017-01
ended
|
1NRFE NRE180 SAP | — | |
| 90919-02257 |
Coil, Ignition, NO.1
2016-06 → 2018-08
ended
|
1NRFE NRE180 TUP | — | |
| 90919-02257 |
Coil, Ignition, NO.1
2016-06 → —
|
1NRFE NRE180 SAP | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
