Toyota Corolla
2013-06 → present · chassis NDE180,NRE180,ZRE18#,ZRE21#,ZWE219 · catalogue 164320 · General
Supported model
Data version 2019-11

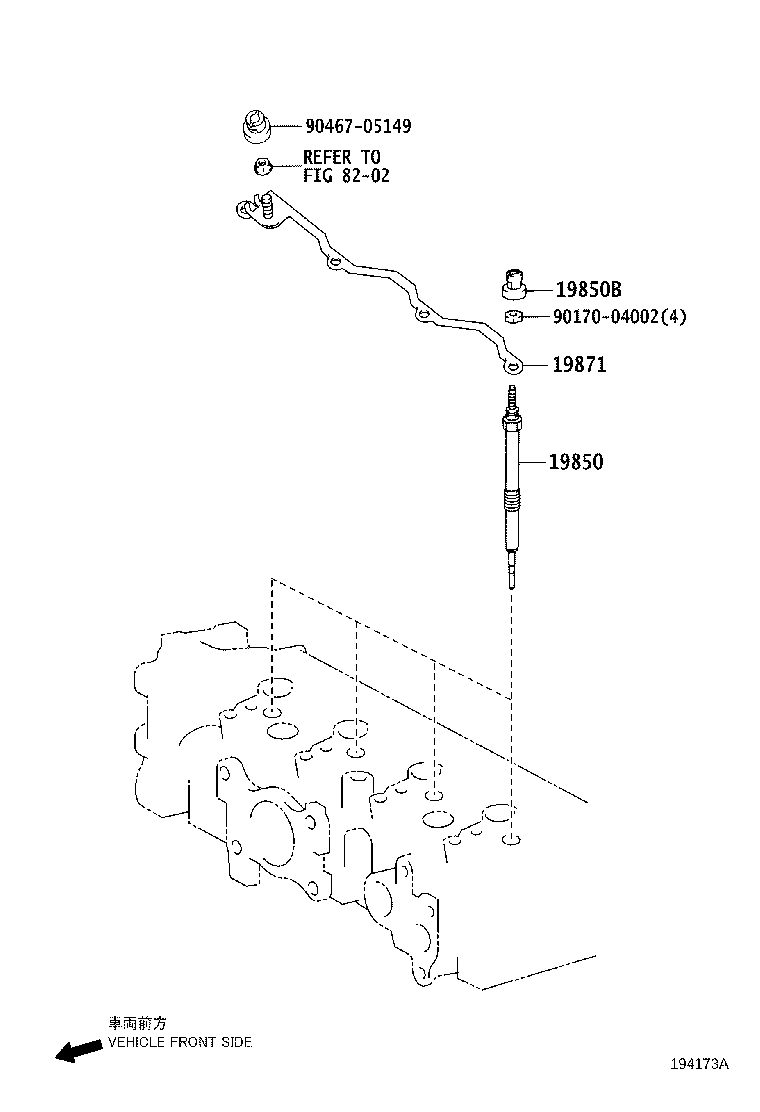

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 19850 — Plug Assy, Glow | ||||
| 19850-33020 note |
Plug Assy, Glow
2013-06 → 2016-05
ended
|
1NDTV NDE180 TUP | — | |
| 19850-33020 note |
Plug Assy, Glow
2013-06 → 2017-01
ended
|
1NDTV NDE180 SAP | — | |
| 19850-33020 note |
Plug Assy, Glow
2016-06 → 2019-01
ended
|
1NDTV NDE180 TUP | — | |
| 19850-33020 note |
Plug Assy, Glow
2016-06 → —
|
1NDTV NDE180 SAP | — | |
| 19850B — Grommet, Screw(FOR GLOW PLUG) | ||||
| 90189-04024 |
Grommet, Screw(FOR GLOW PLUG)
2013-06 → 2016-05
ended
|
1NDTV NDE180 TUP | — | |
| 90189-04024 |
Grommet, Screw(FOR GLOW PLUG)
2013-06 → 2017-01
ended
|
1NDTV NDE180 SAP | — | |
| 90189-04024 |
Grommet, Screw(FOR GLOW PLUG)
2016-06 → 2019-01
ended
|
1NDTV NDE180 TUP | — | |
| 90189-04024 |
Grommet, Screw(FOR GLOW PLUG)
2016-06 → —
|
1NDTV NDE180 SAP | — | |
| 19871 — Connector, Glow Plug NO.1 | ||||
| 19871-33020 |
Connector, Glow Plug NO.1
2013-06 → 2016-05
ended
|
1NDTV NDE180 TUP | — | |
| 19871-33020 |
Connector, Glow Plug NO.1
2013-06 → 2017-01
ended
|
1NDTV NDE180 SAP | — | |
| 19871-33020 note |
Connector, Glow Plug NO.1
2016-06 → 2019-01
ended
|
1NDTV NDE180 TUP | — | |
| 19871-33020 note |
Connector, Glow Plug NO.1
2016-06 → —
|
1NDTV NDE180 SAP | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
