Toyota Corolla
2013-06 → present · chassis NDE180,NRE180,ZRE18#,ZRE21#,ZWE219 · catalogue 164320 · General
Supported model
Data version 2019-11

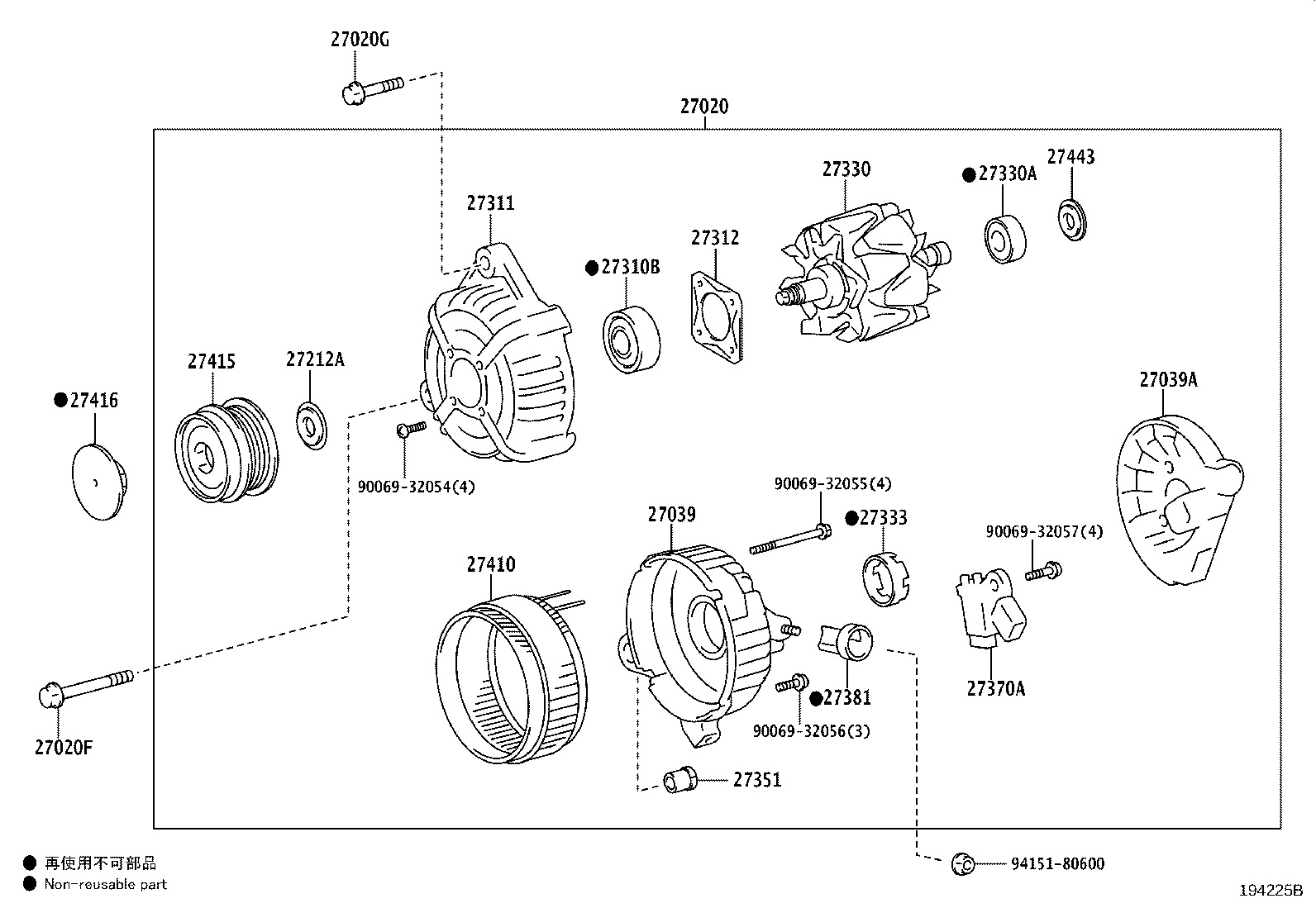

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 27020 — Alternator Assy | ||||
| 27060-0N110 note |
Alternator Assy
2013-06 → 2016-05
ended
|
1NDTV NDE180 TUP | — | |
| 27060-0N120 note |
Alternator Assy
2014-01 → 2017-01
ended
|
1NDTV NDE180 SAP | — | |
| 27060-0T250 note |
Alternator Assy
2014-01 → 2017-01
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 27060-0Y170 note |
Alternator Assy
2014-01 → 2017-01
ended
|
1NRFE NRE180 SAP | — | |
| 27060-0N110 note |
Alternator Assy
2016-06 → 2019-01
ended
|
1NDTV NDE180 TUP | — | |
| 27060-0N120 note |
Alternator Assy
2017-01 → 2019-12
ended
|
1NDTV NDE180 SAP | — | |
| 27060-0T250 note |
Alternator Assy
2017-01 → 2019-12
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 27060-0T360 note |
Alternator Assy
2016-06 → 2019-01
ended
|
1ZRFE,2ZRFE ZRE18# TUP | — | |
| 27060-0Y150 note |
Alternator Assy
2016-06 → 2018-08
ended
|
1NRFE NRE180 TUP | — | |
| 27060-0Y170 note |
Alternator Assy
2017-01 → 2019-12
ended
|
1NRFE NRE180 SAP | — | |
| 27060-0Y180 note |
Alternator Assy
2016-06 → 2018-08
ended
|
1NRFE NRE180 TUP | — | |
| 27060-0T250 note |
Alternator Assy
2019-12 → —
|
2ZRFE ZRE182 | — | |
| 27020F — Bolt, NO.1(FOR ALTERNATOR) | ||||
| 90105-W0044 |
Bolt, NO.1(FOR ALTERNATOR)
2013-06 → 2016-05
ended
|
1NDTV NDE180 TUP | — | |
| 90105-W0044 |
Bolt, NO.1(FOR ALTERNATOR)
2013-06 → 2017-01
ended
|
1NDTV NDE180 SAP | — | |
| 90105-W0113 |
Bolt, NO.1(FOR ALTERNATOR)
2014-01 → 2017-01
ended
|
1NRFE NRE180 SAP | — | |
| 90105-W0044 |
Bolt, NO.1(FOR ALTERNATOR)
2016-06 → 2019-01
ended
|
1NDTV NDE180 TUP | — | |
| 90105-W0044 |
Bolt, NO.1(FOR ALTERNATOR)
2016-06 → 2019-12
ended
|
1NDTV NDE180 SAP | — | |
| 90105-W0113 |
Bolt, NO.1(FOR ALTERNATOR)
2016-06 → 2018-08
ended
|
1NRFE NRE180 TUP | — | |
| 90105-W0113 |
Bolt, NO.1(FOR ALTERNATOR)
2016-06 → 2019-12
ended
|
1NRFE NRE180 SAP | — | |
| 27020G — Bolt, NO.2(FOR ALTERNATOR) | ||||
| 90119-W0238 note |
Bolt, NO.2(FOR ALTERNATOR)
2013-06 → 2016-05
ended
|
1NDTV NDE180 TUP | — | |
| 90119-W0238 note |
Bolt, NO.2(FOR ALTERNATOR)
2013-06 → 2017-01
ended
|
1N# NDE180,NRE180 SAP | — | |
| 91671-00845 note |
Bolt, NO.2(FOR ALTERNATOR)
2013-06 → 2016-05
ended
|
1NDTV NDE180 TUP | — | |
| 91671-00845 note |
Bolt, NO.2(FOR ALTERNATOR)
2013-06 → 2017-01
ended
|
1N# NDE180,NRE180 SAP | — | |
| 90119-W0238 note |
Bolt, NO.2(FOR ALTERNATOR)
2016-06 → 2018-08
ended
|
1NRFE NRE180 TUP | — | |
| 90119-W0238 note |
Bolt, NO.2(FOR ALTERNATOR)
2016-06 → 2019-01
ended
|
1NDTV NDE180 TUP | — | |
| 90119-W0238 note |
Bolt, NO.2(FOR ALTERNATOR)
2016-06 → 2019-12
ended
|
1N# NDE180,NRE180 SAP | — | |
| 91671-00845 note |
Bolt, NO.2(FOR ALTERNATOR)
2016-06 → 2018-08
ended
|
1NRFE NRE180 TUP | — | |
| 91671-00845 note |
Bolt, NO.2(FOR ALTERNATOR)
2016-06 → 2019-01
ended
|
1NDTV NDE180 TUP | — | |
| 91671-00845 note |
Bolt, NO.2(FOR ALTERNATOR)
2016-06 → 2019-12
ended
|
1N# NDE180,NRE180 SAP | — | |
| 27039 — Cover, Alternator Rear End | ||||
| 27039-0N100 |
Cover, Alternator Rear End
2014-01 → 2017-01
ended
|
1NDTV NDE180 SAP | — | |
| 27039-0T230 |
Cover, Alternator Rear End
2014-01 → 2017-01
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 27039-0Y150 |
Cover, Alternator Rear End
2013-06 → 2016-05
ended
|
1NDTV NDE180 TUP | — | |
| 27039-0Y160 |
Cover, Alternator Rear End
2014-01 → 2017-01
ended
|
1NRFE NRE180 SAP | — | |
| 27039-0C020 |
Cover, Alternator Rear End
2016-06 → 2018-08
ended
|
1NRFE NRE180 TUP | — | |
| 27039-0N100 |
Cover, Alternator Rear End
2017-01 → 2019-12
ended
|
1NDTV NDE180 SAP | — | |
| 27039-0T230 |
Cover, Alternator Rear End
2017-01 → 2019-12
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 27039-0Y150 |
Cover, Alternator Rear End
2016-06 → 2019-01
ended
|
1NDTV,1ZRFE,2ZRFE NDE180,ZRE18# TUP | — | |
| 27039-0Y150 note |
Cover, Alternator Rear End
2016-06 → 2018-08
ended
|
1NRFE NRE180 TUP | — | |
| 27039-0Y160 |
Cover, Alternator Rear End
2017-01 → 2019-12
ended
|
1NRFE NRE180 SAP | — | |
| 27039-0T230 |
Cover, Alternator Rear End
2019-12 → —
|
2ZRFE ZRE182 | — | |
| 27039A — Cover, Alternator Rear End, NO.2 | ||||
| 27041-0Y160 |
Cover, Alternator Rear End, NO.2
2014-01 → 2017-01
ended
|
1N#,1ZRFE,2ZRFE NDE180,NRE180,ZRE18# SAP | — | |
| 27041-0Y160 |
Cover, Alternator Rear End, NO.2
2017-01 → 2019-12
ended
|
1N#,1ZRFE,2ZRFE NDE180,NRE180,ZRE18# SAP | — | |
| 27041-0Y160 |
Cover, Alternator Rear End, NO.2
2019-12 → —
|
2ZRFE ZRE182 | — | |
| 27212A — Ring, Space | ||||
| 90069-55035 |
Ring, Space
2014-01 → 2017-01
ended
|
1N#,1ZRFE,2ZRFE NDE180,NRE180,ZRE18# SAP | — | |
| 90069-55035 |
Ring, Space
2017-01 → 2019-12
ended
|
1N#,1ZRFE,2ZRFE NDE180,NRE180,ZRE18# SAP | — | |
| 90069-55035 |
Ring, Space
2019-12 → —
|
2ZRFE ZRE182 | — | |
| 27310B — Bearing(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90069-40005 |
Bearing(FOR ALTERNATOR DRIVE END FRAME)
2014-01 → 2017-01
ended
|
1N#,1ZRFE,2ZRFE NDE180,NRE180,ZRE18# SAP | — | |
| 90099-10223 |
Bearing(FOR ALTERNATOR DRIVE END FRAME)
2013-06 → 2016-05
ended
|
1NDTV NDE180 TUP | — | |
| 90068-10029 |
Bearing(FOR ALTERNATOR DRIVE END FRAME)
2016-06 → 2018-08
ended
|
1NRFE NRE180 TUP | — | |
| 90068-10033 |
Bearing(FOR ALTERNATOR DRIVE END FRAME)
2016-06 → 2019-01
ended
|
1ZRFE,2ZRFE ZRE18# TUP | — | |
| 90069-40005 |
Bearing(FOR ALTERNATOR DRIVE END FRAME)
2017-01 → 2019-12
ended
|
1N#,1ZRFE,2ZRFE NDE180,NRE180,ZRE18# SAP | — | |
| 90099-10223 note |
Bearing(FOR ALTERNATOR DRIVE END FRAME)
2016-06 → 2018-08
ended
|
1NRFE NRE180 TUP | — | |
| 90099-10223 |
Bearing(FOR ALTERNATOR DRIVE END FRAME)
2016-06 → 2019-01
ended
|
1NDTV NDE180 TUP | — | |
| 90069-40005 |
Bearing(FOR ALTERNATOR DRIVE END FRAME)
2019-12 → —
|
2ZRFE ZRE182 | — | |
| 27311 — Frame, Alternator Drive End | ||||
| 27311-0N100 |
Frame, Alternator Drive End
2014-01 → 2017-01
ended
|
1NDTV NDE180 SAP | — | |
| 27311-0Y160 |
Frame, Alternator Drive End
2014-01 → 2017-01
ended
|
1NRFE NRE180 SAP | — | |
| 27311-OT230 |
Frame, Alternator Drive End
2014-01 → 2017-01
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 27311-0N100 |
Frame, Alternator Drive End
2017-01 → 2019-12
ended
|
1NDTV NDE180 SAP | — | |
| 27311-0Y160 |
Frame, Alternator Drive End
2017-01 → 2019-12
ended
|
1NRFE NRE180 SAP | — | |
| 27311-OT230 |
Frame, Alternator Drive End
2017-01 → 2019-12
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 27311-OT230 |
Frame, Alternator Drive End
2019-12 → —
|
2ZRFE ZRE182 | — | |
| 27312 — Plate, Retainer | ||||
| 27312-0Y160 |
Plate, Retainer
2014-01 → 2017-01
ended
|
1N#,1ZRFE,2ZRFE NDE180,NRE180,ZRE18# SAP | — | |
| 27312-72100 |
Plate, Retainer
2013-06 → 2016-05
ended
|
1NDTV NDE180 TUP | — | |
| 27312-0C020 |
Plate, Retainer
2016-06 → 2018-08
ended
|
1NRFE NRE180 TUP | — | |
| 27312-0T300 |
Plate, Retainer
2016-06 → 2019-01
ended
|
1ZRFE,2ZRFE ZRE18# TUP | — | |
| 27312-0Y160 |
Plate, Retainer
2017-01 → 2019-12
ended
|
1N#,1ZRFE,2ZRFE NDE180,NRE180,ZRE18# SAP | — | |
| 27312-72100 note |
Plate, Retainer
2016-06 → 2018-08
ended
|
1NRFE NRE180 TUP | — | |
| 27312-72100 |
Plate, Retainer
2016-06 → 2019-01
ended
|
1NDTV NDE180 TUP | — | |
| 27312-0Y160 |
Plate, Retainer
2019-12 → —
|
2ZRFE ZRE182 | — | |
| 27330 — Rotor Assy, Alternator | ||||
| 27330-0N100 |
Rotor Assy, Alternator
2014-01 → 2017-01
ended
|
1NDTV NDE180 SAP | — | |
| 27330-0Y150 |
Rotor Assy, Alternator
2013-06 → 2016-05
ended
|
1NDTV NDE180 TUP | — | |
| 27330-0Y160 |
Rotor Assy, Alternator
2014-01 → 2017-01
ended
|
1NRFE,1ZRFE,2ZRFE NRE180,ZRE18# SAP | — | |
| 27330-0M040 |
Rotor Assy, Alternator
2016-06 → 2018-08
ended
|
1NRFE NRE180 TUP | — | |
| 27330-0N100 |
Rotor Assy, Alternator
2017-01 → 2019-12
ended
|
1NDTV NDE180 SAP | — | |
| 27330-0Y150 note |
Rotor Assy, Alternator
2016-06 → 2018-08
ended
|
1NRFE NRE180 TUP | — | |
| 27330-0Y150 |
Rotor Assy, Alternator
2016-06 → 2019-01
ended
|
1NDTV,1ZRFE,2ZRFE NDE180,ZRE18# TUP | — | |
| 27330-0Y160 |
Rotor Assy, Alternator
2017-01 → 2019-12
ended
|
1NRFE,1ZRFE,2ZRFE NRE180,ZRE18# SAP | — | |
| 27330-0Y160 |
Rotor Assy, Alternator
2019-12 → —
|
2ZRFE ZRE182 | — | |
| 27330A — Bearing(FOR ALTERNATOR ROTOR) | ||||
| 90069-40006 |
Bearing(FOR ALTERNATOR ROTOR)
2014-01 → 2017-01
ended
|
1N#,1ZRFE,2ZRFE NDE180,NRE180,ZRE18# SAP | — | |
| 90069-40006 |
Bearing(FOR ALTERNATOR ROTOR)
2017-01 → 2019-12
ended
|
1N#,1ZRFE,2ZRFE NDE180,NRE180,ZRE18# SAP | — | |
| 90069-40006 |
Bearing(FOR ALTERNATOR ROTOR)
2019-12 → —
|
2ZRFE ZRE182 | — | |
| 27333 — Collar, Space(FOR ALTERNATOR ROTOR) | ||||
| 27333-0Y160 |
Collar, Space(FOR ALTERNATOR ROTOR)
2014-01 → 2017-01
ended
|
1N#,1ZRFE,2ZRFE NDE180,NRE180,ZRE18# SAP | — | |
| 27333-0Y160 |
Collar, Space(FOR ALTERNATOR ROTOR)
2017-01 → 2019-12
ended
|
1N#,1ZRFE,2ZRFE NDE180,NRE180,ZRE18# SAP | — | |
| 27333-0Y160 |
Collar, Space(FOR ALTERNATOR ROTOR)
2019-12 → —
|
2ZRFE ZRE182 | — | |
| 27351 — Bush(FOR ALTERNATOR RECTIFIER END FRAME) | ||||
| 90069-41002 |
Bush(FOR ALTERNATOR RECTIFIER END FRAME)
2014-01 → 2017-01
ended
|
1N#,1ZRFE,2ZRFE NDE180,NRE180,ZRE18# SAP | — | |
| 90069-41002 |
Bush(FOR ALTERNATOR RECTIFIER END FRAME)
2017-01 → 2019-12
ended
|
1N#,1ZRFE,2ZRFE NDE180,NRE180,ZRE18# SAP | — | |
| 90069-41002 |
Bush(FOR ALTERNATOR RECTIFIER END FRAME)
2019-12 → —
|
2ZRFE ZRE182 | — | |
| 27370A — Holder Assy, Alternator Brush | ||||
| 27370-0Y150 |
Holder Assy, Alternator Brush
2013-06 → 2016-05
ended
|
1NDTV NDE180 TUP | — | |
| 27700-0Y060 |
Holder Assy, Alternator Brush
2014-01 → 2017-01
ended
|
1N#,1ZRFE,2ZRFE NDE180,NRE180,ZRE18# SAP | — | |
| 27370-0M040 |
Holder Assy, Alternator Brush
2016-06 → 2018-08
ended
|
1NRFE NRE180 TUP | — | |
| 27370-0Y150 note |
Holder Assy, Alternator Brush
2016-06 → 2018-08
ended
|
1NRFE NRE180 TUP | — | |
| 27370-0Y150 |
Holder Assy, Alternator Brush
2016-06 → 2019-01
ended
|
1NDTV,1ZRFE,2ZRFE NDE180,ZRE18# TUP | — | |
| 27700-0Y060 |
Holder Assy, Alternator Brush
2017-01 → 2019-12
ended
|
1N#,1ZRFE,2ZRFE NDE180,NRE180,ZRE18# SAP | — | |
| 27700-0Y060 |
Holder Assy, Alternator Brush
2019-12 → —
|
2ZRFE ZRE182 | — | |
| 27381 — Support, Terminal, Alternator | ||||
| 27381-0Y160 |
Support, Terminal, Alternator
2014-01 → 2017-01
ended
|
1N#,1ZRFE,2ZRFE NDE180,NRE180,ZRE18# SAP | — | |
| 27381-0Y160 |
Support, Terminal, Alternator
2017-01 → 2019-12
ended
|
1N#,1ZRFE,2ZRFE NDE180,NRE180,ZRE18# SAP | — | |
| 27381-0Y160 |
Support, Terminal, Alternator
2019-12 → —
|
2ZRFE ZRE182 | — | |
| 27410 — Stator Assy, Alternator | ||||
| 27410-0N100 |
Stator Assy, Alternator
2014-01 → 2017-01
ended
|
1NDTV NDE180 SAP | — | |
| 27410-0Y160 |
Stator Assy, Alternator
2014-01 → 2017-01
ended
|
1NRFE,1ZRFE,2ZRFE NRE180,ZRE18# SAP | — | |
| 27410-0N100 |
Stator Assy, Alternator
2017-01 → 2019-12
ended
|
1NDTV NDE180 SAP | — | |
| 27410-0Y160 |
Stator Assy, Alternator
2017-01 → 2019-12
ended
|
1NRFE,1ZRFE,2ZRFE NRE180,ZRE18# SAP | — | |
| 27410-0Y160 |
Stator Assy, Alternator
2019-12 → —
|
2ZRFE ZRE182 | — | |
| 27415 — Pulley, Alternator W/Clutch | ||||
| 27415-0T040 |
Pulley, Alternator W/Clutch
2014-01 → 2017-01
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 27415-0Y081 |
Pulley, Alternator W/Clutch
2014-01 → 2017-01
ended
|
1NRFE NRE180 SAP | — | |
| 27415-33100 |
Pulley, Alternator W/Clutch
2013-06 → 2016-05
ended
|
1NDTV NDE180 TUP | — | |
| 27415-33110 |
Pulley, Alternator W/Clutch
2014-01 → 2017-01
ended
|
1NDTV NDE180 SAP | — | |
| 27415-0T040 |
Pulley, Alternator W/Clutch
2017-01 → 2019-12
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 27415-0T060 |
Pulley, Alternator W/Clutch
2016-06 → 2019-01
ended
|
1ZRFE,2ZRFE ZRE18# TUP | — | |
| 27415-0Y051 |
Pulley, Alternator W/Clutch
2016-06 → 2018-08
ended
|
1NRFE NRE180 TUP | — | |
| 27415-0Y061 note |
Pulley, Alternator W/Clutch
2016-06 → 2018-08
ended
|
1NRFE NRE180 TUP | — | |
| 27415-0Y081 |
Pulley, Alternator W/Clutch
2017-01 → 2019-12
ended
|
1NRFE NRE180 SAP | — | |
| 27415-33100 |
Pulley, Alternator W/Clutch
2016-06 → 2019-01
ended
|
1NDTV NDE180 TUP | — | |
| 27415-33110 |
Pulley, Alternator W/Clutch
2017-01 → 2019-12
ended
|
1NDTV NDE180 SAP | — | |
| 27415-0T040 |
Pulley, Alternator W/Clutch
2019-12 → —
|
2ZRFE ZRE182 | — | |
| 27416 — Cap, Alternator Pulley | ||||
| 27416-0W050 |
Cap, Alternator Pulley
2014-01 → 2017-01
ended
|
1NRFE,1ZRFE,2ZRFE NRE180,ZRE18# SAP | — | |
| 27416-27010 |
Cap, Alternator Pulley
2013-06 → 2016-05
ended
|
1NDTV NDE180 TUP | — | |
| 27416-33010 |
Cap, Alternator Pulley
2014-01 → 2017-01
ended
|
1NDTV NDE180 SAP | — | |
| 27416-0W050 |
Cap, Alternator Pulley
2016-06 → 2018-08
ended
|
1NRFE NRE180 TUP | — | |
| 27416-0W050 |
Cap, Alternator Pulley
2016-06 → 2019-01
ended
|
1ZRFE,2ZRFE ZRE18# TUP | — | |
| 27416-0W050 |
Cap, Alternator Pulley
2016-06 → 2019-12
ended
|
1NRFE,1ZRFE,2ZRFE NRE180,ZRE18# SAP | — | |
| 27416-27010 |
Cap, Alternator Pulley
2016-06 → 2019-01
ended
|
1NDTV NDE180 TUP | — | |
| 27416-33010 |
Cap, Alternator Pulley
2017-01 → 2019-12
ended
|
1NDTV NDE180 SAP | — | |
| 27416-0W050 |
Cap, Alternator Pulley
2019-12 → —
|
2ZRFE ZRE182 | — | |
| 27443 — Cover, Alternator Bearing | ||||
| 27443-0Y160 |
Cover, Alternator Bearing
2014-01 → 2017-01
ended
|
1N#,1ZRFE,2ZRFE NDE180,NRE180,ZRE18# SAP | — | |
| 27443-0Y160 |
Cover, Alternator Bearing
2017-01 → 2019-12
ended
|
1N#,1ZRFE,2ZRFE NDE180,NRE180,ZRE18# SAP | — | |
| 27443-0Y160 |
Cover, Alternator Bearing
2019-12 → —
|
2ZRFE ZRE182 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
