Toyota Corolla
2013-06 → present · chassis NDE180,NRE180,ZRE18#,ZRE21#,ZWE219 · catalogue 164320 · General
Supported model
Data version 2019-11

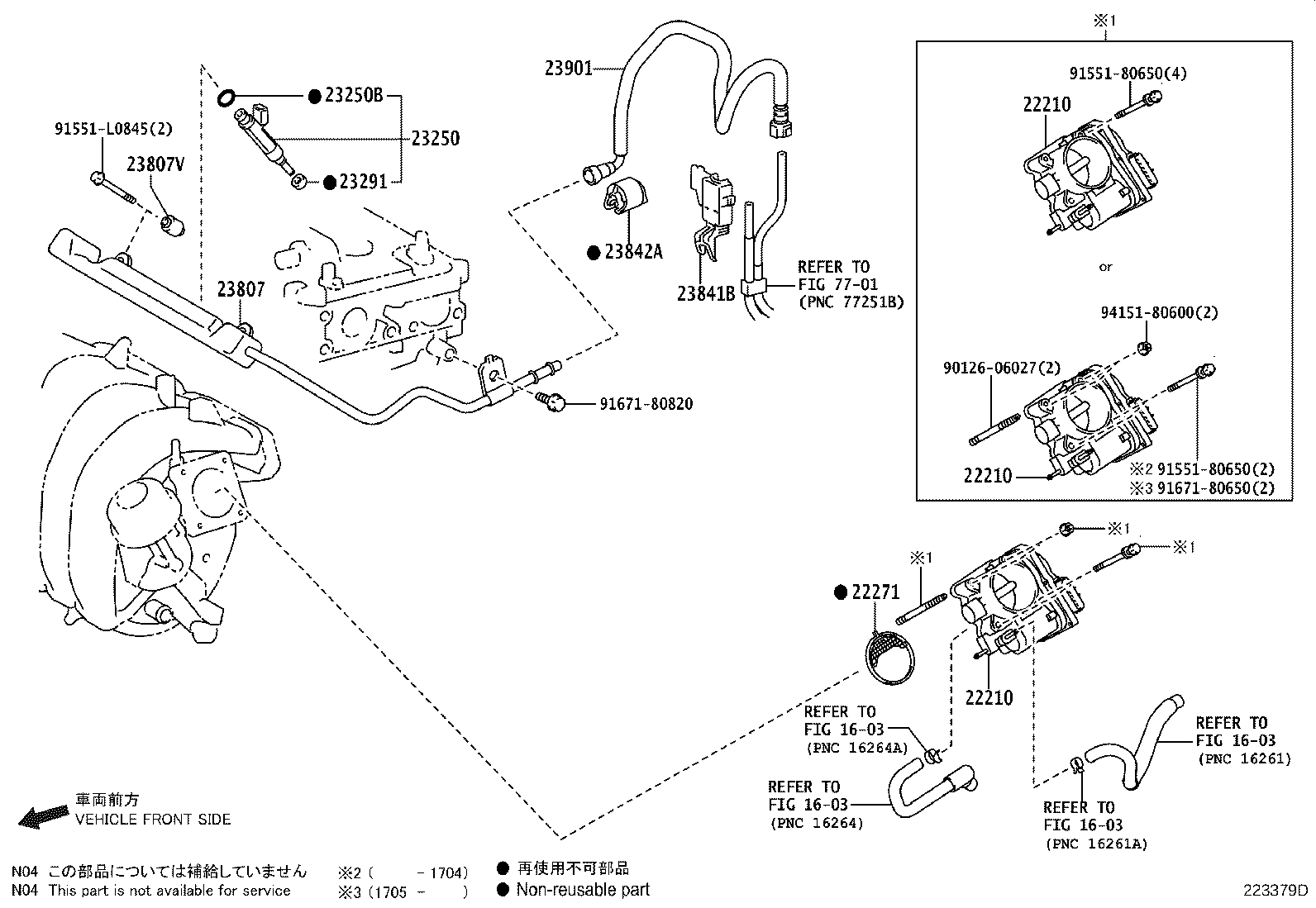

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 22210 — Body Assy, Throttle | ||||
| 22030-0T050 note |
Body Assy, Throttle
2014-01 → 2017-01
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 22030-37050 note |
Body Assy, Throttle
2014-01 → 2017-01
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 22030-0T050 note |
Body Assy, Throttle
2016-06 → 2019-12
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 22030-0T050 note |
Body Assy, Throttle
2016-06 → 2019-01
ended
|
1ZRFE,2ZRFE ZRE18# TUP | — | |
| 22030-37050 note |
Body Assy, Throttle
2016-06 → 2019-01
ended
|
1ZRFE,2ZRFE ZRE18# TUP | — | |
| 22030-37050 note |
Body Assy, Throttle
2016-06 → 2019-12
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 22030-0T050 note |
Body Assy, Throttle
2019-12 → —
|
2ZRFE ZRE182 | — | |
| 22030-37050 note |
Body Assy, Throttle
2019-12 → —
|
2ZRFE ZRE182 | — | |
| 22271 — Gasket, Throttle Body | ||||
| 22271-47010 |
Gasket, Throttle Body
2014-01 → 2017-01
ended
|
1NRFE NRE180 SAP | — | |
| 22271-75031 |
Gasket, Throttle Body
2014-01 → 2017-01
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 22271-47010 |
Gasket, Throttle Body
2016-06 → 2018-08
ended
|
1NRFE NRE180 TUP | — | |
| 22271-47010 |
Gasket, Throttle Body
2016-06 → —
|
1NRFE NRE180 SAP | — | |
| 22271-75031 |
Gasket, Throttle Body
2016-06 → 2019-12
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 22271-75031 |
Gasket, Throttle Body
2016-06 → 2019-01
ended
|
1ZRFE,2ZRFE ZRE18# TUP | — | |
| 22271-75031 |
Gasket, Throttle Body
2019-12 → —
|
2ZRFE ZRE182 | — | |
| 23250 — Injector Assy, Fuel | ||||
| 23209-09130 note |
Injector Assy, Fuel
2014-01 → 2017-01
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 23209-39145 note |
Injector Assy, Fuel
2014-01 → 2017-01
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 23209-49205 |
Injector Assy, Fuel
2014-01 → 2017-01
ended
|
1NRFE NRE180 SAP | — | |
| 23209-09130 note |
Injector Assy, Fuel
2016-06 → 2019-01
ended
|
1ZRFE,2ZRFE ZRE18# TUP | — | |
| 23209-09130 note |
Injector Assy, Fuel
2016-06 → 2019-12
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 23209-39145 note |
Injector Assy, Fuel
2016-06 → 2019-01
ended
|
1ZRFE,2ZRFE ZRE18# TUP | — | |
| 23209-39145 note |
Injector Assy, Fuel
2016-06 → 2019-12
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 23209-49205 |
Injector Assy, Fuel
2016-06 → 2018-08
ended
|
1NRFE NRE180 TUP | — | |
| 23209-49205 |
Injector Assy, Fuel
2016-06 → —
|
1NRFE NRE180 SAP | — | |
| 23209-09130 note |
Injector Assy, Fuel
2019-12 → —
|
2ZRFE ZRE182 | — | |
| 23209-39145 note |
Injector Assy, Fuel
2019-12 → —
|
2ZRFE ZRE182 | — | |
| 23250B — Ring, O(FOR FUEL INJECTOR) | ||||
| 90301-07037 |
Ring, O(FOR FUEL INJECTOR)
2014-01 → 2017-01
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 90301-07042 |
Ring, O(FOR FUEL INJECTOR)
2014-01 → 2017-01
ended
|
1NRFE NRE180 SAP | — | |
| 90301-07037 |
Ring, O(FOR FUEL INJECTOR)
2016-06 → 2019-01
ended
|
1ZRFE,2ZRFE ZRE18# TUP | — | |
| 90301-07037 |
Ring, O(FOR FUEL INJECTOR)
2016-06 → 2019-12
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 90301-07042 |
Ring, O(FOR FUEL INJECTOR)
2016-06 → 2018-08
ended
|
1NRFE NRE180 TUP | — | |
| 90301-07042 |
Ring, O(FOR FUEL INJECTOR)
2016-06 → —
|
1NRFE NRE180 SAP | — | |
| 90301-07037 |
Ring, O(FOR FUEL INJECTOR)
2019-12 → —
|
2ZRFE ZRE182 | — | |
| 23291 — Insulator, Injector Vibration | ||||
| 23291-23010 |
Insulator, Injector Vibration
2014-01 → 2017-01
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 23291-23010 |
Insulator, Injector Vibration
2014-01 → 2017-01
ended
|
1NRFE NRE180 SAP | — | |
| 23291-23010 |
Insulator, Injector Vibration
2016-06 → 2018-08
ended
|
1NRFE NRE180 TUP | — | |
| 23291-23010 |
Insulator, Injector Vibration
2016-06 → 2019-01
ended
|
1ZRFE,2ZRFE ZRE18# TUP | — | |
| 23291-23010 |
Insulator, Injector Vibration
2016-06 → 2019-12
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 23291-23010 |
Insulator, Injector Vibration
2016-06 → —
|
1NRFE NRE180 SAP | — | |
| 23291-23010 |
Insulator, Injector Vibration
2019-12 → —
|
2ZRFE ZRE182 | — | |
| 23807 — Pipe Sub-assy, Fuel Delivery | ||||
| 23814-37051 |
Pipe Sub-assy, Fuel Delivery
2014-01 → 2017-01
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 23814-37051 |
Pipe Sub-assy, Fuel Delivery
2016-06 → 2019-01
ended
|
1ZRFE,2ZRFE ZRE18# TUP | — | |
| 23814-37051 |
Pipe Sub-assy, Fuel Delivery
2016-06 → 2019-12
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 23814-37051 |
Pipe Sub-assy, Fuel Delivery
2019-12 → —
|
2ZRFE ZRE182 | — | |
| 23807V — Spacer, NO.1(FOR DELIVERY PIPE) | ||||
| 23891-37010 |
Spacer, NO.1(FOR DELIVERY PIPE)
2014-01 → 2017-01
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 23891-37010 |
Spacer, NO.1(FOR DELIVERY PIPE)
2016-06 → 2019-01
ended
|
1ZRFE,2ZRFE ZRE18# TUP | — | |
| 23891-37010 |
Spacer, NO.1(FOR DELIVERY PIPE)
2016-06 → 2019-12
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 23891-37010 |
Spacer, NO.1(FOR DELIVERY PIPE)
2019-12 → —
|
2ZRFE ZRE182 | — | |
| 23841B — Clamp, Fuel Pipe, NO.1(FOR EFI) | ||||
| 23841-37090 |
Clamp, Fuel Pipe, NO.1(FOR EFI)
2014-01 → 2017-01
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 23841-37090 |
Clamp, Fuel Pipe, NO.1(FOR EFI)
2014-01 → 2017-01
ended
|
1NRFE NRE180 SAP | — | |
| 23841-37090 |
Clamp, Fuel Pipe, NO.1(FOR EFI)
2016-06 → 2019-01
ended
|
1ZRFE,2ZRFE ZRE18# TUP | — | |
| 23841-37090 |
Clamp, Fuel Pipe, NO.1(FOR EFI)
2016-06 → —
|
1NRFE NRE180 | — | |
| 23841-37090 |
Clamp, Fuel Pipe, NO.1(FOR EFI)
2016-06 → 2019-12
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 23841-37090 |
Clamp, Fuel Pipe, NO.1(FOR EFI)
2019-12 → —
|
2ZRFE ZRE182 | — | |
| 23842A — Clamp, Fuel Pipe, NO.2(FOR EFI) | ||||
| 23841-0T020 |
Clamp, Fuel Pipe, NO.2(FOR EFI)
2014-01 → 2017-01
ended
|
1NRFE NRE180 SAP | — | |
| 23842-28010 |
Clamp, Fuel Pipe, NO.2(FOR EFI)
2014-01 → 2017-01
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 23841-0T020 |
Clamp, Fuel Pipe, NO.2(FOR EFI)
2016-06 → 2018-08
ended
|
1NRFE NRE180 TUP | — | |
| 23841-0T020 |
Clamp, Fuel Pipe, NO.2(FOR EFI)
2016-06 → —
|
1NRFE NRE180 SAP | — | |
| 23842-28010 |
Clamp, Fuel Pipe, NO.2(FOR EFI)
2016-06 → 2019-01
ended
|
1ZRFE,2ZRFE ZRE18# TUP | — | |
| 23842-28010 |
Clamp, Fuel Pipe, NO.2(FOR EFI)
2016-06 → 2019-12
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 23842-28010 |
Clamp, Fuel Pipe, NO.2(FOR EFI)
2019-12 → —
|
2ZRFE ZRE182 | — | |
| 23901 — Tube Sub-assy, Fuel | ||||
| 23901-0D090 |
Tube Sub-assy, Fuel
2014-01 → 2017-01
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 23901-0Y020 |
Tube Sub-assy, Fuel
2014-01 → 2017-01
ended
|
1NRFE NRE180 SAP | — | |
| 23901-0D090 |
Tube Sub-assy, Fuel
2016-06 → 2019-01
ended
|
1ZRFE,2ZRFE ZRE18# TUP | — | |
| 23901-0D090 |
Tube Sub-assy, Fuel
2016-06 → 2019-12
ended
|
1ZRFE,2ZRFE ZRE18# SAP | — | |
| 23901-0Y020 |
Tube Sub-assy, Fuel
2016-06 → —
|
1NRFE NRE180 | — | |
| 23901-0D090 |
Tube Sub-assy, Fuel
2019-12 → —
|
2ZRFE ZRE182 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
