Toyota Corolla
2013-06 → present · chassis NDE180,NRE180,ZRE18#,ZRE21#,ZWE219 · catalogue 164320 · General
Supported model
Data version 2019-11

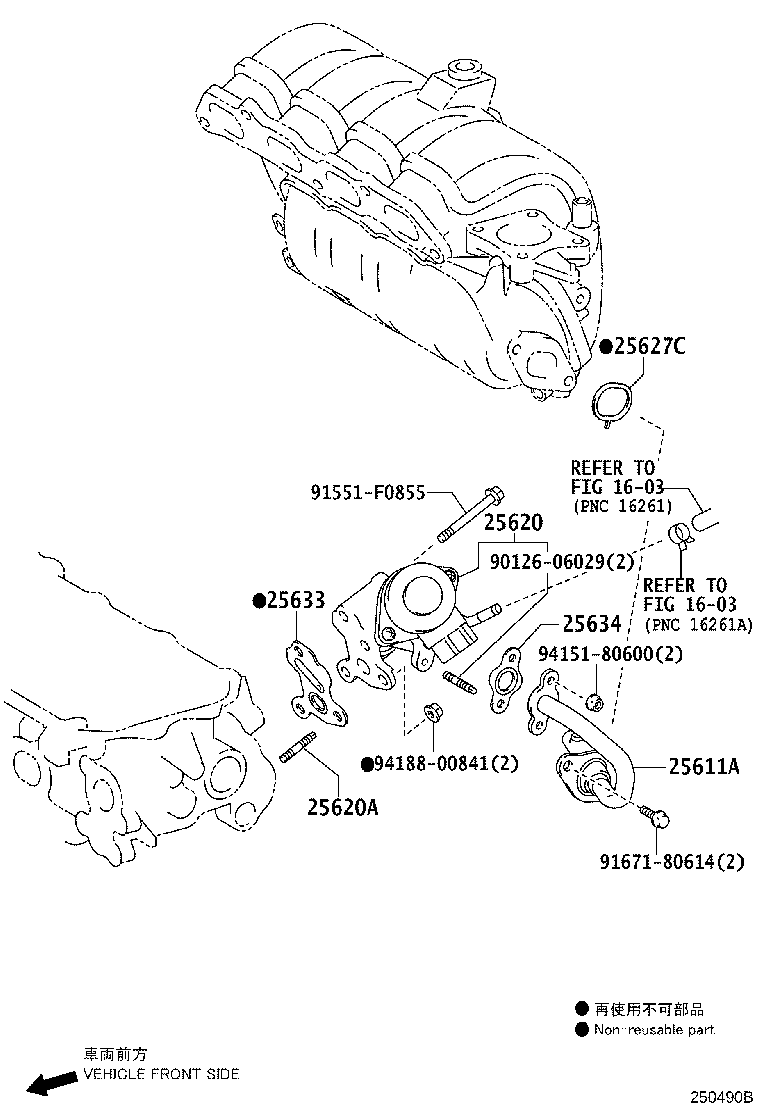

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 25611A — Pipe, Egr, NO.1 | ||||
| 25611-47011 |
Pipe, Egr, NO.1
2014-01 → 2017-01
ended
|
1NRFE NRE180 SAP | — | |
| 25611-47011 |
Pipe, Egr, NO.1
2016-06 → 2018-08
ended
|
1NRFE NRE180 TUP | — | |
| 25611-47011 |
Pipe, Egr, NO.1
2016-06 → —
|
1NRFE NRE180 SAP | — | |
| 25620 — Valve Assy, Egr | ||||
| 25620-47020 |
Valve Assy, Egr
2014-01 → 2017-01
ended
|
1NRFE NRE180 SAP | — | |
| 25620-47020 |
Valve Assy, Egr
2016-06 → 2018-08
ended
|
1NRFE NRE180 TUP | — | |
| 25620-47020 |
Valve Assy, Egr
2016-06 → —
|
1NRFE NRE180 SAP | — | |
| 25620A — Bolt, Stud(FOR EGR VALVE) | ||||
| 90126-08063 |
Bolt, Stud(FOR EGR VALVE)
2014-01 → 2017-01
ended
|
1NRFE NRE180 SAP | — | |
| 90126-08063 |
Bolt, Stud(FOR EGR VALVE)
2016-06 → 2018-08
ended
|
1NRFE NRE180 TUP | — | |
| 90126-08063 |
Bolt, Stud(FOR EGR VALVE)
2016-06 → —
|
1NRFE NRE180 SAP | — | |
| 25627C — Gasket(FOR EGR PIPE NO.2) | ||||
| 25629-47010 |
Gasket(FOR EGR PIPE NO.2)
2014-01 → 2017-01
ended
|
1NRFE NRE180 SAP | — | |
| 25629-47010 |
Gasket(FOR EGR PIPE NO.2)
2016-06 → —
|
1NRFE NRE180 SAP | — | |
| 25629-47010 |
Gasket(FOR EGR PIPE NO.2)
2016-06 → 2018-08
ended
|
1NRFE NRE180 TUP | — | |
| 25633 — Gasket, Egr Valve | ||||
| 25633-47010 |
Gasket, Egr Valve
2014-01 → 2017-01
ended
|
1NRFE NRE180 SAP | — | |
| 25633-47010 |
Gasket, Egr Valve
2016-06 → 2018-08
ended
|
1NRFE NRE180 TUP | — | |
| 25633-47010 |
Gasket, Egr Valve
2016-06 → —
|
1NRFE NRE180 SAP | — | |
| 25634 — Gasket, Egr Pipe | ||||
| 25634-33010 |
Gasket, Egr Pipe
2013-06 → 2015-02
ended
|
1NDTV NDE180 | — | |
| 25634-33030 |
Gasket, Egr Pipe
2015-03 → 2016-05
ended
|
1NDTV NDE180 TUP | — | |
| 25634-33030 |
Gasket, Egr Pipe
2015-03 → 2017-01
ended
|
1NDTV NDE180 SAP | — | |
| 25634-47010 |
Gasket, Egr Pipe
2014-01 → 2017-01
ended
|
1NRFE NRE180 SAP | — | |
| 25634-33030 |
Gasket, Egr Pipe
2016-06 → 2019-01
ended
|
1NDTV NDE180 TUP | — | |
| 25634-33030 |
Gasket, Egr Pipe
2016-06 → —
|
1NDTV NDE180 SAP | — | |
| 25634-47010 |
Gasket, Egr Pipe
2016-06 → 2018-08
ended
|
1NRFE NRE180 TUP | — | |
| 25634-47010 |
Gasket, Egr Pipe
2016-06 → —
|
1NRFE NRE180 SAP | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
