Toyota Corolla
2013-06 → present · chassis NDE180,NRE180,ZRE18#,ZRE21#,ZWE219 · catalogue 164320 · General
Supported model
Data version 2019-11

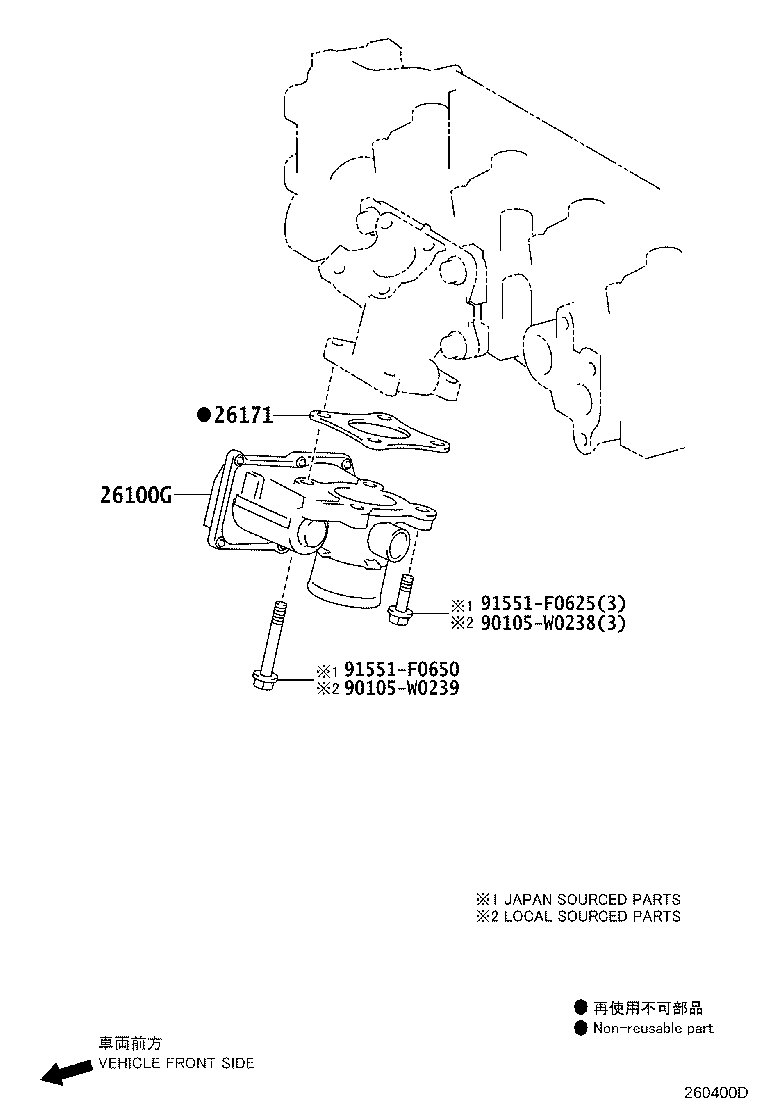

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 26100G — Body Assy, Diesel Throttle | ||||
| 26100-0N030 |
Body Assy, Diesel Throttle
2013-06 → 2016-05
ended
|
1NDTV NDE180 TUP | — | |
| 26100-0N030 |
Body Assy, Diesel Throttle
2013-06 → 2017-01
ended
|
1NDTV NDE180 SAP | — | |
| 26100-0N030 |
Body Assy, Diesel Throttle
2016-06 → 2019-01
ended
|
1NDTV NDE180 TUP | — | |
| 26100-0N030 |
Body Assy, Diesel Throttle
2016-06 → —
|
1NDTV NDE180 SAP | — | |
| 26171 — Gasket, Venturi | ||||
| 26171-33030 |
Gasket, Venturi
2013-06 → 2016-05
ended
|
1NDTV NDE180 TUP | — | |
| 26171-33030 |
Gasket, Venturi
2013-06 → 2017-01
ended
|
1NDTV NDE180 SAP | — | |
| 26171-33030 |
Gasket, Venturi
2016-06 → 2019-01
ended
|
1NDTV NDE180 TUP | — | |
| 26171-33030 |
Gasket, Venturi
2016-06 → —
|
1NDTV NDE180 SAP | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
