Toyota Corolla
2013-06 → present · chassis NDE180,NRE180,ZRE18#,ZRE21#,ZWE219 · catalogue 164320 · General
Supported model
Data version 2019-11

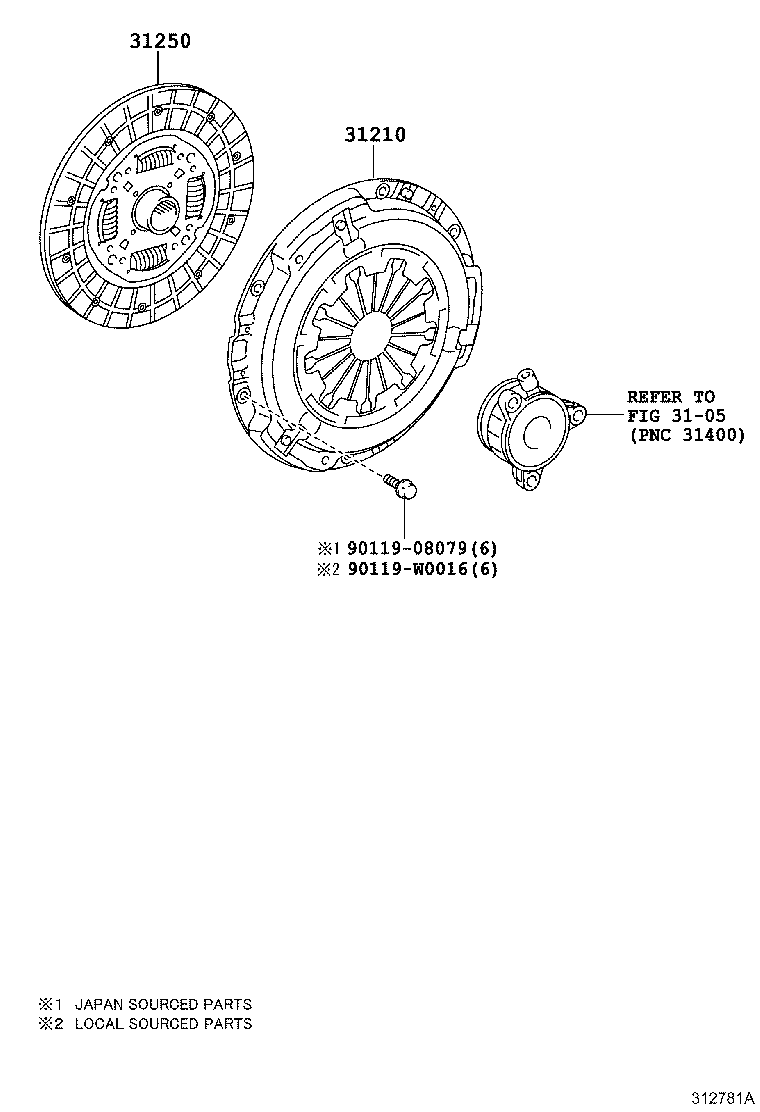

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 31210 — Cover Assy, Clutch | ||||
| 31210-05130 |
Cover Assy, Clutch
2014-01 → 2015-04
ended
|
ZRE18# 6F | — | |
| 31210-05131 |
Cover Assy, Clutch
2015-05 → 2017-01
ended
|
ZRE18# 6F SAP | — | |
| 31210-52100 |
Cover Assy, Clutch
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 31210-52100 |
Cover Assy, Clutch
2013-06 → 2017-01
ended
|
NDE180 SAP | — | |
| 31210-52130 |
Cover Assy, Clutch
2014-01 → 2014-07
ended
|
NRE180 | — | |
| 31210-52170 |
Cover Assy, Clutch
2014-07 → 2017-01
ended
|
NRE180 SAP | — | |
| 31210-05131 |
Cover Assy, Clutch
2016-06 → 2017-05
ended
|
ZRE18# 6F | — | |
| 31210-05132 |
Cover Assy, Clutch
2017-06 → 2019-01
ended
|
ZRE181 6F TUP | — | |
| 31210-05132 |
Cover Assy, Clutch
2017-06 → 2019-12
ended
|
ZRE18# 6F SAP | — | |
| 31210-52100 |
Cover Assy, Clutch
2016-06 → 2019-12
ended
|
NDE180 SAP | — | |
| 31210-52100 |
Cover Assy, Clutch
2016-06 → 2019-01
ended
|
NDE180 TUP | — | |
| 31210-52170 |
Cover Assy, Clutch
2016-06 → 2019-12
ended
|
NRE180 SAP | — | |
| 31210-52170 |
Cover Assy, Clutch
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 31210-05132 |
Cover Assy, Clutch
2019-12 → —
|
ZRE182 6F | — | |
| 31250 — Disc Assy, Clutch | ||||
| 31250-05140 |
Disc Assy, Clutch
2014-01 → 2015-04
ended
|
ZRE18# 6F | — | |
| 31250-05141 |
Disc Assy, Clutch
2015-05 → 2017-01
ended
|
ZRE18# 6F SAP | — | |
| 31250-52131 |
Disc Assy, Clutch
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 31250-52131 |
Disc Assy, Clutch
2013-06 → 2017-01
ended
|
NDE180 SAP | — | |
| 31250-52210 |
Disc Assy, Clutch
2014-01 → 2016-03
ended
|
NRE180 | — | |
| 31250-52211 |
Disc Assy, Clutch
2016-04 → 2016-12
ended
|
NRE180 SAP | — | |
| 31250-05141 |
Disc Assy, Clutch
2016-06 → 2019-01
ended
|
ZRE181 6F TUP | — | |
| 31250-05141 |
Disc Assy, Clutch
2016-06 → 2019-12
ended
|
ZRE18# 6F SAP | — | |
| 31250-52131 |
Disc Assy, Clutch
2016-06 → 2017-06
ended
|
NDE180 | — | |
| 31250-52132 |
Disc Assy, Clutch
2017-07 → 2018-02
ended
|
NDE180 | — | |
| 31250-52133 |
Disc Assy, Clutch
2018-03 → 2019-01
ended
|
NDE180 TUP | — | |
| 31250-52133 |
Disc Assy, Clutch
2018-03 → 2019-12
ended
|
NDE180 SAP | — | |
| 31250-52211 |
Disc Assy, Clutch
2016-06 → 2016-12
ended
|
NRE180 TUP | — | |
| 31250-52212 |
Disc Assy, Clutch
2017-01 → 2018-08
ended
|
NRE180 TUP | — | |
| 31250-52212 |
Disc Assy, Clutch
2017-01 → 2019-12
ended
|
NRE180 SAP | — | |
| 31250-05141 |
Disc Assy, Clutch
2019-12 → —
|
ZRE182 6F | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
