Toyota Corolla
2013-06 → present · chassis NDE180,NRE180,ZRE18#,ZRE21#,ZWE219 · catalogue 164320 · General
Supported model
Data version 2019-11

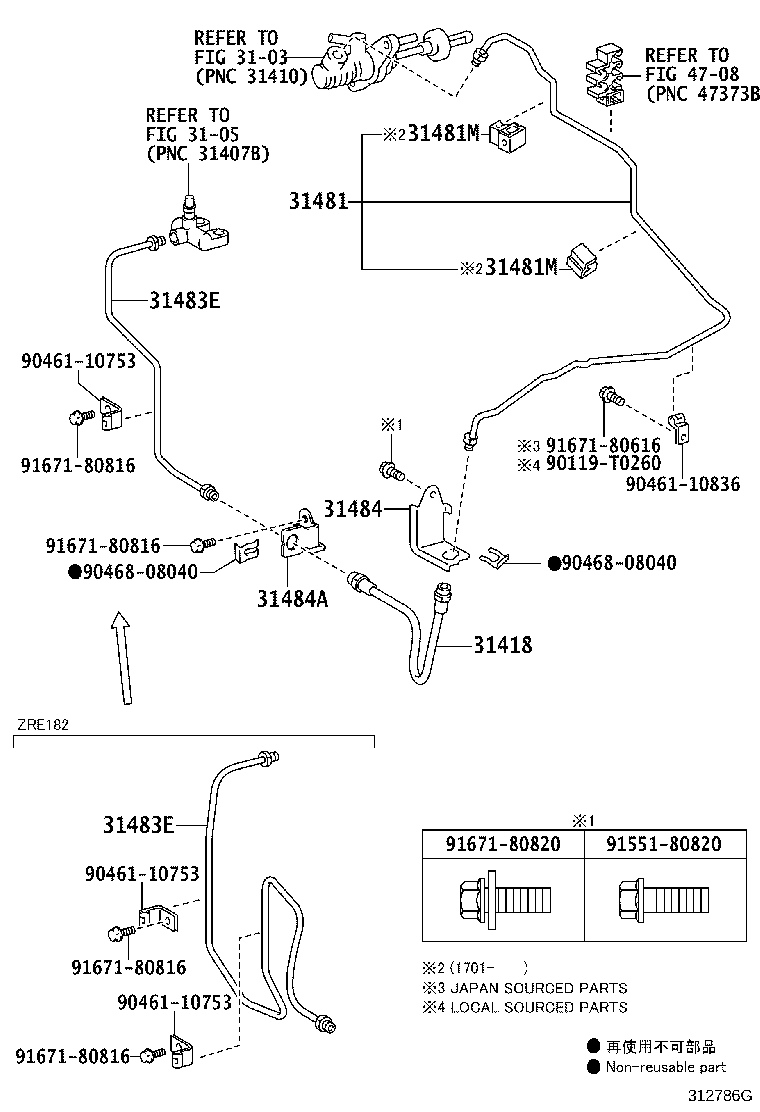

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 31418 — Hose, Clutch | ||||
| 90947-W2019 |
Hose, Clutch
2014-01 → 2017-01
ended
|
NRE180,ZRE18# 6F SAP | — | |
| 90947-W2041 |
Hose, Clutch
2013-06 → 2017-01
ended
|
NDE180 SAP | — | |
| 90947-W2041 |
Hose, Clutch
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 90947-W2019 |
Hose, Clutch
2016-06 → 2019-01
ended
|
ZRE181 6F TUP | — | |
| 90947-W2019 |
Hose, Clutch
2016-06 → 2019-12
ended
|
NRE180,ZRE18# 6F SAP | — | |
| 90947-W2019 |
Hose, Clutch
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 90947-W2041 |
Hose, Clutch
2016-06 → 2019-01
ended
|
NDE180 TUP | — | |
| 90947-W2041 |
Hose, Clutch
2016-06 → 2019-12
ended
|
NDE180 SAP | — | |
| 90947-W2019 |
Hose, Clutch
2019-12 → —
|
ZRE182 6F | — | |
| 31481 — Tube, Clutch Master Cylinder TO Flexible Hose | ||||
| 31481-02230 |
Tube, Clutch Master Cylinder TO Flexible Hose
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 31481-02250 |
Tube, Clutch Master Cylinder TO Flexible Hose
2014-01 → 2017-01
ended
|
ZRE18# 6F GEN SAP | — | |
| 31481-02260 |
Tube, Clutch Master Cylinder TO Flexible Hose
2014-01 → 2017-01
ended
|
NRE180,ZRE18# 6F SA | — | |
| 31481-02370 |
Tube, Clutch Master Cylinder TO Flexible Hose
2014-01 → 2017-01
ended
|
NDE180 SAP | — | |
| 31481-02230 |
Tube, Clutch Master Cylinder TO Flexible Hose
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 31481-02230 |
Tube, Clutch Master Cylinder TO Flexible Hose
2016-06 → 2019-01
ended
|
NDE180,ZRE181 6F TUP | — | |
| 31481-02250 |
Tube, Clutch Master Cylinder TO Flexible Hose
2017-01 → 2019-12
ended
|
ZRE18# 6F GEN SAP | — | |
| 31481-02260 |
Tube, Clutch Master Cylinder TO Flexible Hose
2017-01 → 2019-12
ended
|
NRE180,ZRE18# 6F SA | — | |
| 31481-02370 |
Tube, Clutch Master Cylinder TO Flexible Hose
2017-01 → 2019-12
ended
|
NDE180 SAP | — | |
| 31481-02250 |
Tube, Clutch Master Cylinder TO Flexible Hose
2019-12 → —
|
ZRE182 D GEN | — | |
| 31481-02260 |
Tube, Clutch Master Cylinder TO Flexible Hose
2019-12 → —
|
ZRE182 6F SA | — | |
| 31481M — Clamp(FOR CLUTCH MASTER CYLINDER TUBE) | ||||
| 90949-01D46 |
Clamp(FOR CLUTCH MASTER CYLINDER TUBE)
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 90949-01D46 |
Clamp(FOR CLUTCH MASTER CYLINDER TUBE)
2013-06 → 2017-01
ended
|
ZRE18# 6F GEN SAP | — | |
| 90949-01C82 |
Clamp(FOR CLUTCH MASTER CYLINDER TUBE)
2017-01 → 2019-12
ended
|
NRE180,ZRE18# 6F SA | — | |
| 90949-01D46 |
Clamp(FOR CLUTCH MASTER CYLINDER TUBE)
2016-06 → 2019-01
ended
|
NDE180,ZRE181 6F TUP | — | |
| 90949-01D46 |
Clamp(FOR CLUTCH MASTER CYLINDER TUBE)
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 90949-01D46 |
Clamp(FOR CLUTCH MASTER CYLINDER TUBE)
2016-06 → 2019-12
ended
|
ZRE18# 6F GEN SAP | — | |
| 90949-01C82 |
Clamp(FOR CLUTCH MASTER CYLINDER TUBE)
2019-12 → —
|
ZRE182 6F SA | — | |
| 90949-01D46 |
Clamp(FOR CLUTCH MASTER CYLINDER TUBE)
2019-12 → —
|
ZRE182 D GEN | — | |
| 31483E — Tube, Bleeder Clutch Release | ||||
| 31483-02270 |
Tube, Bleeder Clutch Release
2014-01 → 2017-01
ended
|
NRE180,ZRE181 6F SAP | — | |
| 31483-02280 |
Tube, Bleeder Clutch Release
2014-01 → 2017-01
ended
|
ZRE182 6F | — | |
| 31483-02270 |
Tube, Bleeder Clutch Release
2017-01 → 2019-12
ended
|
NRE180,ZRE181 6F SAP | — | |
| 31483-02280 |
Tube, Bleeder Clutch Release
2017-01 → 2019-12
ended
|
ZRE182 6F | — | |
| 31483-05040 |
Tube, Bleeder Clutch Release
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 31483-05040 |
Tube, Bleeder Clutch Release
2016-06 → 2019-01
ended
|
ZRE181 6F TUP | — | |
| 31483-02280 |
Tube, Bleeder Clutch Release
2019-12 → —
|
ZRE182 6F | — | |
| 31484 — Bracket, Flexible Hose(FOR CLUTCH) | ||||
| 31484-02090 |
Bracket, Flexible Hose(FOR CLUTCH)
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 31484-02090 |
Bracket, Flexible Hose(FOR CLUTCH)
2013-06 → 2017-01
ended
|
NDE180,NRE180,ZRE18# 6F SAP | — | |
| 31484-02090 |
Bracket, Flexible Hose(FOR CLUTCH)
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 31484-02090 |
Bracket, Flexible Hose(FOR CLUTCH)
2016-06 → 2019-01
ended
|
NDE180,ZRE181 6F TUP | — | |
| 31484-02090 |
Bracket, Flexible Hose(FOR CLUTCH)
2016-06 → 2019-12
ended
|
NDE180,NRE180,ZRE18# 6F SAP | — | |
| 31484-02090 |
Bracket, Flexible Hose(FOR CLUTCH)
2019-12 → —
|
ZRE182 6F | — | |
| 31484A — Bracket, Flexible Hose, NO.1(FOR CLUTCH) | ||||
| 31484-05030 |
Bracket, Flexible Hose, NO.1(FOR CLUTCH)
2014-01 → 2017-01
ended
|
NRE180,ZRE18# 6F SAP | — | |
| 31484-05030 |
Bracket, Flexible Hose, NO.1(FOR CLUTCH)
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 31484-05030 |
Bracket, Flexible Hose, NO.1(FOR CLUTCH)
2016-06 → 2019-01
ended
|
ZRE181 6F TUP | — | |
| 31484-05030 |
Bracket, Flexible Hose, NO.1(FOR CLUTCH)
2016-06 → 2019-12
ended
|
NRE180,ZRE18# 6F SAP | — | |
| 31484-05030 |
Bracket, Flexible Hose, NO.1(FOR CLUTCH)
2019-12 → —
|
ZRE182 6F | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
