Toyota Corolla
2013-06 → present · chassis NDE180,NRE180,ZRE18#,ZRE21#,ZWE219 · catalogue 164320 · General
Supported model
Data version 2019-11

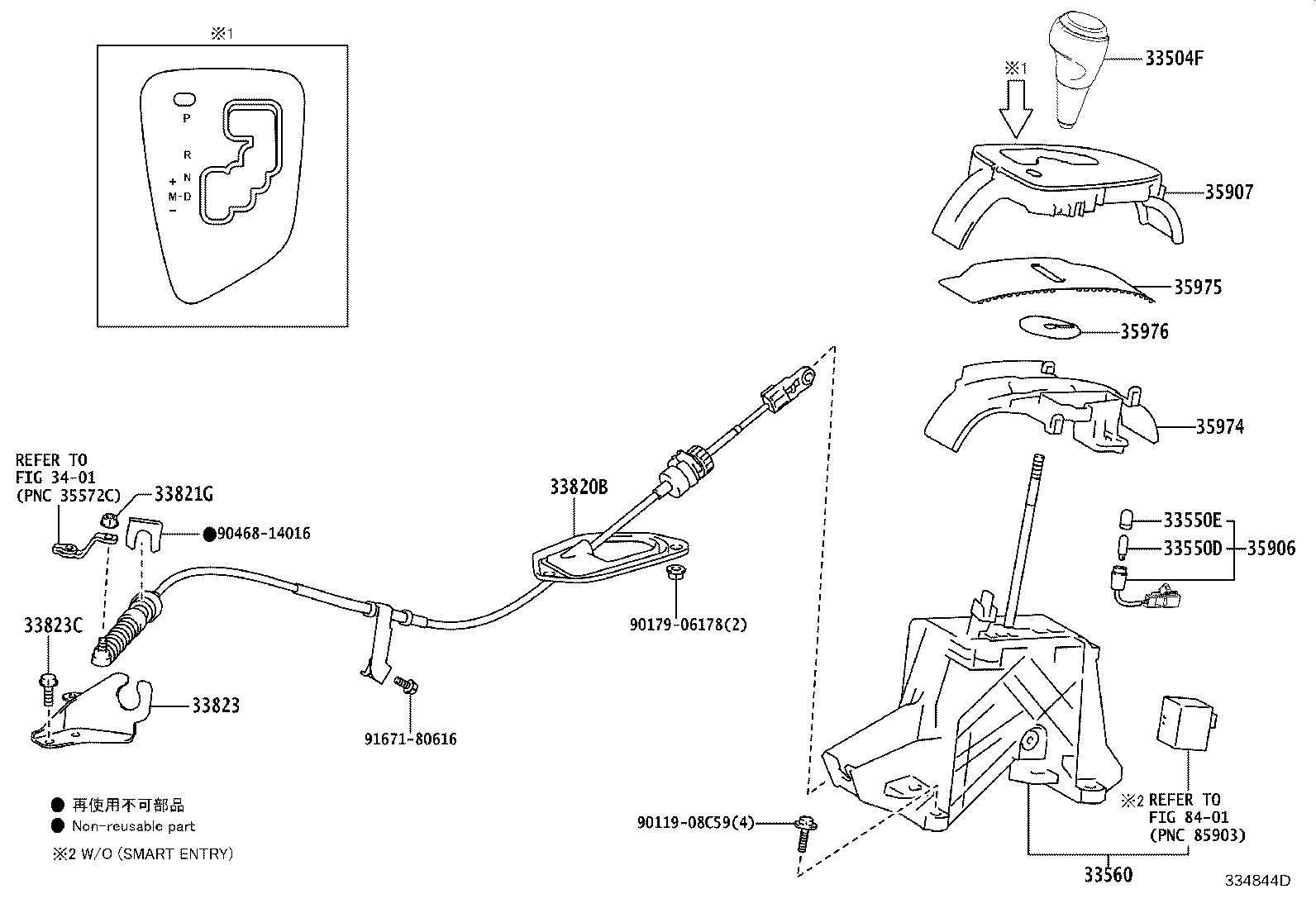

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 33504F — Knob Sub-assy, Shift Lever | ||||
| 33504-02650-C1 note |
Knob Sub-assy, Shift Lever
2013-06 → 2015-04
ended
|
NDE180 D TUP | — | |
| 33504-02650-C1 note |
Knob Sub-assy, Shift Lever
2013-06 → 2015-04
ended
|
NDE180 N TUP | — | |
| 33504-02650-C1 note |
Knob Sub-assy, Shift Lever
2014-01 → 2015-04
ended
|
NDE180,NRE180,ZRE18# 6F N SAP | — | |
| 33504-02651-C3 note |
Knob Sub-assy, Shift Lever
2015-05 → 2017-01
ended
|
NDE180,NRE180,ZRE18# 6F N SAP | — | |
| 33504-02651-C3 note |
Knob Sub-assy, Shift Lever
2015-05 → 2016-05
ended
|
NDE180 N TUP | — | |
| 33504-02651-C3 note |
Knob Sub-assy, Shift Lever
2015-05 → 2016-05
ended
|
NDE180 D TUP | — | |
| 33504-02660-C0 note |
Knob Sub-assy, Shift Lever
2014-01 → 2015-04
ended
|
ZRE18# CVT N | — | |
| 33504-02661-C1 note |
Knob Sub-assy, Shift Lever
2015-05 → 2017-01
ended
|
ZRE181 CVT N GEN +1 | — | |
| 33504-02661-C1 note |
Knob Sub-assy, Shift Lever
2015-05 → 2017-01
ended
|
ZRE181 CVT SA;ZRE182 CVT +2 | — | |
| 33504-05081-C2 note |
Knob Sub-assy, Shift Lever
2013-06 → 2016-05
ended
|
NDE180 D TUP | — | |
| 33504-05081-C2 note |
Knob Sub-assy, Shift Lever
2014-01 → 2017-01
ended
|
NDE180,NRE180,ZRE181 6F D SAP | — | |
| 33504-12510-C1 note |
Knob Sub-assy, Shift Lever
2014-01 → 2017-01
ended
|
ZRE18# CVT D SAP | — | |
| 33504-02501-C3 note |
Knob Sub-assy, Shift Lever
2016-06 → 2018-08
ended
|
NRE180 N TUP | — | |
| 33504-02501-C3 note |
Knob Sub-assy, Shift Lever
2016-06 → 2019-01
ended
|
NDE180,ZRE181 6F N TUP | — | |
| 33504-02501-C3 note |
Knob Sub-assy, Shift Lever
2017-01 → 2019-12
ended
|
NDE180,NRE180,ZRE18# 6F N SAP | — | |
| 33504-02670-C2 note |
Knob Sub-assy, Shift Lever
2016-06 → 2018-08
ended
|
NRE180 D TUP | — | |
| 33504-02670-C2 note |
Knob Sub-assy, Shift Lever
2016-06 → 2019-01
ended
|
NDE180,ZRE181 6F D TUP | — | |
| 33504-02670-C2 note |
Knob Sub-assy, Shift Lever
2017-01 → 2019-12
ended
|
NDE180,NRE180,ZRE181 6F D SAP | — | |
| 33542-12360-C0 note |
Knob Sub-assy, Shift Lever
2016-06 → 2019-01
ended
|
ZRE18# CVT N TUP | — | |
| 33542-12360-C0 note |
Knob Sub-assy, Shift Lever
2016-06 → 2019-12
ended
|
ZRE181 CVT N GEN +1 | — | |
| 33542-12360-C0 note |
Knob Sub-assy, Shift Lever
2017-01 → 2019-12
ended
|
ZRE181 CVT SA;ZRE182 CVT +2 | — | |
| 33542-12500-C0 note |
Knob Sub-assy, Shift Lever
2016-06 → 2019-01
ended
|
ZRE18# CVT D TUP | — | |
| 33542-12500-C0 note |
Knob Sub-assy, Shift Lever
2017-01 → 2019-12
ended
|
ZRE18# CVT D SAP | — | |
| 33504-02651-C4 note |
Knob Sub-assy, Shift Lever
2019-12 → —
|
ZRE182 6F N | — | |
| 33504-02651-C4 note |
Knob Sub-assy, Shift Lever
2019-12 → —
|
ZRE182 6F G | — | |
| 33504-05081-C5 note |
Knob Sub-assy, Shift Lever
2019-12 → —
|
ZRE182 6F D | — | |
| 33542-12360-C0 note |
Knob Sub-assy, Shift Lever
2019-12 → —
|
ZRE182 CVT G | — | |
| 33542-12360-C0 note |
Knob Sub-assy, Shift Lever
2019-12 → —
|
ZRE182 CVT N | — | |
| 33542-12500-C0 note |
Knob Sub-assy, Shift Lever
2019-12 → —
|
ZRE182 CVT D | — | |
| 33550D — Bulb, Position Indicator Lamp | ||||
| 90981-11018 note |
Bulb, Position Indicator Lamp
2014-01 → 2017-01
ended
|
ZRE18# CVT SAP | — | |
| 33550E — Cap, Position Indicator Lamp | ||||
| 35956-12010 |
Cap, Position Indicator Lamp
2014-01 → 2017-01
ended
|
ZRE18# CVT SAP | — | |
| 33560 — Unit Assy, Shift Lock Control | ||||
| 33560-12480 |
Unit Assy, Shift Lock Control
2014-01 → 2017-01
ended
|
ZRE18# CVT SA | — | |
| 33560-12500 |
Unit Assy, Shift Lock Control
2014-01 → 2017-01
ended
|
ZRE18# CVT GEN SAP | — | |
| 33560-12510 note |
Unit Assy, Shift Lock Control
2014-01 → 2017-01
ended
|
ZRE18# CVT N GEN +1 | — | |
| 33560-12520 note |
Unit Assy, Shift Lock Control
2014-01 → 2017-01
ended
|
ZRE18# CVT SA | — | |
| 33560-12570 note |
Unit Assy, Shift Lock Control
2017-01 → 2019-12
ended
|
ZRE18# CVT SA | — | |
| 33560-12580 note |
Unit Assy, Shift Lock Control
2016-06 → 2019-12
ended
|
ZRE18# CVT N GEN +1 | — | |
| 33560-12580 note |
Unit Assy, Shift Lock Control
2016-06 → 2019-01
ended
|
ZRE18# CVT N TUP | — | |
| 33560-12590 |
Unit Assy, Shift Lock Control
2017-01 → 2019-12
ended
|
ZRE18# CVT SA | — | |
| 33560-12600 |
Unit Assy, Shift Lock Control
2016-06 → 2019-01
ended
|
ZRE18# CVT TUP | — | |
| 33560-12600 |
Unit Assy, Shift Lock Control
2016-06 → 2019-12
ended
|
ZRE18# CVT GEN SAP | — | |
| 33560-12570 |
Unit Assy, Shift Lock Control
2019-12 → —
|
ZRE182 CVT G SA | — | |
| 33560-12570 note |
Unit Assy, Shift Lock Control
2021-01 → —
|
ZRE182 CVT (D,N) SA | — | |
| 33560-12580 |
Unit Assy, Shift Lock Control
2019-12 → —
|
ZRE182 G GEN | — | |
| 33560-12590 |
Unit Assy, Shift Lock Control
2019-12 → —
|
ZRE182 CVT (D,N) SA | — | |
| 33560-12600 |
Unit Assy, Shift Lock Control
2019-12 → —
|
ZRE182 N GEN | — | |
| 33820B — Cable Assy, Transmission Control | ||||
| 33820-02810 |
Cable Assy, Transmission Control
2014-01 → 2017-01
ended
|
NRE180 SAP | — | |
| 33820-05320 |
Cable Assy, Transmission Control
2015-05 → 2016-05
ended
|
NDE180 TUP | — | |
| 33820-05320 |
Cable Assy, Transmission Control
2015-05 → 2017-01
ended
|
NDE180,ZRE18# 6F SAP | — | |
| 33820-05360 |
Cable Assy, Transmission Control
2013-06 → 2015-04
ended
|
NDE180,ZRE18# 6F | — | |
| 33820-20A50 |
Cable Assy, Transmission Control
2014-01 → 2017-01
ended
|
ZRE18# CVT SAP | — | |
| 33820-02810 |
Cable Assy, Transmission Control
2016-06 → 2018-02
ended
|
NRE180 | — | |
| 33820-02811 |
Cable Assy, Transmission Control
2018-03 → 2018-08
ended
|
NRE180 TUP | — | |
| 33820-02811 |
Cable Assy, Transmission Control
2018-03 → 2019-12
ended
|
NRE180 SAP | — | |
| 33820-05320 |
Cable Assy, Transmission Control
2016-06 → 2018-02
ended
|
NDE180,ZRE18# 6F | — | |
| 33820-05321 |
Cable Assy, Transmission Control
2018-03 → 2019-01
ended
|
NDE180,ZRE181 6F TUP | — | |
| 33820-05321 |
Cable Assy, Transmission Control
2018-03 → 2019-12
ended
|
NDE180,ZRE18# 6F SAP | — | |
| 33820-20A50 |
Cable Assy, Transmission Control
2016-06 → 2019-12
ended
|
ZRE18# CVT SAP | — | |
| 33820-20A50 |
Cable Assy, Transmission Control
2016-06 → 2019-01
ended
|
ZRE18# CVT TUP | — | |
| 33820-05321 |
Cable Assy, Transmission Control
2019-12 → —
|
ZRE182 6F | — | |
| 33820-20A50 |
Cable Assy, Transmission Control
2019-12 → —
|
ZRE182 CVT | — | |
| 33821G — Nut (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90179-08040 |
Nut (FOR TRANSMISSION CONTROL CABLE)
2014-01 → 2017-01
ended
|
ZRE18# CVT SAP | — | |
| 90179-08040 |
Nut (FOR TRANSMISSION CONTROL CABLE)
2016-06 → 2019-01
ended
|
ZRE18# CVT TUP | — | |
| 90179-08040 |
Nut (FOR TRANSMISSION CONTROL CABLE)
2016-06 → 2019-12
ended
|
ZRE18# CVT SAP | — | |
| 90179-08040 |
Nut (FOR TRANSMISSION CONTROL CABLE)
2019-12 → —
|
ZRE182 CVT | — | |
| 33823 — Bracket, Transmission Control Cable, NO.1 | ||||
| 33823-12190 |
Bracket, Transmission Control Cable, NO.1
2014-01 → 2017-01
ended
|
ZRE18# CVT SAP | — | |
| 33823-12190 |
Bracket, Transmission Control Cable, NO.1
2016-06 → 2019-01
ended
|
ZRE18# CVT TUP | — | |
| 33823-12190 |
Bracket, Transmission Control Cable, NO.1
2016-06 → 2019-12
ended
|
ZRE18# CVT SAP | — | |
| 33823-12190 |
Bracket, Transmission Control Cable, NO.1
2019-12 → —
|
ZRE182 CVT | — | |
| 33823C — Bolt (FOR TRANSMISSION CONTROL CABLE BRACKET) | ||||
| 90119-08079 note |
Bolt (FOR TRANSMISSION CONTROL CABLE BRACKET)
2014-01 → 2017-01
ended
|
ZRE18# CVT SAP | — | |
| 90119-08C60 |
Bolt (FOR TRANSMISSION CONTROL CABLE BRACKET)
2013-06 → 2015-08
ended
|
NDE180,NRE180,ZRE18# 6F | — | |
| 90119-08C60 note |
Bolt (FOR TRANSMISSION CONTROL CABLE BRACKET)
2015-08 → 2016-05
ended
|
NDE180 TUP | — | |
| 90119-08C60 note |
Bolt (FOR TRANSMISSION CONTROL CABLE BRACKET)
2015-08 → 2017-01
ended
|
NDE180,NRE180,ZRE18# 6F SAP | — | |
| 90119-W0016 note |
Bolt (FOR TRANSMISSION CONTROL CABLE BRACKET)
2014-01 → 2017-01
ended
|
ZRE18# CVT SAP | — | |
| 90119-W0255 note |
Bolt (FOR TRANSMISSION CONTROL CABLE BRACKET)
2015-08 → 2016-05
ended
|
NDE180 TUP | — | |
| 90119-W0255 note |
Bolt (FOR TRANSMISSION CONTROL CABLE BRACKET)
2015-08 → 2017-01
ended
|
NDE180,NRE180,ZRE18# 6F SAP | — | |
| 90119-08079 note |
Bolt (FOR TRANSMISSION CONTROL CABLE BRACKET)
2016-06 → 2019-01
ended
|
ZRE18# CVT TUP | — | |
| 90119-08079 note |
Bolt (FOR TRANSMISSION CONTROL CABLE BRACKET)
2016-06 → 2019-12
ended
|
ZRE18# CVT SAP | — | |
| 90119-08C60 note |
Bolt (FOR TRANSMISSION CONTROL CABLE BRACKET)
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 90119-08C60 note |
Bolt (FOR TRANSMISSION CONTROL CABLE BRACKET)
2016-06 → 2019-01
ended
|
NDE180,ZRE181 6F TUP | — | |
| 90119-08C60 note |
Bolt (FOR TRANSMISSION CONTROL CABLE BRACKET)
2016-06 → 2019-12
ended
|
NDE180,NRE180,ZRE18# 6F SAP | — | |
| 90119-W0016 note |
Bolt (FOR TRANSMISSION CONTROL CABLE BRACKET)
2016-06 → 2019-01
ended
|
ZRE18# CVT TUP | — | |
| 90119-W0016 note |
Bolt (FOR TRANSMISSION CONTROL CABLE BRACKET)
2016-06 → 2019-12
ended
|
ZRE18# CVT SAP | — | |
| 90119-W0255 note |
Bolt (FOR TRANSMISSION CONTROL CABLE BRACKET)
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 90119-W0255 note |
Bolt (FOR TRANSMISSION CONTROL CABLE BRACKET)
2016-06 → 2019-12
ended
|
NDE180,NRE180,ZRE18# 6F SAP | — | |
| 90119-W0255 note |
Bolt (FOR TRANSMISSION CONTROL CABLE BRACKET)
2016-06 → 2019-01
ended
|
NDE180,ZRE181 6F TUP | — | |
| 90119-08079 |
Bolt (FOR TRANSMISSION CONTROL CABLE BRACKET)
2019-12 → —
|
ZRE182 CVT | — | |
| 90119-08C60 note |
Bolt (FOR TRANSMISSION CONTROL CABLE BRACKET)
2019-12 → —
|
ZRE182 6F | — | |
| 90119-W0255 note |
Bolt (FOR TRANSMISSION CONTROL CABLE BRACKET)
2019-12 → —
|
ZRE182 6F | — | |
| 35906 — Wire Sub-assy, Indicator Lamp | ||||
| 35906-12330 |
Wire Sub-assy, Indicator Lamp
2014-01 → 2017-01
ended
|
ZRE18# CVT SAP | — | |
| 35907 — Housing Sub-assy, Position Indicator (FOR FLOOR SHIFT) | ||||
| 35907-12670 |
Housing Sub-assy, Position Indicator (FOR FLOOR SHIFT)
2014-01 → 2017-01
ended
|
ZRE18# CVT SA | — | |
| 35907-12680 |
Housing Sub-assy, Position Indicator (FOR FLOOR SHIFT)
2014-01 → 2017-01
ended
|
ZRE18# CVT GEN SAP | — | |
| 35974 — Housing, Position Indicator, Lower | ||||
| 35974-12370 |
Housing, Position Indicator, Lower
2014-01 → 2017-01
ended
|
ZRE18# CVT GEN SAP | — | |
| 35974-12400 |
Housing, Position Indicator, Lower
2014-01 → 2017-01
ended
|
ZRE18# CVT SA | — | |
| 35974-12410 |
Housing, Position Indicator, Lower
2017-01 → 2019-12
ended
|
ZRE18# CVT SA | — | |
| 35974-12420 |
Housing, Position Indicator, Lower
2016-06 → 2019-01
ended
|
ZRE18# CVT TUP | — | |
| 35974-12420 |
Housing, Position Indicator, Lower
2016-06 → 2019-12
ended
|
ZRE18# CVT GEN SAP | — | |
| 35974-12410 |
Housing, Position Indicator, Lower
2019-12 → —
|
ZRE182 CVT SA | — | |
| 35974-12420 |
Housing, Position Indicator, Lower
2019-12 → —
|
ZRE182 CVT GEN | — | |
| 35975 — Cover, Slide (FOR POSITION INDICATOR) | ||||
| 35975-12450 |
Cover, Slide (FOR POSITION INDICATOR)
2014-01 → 2017-01
ended
|
ZRE18# CVT SA | — | |
| 35975-21040 |
Cover, Slide (FOR POSITION INDICATOR)
2014-01 → 2017-01
ended
|
ZRE18# CVT GEN SAP | — | |
| 35976 — Cover, Slide, NO.2 (FOR POSITION INDICATOR) | ||||
| 35976-21070 |
Cover, Slide, NO.2 (FOR POSITION INDICATOR)
2014-01 → 2017-01
ended
|
ZRE18# CVT SAP | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
