Toyota Corolla
2013-06 → present · chassis NDE180,NRE180,ZRE18#,ZRE21#,ZWE219 · catalogue 164320 · General
Supported model
Data version 2019-11

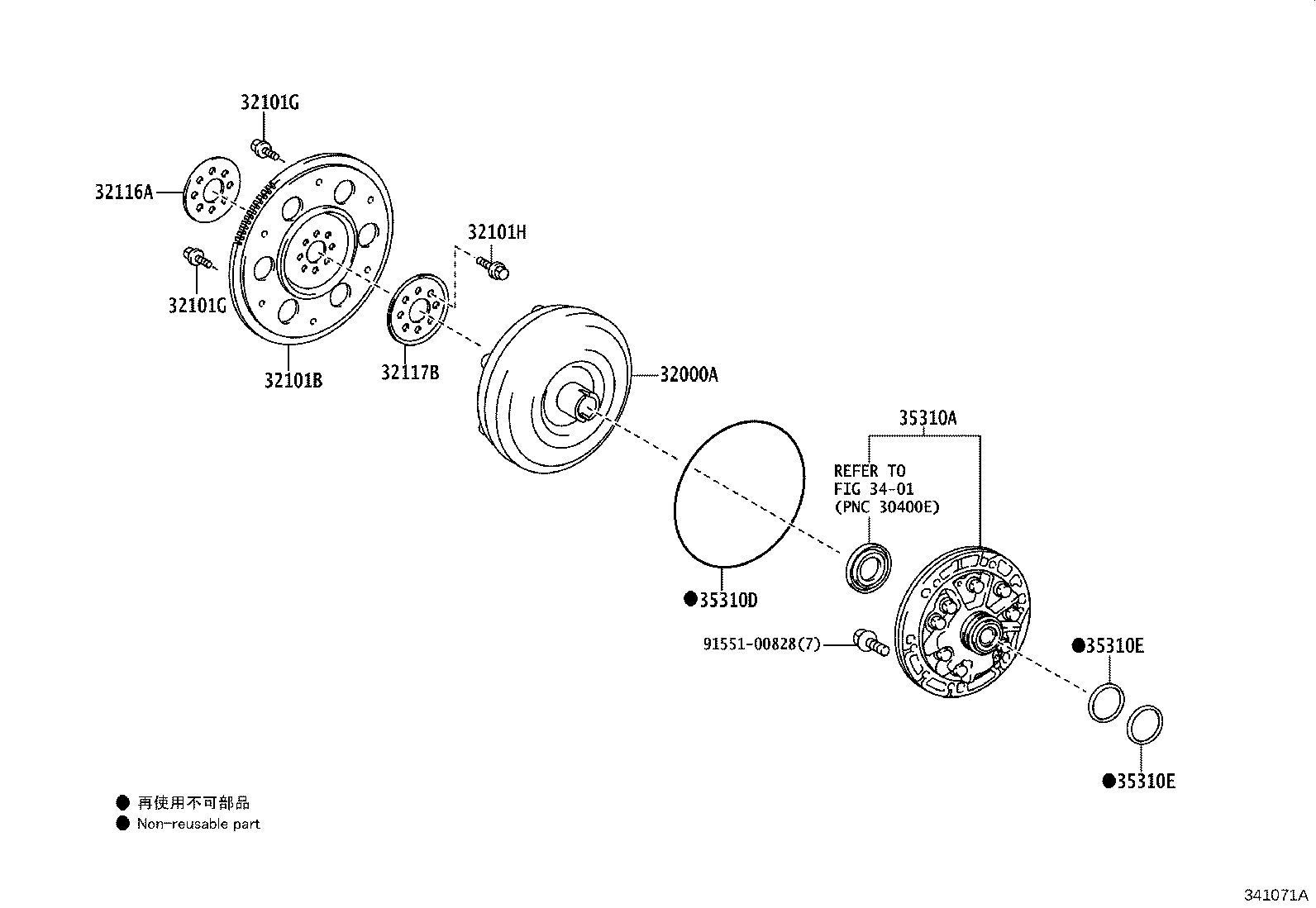

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 32000A — Converter Assy, Torque | ||||
| 32000-12400 |
Converter Assy, Torque
2014-01 → 2017-01
ended
|
ZRE18# CVT SAP | — | |
| 32000-12400 |
Converter Assy, Torque
2016-06 → 2019-01
ended
|
ZRE18# CVT TUP | — | |
| 32000-12400 |
Converter Assy, Torque
2016-06 → 2019-12
ended
|
ZRE18# CVT SAP | — | |
| 32000-12400 |
Converter Assy, Torque
2019-12 → 2025-03
ended
|
ZRE182 CVT | — | |
| 32101B — Gear Sub-assy, Drive Plate & Ring | ||||
| 32101-12100 |
Gear Sub-assy, Drive Plate & Ring
2014-01 → 2017-01
ended
|
ZRE18# CVT SAP | — | |
| 32101-12100 |
Gear Sub-assy, Drive Plate & Ring
2016-06 → 2019-01
ended
|
ZRE18# CVT TUP | — | |
| 32101-12100 |
Gear Sub-assy, Drive Plate & Ring
2016-06 → 2019-12
ended
|
ZRE18# CVT SAP | — | |
| 32101-12100 |
Gear Sub-assy, Drive Plate & Ring
2019-12 → —
|
ZRE182 CVT | — | |
| 32101G — Bolt(FOR DRIVE PLATE & TORQUE CONVERTER SETTING) | ||||
| 90109-08113 note |
Bolt(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
2014-01 → 2017-01
ended
|
ZRE18# CVT SAP | — | |
| 90119-08498 note |
Bolt(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
2014-01 → 2017-01
ended
|
ZRE18# CVT SAP | — | |
| 90109-08113 note |
Bolt(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
2016-06 → 2019-12
ended
|
ZRE18# CVT SAP | — | |
| 90109-08113 note |
Bolt(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
2016-06 → 2019-01
ended
|
ZRE18# CVT TUP | — | |
| 90119-08498 note |
Bolt(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
2016-06 → 2019-01
ended
|
ZRE18# CVT TUP | — | |
| 90119-08498 note |
Bolt(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
2016-06 → 2019-12
ended
|
ZRE18# CVT SAP | — | |
| 90109-08113 note |
Bolt(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
2019-12 → —
|
ZRE182 CVT | — | |
| 90119-08498 note |
Bolt(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
2019-12 → —
|
ZRE182 CVT | — | |
| 32101H — Bolt, Hexagon(FOR DRIVE PLATE SETTING) | ||||
| 90105-10048 |
Bolt, Hexagon(FOR DRIVE PLATE SETTING)
2014-01 → 2017-01
ended
|
ZRE18# CVT SAP | — | |
| 90105-10048 |
Bolt, Hexagon(FOR DRIVE PLATE SETTING)
2016-06 → 2019-01
ended
|
ZRE18# CVT TUP | — | |
| 90105-10048 |
Bolt, Hexagon(FOR DRIVE PLATE SETTING)
2016-06 → 2019-12
ended
|
ZRE18# CVT SAP | — | |
| 90105-10048 |
Bolt, Hexagon(FOR DRIVE PLATE SETTING)
2019-12 → —
|
ZRE182 CVT | — | |
| 32116A — Spacer, Drive Plate, Front | ||||
| 32116-12030 |
Spacer, Drive Plate, Front
2014-01 → 2017-01
ended
|
ZRE18# CVT SAP | — | |
| 32116-12030 |
Spacer, Drive Plate, Front
2016-06 → 2019-01
ended
|
ZRE18# CVT TUP | — | |
| 32116-12030 |
Spacer, Drive Plate, Front
2016-06 → 2019-12
ended
|
ZRE18# CVT SAP | — | |
| 32116-12030 |
Spacer, Drive Plate, Front
2019-12 → —
|
ZRE182 CVT | — | |
| 32117B — Spacer, Drive Plate, Rear | ||||
| 32117-12040 |
Spacer, Drive Plate, Rear
2014-01 → 2017-01
ended
|
ZRE18# CVT SAP | — | |
| 32117-12040 |
Spacer, Drive Plate, Rear
2016-06 → 2019-01
ended
|
ZRE18# CVT TUP | — | |
| 32117-12040 |
Spacer, Drive Plate, Rear
2016-06 → 2019-12
ended
|
ZRE18# CVT SAP | — | |
| 32117-12040 |
Spacer, Drive Plate, Rear
2019-12 → —
|
ZRE182 CVT | — | |
| 35310A — Pump Assy, Front Oil | ||||
| 35310-12121 |
Pump Assy, Front Oil
2014-01 → 2017-01
ended
|
ZRE18# CVT SAP | — | |
| 35310-12121 |
Pump Assy, Front Oil
2016-06 → 2019-01
ended
|
ZRE18# CVT TUP | — | |
| 35310-12121 |
Pump Assy, Front Oil
2016-06 → 2019-12
ended
|
ZRE18# CVT SAP | — | |
| 35310-12121 |
Pump Assy, Front Oil
2019-12 → —
|
ZRE182 CVT | — | |
| 35310D — Ring, O (FOR FRONT OIL PUMP) | ||||
| 90301-99133 |
Ring, O (FOR FRONT OIL PUMP)
2014-01 → 2017-01
ended
|
ZRE18# CVT SAP | — | |
| 90301-99133 |
Ring, O (FOR FRONT OIL PUMP)
2016-06 → 2017-01
ended
|
ZRE18# CVT TUP | — | |
| 90301-99133 |
Ring, O (FOR FRONT OIL PUMP)
2016-06 → 2017-02
ended
|
ZRE18# CVT SAP | — | |
| 90301-99202 |
Ring, O (FOR FRONT OIL PUMP)
2017-02 → 2019-01
ended
|
ZRE18# CVT TUP | — | |
| 90301-99202 |
Ring, O (FOR FRONT OIL PUMP)
2017-02 → 2019-12
ended
|
ZRE18# CVT SAP | — | |
| 90301-99202 |
Ring, O (FOR FRONT OIL PUMP)
2019-12 → —
|
ZRE182 CVT | — | |
| 35310E — Seal, Type T Oil (FOR FRONT OIL PUMP) | ||||
| 35617-12030 |
Seal, Type T Oil (FOR FRONT OIL PUMP)
2014-01 → 2016-11
ended
|
ZRE18# CVT SAP | — | |
| 35617-12031 |
Seal, Type T Oil (FOR FRONT OIL PUMP)
2016-11 → 2017-01
ended
|
ZRE18# CVT SAP | — | |
| 35617-12031 |
Seal, Type T Oil (FOR FRONT OIL PUMP)
2016-06 → 2019-01
ended
|
ZRE18# CVT TUP | — | |
| 35617-12031 |
Seal, Type T Oil (FOR FRONT OIL PUMP)
2016-06 → 2019-12
ended
|
ZRE18# CVT SAP | — | |
| 35617-12031 |
Seal, Type T Oil (FOR FRONT OIL PUMP)
2019-12 → —
|
ZRE182 CVT | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
