Toyota Corolla
2013-06 → present · chassis NDE180,NRE180,ZRE18#,ZRE21#,ZWE219 · catalogue 164320 · General
Supported model
Data version 2019-11

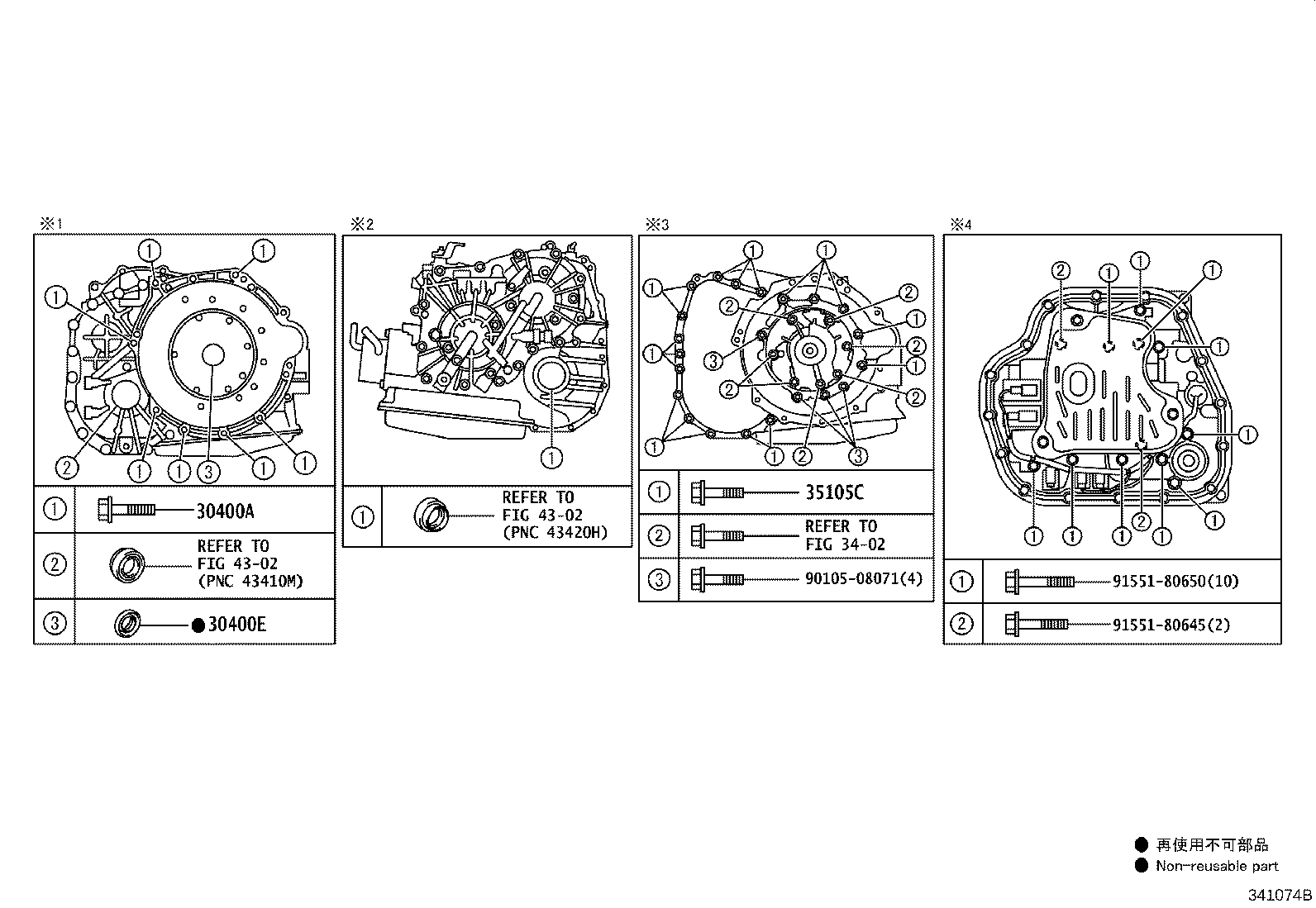

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 30400A — Bolt(FOR TRANSAXLE & ENGINE SETTING) | ||||
| 90119-W0155 note |
Bolt(FOR TRANSAXLE & ENGINE SETTING)
2014-01 → 2017-01
ended
|
ZRE18# CVT SAP | — | |
| 91612-61045 note |
Bolt(FOR TRANSAXLE & ENGINE SETTING)
2014-01 → 2017-01
ended
|
ZRE18# CVT SAP | — | |
| 90119-W0155 note |
Bolt(FOR TRANSAXLE & ENGINE SETTING)
2016-06 → 2019-01
ended
|
ZRE18# CVT TUP | — | |
| 90119-W0155 note |
Bolt(FOR TRANSAXLE & ENGINE SETTING)
2016-06 → 2019-12
ended
|
ZRE18# CVT SAP | — | |
| 91612-61045 note |
Bolt(FOR TRANSAXLE & ENGINE SETTING)
2016-06 → 2019-01
ended
|
ZRE18# CVT TUP | — | |
| 91612-61045 note |
Bolt(FOR TRANSAXLE & ENGINE SETTING)
2016-06 → 2019-12
ended
|
ZRE18# CVT SAP | — | |
| 91612-61045 |
Bolt(FOR TRANSAXLE & ENGINE SETTING)
2019-12 → —
|
ZRE182 CVT | — | |
| 30400E — Seal, Type T Oil(FOR CVT OIL PUMP) | ||||
| 90311-45027 |
Seal, Type T Oil(FOR CVT OIL PUMP)
2014-01 → 2017-01
ended
|
ZRE18# CVT SAP | — | |
| 90311-45027 |
Seal, Type T Oil(FOR CVT OIL PUMP)
2016-06 → 2019-01
ended
|
ZRE18# CVT TUP | — | |
| 90311-45027 |
Seal, Type T Oil(FOR CVT OIL PUMP)
2016-06 → 2019-12
ended
|
ZRE18# CVT SAP | — | |
| 90311-45027 |
Seal, Type T Oil(FOR CVT OIL PUMP)
2019-12 → —
|
ZRE182 CVT | — | |
| 35105C — Bolt(FOR TRANSAXLE HOUSING & CASE SET) | ||||
| 91551-10830 note |
Bolt(FOR TRANSAXLE HOUSING & CASE SET)
2014-01 → 2017-01
ended
|
ZRE18# CVT SAP | — | |
| 91551-10830 note |
Bolt(FOR TRANSAXLE HOUSING & CASE SET)
2016-06 → 2019-01
ended
|
ZRE18# CVT TUP | — | |
| 91551-10830 note |
Bolt(FOR TRANSAXLE HOUSING & CASE SET)
2016-06 → 2019-12
ended
|
ZRE18# CVT SAP | — | |
| 91551-00828 note |
Bolt(FOR TRANSAXLE HOUSING & CASE SET)
2022-01 → —
|
ZRE182 CVT | — | |
| 91551-10830 note |
Bolt(FOR TRANSAXLE HOUSING & CASE SET)
2019-12 → 2021-12
ended
|
ZRE182 CVT | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
