Toyota Corolla

2013-06 → present · chassis NDE180,NRE180,ZRE18#,ZRE21#,ZWE219 · catalogue 164320 · General

Supported model Data version 2019-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

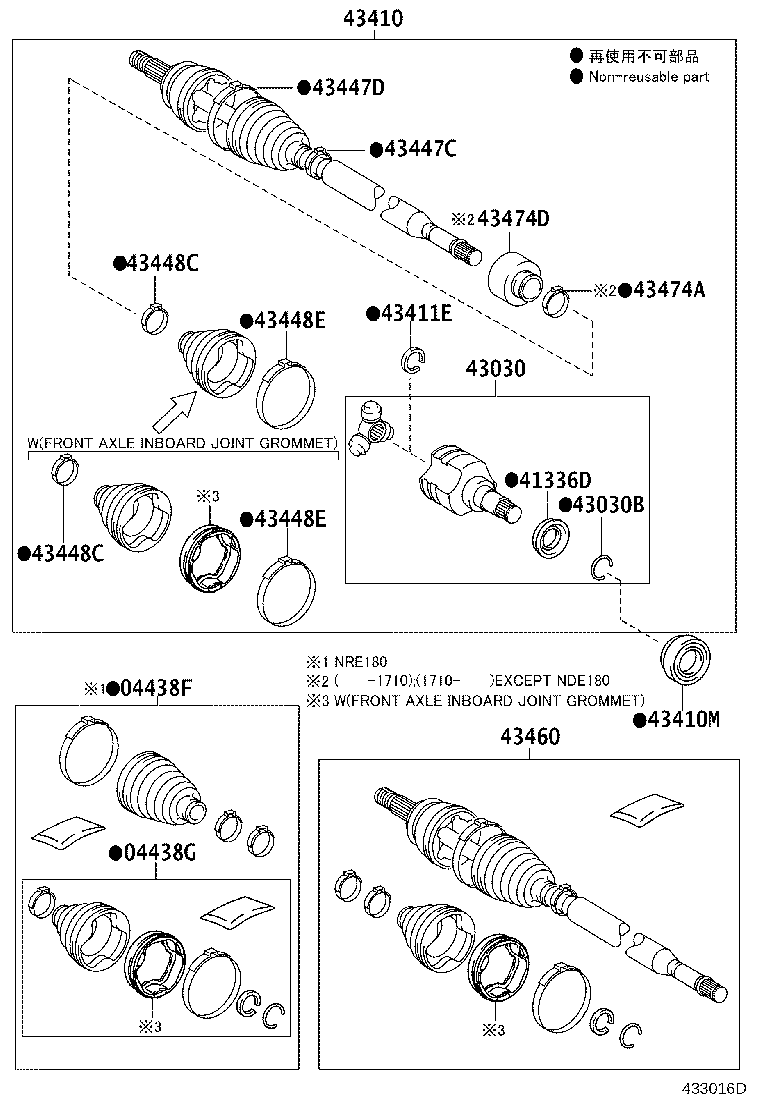

Exploded illustration 433016D 43447C — CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH) (7 parts) 43410 — SHAFT ASSY, FRONT DRIVE, RH (16 parts) 43474D — DAMPER, FRONT DRIVE SHAFT, RH (10 parts) 43447D — CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH) (7 parts) 43474A — CLAMP (FOR DRIVE SHAFT DAMPER SETTING) (9 parts) 43460 — SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH (10 parts) 43448E — CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH) (12 parts) 43448C — CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH) (12 parts) 43030B — RING, HOLE SNAP (FOR FRONT DRIVE INBOARD JOINT RH) (8 parts) 43411E — RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH) (11 parts) 41336D — COVER, FRONT DRIVE SHAFT DUST, RH (8 parts) 43030 — JOINT ASSY, FRONT DRIVE INBOARD, RH (13 parts) 43410M — OIL SEAL, FRONT DRIVE SHAFT, RH (12 parts) 04438G — BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH (11 parts) 04438F — BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH (3 parts) 43448E — CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH) (12 parts) 43448C — CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH) (12 parts)
433016D · 17 callouts Full size ↗
149 parts on this figure
Part number Description Fitment Price
04438F — Boot Kit, Front Drive Shaft, IN & Outboard, RH
04427-02580 Boot Kit, Front Drive Shaft, IN & Outboard, RH
2014-01 → 2017-01 ended
NRE180 SAP —
04427-02580 Boot Kit, Front Drive Shaft, IN & Outboard, RH
2016-06 → 2018-08 ended
NRE180 TUP —
04427-02580 Boot Kit, Front Drive Shaft, IN & Outboard, RH
2016-06 → 2019-12 ended
NRE180 SAP —
04438G — Boot Kit, Front Drive Shaft Inboard Joint, RH
04437-02420 Boot Kit, Front Drive Shaft Inboard Joint, RH
2014-01 → 2017-01 ended
NRE180 SAP —
04437-02430 Boot Kit, Front Drive Shaft Inboard Joint, RH
2014-01 → 2017-01 ended
ZRE18# SAP —
04437-0F010 Boot Kit, Front Drive Shaft Inboard Joint, RH
2013-06 → 2016-05 ended
NDE180 TUP —
04437-0F010 Boot Kit, Front Drive Shaft Inboard Joint, RH
2013-06 → 2017-01 ended
NDE180 SAP —
04437-02420 Boot Kit, Front Drive Shaft Inboard Joint, RH
2016-06 → 2018-08 ended
NRE180 TUP —
04437-02420 Boot Kit, Front Drive Shaft Inboard Joint, RH
2016-06 → 2019-12 ended
NRE180 SAP —
04437-02430 Boot Kit, Front Drive Shaft Inboard Joint, RH
2016-06 → 2019-01 ended
ZRE18# TUP —
04437-02430 Boot Kit, Front Drive Shaft Inboard Joint, RH
2016-06 → 2019-12 ended
ZRE18# SAP —
04437-0F010 Boot Kit, Front Drive Shaft Inboard Joint, RH
2016-06 → 2019-01 ended
NDE180 TUP —
04437-0F010 Boot Kit, Front Drive Shaft Inboard Joint, RH
2016-06 → 2019-12 ended
NDE180 SAP —
04437-02430 Boot Kit, Front Drive Shaft Inboard Joint, RH
2019-12 → 2020-12 ended
ZRE182 —
41336D — Cover, Front Drive Shaft Dust, RH
41336-05010 Cover, Front Drive Shaft Dust, RH
2014-01 → 2017-01 ended
NRE180 SAP —
41336-05140 Cover, Front Drive Shaft Dust, RH
2013-06 → 2016-05 ended
NDE180 TUP —
41336-05140 Cover, Front Drive Shaft Dust, RH
2013-06 → 2017-01 ended
NDE180,ZRE18# SAP —
41336-05010 Cover, Front Drive Shaft Dust, RH
2016-06 → 2018-08 ended
NRE180 TUP —
41336-05010 Cover, Front Drive Shaft Dust, RH
2016-06 → 2019-12 ended
NRE180 SAP —
41336-05140 Cover, Front Drive Shaft Dust, RH
2016-06 → 2019-01 ended
NDE180,ZRE18# TUP —
41336-05140 Cover, Front Drive Shaft Dust, RH
2016-06 → 2019-12 ended
NDE180,ZRE18# SAP —
41336-05140 Cover, Front Drive Shaft Dust, RH
2019-12 → —
ZRE182 —
43030 — Joint Assy, Front Drive Inboard, RH
43040-02030 Joint Assy, Front Drive Inboard, RH
2014-01 → 2017-01 ended
NRE180 SAP —
43040-05150 Joint Assy, Front Drive Inboard, RH
2014-01 → 2017-01 ended
ZRE18# SAP —
43040-0F020 Joint Assy, Front Drive Inboard, RH
2013-06 → 2017-01 ended
NDE180 SAP —
43040-0F020 Joint Assy, Front Drive Inboard, RH
2013-06 → 2016-05 ended
NDE180 TUP —
43040-02030 Joint Assy, Front Drive Inboard, RH
2016-06 → 2018-08 ended
NRE180 TUP —
43040-02030 Joint Assy, Front Drive Inboard, RH
2016-06 → 2019-12 ended
NRE180 SAP —
43040-05150 Joint Assy, Front Drive Inboard, RH
2016-06 → 2019-01 ended
ZRE18# TUP —
43040-05150 Joint Assy, Front Drive Inboard, RH
2016-06 → 2019-12 ended
ZRE18# SAP —
43040-0F020 Joint Assy, Front Drive Inboard, RH
2016-06 → 2019-12 ended
NDE180 SAP —
43040-0F020 Joint Assy, Front Drive Inboard, RH
2016-06 → 2019-01 ended
NDE180 TUP —
43040-02450 Joint Assy, Front Drive Inboard, RH
2020-12 → 2021-12 ended
ZRE182 —
43040-02620 Joint Assy, Front Drive Inboard, RH
2022-01 → —
ZRE182 —
43040-05150 Joint Assy, Front Drive Inboard, RH
2019-12 → 2020-12 ended
ZRE182 —
43030B — Ring, Hole Snap (FOR FRONT DRIVE INBOARD JOINT RH)
90080-52055 Ring, Hole Snap (FOR FRONT DRIVE INBOARD JOINT RH)
2013-06 → 2016-05 ended
NDE180 TUP —
90080-52055 Ring, Hole Snap (FOR FRONT DRIVE INBOARD JOINT RH)
2013-06 → 2017-01 ended
NDE180,ZRE18# SAP —
90080-52056 Ring, Hole Snap (FOR FRONT DRIVE INBOARD JOINT RH)
2014-01 → 2017-01 ended
NRE180 SAP —
90080-52055 Ring, Hole Snap (FOR FRONT DRIVE INBOARD JOINT RH)
2016-06 → 2019-01 ended
NDE180,ZRE18# TUP —
90080-52055 Ring, Hole Snap (FOR FRONT DRIVE INBOARD JOINT RH)
2016-06 → 2019-12 ended
NDE180,ZRE18# SAP —
90080-52056 Ring, Hole Snap (FOR FRONT DRIVE INBOARD JOINT RH)
2016-06 → 2018-08 ended
NRE180 TUP —
90080-52056 Ring, Hole Snap (FOR FRONT DRIVE INBOARD JOINT RH)
2016-06 → 2019-12 ended
NRE180 SAP —
90080-52055 Ring, Hole Snap (FOR FRONT DRIVE INBOARD JOINT RH)
2019-12 → —
ZRE182 —
43410 — Shaft Assy, Front Drive, RH
43410-02820 Shaft Assy, Front Drive, RH
2014-01 → 2017-01 ended
NRE180 SAP —
43410-02830 Shaft Assy, Front Drive, RH
2014-01 → 2015-05 ended
ZRE18# —
43410-02B50 Shaft Assy, Front Drive, RH
2015-05 → 2017-01 ended
ZRE18# SAP —
43410-0F041 Shaft Assy, Front Drive, RH
2014-01 → 2015-05 ended
NDE180 SAP —
43410-0F090 Shaft Assy, Front Drive, RH
2013-06 → 2016-05 ended
NDE180 TUP —
43410-0F090 Shaft Assy, Front Drive, RH
2015-05 → 2017-01 ended
NDE180 SAP —
43410-02820 Shaft Assy, Front Drive, RH
2016-06 → 2018-08 ended
NRE180 TUP —
43410-02820 Shaft Assy, Front Drive, RH
2016-06 → 2019-12 ended
NRE180 SAP —
43410-02B50 Shaft Assy, Front Drive, RH
2016-06 → 2019-01 ended
ZRE18# TUP —
43410-02B50 Shaft Assy, Front Drive, RH
2016-06 → 2019-12 ended
ZRE18# SAP —
43410-0F042 Shaft Assy, Front Drive, RH
2017-10 → 2019-01 ended
NDE180 TUP —
43410-0F042 Shaft Assy, Front Drive, RH
2017-10 → 2019-12 ended
NDE180 SAP —
43410-0F090 Shaft Assy, Front Drive, RH
2016-06 → 2017-10 ended
NDE180 —
43410-02B50 Shaft Assy, Front Drive, RH
2019-12 → 2020-12 ended
ZRE182 —
43410-02F70 Shaft Assy, Front Drive, RH
2020-12 → 2021-12 ended
ZRE182 —
43410-02G30 Shaft Assy, Front Drive, RH
2022-01 → —
ZRE182 —
43410M — Oil Seal, Front Drive Shaft, RH
90311-34041 Oil Seal, Front Drive Shaft, RH
2014-01 → 2017-01 ended
NRE180 SAP —
90311-35055 Oil Seal, Front Drive Shaft, RH
2014-01 → 2015-04 ended
ZRE18# CVT —
90311-35065 Oil Seal, Front Drive Shaft, RH
2013-06 → 2016-05 ended
NDE180 TUP —
90311-35065 Oil Seal, Front Drive Shaft, RH
2013-06 → 2017-01 ended
NDE180,ZRE18# 6F SAP —
90311-35069 Oil Seal, Front Drive Shaft, RH
2015-05 → 2017-01 ended
ZRE18# CVT SAP —
90311-34041 Oil Seal, Front Drive Shaft, RH
2016-06 → 2019-10 ended
NRE180 —
90311-34054 Oil Seal, Front Drive Shaft, RH
2019-10 → 2019-12 ended
NRE180 —
90311-35065 Oil Seal, Front Drive Shaft, RH
2016-06 → 2019-12 ended
NDE180,ZRE18# 6F —
90311-35069 Oil Seal, Front Drive Shaft, RH
2016-06 → 2018-08 ended
ZRE18# CVT —
90311-35076 Oil Seal, Front Drive Shaft, RH
2018-08 → 2019-12 ended
ZRE18# CVT —
90311-35065 Oil Seal, Front Drive Shaft, RH
2019-12 → —
ZRE182 6F —
90311-35076 Oil Seal, Front Drive Shaft, RH
2019-12 → —
ZRE182 CVT —
43411E — Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER RH)
43425-05080 Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER RH)
2014-01 → 2017-01 ended
ZRE18# SAP —
43425-05120 Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER RH)
2013-06 → 2016-05 ended
NDE180 TUP —
43425-05120 Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER RH)
2013-06 → 2017-01 ended
NDE180 SAP —
90080-52093 Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER RH)
2014-01 → 2017-01 ended
NRE180 SAP —
43425-05080 Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER RH)
2016-06 → 2019-01 ended
ZRE18# TUP —
43425-05080 Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER RH)
2016-06 → 2019-12 ended
ZRE18# SAP —
43425-05120 Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER RH)
2016-06 → 2019-01 ended
NDE180 TUP —
43425-05120 Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER RH)
2016-06 → 2019-12 ended
NDE180 SAP —
90080-52093 Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER RH)
2016-06 → 2018-08 ended
NRE180 TUP —
90080-52093 Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER RH)
2016-06 → 2019-12 ended
NRE180 SAP —
43425-05080 Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER RH)
2019-12 → —
ZRE182 —
43447C — Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
42345-02110 Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
2013-06 → 2016-05 ended
NDE180 TUP —
42345-02110 Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
2013-06 → 2017-01 ended
NDE180,ZRE18# SAP —
42345-05140 Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
2014-01 → 2017-01 ended
NRE180 SAP —
42345-02110 Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
2016-06 → 2019-12 ended
NDE180,ZRE18# —
42345-05140 Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
2016-06 → 2019-12 ended
NRE180 —
42345-02110 Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
2019-12 → 2020-12 ended
ZRE182 —
42345-02C50 Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
2020-12 → —
ZRE182 —
43447D — Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
42345-02100 Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
2013-06 → 2016-05 ended
NDE180 TUP —
42345-02100 Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
2013-06 → 2017-01 ended
NDE180,ZRE18# SAP —
42345-05130 Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
2014-01 → 2017-01 ended
NRE180 SAP —
42345-02100 Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
2016-06 → 2019-12 ended
NDE180,ZRE18# —
42345-05130 Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
2016-06 → 2019-12 ended
NRE180 —
42345-02100 Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
2019-12 → 2020-12 ended
ZRE182 —
42345-02C60 Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
2020-12 → —
ZRE182 —
43448C — Clamp (FOR FRONT AXLE INBOARD JOINT BOOT RH)
42345-02240 Clamp (FOR FRONT AXLE INBOARD JOINT BOOT RH)
2014-01 → 2017-01 ended
NRE180 SAP —
42345-05340 Clamp (FOR FRONT AXLE INBOARD JOINT BOOT RH)
2014-01 → 2017-01 ended
ZRE18# SAP —
42345-0F060 Clamp (FOR FRONT AXLE INBOARD JOINT BOOT RH)
2013-06 → 2016-05 ended
NDE180 TUP —
42345-0F060 Clamp (FOR FRONT AXLE INBOARD JOINT BOOT RH)
2013-06 → 2017-01 ended
NDE180 SAP —
42345-02240 Clamp (FOR FRONT AXLE INBOARD JOINT BOOT RH)
2016-06 → 2018-08 ended
NRE180 TUP —
42345-02240 Clamp (FOR FRONT AXLE INBOARD JOINT BOOT RH)
2016-06 → 2019-12 ended
NRE180 SAP —
42345-05340 Clamp (FOR FRONT AXLE INBOARD JOINT BOOT RH)
2016-06 → 2019-12 ended
ZRE18# SAP —
42345-05340 Clamp (FOR FRONT AXLE INBOARD JOINT BOOT RH)
2016-06 → 2019-01 ended
ZRE18# TUP —
42345-0F060 Clamp (FOR FRONT AXLE INBOARD JOINT BOOT RH)
2016-06 → 2019-01 ended
NDE180 TUP —
42345-0F060 Clamp (FOR FRONT AXLE INBOARD JOINT BOOT RH)
2016-06 → 2019-12 ended
NDE180 SAP —
42345-02C50 Clamp (FOR FRONT AXLE INBOARD JOINT BOOT RH)
2020-12 → —
ZRE182 —
42345-05340 Clamp (FOR FRONT AXLE INBOARD JOINT BOOT RH)
2019-12 → 2020-12 ended
ZRE182 —
43448E — Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
42345-05030 Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
2014-01 → 2017-01 ended
NRE180 SAP —
42345-05320 Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
2014-01 → 2017-01 ended
ZRE18# SAP —
42345-0F050 Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
2013-06 → 2016-05 ended
NDE180 TUP —
42345-0F050 Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
2013-06 → 2017-01 ended
NDE180 SAP —
42345-05030 Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
2016-06 → 2018-08 ended
NRE180 TUP —
42345-05030 Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
2016-06 → 2019-12 ended
NRE180 SAP —
42345-05320 Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
2016-06 → 2019-01 ended
ZRE18# TUP —
42345-05320 Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
2016-06 → 2019-12 ended
ZRE18# SAP —
42345-0F050 Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
2016-06 → 2019-01 ended
NDE180 TUP —
42345-0F050 Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
2016-06 → 2019-12 ended
NDE180 SAP —
42345-02G70 Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
2020-12 → —
ZRE182 —
42345-05320 Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
2019-12 → 2020-12 ended
ZRE182 —
43460 — Shaft Assy, Front Drive Outboard Joint, RH
43460-09U11 Shaft Assy, Front Drive Outboard Joint, RH
2014-01 → 2017-01 ended
NDE180 SAP —
43460-09V80 Shaft Assy, Front Drive Outboard Joint, RH
2014-01 → 2017-01 ended
NRE180 SAP —
43460-09V90 Shaft Assy, Front Drive Outboard Joint, RH
2014-01 → 2017-01 ended
ZRE18# SAP —
43460-09X30 Shaft Assy, Front Drive Outboard Joint, RH
2013-06 → 2016-05 ended
NDE180 TUP —
43460-09U11 Shaft Assy, Front Drive Outboard Joint, RH
2017-01 → 2019-12 ended
NDE180 SAP —
43460-09V80 Shaft Assy, Front Drive Outboard Joint, RH
2017-01 → 2019-12 ended
NRE180 SAP —
43460-09V90 Shaft Assy, Front Drive Outboard Joint, RH
2017-01 → 2019-12 ended
ZRE18# SAP —
43460-09X30 Shaft Assy, Front Drive Outboard Joint, RH
2016-06 → 2019-01 ended
NDE180 TUP —
43460-09X50 Shaft Assy, Front Drive Outboard Joint, RH
2016-06 → 2018-08 ended
NRE180 TUP —
43460-09X60 Shaft Assy, Front Drive Outboard Joint, RH
2016-06 → 2019-01 ended
ZRE18# TUP —
43474A — Clamp (FOR DRIVE SHAFT DAMPER SETTING)
42345-02230 Clamp (FOR DRIVE SHAFT DAMPER SETTING)
2013-06 → 2017-01 ended
NDE180,ZRE18# SAP —
42345-02230 Clamp (FOR DRIVE SHAFT DAMPER SETTING)
2013-06 → 2016-05 ended
NDE180 TUP —
42345-05370 Clamp (FOR DRIVE SHAFT DAMPER SETTING)
2014-01 → 2017-01 ended
NRE180 SAP —
42345-02230 Clamp (FOR DRIVE SHAFT DAMPER SETTING)
2016-06 → 2017-10 ended
NDE180 —
42345-02230 Clamp (FOR DRIVE SHAFT DAMPER SETTING)
2016-06 → 2019-01 ended
ZRE18# TUP —
42345-02230 Clamp (FOR DRIVE SHAFT DAMPER SETTING)
2016-06 → 2019-12 ended
ZRE18# SAP —
42345-05370 Clamp (FOR DRIVE SHAFT DAMPER SETTING)
2016-06 → 2018-08 ended
NRE180 TUP —
42345-05370 Clamp (FOR DRIVE SHAFT DAMPER SETTING)
2016-06 → 2019-12 ended
NRE180 SAP —
42345-02230 Clamp (FOR DRIVE SHAFT DAMPER SETTING)
2019-12 → —
ZRE182 —
43474D — Damper, Front Drive Shaft, RH
43474-02150 Damper, Front Drive Shaft, RH
2013-06 → 2017-01 ended
NDE180 SAP —
43474-02150 Damper, Front Drive Shaft, RH
2013-06 → 2016-05 ended
NDE180 TUP —
43474-02400 Damper, Front Drive Shaft, RH
2014-01 → 2017-01 ended
NRE180 SAP —
43474-02420 Damper, Front Drive Shaft, RH
2014-01 → 2017-01 ended
ZRE18# SAP —
43474-02150 Damper, Front Drive Shaft, RH
2016-06 → 2017-10 ended
NDE180 —
43474-02400 Damper, Front Drive Shaft, RH
2016-06 → 2018-08 ended
NRE180 TUP —
43474-02400 Damper, Front Drive Shaft, RH
2016-06 → 2019-12 ended
NRE180 SAP —
43474-02420 Damper, Front Drive Shaft, RH
2016-06 → 2019-01 ended
ZRE18# TUP —
43474-02420 Damper, Front Drive Shaft, RH
2016-06 → 2019-12 ended
ZRE18# SAP —
43474-02420 Damper, Front Drive Shaft, RH
2019-12 → —
ZRE182 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
