Toyota Corolla
2013-06 → present · chassis NDE180,NRE180,ZRE18#,ZRE21#,ZWE219 · catalogue 164320 · General
Supported model
Data version 2019-11

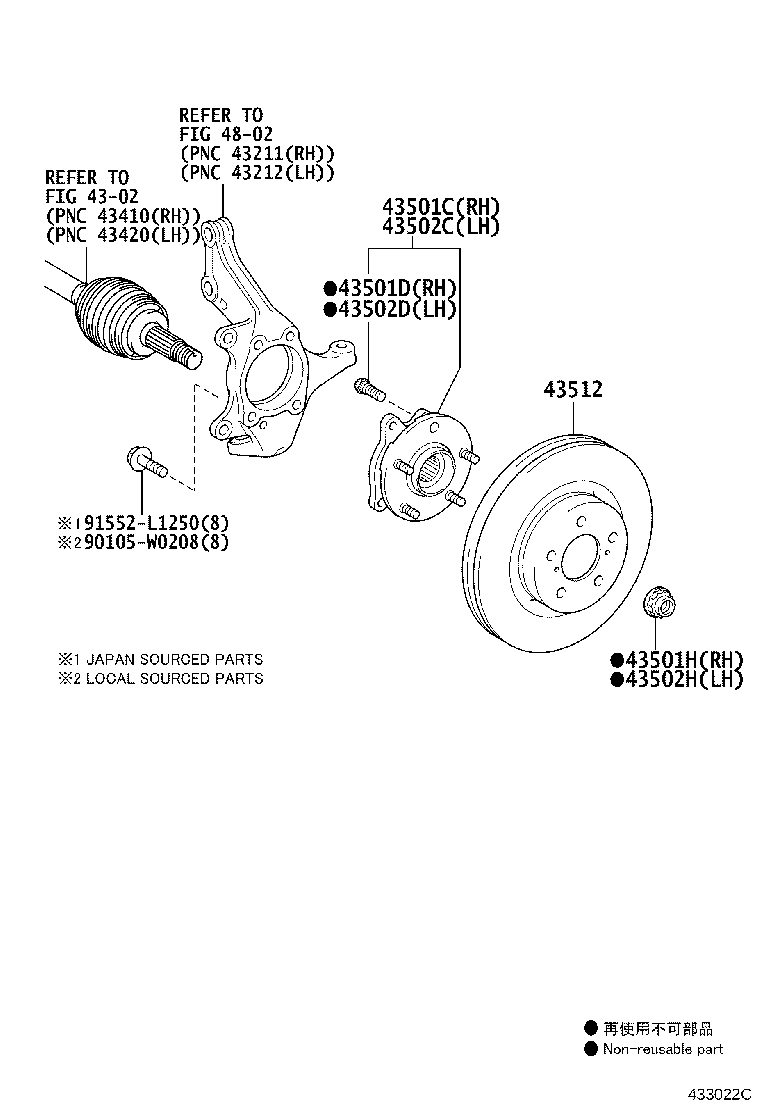

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 43501C — Hub Sub-assy, Front Axle, RH | ||||
| 43550-02010 |
Hub Sub-assy, Front Axle, RH
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 43550-02030 |
Hub Sub-assy, Front Axle, RH
2014-01 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 43550-02010 |
Hub Sub-assy, Front Axle, RH
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 43550-02010 |
Hub Sub-assy, Front Axle, RH
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 43550-02030 |
Hub Sub-assy, Front Axle, RH
2017-01 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 43550-02030 note |
Hub Sub-assy, Front Axle, RH
2021-10 → —
|
ZRE182 | — | |
| 43550-42010 |
Hub Sub-assy, Front Axle, RH
2019-12 → 2021-10
ended
|
ZRE182 | — | |
| 43550-42010 note |
Hub Sub-assy, Front Axle, RH
2021-10 → —
|
ZRE182 | — | |
| 43501D — Bolt, Hub (FOR FRONT AXLE RH) | ||||
| 90942-02049 |
Bolt, Hub (FOR FRONT AXLE RH)
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 90942-02049 |
Bolt, Hub (FOR FRONT AXLE RH)
2013-06 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 90942-02049 |
Bolt, Hub (FOR FRONT AXLE RH)
2016-06 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 90942-02049 |
Bolt, Hub (FOR FRONT AXLE RH)
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 90942-02049 |
Bolt, Hub (FOR FRONT AXLE RH)
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 90942-02049 |
Bolt, Hub (FOR FRONT AXLE RH)
2019-12 → —
|
ZRE182 | — | |
| 43501H — Nut (FOR FRONT AXLE SHAFT RH) | ||||
| 90177-22001 |
Nut (FOR FRONT AXLE SHAFT RH)
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 90177-22001 |
Nut (FOR FRONT AXLE SHAFT RH)
2013-06 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 90177-22001 |
Nut (FOR FRONT AXLE SHAFT RH)
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 90177-22001 |
Nut (FOR FRONT AXLE SHAFT RH)
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 90177-22001 |
Nut (FOR FRONT AXLE SHAFT RH)
2016-06 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 90177-22001 |
Nut (FOR FRONT AXLE SHAFT RH)
2019-12 → —
|
ZRE182 | — | |
| 43502C — Hub Sub-assy, Front Axle, LH | ||||
| 43550-02010 |
Hub Sub-assy, Front Axle, LH
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 43550-02030 |
Hub Sub-assy, Front Axle, LH
2014-01 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 43550-02010 |
Hub Sub-assy, Front Axle, LH
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 43550-02010 |
Hub Sub-assy, Front Axle, LH
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 43550-02030 |
Hub Sub-assy, Front Axle, LH
2017-01 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 43550-02030 note |
Hub Sub-assy, Front Axle, LH
2021-10 → —
|
ZRE182 | — | |
| 43550-42010 |
Hub Sub-assy, Front Axle, LH
2019-12 → 2021-10
ended
|
ZRE182 | — | |
| 43550-42010 note |
Hub Sub-assy, Front Axle, LH
2021-10 → —
|
ZRE182 | — | |
| 43502D — Bolt, Hub (FOR FRONT AXLE LH) | ||||
| 90942-02049 |
Bolt, Hub (FOR FRONT AXLE LH)
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 90942-02049 |
Bolt, Hub (FOR FRONT AXLE LH)
2013-06 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 90942-02049 |
Bolt, Hub (FOR FRONT AXLE LH)
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 90942-02049 |
Bolt, Hub (FOR FRONT AXLE LH)
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 90942-02049 |
Bolt, Hub (FOR FRONT AXLE LH)
2016-06 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 90942-02049 |
Bolt, Hub (FOR FRONT AXLE LH)
2019-12 → —
|
ZRE182 | — | |
| 43502H — Nut (FOR FRONT AXLE SHAFT LH) | ||||
| 90177-22001 |
Nut (FOR FRONT AXLE SHAFT LH)
2013-06 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 90177-22001 |
Nut (FOR FRONT AXLE SHAFT LH)
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 90177-22001 |
Nut (FOR FRONT AXLE SHAFT LH)
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 90177-22001 |
Nut (FOR FRONT AXLE SHAFT LH)
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 90177-22001 |
Nut (FOR FRONT AXLE SHAFT LH)
2016-06 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 90177-22001 |
Nut (FOR FRONT AXLE SHAFT LH)
2019-12 → —
|
ZRE182 | — | |
| 43512 — Disc, Front | ||||
| 43512-02330 |
Disc, Front
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 43512-02340 |
Disc, Front
2014-01 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 43512-02330 |
Disc, Front
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 43512-02330 |
Disc, Front
2016-06 → 2019-01
ended
|
NDE180,ZRE18# GEN TUP | — | |
| 43512-02340 |
Disc, Front
2017-01 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 43512-12670 |
Disc, Front
2016-06 → 2019-01
ended
|
ZRE18# GCC | — | |
| 43512-02340 |
Disc, Front
2019-12 → —
|
ZRE182 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
