Toyota Corolla
2013-06 → present · chassis NDE180,NRE180,ZRE18#,ZRE21#,ZWE219 · catalogue 164320 · General
Supported model
Data version 2019-11

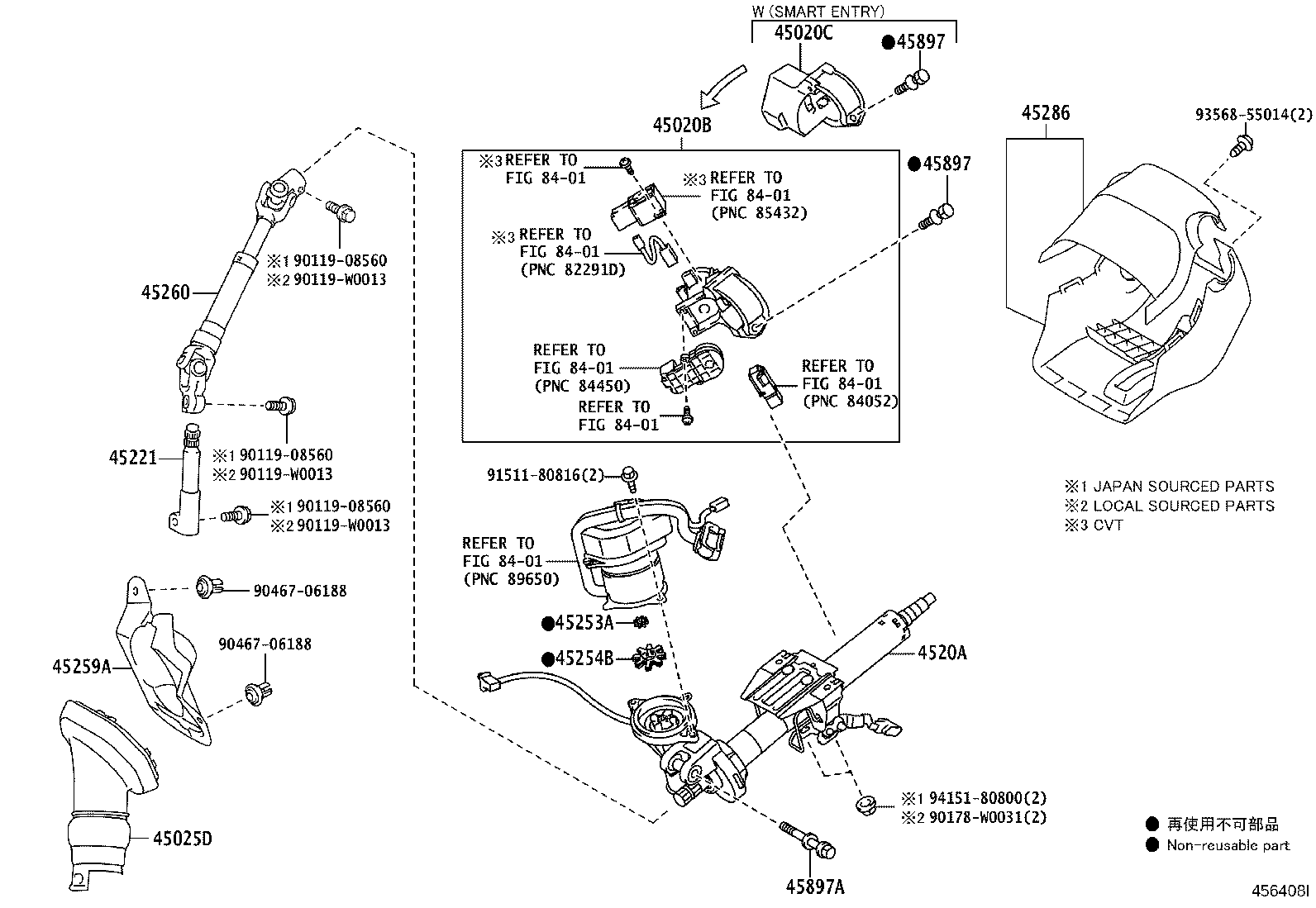

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 45020B — Actuator OR Upper Bracket Assy, Steering Lock | ||||
| 45020-02460 |
Actuator OR Upper Bracket Assy, Steering Lock
2014-01 → 2016-04
ended
|
ZRE18# CVT | — | |
| 45020-02480 |
Actuator OR Upper Bracket Assy, Steering Lock
2013-06 → 2016-04
ended
|
NDE180,NRE180,ZRE18# 6F SAP | — | |
| 45020-02480 |
Actuator OR Upper Bracket Assy, Steering Lock
2013-06 → 2015-12
ended
|
NDE180 TUP | — | |
| 45020-02650 |
Actuator OR Upper Bracket Assy, Steering Lock
2016-05 → 2017-01
ended
|
ZRE18# CVT SAP | — | |
| 45020-02760 |
Actuator OR Upper Bracket Assy, Steering Lock
2016-05 → 2017-01
ended
|
NDE180,NRE180,ZRE18# 6F SAP | — | |
| 45020-02760 |
Actuator OR Upper Bracket Assy, Steering Lock
2015-12 → 2017-01
ended
|
NDE180 TUP | — | |
| 45020-02460 |
Actuator OR Upper Bracket Assy, Steering Lock
2018-07 → 2019-12
ended
|
ZRE18# CVT | — | |
| 45020-02480 |
Actuator OR Upper Bracket Assy, Steering Lock
2018-07 → 2019-12
ended
|
NDE180,NRE180,ZRE18# 6F | — | |
| 45020-02650 |
Actuator OR Upper Bracket Assy, Steering Lock
2016-06 → 2018-06
ended
|
ZRE18# CVT | — | |
| 45020-02760 |
Actuator OR Upper Bracket Assy, Steering Lock
2016-06 → 2018-06
ended
|
NDE180,NRE180,ZRE18# 6F | — | |
| 45020-02460 |
Actuator OR Upper Bracket Assy, Steering Lock
2019-12 → —
|
ZRE182 CVT (D,N) | — | |
| 45020-02480 |
Actuator OR Upper Bracket Assy, Steering Lock
2019-12 → 2023-09
ended
|
ZRE182 6F (D,N) | — | |
| 45020-02760 |
Actuator OR Upper Bracket Assy, Steering Lock
2023-10 → —
|
ZRE182 6F (D,N) | — | |
| 45020C — Actuator Assy, Steering Lock(W/ECU) | ||||
| 45020-0D120 note |
Actuator Assy, Steering Lock(W/ECU)
2013-06 → 2017-01
ended
|
NDE180 N;NRE180,ZRE18# N SAP | — | |
| 45020-0D120 note |
Actuator Assy, Steering Lock(W/ECU)
2016-06 → 2019-12
ended
|
NDE180,NRE180,ZRE18# N | — | |
| 45020-0D120 |
Actuator Assy, Steering Lock(W/ECU)
2019-12 → —
|
ZRE182 G | — | |
| 45020-0D120 note |
Actuator Assy, Steering Lock(W/ECU)
2021-01 → —
|
ZRE182 (D,N) SA | — | |
| 45025D — Cover Sub-assy, Steering Column Hole, NO.1 | ||||
| 45025-02080 |
Cover Sub-assy, Steering Column Hole, NO.1
2014-01 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SA | — | |
| 45025-02090 |
Cover Sub-assy, Steering Column Hole, NO.1
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 45025-02090 |
Cover Sub-assy, Steering Column Hole, NO.1
2013-06 → 2017-01
ended
|
ZRE18# GEN SAP | — | |
| 45025-02080 |
Cover Sub-assy, Steering Column Hole, NO.1
2017-01 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SA | — | |
| 45025-02090 |
Cover Sub-assy, Steering Column Hole, NO.1
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 45025-02090 |
Cover Sub-assy, Steering Column Hole, NO.1
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 45025-02090 |
Cover Sub-assy, Steering Column Hole, NO.1
2016-06 → 2019-12
ended
|
ZRE18# GEN SAP | — | |
| 45025-02080 |
Cover Sub-assy, Steering Column Hole, NO.1
2019-12 → —
|
ZRE182 SA | — | |
| 45025-02090 |
Cover Sub-assy, Steering Column Hole, NO.1
2019-12 → —
|
ZRE182 GEN | — | |
| 4520A — Column Sub-assy, Electric Power Steering | ||||
| 4520A-02130 note |
Column Sub-assy, Electric Power Steering
2014-01 → 2014-03
ended
|
NDE180,NRE180,ZRE18# N SA | — | |
| 4520A-02131 note |
Column Sub-assy, Electric Power Steering
2014-04 → 2015-08
ended
|
NDE180,NRE180,ZRE18# N SA | — | |
| 4520A-02132 note |
Column Sub-assy, Electric Power Steering
2015-09 → 2017-01
ended
|
NDE180,NRE180,ZRE18# N SA | — | |
| 4520A-02140 |
Column Sub-assy, Electric Power Steering
2014-01 → 2014-03
ended
|
NDE180,NRE180,ZRE18# SA | — | |
| 4520A-02141 |
Column Sub-assy, Electric Power Steering
2014-04 → 2014-11
ended
|
NDE180,NRE180,ZRE18# SA | — | |
| 4520A-02142 |
Column Sub-assy, Electric Power Steering
2014-12 → 2015-08
ended
|
NDE180,NRE180,ZRE18# SA | — | |
| 4520A-02143 |
Column Sub-assy, Electric Power Steering
2015-09 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SA | — | |
| 4520A-02150 note |
Column Sub-assy, Electric Power Steering
2013-06 → 2014-03
ended
|
NDE180,ZRE18# N GEN | — | |
| 4520A-02151 note |
Column Sub-assy, Electric Power Steering
2014-04 → 2014-11
ended
|
NDE180,ZRE18# N GEN | — | |
| 4520A-02152 note |
Column Sub-assy, Electric Power Steering
2014-12 → 2015-08
ended
|
NDE180,ZRE18# N GEN | — | |
| 4520A-02153 note |
Column Sub-assy, Electric Power Steering
2015-09 → 2016-05
ended
|
NDE180 N TUP | — | |
| 4520A-02153 note |
Column Sub-assy, Electric Power Steering
2015-09 → 2017-01
ended
|
ZRE18# N GEN SAP | — | |
| 4520A-02160 |
Column Sub-assy, Electric Power Steering
2013-06 → 2014-03
ended
|
NDE180,ZRE18# GEN | — | |
| 4520A-02161 |
Column Sub-assy, Electric Power Steering
2014-04 → 2014-11
ended
|
NDE180,ZRE18# GEN | — | |
| 4520A-02162 |
Column Sub-assy, Electric Power Steering
2014-12 → 2015-08
ended
|
NDE180,ZRE18# GEN | — | |
| 4520A-02163 |
Column Sub-assy, Electric Power Steering
2015-09 → 2016-05
ended
|
NDE180 TUP | — | |
| 4520A-02163 |
Column Sub-assy, Electric Power Steering
2015-09 → 2017-01
ended
|
ZRE18# GEN SAP | — | |
| 4520A-02132 note |
Column Sub-assy, Electric Power Steering
2017-01 → 2019-12
ended
|
NDE180,NRE180,ZRE18# N SA | — | |
| 4520A-02143 |
Column Sub-assy, Electric Power Steering
2017-01 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SA | — | |
| 4520A-02153 note |
Column Sub-assy, Electric Power Steering
2016-06 → 2019-01
ended
|
NDE180,ZRE18# N TUP | — | |
| 4520A-02153 note |
Column Sub-assy, Electric Power Steering
2016-06 → 2019-12
ended
|
ZRE18# N GEN SAP | — | |
| 4520A-02153 note |
Column Sub-assy, Electric Power Steering
2016-06 → 2018-08
ended
|
NRE180 N TUP | — | |
| 4520A-02163 |
Column Sub-assy, Electric Power Steering
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 4520A-02163 |
Column Sub-assy, Electric Power Steering
2016-06 → 2019-12
ended
|
ZRE18# GEN SAP | — | |
| 4520A-02163 |
Column Sub-assy, Electric Power Steering
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 4520A-02132 |
Column Sub-assy, Electric Power Steering
2019-12 → —
|
ZRE182 G SA | — | |
| 4520A-02132 note |
Column Sub-assy, Electric Power Steering
2021-01 → —
|
ZRE182 (D,N) SA | — | |
| 4520A-02143 |
Column Sub-assy, Electric Power Steering
2019-12 → —
|
ZRE182 (D,N) SA | — | |
| 4520A-02153 |
Column Sub-assy, Electric Power Steering
2019-12 → —
|
ZRE182 G GEN | — | |
| 4520A-02163 |
Column Sub-assy, Electric Power Steering
2019-12 → —
|
ZRE182 (D,N) GEN | — | |
| 45221 — Shaft, Steering Intermediate | ||||
| 45221-02100 |
Shaft, Steering Intermediate
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 45221-02100 |
Shaft, Steering Intermediate
2013-06 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 45221-02100 |
Shaft, Steering Intermediate
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 45221-02100 |
Shaft, Steering Intermediate
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 45221-02100 |
Shaft, Steering Intermediate
2016-06 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 45221-02100 |
Shaft, Steering Intermediate
2019-12 → —
|
ZRE182 | — | |
| 45253A — Spacer, Electric Power Steering Motor Shaft | ||||
| 45253-28130 |
Spacer, Electric Power Steering Motor Shaft
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 45253-28130 |
Spacer, Electric Power Steering Motor Shaft
2013-06 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 45253-28130 |
Spacer, Electric Power Steering Motor Shaft
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 45253-28130 |
Spacer, Electric Power Steering Motor Shaft
2016-06 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 45253-28130 |
Spacer, Electric Power Steering Motor Shaft
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 45253-28130 |
Spacer, Electric Power Steering Motor Shaft
2019-12 → —
|
ZRE182 | — | |
| 45254B — Damper, Electric Power Steering Motor Shaft | ||||
| 45254-28040 |
Damper, Electric Power Steering Motor Shaft
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 45254-28040 |
Damper, Electric Power Steering Motor Shaft
2013-06 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 45254-28040 |
Damper, Electric Power Steering Motor Shaft
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 45254-28040 |
Damper, Electric Power Steering Motor Shaft
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 45254-28040 |
Damper, Electric Power Steering Motor Shaft
2016-06 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 45254-28040 |
Damper, Electric Power Steering Motor Shaft
2019-12 → —
|
ZRE182 | — | |
| 45259A — Sheet, Column Hole Cover Silencer | ||||
| 45259-02070 |
Sheet, Column Hole Cover Silencer
2014-01 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SA | — | |
| 45259-02080 |
Sheet, Column Hole Cover Silencer
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 45259-02080 |
Sheet, Column Hole Cover Silencer
2013-06 → 2017-01
ended
|
ZRE18# GEN SAP | — | |
| 45259-02070 |
Sheet, Column Hole Cover Silencer
2017-01 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SA | — | |
| 45259-02080 |
Sheet, Column Hole Cover Silencer
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 45259-02080 |
Sheet, Column Hole Cover Silencer
2016-06 → 2019-12
ended
|
ZRE18# GEN SAP | — | |
| 45259-02080 |
Sheet, Column Hole Cover Silencer
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 45259-02070 |
Sheet, Column Hole Cover Silencer
2019-12 → —
|
ZRE182 SA | — | |
| 45259-02080 |
Sheet, Column Hole Cover Silencer
2019-12 → —
|
ZRE182 GEN | — | |
| 45260 — Shaft Assy, Steering Intermediate, NO.2 | ||||
| 45260-02160 |
Shaft Assy, Steering Intermediate, NO.2
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 45260-02160 |
Shaft Assy, Steering Intermediate, NO.2
2013-06 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 45260-02160 |
Shaft Assy, Steering Intermediate, NO.2
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 45260-02160 |
Shaft Assy, Steering Intermediate, NO.2
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 45260-02160 |
Shaft Assy, Steering Intermediate, NO.2
2016-06 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 45260-02160 |
Shaft Assy, Steering Intermediate, NO.2
2019-12 → —
|
ZRE182 | — | |
| 45286 — Cover, Steering Column | ||||
| 45286-02941-C0 note |
Cover, Steering Column
2013-06 → 2015-05
ended
|
NDE180 N TUP | — | |
| 45286-02941-C1 note |
Cover, Steering Column
2015-05 → 2016-05
ended
|
NDE180 N TUP | — | |
| 45286-02942-C0 note |
Cover, Steering Column
2013-06 → 2015-05
ended
|
NDE180 TUP | — | |
| 45286-02942-C1 note |
Cover, Steering Column
2015-05 → 2016-05
ended
|
NDE180 TUP | — | |
| 45286-02945-C0 note |
Cover, Steering Column
2014-01 → 2017-01
ended
|
NDE180,NRE180,ZRE18# N SAP | — | |
| 45286-02946-C0 note |
Cover, Steering Column
2014-01 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 45286-02945-C0 note |
Cover, Steering Column
2017-01 → 2019-12
ended
|
ZRE181 CVT N GEN +1 | — | |
| 45286-02945-C0 note |
Cover, Steering Column
2017-01 → 2019-12
ended
|
ZRE182 N SAP;ZRE181 CVT +4 | — | |
| 45286-02946-C0 note |
Cover, Steering Column
2017-01 → 2019-12
ended
|
ZRE181 CVT N GEN +1 | — | |
| 45286-02946-C0 note |
Cover, Steering Column
2017-01 → 2019-12
ended
|
ZRE181 D SAP;ZRE181 CVT +5 | — | |
| 45286-02949-C1 note |
Cover, Steering Column
2016-06 → 2018-08
ended
|
NRE180 N TUP | — | |
| 45286-02949-C1 note |
Cover, Steering Column
2016-06 → 2019-01
ended
|
NDE180,ZRE18# N TUP | — | |
| 45286-02950-C0 note |
Cover, Steering Column
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 45286-02950-C0 note |
Cover, Steering Column
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 45286-02945-C0 note |
Cover, Steering Column
2019-12 → —
|
ZRE182 G | — | |
| 45286-02945-C0 note |
Cover, Steering Column
2021-01 → —
|
ZRE182 N SA | — | |
| 45286-02945-C0 note |
Cover, Steering Column
2021-01 → —
|
ZRE182 D SA | — | |
| 45286-02946-C0 note |
Cover, Steering Column
2019-12 → —
|
ZRE182 D | — | |
| 45286-02946-C0 note |
Cover, Steering Column
2019-12 → —
|
ZRE182 N | — | |
| 45897 — Bolt, Steering Lock Set | ||||
| 45897-12020 |
Bolt, Steering Lock Set
2014-01 → 2016-04
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 45897-12050 |
Bolt, Steering Lock Set
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 45897-12050 |
Bolt, Steering Lock Set
2016-05 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 45897-12050 |
Bolt, Steering Lock Set
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 45897-12050 |
Bolt, Steering Lock Set
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 45897-12050 |
Bolt, Steering Lock Set
2016-06 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 45897-12050 |
Bolt, Steering Lock Set
2019-12 → —
|
ZRE182 | — | |
| 45897A — Bolt, Tilt Steering Pawl Set | ||||
| 90119-10981 |
Bolt, Tilt Steering Pawl Set
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 90119-10981 |
Bolt, Tilt Steering Pawl Set
2013-06 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 90119-10981 |
Bolt, Tilt Steering Pawl Set
2016-06 → 2016-07
ended
|
NDE180,NRE180,ZRE18# TUP | — | |
| 90119-10981 note |
Bolt, Tilt Steering Pawl Set
2016-07 → 2018-08
ended
|
NRE180 TUP | — | |
| 90119-10981 note |
Bolt, Tilt Steering Pawl Set
2016-07 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 90119-10981 |
Bolt, Tilt Steering Pawl Set
2016-06 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 90119-W0215 note |
Bolt, Tilt Steering Pawl Set
2016-07 → 2018-08
ended
|
NRE180 TUP | — | |
| 90119-W0215 note |
Bolt, Tilt Steering Pawl Set
2016-07 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 90119-10981 |
Bolt, Tilt Steering Pawl Set
2019-12 → —
|
ZRE182 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
