Exploded illustration 456497C 9538103020 — not listed in this catalogue 9538103020 — not listed in this catalogue 45046A — NUT, CASTLE(FOR TIE ROD END) (6 parts) 45046A — NUT, CASTLE(FOR TIE ROD END) (6 parts) 45510 — GEAR ASSY, STEERING (9 parts) 9017914068 — not listed in this catalogue 45047 — END SUB-ASSY, TIE ROD, LH (6 parts) 45046 — END SUB-ASSY, TIE ROD, RH (6 parts) 45535 — BOOT, STEERING RACK, NO.1 (7 parts) 45535B — CLIP(FOR STEERING RACK BOOT) (6 parts) 45535A — CLAMP(FOR STEERING RACK BOOT) (7 parts) 45536 — BOOT, STEERING RACK, NO.2 (7 parts) 45535A — CLAMP(FOR STEERING RACK BOOT) (7 parts) 45535B — CLIP(FOR STEERING RACK BOOT) (6 parts) 45537B — NUT, RACK END LOCK (6 parts) 45537B — NUT, RACK END LOCK (6 parts) 45518B — BOLT, STEERING RACK HOUSING (6 parts)

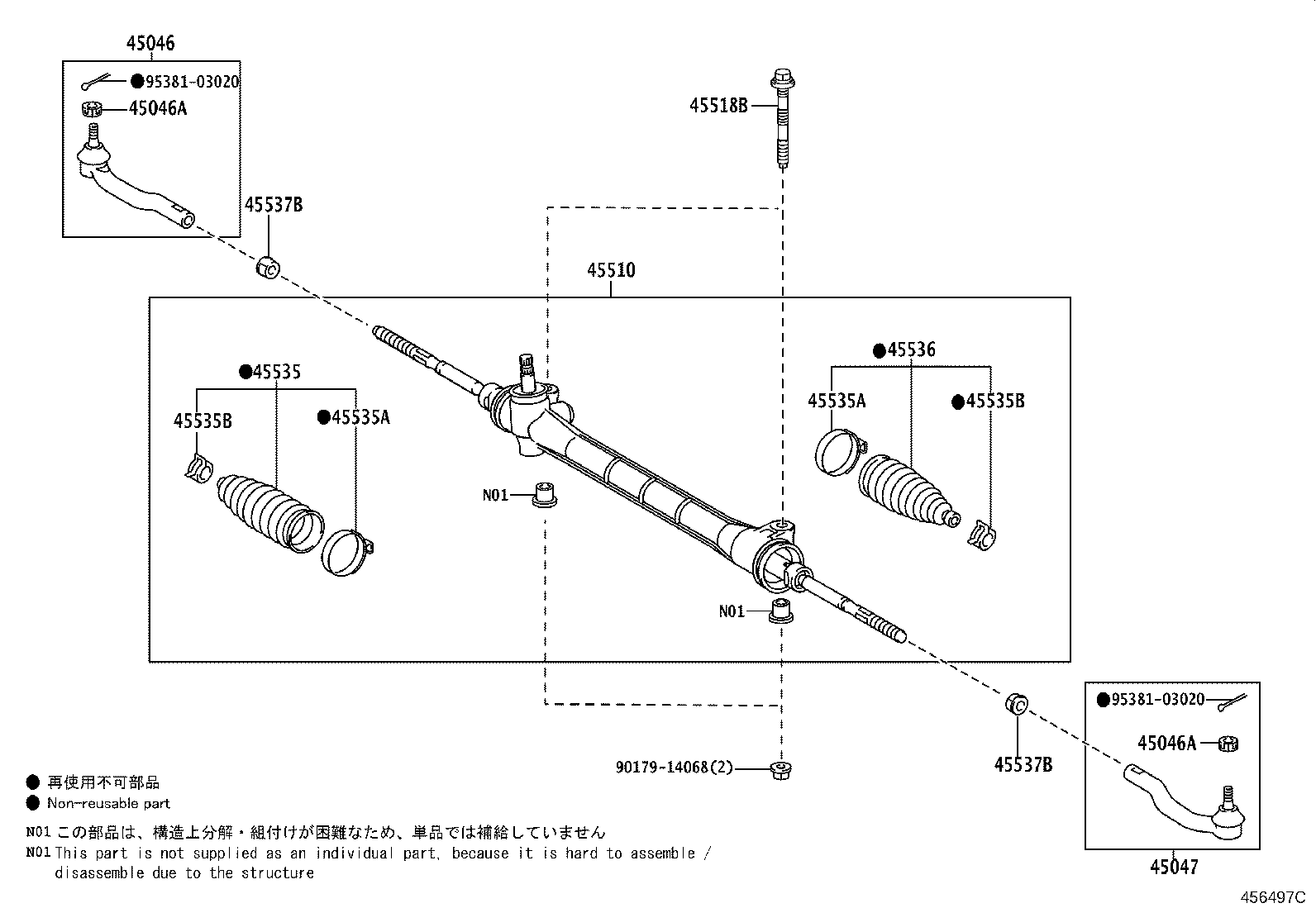

456497C · 14 callouts, 3 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
66 parts on this figure
Part number Description Fitment Price
45046 — End Sub-assy, Tie Rod, RH
45046-09570 End Sub-assy, Tie Rod, RH
2013-06 → 2017-01 ended
NDE180,NRE180,ZRE18# SAP —
45046-09570 End Sub-assy, Tie Rod, RH
2013-06 → 2016-05 ended
NDE180 TUP —
45046-09570 End Sub-assy, Tie Rod, RH
2016-06 → 2019-01 ended
NDE180,ZRE18# TUP —
45046-09570 End Sub-assy, Tie Rod, RH
2016-06 → 2019-12 ended
NDE180,NRE180,ZRE18# SAP —
45046-09570 End Sub-assy, Tie Rod, RH
2016-06 → 2018-08 ended
NRE180 TUP —
45046-09570 End Sub-assy, Tie Rod, RH
2019-12 → —
ZRE182 —
45046A — Nut, Castle(FOR TIE ROD END)
90171-12028 Nut, Castle(FOR TIE ROD END)
2013-06 → 2016-05 ended
NDE180 TUP —
90171-12028 Nut, Castle(FOR TIE ROD END)
2013-06 → 2017-01 ended
NDE180,NRE180,ZRE18# SAP —
90171-12028 Nut, Castle(FOR TIE ROD END)
2016-06 → 2018-08 ended
NRE180 TUP —
90171-12028 Nut, Castle(FOR TIE ROD END)
2016-06 → 2019-01 ended
NDE180,ZRE18# TUP —
90171-12028 Nut, Castle(FOR TIE ROD END)
2016-06 → 2019-12 ended
NDE180,NRE180,ZRE18# SAP —
90171-12028 Nut, Castle(FOR TIE ROD END)
2019-12 → —
ZRE182 —
45047 — End Sub-assy, Tie Rod, LH
45047-09270 End Sub-assy, Tie Rod, LH
2013-06 → 2016-05 ended
NDE180 TUP —
45047-09270 End Sub-assy, Tie Rod, LH
2013-06 → 2017-01 ended
NDE180,NRE180,ZRE18# SAP —
45047-09270 End Sub-assy, Tie Rod, LH
2016-06 → 2018-08 ended
NRE180 TUP —
45047-09270 End Sub-assy, Tie Rod, LH
2016-06 → 2019-01 ended
NDE180,ZRE18# TUP —
45047-09270 End Sub-assy, Tie Rod, LH
2016-06 → 2019-12 ended
NDE180,NRE180,ZRE18# SAP —
45047-09270 End Sub-assy, Tie Rod, LH
2019-12 → —
ZRE182 —
45510 — Gear Assy, Steering
45510-02700 Gear Assy, Steering
2014-01 → 2017-01 ended
NDE180,NRE180,ZRE18# SA —
45510-02710 Gear Assy, Steering
2013-06 → 2016-05 ended
NDE180 TUP —
45510-02710 Gear Assy, Steering
2013-06 → 2017-01 ended
ZRE18# GEN SAP —
45510-02700 Gear Assy, Steering
2017-01 → 2019-12 ended
NDE180,NRE180,ZRE18# SA —
45510-02710 Gear Assy, Steering
2016-06 → 2018-08 ended
NRE180 TUP —
45510-02710 Gear Assy, Steering
2016-06 → 2019-01 ended
NDE180,ZRE18# TUP —
45510-02710 Gear Assy, Steering
2016-06 → 2019-12 ended
ZRE18# GEN SAP —
45510-02700 Gear Assy, Steering
2019-12 → —
ZRE182 SA —
45510-02710 Gear Assy, Steering
2019-12 → —
ZRE182 GEN —
45518B — Bolt, Steering Rack Housing
90119-14129 Bolt, Steering Rack Housing
2013-06 → 2016-05 ended
NDE180 TUP —
90119-14129 Bolt, Steering Rack Housing
2013-06 → 2017-01 ended
NDE180,NRE180,ZRE18# SAP —
90119-14156 Bolt, Steering Rack Housing
2016-06 → 2018-08 ended
NRE180 TUP —
90119-14156 Bolt, Steering Rack Housing
2016-06 → 2019-01 ended
NDE180,ZRE18# TUP —
90119-14156 Bolt, Steering Rack Housing
2016-06 → 2019-12 ended
NDE180,NRE180,ZRE18# SAP —
90119-14156 Bolt, Steering Rack Housing
2019-12 → —
ZRE182 —
45535 — Boot, Steering Rack, NO.1
45535-09120 Boot, Steering Rack, NO.1
2013-06 → 2015-02 ended
NDE180,NRE180,ZRE18# —
45535-09440 Boot, Steering Rack, NO.1
2015-03 → 2017-01 ended
NDE180,NRE180,ZRE18# SAP —
45535-09440 Boot, Steering Rack, NO.1
2015-03 → 2016-05 ended
NDE180 TUP —
45535-09440 Boot, Steering Rack, NO.1
2016-06 → 2018-08 ended
NRE180 TUP —
45535-09440 Boot, Steering Rack, NO.1
2016-06 → 2019-01 ended
NDE180,ZRE18# TUP —
45535-09440 Boot, Steering Rack, NO.1
2016-06 → 2019-12 ended
NDE180,NRE180,ZRE18# SAP —
45535-09440 Boot, Steering Rack, NO.1
2019-12 → —
ZRE182 —
45535A — Clamp(FOR STEERING RACK BOOT)
45538-05010 Clamp(FOR STEERING RACK BOOT)
2015-05 → 2016-05 ended
NDE180 TUP —
45538-05010 Clamp(FOR STEERING RACK BOOT)
2015-05 → 2017-01 ended
NDE180,NRE180,ZRE18# SAP —
45538-47010 Clamp(FOR STEERING RACK BOOT)
2013-06 → 2015-04 ended
NDE180,NRE180,ZRE18# —
45538-05010 Clamp(FOR STEERING RACK BOOT)
2016-06 → 2018-08 ended
NRE180 TUP —
45538-05010 Clamp(FOR STEERING RACK BOOT)
2016-06 → 2019-01 ended
NDE180,ZRE18# TUP —
45538-05010 Clamp(FOR STEERING RACK BOOT)
2016-06 → 2019-12 ended
NDE180,NRE180,ZRE18# SAP —
45538-05010 Clamp(FOR STEERING RACK BOOT)
2019-12 → —
ZRE182 —
45535B — Clip(FOR STEERING RACK BOOT)
45537-02010 Clip(FOR STEERING RACK BOOT)
2013-06 → 2016-05 ended
NDE180 TUP —
45537-02010 Clip(FOR STEERING RACK BOOT)
2013-06 → 2017-01 ended
NDE180,NRE180,ZRE18# SAP —
45537-02010 Clip(FOR STEERING RACK BOOT)
2016-06 → 2019-12 ended
NDE180,NRE180,ZRE18# SAP —
45537-02010 Clip(FOR STEERING RACK BOOT)
2016-06 → 2019-01 ended
NDE180,ZRE18# TUP —
45537-02010 Clip(FOR STEERING RACK BOOT)
2016-06 → 2018-08 ended
NRE180 TUP —
45537-02010 Clip(FOR STEERING RACK BOOT)
2019-12 → —
ZRE182 —
45536 — Boot, Steering Rack, NO.2
45535-09120 Boot, Steering Rack, NO.2
2013-06 → 2015-02 ended
NDE180,NRE180,ZRE18# —
45535-09440 Boot, Steering Rack, NO.2
2015-03 → 2016-05 ended
NDE180 TUP —
45535-09440 Boot, Steering Rack, NO.2
2015-03 → 2017-01 ended
NDE180,NRE180,ZRE18# SAP —
45535-09440 Boot, Steering Rack, NO.2
2016-06 → 2018-08 ended
NRE180 TUP —
45535-09440 Boot, Steering Rack, NO.2
2016-06 → 2019-01 ended
NDE180,ZRE18# TUP —
45535-09440 Boot, Steering Rack, NO.2
2016-06 → 2019-12 ended
NDE180,NRE180,ZRE18# SAP —
45535-09440 Boot, Steering Rack, NO.2
2019-12 → —
ZRE182 —
45537B — Nut, Rack End Lock
90179-15006 Nut, Rack End Lock
2013-06 → 2016-05 ended
NDE180 TUP —
90179-15006 Nut, Rack End Lock
2013-06 → 2017-01 ended
NDE180,NRE180,ZRE18# SAP —
90179-15006 Nut, Rack End Lock
2016-06 → 2018-08 ended
NRE180 TUP —
90179-15006 Nut, Rack End Lock
2016-06 → 2019-01 ended
NDE180,ZRE18# TUP —
90179-15006 Nut, Rack End Lock
2016-06 → 2019-12 ended
NDE180,NRE180,ZRE18# SAP —
90179-15006 Nut, Rack End Lock
2019-12 → —
ZRE182 —
