Toyota Corolla

2013-06 → present · chassis NDE180,NRE180,ZRE18#,ZRE21#,ZWE219 · catalogue 164320 · General

Supported model Data version 2019-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

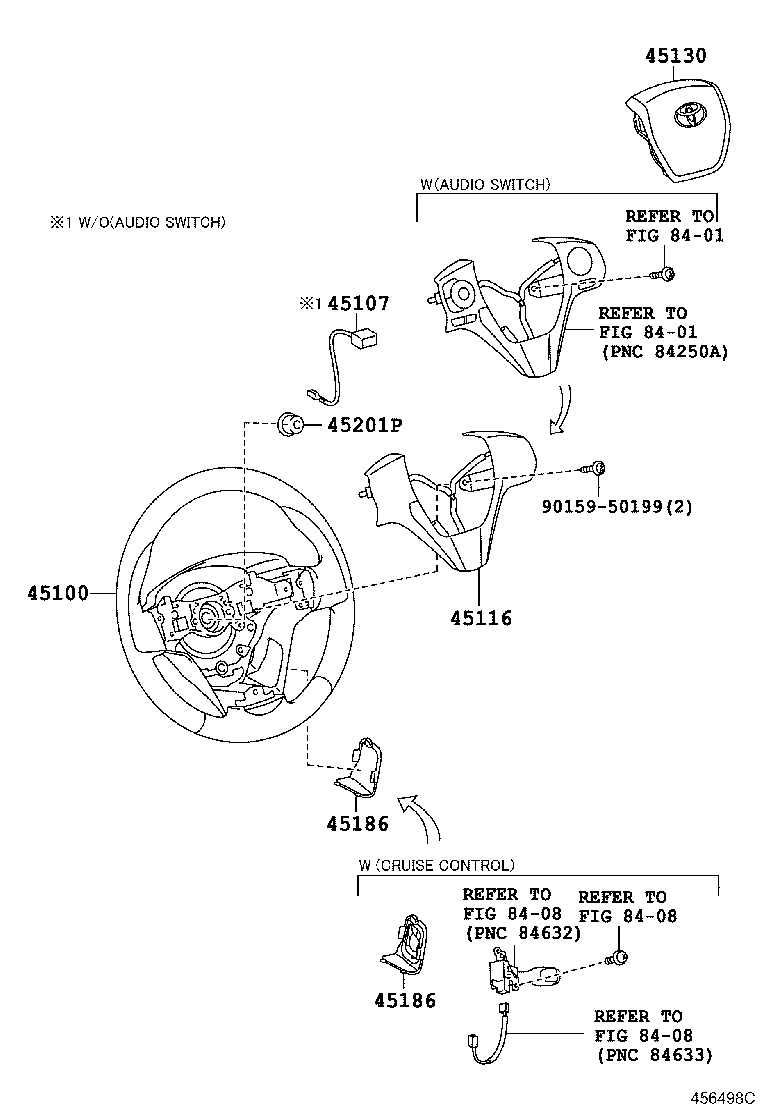

Exploded illustration 456498C 45130 — BUTTON ASSY, HORN (12 parts) 45186 — COVER, STEERING WHEEL, LOWER NO.2 (33 parts) 45201P — NUT, STEERING WHEEL SET (6 parts) 45100 — WHEEL ASSY, STEERING (57 parts) 45107 — WIRE SUB-ASSY, HORN BUTTON (2 parts) 45116 — ORNAMENT, STEERING WHEEL, NO.1 (2 parts) 9015950199 — not listed in this catalogue 8401 — not listed in this catalogue 8401 — not listed in this catalogue 45186 — COVER, STEERING WHEEL, LOWER NO.2 (33 parts) 8408 — not listed in this catalogue 8408 — not listed in this catalogue 8408 — not listed in this catalogue
456498C · 7 callouts, 6 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
112 parts on this figure
Part number Description Fitment Price
45100 — Wheel Assy, Steering
45100-02V10-C0 note Wheel Assy, Steering
2013-06 → 2015-05 ended
NDE180 D TUP —
45100-02V10-C1 note Wheel Assy, Steering
2015-05 → 2016-05 ended
NDE180 D TUP —
45100-02X50-C0 note Wheel Assy, Steering
2013-06 → 2015-05 ended
NDE180 N TUP —
45100-02X50-C0 note Wheel Assy, Steering
2013-06 → 2015-05 ended
NDE180 D TUP —
45100-02X50-C1 note Wheel Assy, Steering
2015-05 → 2016-05 ended
NDE180 D TUP —
45100-02X50-C1 note Wheel Assy, Steering
2015-05 → 2016-05 ended
NDE180 N TUP —
45100-02Y10-C0 note Wheel Assy, Steering
2014-01 → 2015-05 ended
NDE180,NRE180,ZRE18# D SAP —
45100-02Y10-C1 note Wheel Assy, Steering
2015-05 → 2017-01 ended
NDE180,NRE180,ZRE18# D SAP —
45100-02Y20-C0 note Wheel Assy, Steering
2014-01 → 2015-05 ended
NDE180,NRE180,ZRE18# D SAP —
45100-02Y20-C1 note Wheel Assy, Steering
2015-05 → 2017-01 ended
NDE180,NRE180,ZRE18# D SAP —
45100-02Y30-C0 note Wheel Assy, Steering
2014-01 → 2015-05 ended
NDE180,NRE180,ZRE18# D SAP —
45100-02Y30-C1 note Wheel Assy, Steering
2015-05 → 2017-01 ended
NDE180,NRE180,ZRE18# D SAP —
45100-02Y40-C0 note Wheel Assy, Steering
2014-01 → 2015-05 ended
NDE180,NRE180,ZRE18# N SA —
45100-02Y40-C0 note Wheel Assy, Steering
2014-01 → 2015-05 ended
NDE180,NRE180,ZRE18# N SAP —
45100-02Y40-C1 note Wheel Assy, Steering
2015-05 → 2017-01 ended
ZRE181 CVT N GEN +1 —
45100-02Y40-C1 note Wheel Assy, Steering
2015-05 → 2017-01 ended
ZRE182 N SAP;ZRE181 CVT +4 —
45100-02Y40-C1 note Wheel Assy, Steering
2015-05 → 2017-01 ended
NDE180,NRE180,ZRE18# N SA —
45100-02Y50-C0 note Wheel Assy, Steering
2014-01 → 2015-05 ended
NDE180,NRE180,ZRE18# N SAP —
45100-02Y50-C1 note Wheel Assy, Steering
2015-05 → 2017-01 ended
ZRE182 N SAP;ZRE181 CVT +4 —
45100-02Y50-C1 note Wheel Assy, Steering
2015-05 → 2017-01 ended
ZRE181 CVT N GEN +1 —
45100-02Y60-C0 note Wheel Assy, Steering
2014-01 → 2015-05 ended
NDE180,NRE180,ZRE18# N SAP —
45100-02Y60-C1 note Wheel Assy, Steering
2015-05 → 2017-01 ended
ZRE182 N SAP;ZRE181 CVT +4 —
45100-02Y60-C1 note Wheel Assy, Steering
2015-05 → 2017-01 ended
ZRE181 CVT N GEN +1 —
45100-02Y70-C0 note Wheel Assy, Steering
2014-01 → 2015-05 ended
NRE180,ZRE18# N SA —
45100-02Y70-C0 note Wheel Assy, Steering
2014-01 → 2015-05 ended
NRE180,ZRE18# N —
45100-02Y70-C1 note Wheel Assy, Steering
2015-05 → 2017-01 ended
NRE180,ZRE18# N SA —
45100-02Y70-C1 note Wheel Assy, Steering
2015-05 → 2017-01 ended
ZRE182 N SAP;ZRE181 CVT +4 —
45100-02Y70-C1 note Wheel Assy, Steering
2015-05 → 2017-01 ended
ZRE181 CVT N GEN +1 —
45100-02Y80-C0 note Wheel Assy, Steering
2014-01 → 2015-05 ended
NRE180,ZRE18# N —
45100-02Y80-C1 note Wheel Assy, Steering
2015-05 → 2017-01 ended
ZRE181 CVT N GEN +1 —
45100-02Y80-C1 note Wheel Assy, Steering
2015-05 → 2017-01 ended
ZRE182 N SAP;ZRE181 CVT +4 —
45100-02Y90-C0 note Wheel Assy, Steering
2014-01 → 2015-05 ended
NRE180,ZRE18# N —
45100-02Y90-C1 note Wheel Assy, Steering
2015-05 → 2017-01 ended
ZRE181 CVT N GEN +1 —
45100-02Y90-C1 note Wheel Assy, Steering
2015-05 → 2017-01 ended
ZRE182 N SAP;ZRE181 CVT +4 —
45100-02V10-C1 note Wheel Assy, Steering
2016-06 → 2018-08 ended
NRE180 D TUP —
45100-02V10-C1 note Wheel Assy, Steering
2016-06 → 2019-01 ended
NDE180,ZRE18# D TUP —
45100-02X50-C1 note Wheel Assy, Steering
2016-06 → 2018-08 ended
NRE180 N TUP —
45100-02X50-C1 note Wheel Assy, Steering
2016-06 → 2019-01 ended
NDE180,ZRE18# N TUP —
45100-0Z020-C0 note Wheel Assy, Steering
2017-01 → 2019-12 ended
NDE180,NRE180,ZRE18# D SAP —
45100-0Z030-C0 note Wheel Assy, Steering
2017-01 → 2019-12 ended
ZRE181 CVT N GEN +1 —
45100-0Z030-C0 note Wheel Assy, Steering
2017-01 → 2019-12 ended
ZRE182 N SAP;ZRE181 CVT +4 —
45100-0Z040-C0 note Wheel Assy, Steering
2017-01 → 2019-12 ended
ZRE181 CVT N GEN +1 —
45100-0Z040-C0 note Wheel Assy, Steering
2017-01 → 2019-12 ended
ZRE182 N SAP;ZRE181 CVT +4 —
45100-0Z050-C0 note Wheel Assy, Steering
2017-01 → 2019-12 ended
ZRE181 CVT N GEN +1 —
45100-0Z050-C0 note Wheel Assy, Steering
2017-01 → 2019-12 ended
ZRE182 N SAP;ZRE181 CVT +4 —
45100-0Z060-C0 note Wheel Assy, Steering
2017-01 → 2019-12 ended
ZRE181 CVT N GEN +1 —
45100-0Z060-C0 note Wheel Assy, Steering
2017-01 → 2019-12 ended
ZRE182 N SAP;ZRE181 CVT +4 —
45100-0Z160-C0 note Wheel Assy, Steering
2017-01 → 2019-12 ended
NRE180,ZRE18# N SA —
45100-0Z170-C0 note Wheel Assy, Steering
2017-01 → 2019-12 ended
NRE180,ZRE18# N SA —
45100-0Z180-C0 note Wheel Assy, Steering
2017-01 → 2019-12 ended
NDE180,NRE180,ZRE181 D SA —
45100-0Z190-C0 note Wheel Assy, Steering
2017-01 → 2019-12 ended
NDE180,NRE180,ZRE18# N SA —
45100-0Z200-C0 note Wheel Assy, Steering
2017-01 → 2019-12 ended
NDE180,NRE180,ZRE18# N SA —
45100-0Z020-C0 note Wheel Assy, Steering
2019-12 → —
ZRE182 D —
45100-0Z030-C1 note Wheel Assy, Steering
2019-12 → —
ZRE182 G —
45100-0Z030-C1 note Wheel Assy, Steering
2019-12 → —
ZRE182 N —
45100-0Z040-C1 note Wheel Assy, Steering
2019-12 → —
ZRE182 N —
45100-0Z040-C1 note Wheel Assy, Steering
2019-12 → —
ZRE182 G —
45107 — Wire Sub-assy, Horn Button
45107-02050 note Wire Sub-assy, Horn Button
2014-01 → 2015-05 ended
NDE180,NRE180,ZRE18# D SAP —
45107-02080 note Wire Sub-assy, Horn Button
2015-05 → 2017-01 ended
NDE180,NRE180,ZRE18# D SAP —
45116 — Ornament, Steering Wheel, NO.1
45116-02120-C0 note Ornament, Steering Wheel, NO.1
2014-01 → 2015-05 ended
NDE180,NRE180,ZRE18# D SAP —
45116-02120-C1 note Ornament, Steering Wheel, NO.1
2015-05 → 2017-01 ended
NDE180,NRE180,ZRE18# D SAP —
45130 — Button Assy, Horn
45130-02450-C0 note Button Assy, Horn
2013-06 → 2015-05 ended
NDE180 TUP —
45130-02450-C1 note Button Assy, Horn
2015-05 → 2016-05 ended
NDE180 TUP —
45130-02601-C0 note Button Assy, Horn
2014-01 → 2015-05 ended
NDE180,NRE180,ZRE18# SAP —
45130-02601-C1 note Button Assy, Horn
2015-05 → 2017-01 ended
ZRE181 CVT N GEN +1 —
45130-02601-C1 note Button Assy, Horn
2015-05 → 2017-01 ended
ZRE181 D SAP;ZRE181 CVT +5 —
45130-02450-C1 note Button Assy, Horn
2016-06 → 2018-08 ended
NRE180 TUP —
45130-02450-C1 note Button Assy, Horn
2016-06 → 2019-01 ended
NDE180,ZRE18# TUP —
45130-02800-C0 note Button Assy, Horn
2017-01 → 2019-12 ended
ZRE181 CVT N GEN +1 —
45130-02800-C0 note Button Assy, Horn
2017-01 → 2019-12 ended
ZRE181 D SAP;ZRE181 CVT +5 —
45130-02800-C0 note Button Assy, Horn
2019-12 → —
ZRE182 D —
45130-02800-C1 note Button Assy, Horn
2019-12 → —
ZRE182 G —
45130-02800-C1 note Button Assy, Horn
2019-12 → —
ZRE182 N —
45186 — Cover, Steering Wheel, Lower NO.2
45186-02200-C0 note Cover, Steering Wheel, Lower NO.2
2013-06 → 2015-05 ended
NDE180 TUP —
45186-02200-C1 note Cover, Steering Wheel, Lower NO.2
2015-05 → 2016-05 ended
NDE180 TUP —
45186-02230-C0 note Cover, Steering Wheel, Lower NO.2
2014-01 → 2015-05 ended
NDE180,NRE180,ZRE18# SAP —
45186-02230-C1 note Cover, Steering Wheel, Lower NO.2
2015-05 → 2017-01 ended
ZRE181 CVT N GEN +1 —
45186-02230-C1 note Cover, Steering Wheel, Lower NO.2
2015-05 → 2017-01 ended
ZRE181 D SAP;ZRE181 CVT +5 —
45186-02240-C0 note Cover, Steering Wheel, Lower NO.2
2014-01 → 2015-05 ended
NRE180,ZRE18# N —
45186-02240-C0 note Cover, Steering Wheel, Lower NO.2
2014-01 → 2015-05 ended
NRE180,ZRE18# N —
45186-02240-C0 note Cover, Steering Wheel, Lower NO.2
2014-01 → 2015-05 ended
NRE180,ZRE18# N SA —
45186-02240-C0 note Cover, Steering Wheel, Lower NO.2
2014-01 → 2015-05 ended
NRE180,ZRE18# N —
45186-02240-C1 note Cover, Steering Wheel, Lower NO.2
2015-05 → 2017-01 ended
ZRE182 N SAP;ZRE181 CVT +4 —
45186-02240-C1 note Cover, Steering Wheel, Lower NO.2
2015-05 → 2017-01 ended
ZRE181 CVT N GEN +1 —
45186-02240-C1 note Cover, Steering Wheel, Lower NO.2
2015-05 → 2017-01 ended
ZRE181 CVT N GEN +1 —
45186-02240-C1 note Cover, Steering Wheel, Lower NO.2
2015-05 → 2017-01 ended
NRE180,ZRE18# N SA —
45186-02240-C1 note Cover, Steering Wheel, Lower NO.2
2015-05 → 2017-01 ended
ZRE182 N SAP;ZRE181 CVT +4 —
45186-02240-C1 note Cover, Steering Wheel, Lower NO.2
2015-05 → 2017-01 ended
ZRE181 CVT N GEN +1 —
45186-02240-C1 note Cover, Steering Wheel, Lower NO.2
2015-05 → 2017-01 ended
ZRE182 N SAP;ZRE181 CVT +4 —
45186-02200-C1 note Cover, Steering Wheel, Lower NO.2
2016-06 → 2018-08 ended
NRE180 TUP —
45186-02200-C1 note Cover, Steering Wheel, Lower NO.2
2016-06 → 2019-01 ended
NDE180,ZRE18# TUP —
45186-02210-C1 note Cover, Steering Wheel, Lower NO.2
2016-06 → 2018-08 ended
NRE180 N TUP —
45186-02210-C1 note Cover, Steering Wheel, Lower NO.2
2016-06 → 2019-01 ended
ZRE18# N TUP —
45186-02230-C1 note Cover, Steering Wheel, Lower NO.2
2017-01 → 2019-12 ended
ZRE181 CVT N GEN +1 —
45186-02230-C1 note Cover, Steering Wheel, Lower NO.2
2017-01 → 2019-12 ended
ZRE181 D SAP;ZRE181 CVT +5 —
45186-02240-C1 note Cover, Steering Wheel, Lower NO.2
2017-01 → 2019-12 ended
NRE180,ZRE18# N SA —
45186-02240-C1 note Cover, Steering Wheel, Lower NO.2
2017-01 → 2019-12 ended
NRE180,ZRE18# N SA —
45186-02240-C1 note Cover, Steering Wheel, Lower NO.2
2017-01 → 2019-12 ended
ZRE182 N SAP;ZRE181 CVT +4 —
45186-02240-C1 note Cover, Steering Wheel, Lower NO.2
2017-01 → 2019-12 ended
ZRE181 CVT N GEN +1 —
45186-02240-C1 note Cover, Steering Wheel, Lower NO.2
2017-01 → 2019-12 ended
ZRE182 N SAP;ZRE181 CVT +4 —
45186-02240-C1 note Cover, Steering Wheel, Lower NO.2
2017-01 → 2019-12 ended
ZRE181 CVT N GEN +1 —
45186-02230-C0 note Cover, Steering Wheel, Lower NO.2
2019-12 → —
ZRE182 G —
45186-02230-C0 note Cover, Steering Wheel, Lower NO.2
2019-12 → —
ZRE182 N —
45186-02230-C1 note Cover, Steering Wheel, Lower NO.2
2019-12 → —
ZRE182 D —
45186-02240-C0 note Cover, Steering Wheel, Lower NO.2
2019-12 → —
ZRE182 G —
45186-02240-C0 note Cover, Steering Wheel, Lower NO.2
2019-12 → —
ZRE182 N —
45201P — Nut, Steering Wheel Set
90179-12071 Nut, Steering Wheel Set
2013-06 → 2016-05 ended
NDE180 TUP —
90179-12071 Nut, Steering Wheel Set
2013-06 → 2017-01 ended
NDE180,NRE180,ZRE18# SAP —
90179-12071 Nut, Steering Wheel Set
2016-06 → 2018-08 ended
NRE180 TUP —
90179-12071 Nut, Steering Wheel Set
2016-06 → 2019-01 ended
NDE180,ZRE18# TUP —
90179-12071 Nut, Steering Wheel Set
2016-06 → 2019-12 ended
NDE180,NRE180,ZRE18# SAP —
90179-12071 Nut, Steering Wheel Set
2019-12 → —
ZRE182 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
