Exploded illustration 461456D 46410 — CABLE ASSY, PARKING BRAKE, NO.1 (6 parts) 46235 — BRACKET, PARKING BRAKE LEVER SUPPORT (6 parts) 46135 — STOPPER, PARKING BRAKE CABLE END (6 parts) 46341 — EQUALIZER, PARKING BRAKE (6 parts) 46420 — CABLE ASSY, PARKING BRAKE, NO.2 (6 parts) 46420A — CLAMP, NO.1(FOR PARKING BRAKE CABLE) (6 parts) 46420J — CLAMP, NO.3(FOR PARKING BRAKE CABLE) (1 parts) 46420B — CLAMP, NO.2(FOR PARKING BRAKE CABLE) (1 parts) 46441 — NUT, WIRE ADJUSTING, NO.1 (6 parts) 46201E — LEVER SUB-ASSY, PARKING BRAKE (27 parts) 46441A — NUT, WIRE ADJUSTING, NO.2 (6 parts) 90119W0202 — not listed in this catalogue 90119W0202 — not listed in this catalogue 46430 — CABLE ASSY, PARKING BRAKE, NO.3 (6 parts) 46420J — CLAMP, NO.3(FOR PARKING BRAKE CABLE) (1 parts) 46420A — CLAMP, NO.1(FOR PARKING BRAKE CABLE) (6 parts) 46420B — CLAMP, NO.2(FOR PARKING BRAKE CABLE) (1 parts) 9011908A12 — not listed in this catalogue 9011908A12 — not listed in this catalogue 90119T0136 — not listed in this catalogue 9167180614 — not listed in this catalogue 90119T0136 — not listed in this catalogue 9167180614 — not listed in this catalogue 90119T0136 — not listed in this catalogue 9167180614 — not listed in this catalogue 90119T0136 — not listed in this catalogue 9167180614 — not listed in this catalogue 90119T0136 — not listed in this catalogue 9167180614 — not listed in this catalogue 90119T0136 — not listed in this catalogue 9167180614 — not listed in this catalogue 90119T0136 — not listed in this catalogue 9167180614 — not listed in this catalogue 90119T0136 — not listed in this catalogue 9167180614 — not listed in this catalogue 90119T0136 — not listed in this catalogue 9167180614 — not listed in this catalogue 90119T0136 — not listed in this catalogue 9167180614 — not listed in this catalogue 8401 — not listed in this catalogue 8401 — not listed in this catalogue

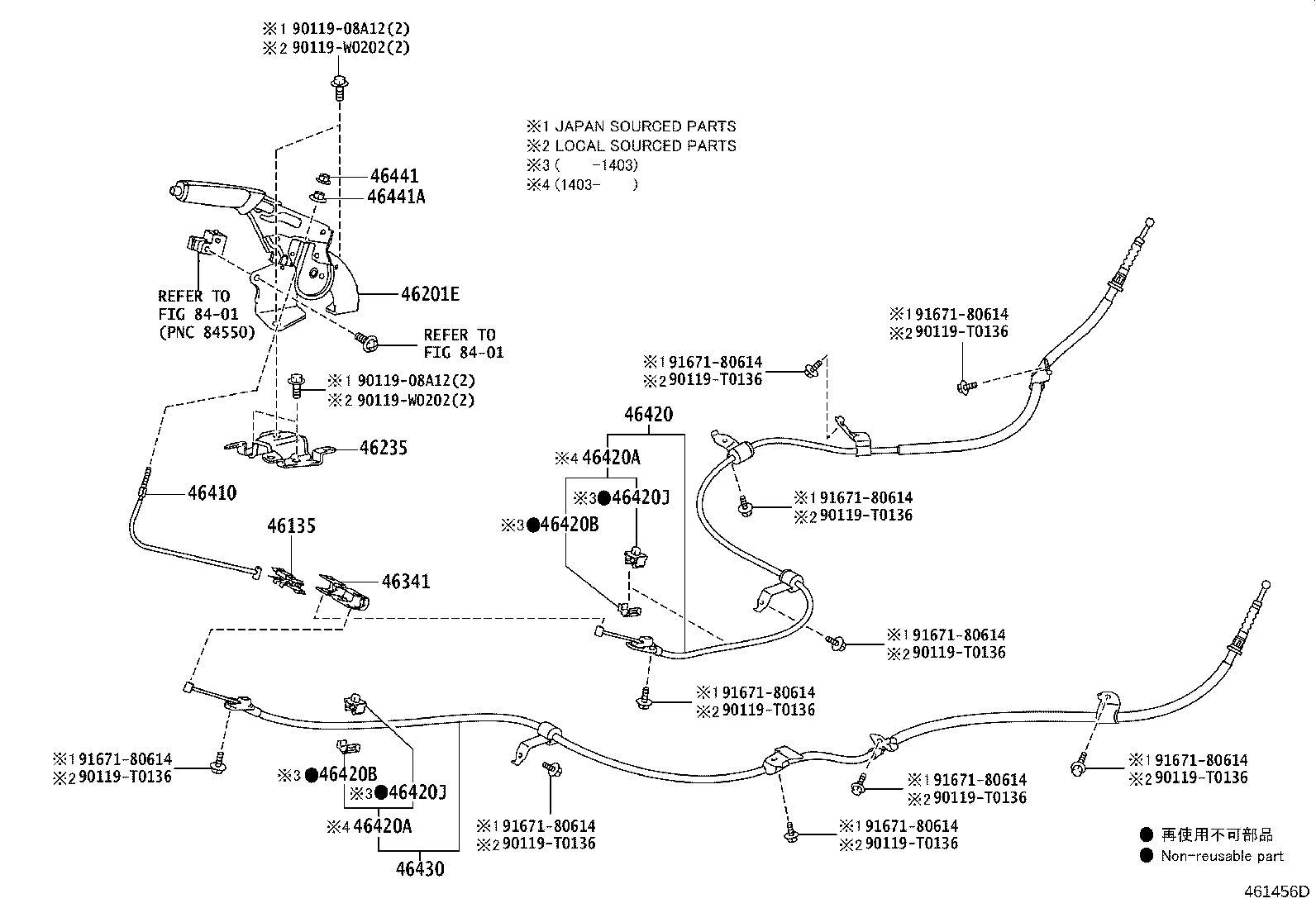

461456D · 15 callouts, 26 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
83 parts on this figure
Part number Description Fitment Price
46135 — Stopper, Parking Brake Cable End
46135-02040 Stopper, Parking Brake Cable End
2013-06 → 2017-01 ended
NDE180,NRE180,ZRE18# SAP —
46135-02040 Stopper, Parking Brake Cable End
2013-06 → 2016-05 ended
NDE180 TUP —
46135-02040 Stopper, Parking Brake Cable End
2016-06 → 2018-08 ended
NRE180 TUP —
46135-02040 Stopper, Parking Brake Cable End
2016-06 → 2019-01 ended
NDE180,ZRE18# TUP —
46135-02040 Stopper, Parking Brake Cable End
2016-06 → 2019-12 ended
NDE180,NRE180,ZRE18# SAP —
46135-02040 Stopper, Parking Brake Cable End
2019-12 → —
ZRE182 —
46201E — Lever Sub-assy, Parking Brake
46201-02200-C0 note Lever Sub-assy, Parking Brake
2013-06 → 2015-05 ended
NDE180 N TUP —
46201-02200-C0 note Lever Sub-assy, Parking Brake
2014-01 → 2015-05 ended
ZRE18# N GEN —
46201-02200-C1 note Lever Sub-assy, Parking Brake
2015-05 → 2017-01 ended
ZRE182 N GEN SAP;ZRE181 +4 —
46201-02200-C1 note Lever Sub-assy, Parking Brake
2015-05 → 2017-01 ended
ZRE181 CVT N GEN +1 —
46201-02200-C1 note Lever Sub-assy, Parking Brake
2015-05 → 2016-05 ended
NDE180 N TUP —
46201-02350-C0 note Lever Sub-assy, Parking Brake
2014-01 → 2015-05 ended
NDE180,NRE180,ZRE181 D SA —
46201-02350-C0 note Lever Sub-assy, Parking Brake
2014-01 → 2015-05 ended
NDE180,NRE180,ZRE18# N SA —
46201-02350-C1 note Lever Sub-assy, Parking Brake
2015-05 → 2017-01 ended
NDE180,NRE180,ZRE18# N SA —
46201-02350-C1 note Lever Sub-assy, Parking Brake
2015-05 → 2017-01 ended
NDE180,NRE180,ZRE181 D SA —
46201-02460-C0 note Lever Sub-assy, Parking Brake
2014-01 → 2015-05 ended
ZRE18# D GEN —
46201-02460-C0 note Lever Sub-assy, Parking Brake
2013-06 → 2015-05 ended
NDE180 D TUP —
46201-02460-C1 note Lever Sub-assy, Parking Brake
2015-05 → 2016-05 ended
NDE180 D TUP —
46201-02460-C1 note Lever Sub-assy, Parking Brake
2015-05 → 2017-01 ended
ZRE18# D GEN SAP —
46201-02490-C0 note Lever Sub-assy, Parking Brake
2014-01 → 2015-05 ended
NDE180,NRE180,ZRE181 D SA —
46201-02490-C1 note Lever Sub-assy, Parking Brake
2015-05 → 2017-01 ended
NDE180,NRE180,ZRE181 D SA —
46201-02200-C1 note Lever Sub-assy, Parking Brake
2016-06 → 2018-08 ended
NRE180 N TUP —
46201-02200-C1 note Lever Sub-assy, Parking Brake
2017-01 → 2019-12 ended
ZRE182 N GEN SAP;ZRE181 +4 —
46201-02200-C1 note Lever Sub-assy, Parking Brake
2016-06 → 2019-12 ended
ZRE181 CVT N GEN +1 —
46201-02200-C1 note Lever Sub-assy, Parking Brake
2016-06 → 2019-01 ended
NDE180,ZRE18# N TUP —
46201-02350-C1 note Lever Sub-assy, Parking Brake
2017-01 → 2019-12 ended
NDE180,NRE180,ZRE18# SA —
46201-02460-C1 note Lever Sub-assy, Parking Brake
2016-06 → 2018-08 ended
NRE180 D TUP —
46201-02460-C1 note Lever Sub-assy, Parking Brake
2017-01 → 2019-12 ended
ZRE18# D GEN SAP —
46201-02460-C1 note Lever Sub-assy, Parking Brake
2016-06 → 2019-01 ended
NDE180,ZRE18# D TUP —
46201-02200-C1 note Lever Sub-assy, Parking Brake
2019-12 → —
ZRE182 N GEN —
46201-02200-C1 note Lever Sub-assy, Parking Brake
2019-12 → —
ZRE182 (D,G) GEN —
46201-02350-C1 note Lever Sub-assy, Parking Brake
2019-12 → —
ZRE182 N SA —
46201-02350-C1 note Lever Sub-assy, Parking Brake
2019-12 → —
ZRE182 (D,G) SA —
46235 — Bracket, Parking Brake Lever Support
46235-02030 Bracket, Parking Brake Lever Support
2013-06 → 2016-05 ended
NDE180 TUP —
46235-02040 Bracket, Parking Brake Lever Support
2014-01 → 2017-01 ended
NDE180,NRE180,ZRE18# SAP —
46235-02030 Bracket, Parking Brake Lever Support
2016-06 → 2018-08 ended
NRE180 TUP —
46235-02030 Bracket, Parking Brake Lever Support
2016-06 → 2019-01 ended
NDE180,ZRE18# TUP —
46235-02040 Bracket, Parking Brake Lever Support
2017-01 → 2019-12 ended
NDE180,NRE180,ZRE18# SAP —
46235-02040 Bracket, Parking Brake Lever Support
2019-12 → —
ZRE182 —
46341 — Equalizer, Parking Brake
46341-02110 Equalizer, Parking Brake
2013-06 → 2016-05 ended
NDE180 TUP —
46341-02110 Equalizer, Parking Brake
2013-06 → 2017-01 ended
NDE180,NRE180,ZRE18# SAP —
46341-02110 Equalizer, Parking Brake
2016-06 → 2018-08 ended
NRE180 TUP —
46341-02110 Equalizer, Parking Brake
2016-06 → 2019-12 ended
NDE180,NRE180,ZRE18# SAP —
46341-02110 Equalizer, Parking Brake
2016-06 → 2019-01 ended
NDE180,ZRE18# TUP —
46341-02110 Equalizer, Parking Brake
2019-12 → —
ZRE182 —
46410 — Cable Assy, Parking Brake, NO.1
46410-02140 Cable Assy, Parking Brake, NO.1
2013-06 → 2017-01 ended
NDE180,NRE180,ZRE18# SAP —
46410-02140 Cable Assy, Parking Brake, NO.1
2013-06 → 2016-05 ended
NDE180 TUP —
46410-02140 Cable Assy, Parking Brake, NO.1
2016-06 → 2018-08 ended
NRE180 TUP —
46410-02140 Cable Assy, Parking Brake, NO.1
2016-06 → 2019-01 ended
NDE180,ZRE18# TUP —
46410-02140 Cable Assy, Parking Brake, NO.1
2016-06 → 2019-12 ended
NDE180,NRE180,ZRE18# SAP —
46410-02140 Cable Assy, Parking Brake, NO.1
2019-12 → —
ZRE182 —
46420 — Cable Assy, Parking Brake, NO.2
46420-02300 Cable Assy, Parking Brake, NO.2
2013-06 → 2016-05 ended
NDE180 TUP —
46420-02300 Cable Assy, Parking Brake, NO.2
2013-06 → 2017-01 ended
NDE180,NRE180,ZRE18# SAP —
46420-02300 Cable Assy, Parking Brake, NO.2
2016-06 → 2019-01 ended
NDE180,ZRE18# TUP —
46420-02300 Cable Assy, Parking Brake, NO.2
2016-06 → 2019-12 ended
NDE180,NRE180,ZRE18# SAP —
46420-02300 Cable Assy, Parking Brake, NO.2
2016-06 → 2018-08 ended
NRE180 TUP —
46420-02300 Cable Assy, Parking Brake, NO.2
2019-12 → —
ZRE182 —
46420A — Clamp, NO.1(FOR PARKING BRAKE CABLE)
46402-12030 Clamp, NO.1(FOR PARKING BRAKE CABLE)
2014-03 → 2016-05 ended
NDE180 TUP —
46402-12030 Clamp, NO.1(FOR PARKING BRAKE CABLE)
2014-03 → 2017-01 ended
NDE180,NRE180,ZRE18# SAP —
46402-12030 Clamp, NO.1(FOR PARKING BRAKE CABLE)
2016-06 → 2018-08 ended
NRE180 TUP —
46402-12030 Clamp, NO.1(FOR PARKING BRAKE CABLE)
2016-06 → 2019-01 ended
NDE180,ZRE18# TUP —
46402-12030 Clamp, NO.1(FOR PARKING BRAKE CABLE)
2016-06 → 2019-12 ended
NDE180,NRE180,ZRE18# SAP —
46402-12030 Clamp, NO.1(FOR PARKING BRAKE CABLE)
2019-12 → —
ZRE182 —
46420B — Clamp, NO.2(FOR PARKING BRAKE CABLE)
46411-12040 Clamp, NO.2(FOR PARKING BRAKE CABLE)
2013-06 → 2014-03 ended
NDE180,NRE180,ZRE18# —
46420J — Clamp, NO.3(FOR PARKING BRAKE CABLE)
46411-12030 Clamp, NO.3(FOR PARKING BRAKE CABLE)
2013-06 → 2014-03 ended
NDE180,NRE180,ZRE18# —
46430 — Cable Assy, Parking Brake, NO.3
46430-02300 Cable Assy, Parking Brake, NO.3
2013-06 → 2016-05 ended
NDE180 TUP —
46430-02300 Cable Assy, Parking Brake, NO.3
2013-06 → 2017-01 ended
NDE180,NRE180,ZRE18# SAP —
46430-02300 Cable Assy, Parking Brake, NO.3
2016-06 → 2018-08 ended
NRE180 TUP —
46430-02300 Cable Assy, Parking Brake, NO.3
2016-06 → 2019-01 ended
NDE180,ZRE18# TUP —
46430-02300 Cable Assy, Parking Brake, NO.3
2016-06 → 2019-12 ended
NDE180,NRE180,ZRE18# SAP —
46430-02300 Cable Assy, Parking Brake, NO.3
2019-12 → —
ZRE182 —
46441 — Nut, Wire Adjusting, NO.1
90179-06299 Nut, Wire Adjusting, NO.1
2013-06 → 2016-05 ended
NDE180 TUP —
90179-06299 Nut, Wire Adjusting, NO.1
2013-06 → 2017-01 ended
NDE180,NRE180,ZRE18# SAP —
90179-06299 Nut, Wire Adjusting, NO.1
2016-06 → 2018-08 ended
NRE180 TUP —
90179-06299 Nut, Wire Adjusting, NO.1
2016-06 → 2019-12 ended
NDE180,NRE180,ZRE18# SAP —
90179-06299 Nut, Wire Adjusting, NO.1
2016-06 → 2019-01 ended
NDE180,ZRE18# TUP —
90179-06299 Nut, Wire Adjusting, NO.1
2019-12 → —
ZRE182 —
46441A — Nut, Wire Adjusting, NO.2
46441-12010 Nut, Wire Adjusting, NO.2
2013-06 → 2016-05 ended
NDE180 TUP —
46441-12010 Nut, Wire Adjusting, NO.2
2013-06 → 2017-01 ended
NDE180,NRE180,ZRE18# SAP —
46441-12010 Nut, Wire Adjusting, NO.2
2016-06 → 2018-08 ended
NRE180 TUP —
46441-12010 Nut, Wire Adjusting, NO.2
2016-06 → 2019-01 ended
NDE180,ZRE18# TUP —
46441-12010 Nut, Wire Adjusting, NO.2
2016-06 → 2019-12 ended
NDE180,NRE180,ZRE18# SAP —
46441-12010 Nut, Wire Adjusting, NO.2
2019-12 → —
ZRE182 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
