Toyota Corolla
2013-06 → present · chassis NDE180,NRE180,ZRE18#,ZRE21#,ZWE219 · catalogue 164320 · General
Supported model
Data version 2019-11

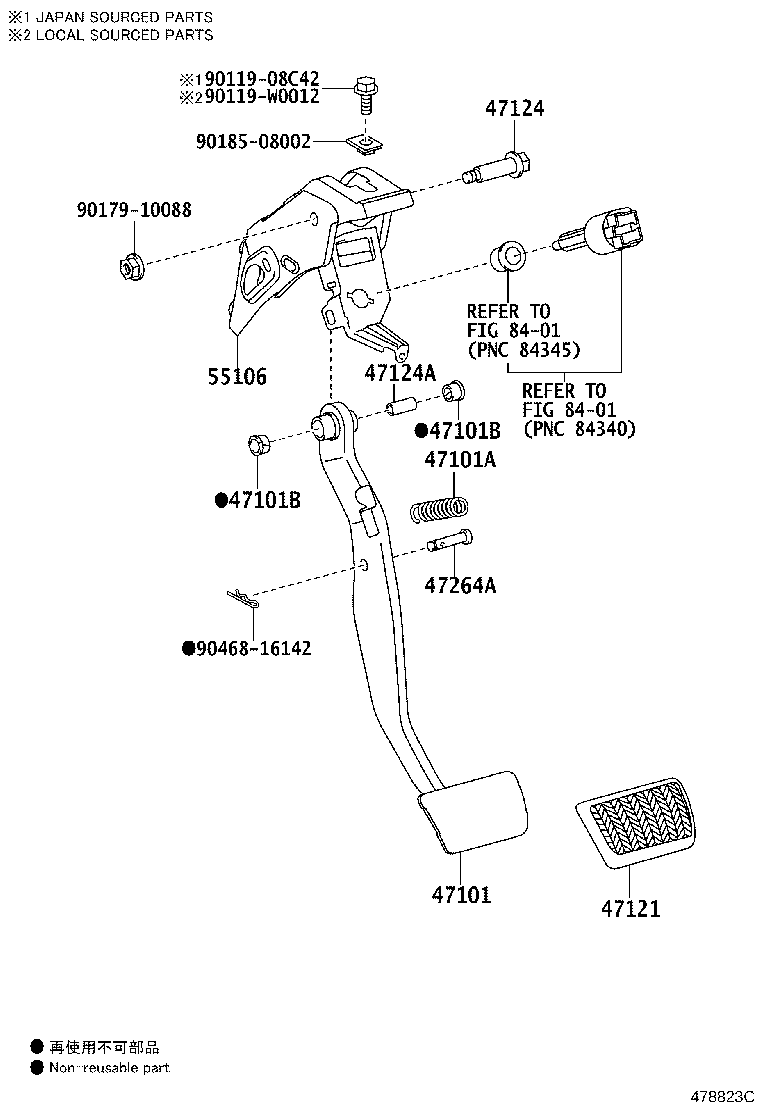

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 47101 — Pedal Sub-assy, Brake | ||||
| 47101-02450 |
Pedal Sub-assy, Brake
2013-06 → 2017-01
ended
|
ZRE18# 6F GEN SAP | — | |
| 47101-02450 |
Pedal Sub-assy, Brake
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 47101-02460 |
Pedal Sub-assy, Brake
2014-01 → 2017-01
ended
|
ZRE18# CVT GEN SAP | — | |
| 47101-12710 |
Pedal Sub-assy, Brake
2014-01 → 2017-01
ended
|
NDE180,NRE180,ZRE18# 6F SA | — | |
| 47101-12720 |
Pedal Sub-assy, Brake
2014-01 → 2017-01
ended
|
ZRE18# CVT SA | — | |
| 47101-02450 |
Pedal Sub-assy, Brake
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 47101-02450 |
Pedal Sub-assy, Brake
2016-06 → 2019-01
ended
|
NDE180,ZRE181 6F TUP | — | |
| 47101-02450 |
Pedal Sub-assy, Brake
2016-06 → 2019-12
ended
|
ZRE18# 6F GEN SAP | — | |
| 47101-02460 |
Pedal Sub-assy, Brake
2016-06 → 2019-01
ended
|
ZRE18# CVT TUP | — | |
| 47101-02460 |
Pedal Sub-assy, Brake
2016-06 → 2019-12
ended
|
ZRE18# CVT GEN SAP | — | |
| 47101-12710 |
Pedal Sub-assy, Brake
2017-01 → 2019-12
ended
|
NDE180,NRE180,ZRE18# 6F SA | — | |
| 47101-12720 |
Pedal Sub-assy, Brake
2017-01 → 2019-12
ended
|
ZRE18# CVT SA | — | |
| 47101-02450 |
Pedal Sub-assy, Brake
2019-12 → —
|
ZRE182 D GEN | — | |
| 47101-02460 |
Pedal Sub-assy, Brake
2019-12 → —
|
ZRE182 CVT GEN | — | |
| 47101-12710 |
Pedal Sub-assy, Brake
2019-12 → —
|
ZRE182 6F SA | — | |
| 47101-12720 |
Pedal Sub-assy, Brake
2019-12 → —
|
ZRE182 CVT SA | — | |
| 47101A — Spring(FOR BRAKE PEDAL RETURN) | ||||
| 90507-15007 |
Spring(FOR BRAKE PEDAL RETURN)
2013-06 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 90507-15007 |
Spring(FOR BRAKE PEDAL RETURN)
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 90507-15007 |
Spring(FOR BRAKE PEDAL RETURN)
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 90507-15007 |
Spring(FOR BRAKE PEDAL RETURN)
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 90507-15007 |
Spring(FOR BRAKE PEDAL RETURN)
2016-06 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 90507-15007 |
Spring(FOR BRAKE PEDAL RETURN)
2019-12 → —
|
ZRE182 | — | |
| 47101B — Bush(FOR BRAKE PEDAL) | ||||
| 90386-13015 |
Bush(FOR BRAKE PEDAL)
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 90386-13015 |
Bush(FOR BRAKE PEDAL)
2013-06 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 90386-13015 |
Bush(FOR BRAKE PEDAL)
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 90386-13015 |
Bush(FOR BRAKE PEDAL)
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 90386-13015 |
Bush(FOR BRAKE PEDAL)
2016-06 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 90386-13015 |
Bush(FOR BRAKE PEDAL)
2019-12 → —
|
ZRE182 | — | |
| 47121 — Pad, Brake Pedal | ||||
| 31321-42010 |
Pad, Brake Pedal
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 31321-42010 |
Pad, Brake Pedal
2013-06 → 2017-01
ended
|
NDE180,NRE180,ZRE18# 6F SAP | — | |
| 47121-42010 |
Pad, Brake Pedal
2014-01 → 2017-01
ended
|
ZRE18# CVT SAP | — | |
| 31321-42010 |
Pad, Brake Pedal
2016-06 → 2019-12
ended
|
NDE180,NRE180,ZRE18# 6F SAP | — | |
| 31321-42010 |
Pad, Brake Pedal
2016-06 → 2019-01
ended
|
NDE180,ZRE181 6F TUP | — | |
| 31321-42010 |
Pad, Brake Pedal
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 47121-42010 |
Pad, Brake Pedal
2016-06 → 2019-01
ended
|
ZRE18# CVT TUP | — | |
| 47121-42010 |
Pad, Brake Pedal
2016-06 → 2019-12
ended
|
ZRE18# CVT SAP | — | |
| 31321-42010 |
Pad, Brake Pedal
2019-12 → —
|
ZRE182 6F | — | |
| 47121-42010 |
Pad, Brake Pedal
2019-12 → —
|
ZRE182 CVT | — | |
| 47124 — Shaft, Brake Pedal | ||||
| 90101-10039 |
Shaft, Brake Pedal
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 90101-10039 |
Shaft, Brake Pedal
2013-06 → 2017-01
ended
|
ZRE18# GEN SAP | — | |
| 90109-10174 |
Shaft, Brake Pedal
2014-01 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SA | — | |
| 90101-10039 |
Shaft, Brake Pedal
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 90101-10039 |
Shaft, Brake Pedal
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 90101-10039 |
Shaft, Brake Pedal
2016-06 → 2019-12
ended
|
ZRE18# GEN SAP | — | |
| 90109-10174 |
Shaft, Brake Pedal
2017-01 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SA | — | |
| 90101-10039 |
Shaft, Brake Pedal
2019-12 → —
|
ZRE182 GEN | — | |
| 90109-10174 |
Shaft, Brake Pedal
2019-12 → —
|
ZRE182 SA | — | |
| 47124A — Collar(FOR BRAKE PEDAL SHAFT) | ||||
| 90387-10003 |
Collar(FOR BRAKE PEDAL SHAFT)
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 90387-10003 |
Collar(FOR BRAKE PEDAL SHAFT)
2013-06 → 2017-01
ended
|
ZRE18# GEN SAP | — | |
| 90387-10003 |
Collar(FOR BRAKE PEDAL SHAFT)
2016-06 → 2019-12
ended
|
ZRE18# GEN SAP | — | |
| 90387-10003 |
Collar(FOR BRAKE PEDAL SHAFT)
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 90387-10003 |
Collar(FOR BRAKE PEDAL SHAFT)
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 90387-10003 |
Collar(FOR BRAKE PEDAL SHAFT)
2019-12 → —
|
ZRE182 GEN | — | |
| 47264A — Pin(FOR PUSH ROD) | ||||
| 47148-33011 |
Pin(FOR PUSH ROD)
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 90249-08256 |
Pin(FOR PUSH ROD)
2014-01 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 47148-33011 |
Pin(FOR PUSH ROD)
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 47148-33011 |
Pin(FOR PUSH ROD)
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 47148-33011 |
Pin(FOR PUSH ROD)
2016-06 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 47148-33011 |
Pin(FOR PUSH ROD)
2019-12 → —
|
ZRE182 | — | |
| 55106 — Support Sub-assy, Brake Pedal | ||||
| 55106-02160 |
Support Sub-assy, Brake Pedal
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 55106-02160 |
Support Sub-assy, Brake Pedal
2013-06 → 2017-01
ended
|
ZRE18# GEN SAP | — | |
| 55106-12680 |
Support Sub-assy, Brake Pedal
2014-01 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SA | — | |
| 55106-02160 |
Support Sub-assy, Brake Pedal
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 55106-02160 |
Support Sub-assy, Brake Pedal
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 55106-02160 |
Support Sub-assy, Brake Pedal
2016-06 → 2019-12
ended
|
ZRE18# GEN SAP | — | |
| 55106-12680 |
Support Sub-assy, Brake Pedal
2017-01 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SA | — | |
| 55106-02160 |
Support Sub-assy, Brake Pedal
2019-12 → —
|
ZRE182 GEN | — | |
| 55106-12680 |
Support Sub-assy, Brake Pedal
2019-12 → —
|
ZRE182 SA | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
