Toyota Corolla
2013-06 → present · chassis NDE180,NRE180,ZRE18#,ZRE21#,ZWE219 · catalogue 164320 · General
Supported model
Data version 2019-11

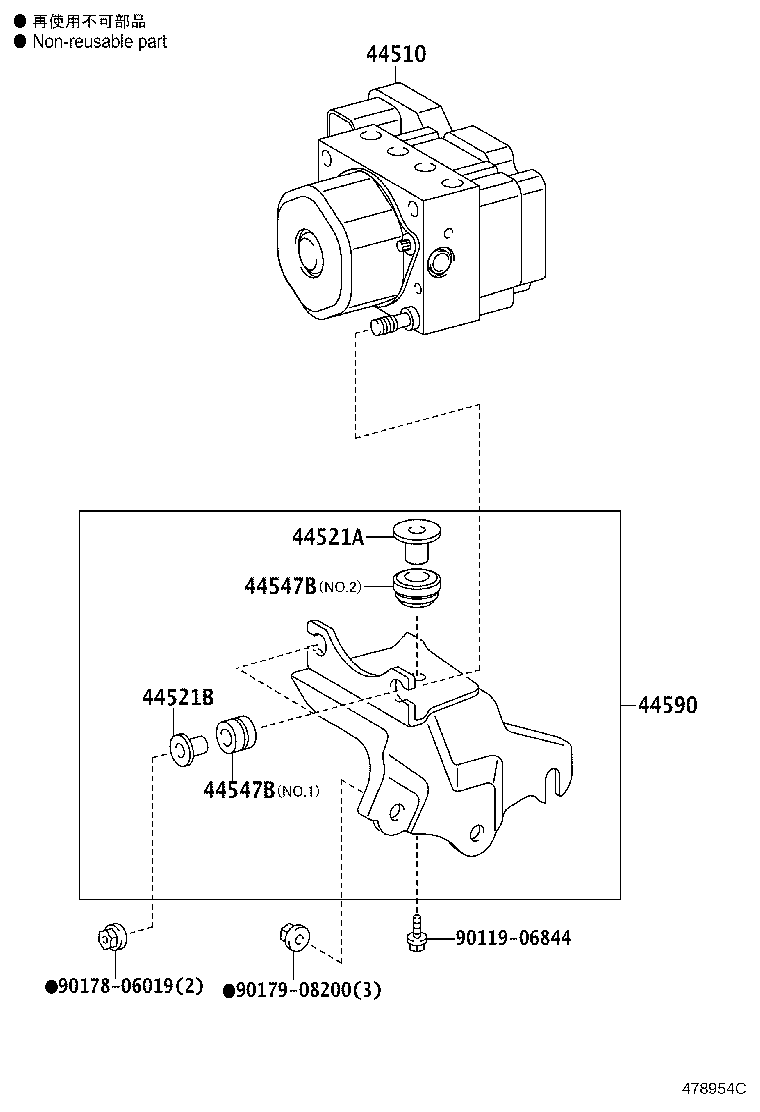

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 44510 — Actuator Assy, Brake | ||||
| 44050-02720 |
Actuator Assy, Brake
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 44050-02750 |
Actuator Assy, Brake
2014-01 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 44050-02760 note |
Actuator Assy, Brake
2014-01 → 2017-01
ended
|
ZRE18# N SA | — | |
| 44050-02720 |
Actuator Assy, Brake
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 44050-02720 |
Actuator Assy, Brake
2016-06 → 2019-01
ended
|
NDE180,ZRE18# GEN TUP | — | |
| 44050-02750 |
Actuator Assy, Brake
2017-01 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 44050-02B10 note |
Actuator Assy, Brake
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 44050-02B10 note |
Actuator Assy, Brake
2016-06 → 2019-01
ended
|
ZRE181 GEN TUP;ZRE182 N +2 | — | |
| 44050-02B30 note |
Actuator Assy, Brake
2017-01 → 2019-12
ended
|
ZRE18# SA | — | |
| 44050-12B90 |
Actuator Assy, Brake
2016-06 → 2019-01
ended
|
ZRE18# GCC | — | |
| 44050-02B30 |
Actuator Assy, Brake
2019-12 → —
|
ZRE182 | — | |
| 44521A — Collar, Brake Actuator Case, NO.1 | ||||
| 44521-05010 |
Collar, Brake Actuator Case, NO.1
2014-11 → 2016-05
ended
|
NDE180 TUP | — | |
| 44521-12060 |
Collar, Brake Actuator Case, NO.1
2013-06 → 2014-10
ended
|
NDE180 TUP | — | |
| 44521-12060 |
Collar, Brake Actuator Case, NO.1
2013-06 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 44521-05010 |
Collar, Brake Actuator Case, NO.1
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 44521-05010 |
Collar, Brake Actuator Case, NO.1
2016-06 → 2019-01
ended
|
NDE180,ZRE18# GEN TUP | — | |
| 44521-12050 |
Collar, Brake Actuator Case, NO.1
2016-06 → 2019-01
ended
|
ZRE18# GCC | — | |
| 44521-12060 |
Collar, Brake Actuator Case, NO.1
2017-01 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 44521-12060 |
Collar, Brake Actuator Case, NO.1
2019-12 → —
|
ZRE182 | — | |
| 44521B — Collar, Brake Actuator Case, NO.2 | ||||
| 44521-05020 |
Collar, Brake Actuator Case, NO.2
2014-11 → 2016-05
ended
|
NDE180 TUP | — | |
| 44521-12070 |
Collar, Brake Actuator Case, NO.2
2013-06 → 2014-10
ended
|
NDE180 TUP | — | |
| 44521-12070 |
Collar, Brake Actuator Case, NO.2
2013-06 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 44521-05020 |
Collar, Brake Actuator Case, NO.2
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 44521-05020 |
Collar, Brake Actuator Case, NO.2
2016-06 → 2019-01
ended
|
NDE180,ZRE18# GEN TUP | — | |
| 44521-12070 |
Collar, Brake Actuator Case, NO.2
2017-01 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 44521-12070 |
Collar, Brake Actuator Case, NO.2
2019-12 → —
|
ZRE182 | — | |
| 44547B — Cushion, Brake Actuator Bracket | ||||
| 44547-02030 note |
Cushion, Brake Actuator Bracket
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 44547-02030 note |
Cushion, Brake Actuator Bracket
2014-01 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 44547-12010 note |
Cushion, Brake Actuator Bracket
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 44547-12010 note |
Cushion, Brake Actuator Bracket
2013-06 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 44547-12030 note |
Cushion, Brake Actuator Bracket
2014-01 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 44547-02030 note |
Cushion, Brake Actuator Bracket
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 44547-02030 note |
Cushion, Brake Actuator Bracket
2016-06 → 2019-01
ended
|
NDE180,ZRE18# GEN TUP | — | |
| 44547-02030 note |
Cushion, Brake Actuator Bracket
2017-01 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 44547-12010 note |
Cushion, Brake Actuator Bracket
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 44547-12010 note |
Cushion, Brake Actuator Bracket
2016-06 → 2019-01
ended
|
NDE180,ZRE18# GEN TUP | — | |
| 44547-12010 note |
Cushion, Brake Actuator Bracket
2016-06 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 44547-12030 note |
Cushion, Brake Actuator Bracket
2017-01 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 44547-02030 note |
Cushion, Brake Actuator Bracket
2019-12 → —
|
ZRE182 | — | |
| 44547-12010 note |
Cushion, Brake Actuator Bracket
2019-12 → —
|
ZRE182 | — | |
| 44547-12030 note |
Cushion, Brake Actuator Bracket
2019-12 → —
|
ZRE182 | — | |
| 44590 — Bracket Assy, Brake Actuator | ||||
| 44590-02300 |
Bracket Assy, Brake Actuator
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 44590-02330 |
Bracket Assy, Brake Actuator
2014-01 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 44590-02340 note |
Bracket Assy, Brake Actuator
2014-01 → 2017-01
ended
|
ZRE18# N SA | — | |
| 44590-02300 |
Bracket Assy, Brake Actuator
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 44590-02300 |
Bracket Assy, Brake Actuator
2016-06 → 2019-01
ended
|
NDE180,ZRE18# GEN TUP | — | |
| 44590-02310 note |
Bracket Assy, Brake Actuator
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 44590-02310 note |
Bracket Assy, Brake Actuator
2016-06 → 2019-01
ended
|
ZRE181 GEN TUP;ZRE182 N +2 | — | |
| 44590-02330 |
Bracket Assy, Brake Actuator
2017-01 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 44590-02340 note |
Bracket Assy, Brake Actuator
2017-01 → 2019-12
ended
|
ZRE18# SA | — | |
| 44590-12100 |
Bracket Assy, Brake Actuator
2016-06 → 2019-01
ended
|
ZRE18# GCC | — | |
| 44590-02340 |
Bracket Assy, Brake Actuator
2019-12 → —
|
ZRE182 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
