Toyota Corolla

2013-06 → present · chassis NDE180,NRE180,ZRE18#,ZRE21#,ZWE219 · catalogue 164320 · General

Supported model Data version 2019-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

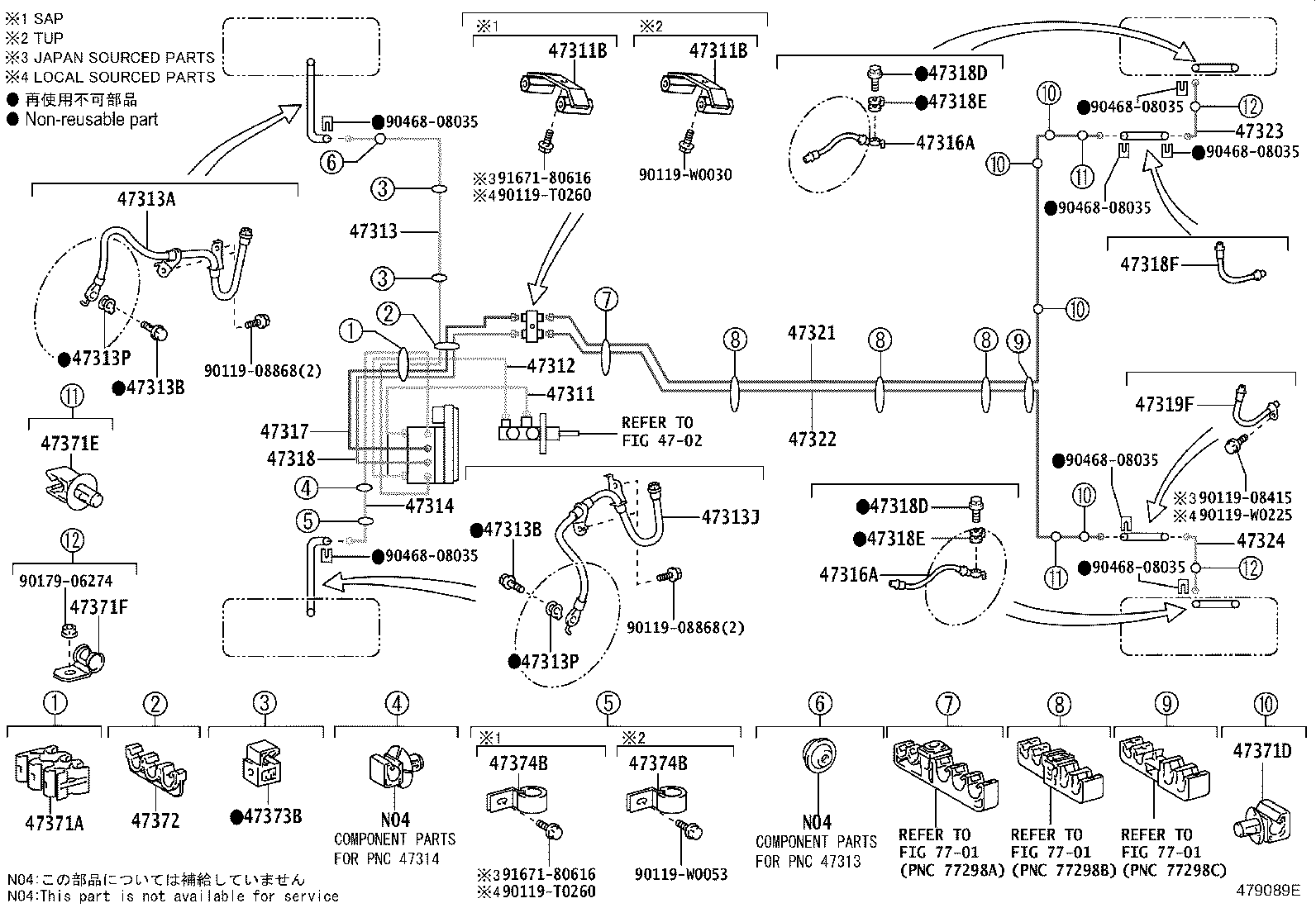

Exploded illustration 479089E 47311 — TUBE, FRONT BRAKE, NO.1 (16 parts) 47312 — TUBE, FRONT BRAKE, NO.2 (16 parts) 47313 — TUBE, FRONT BRAKE, NO.3 (15 parts) 47313P — GASKET(FOR FRONT FLEXIBLE HOSE) (6 parts) 47313B — BOLT, UNION(FOR FRONT FLEXIBLE HOSE) (6 parts) 47317 — TUBE, FRONT BRAKE, NO.7 (15 parts) 47318 — TUBE, FRONT BRAKE, NO.8 (15 parts) 47313A — HOSE, FLEXIBLE, NO.1(FOR FRONT) (6 parts) 47314 — TUBE, FRONT BRAKE, NO.4 (15 parts) 47313B — BOLT, UNION(FOR FRONT FLEXIBLE HOSE) (6 parts) 47313P — GASKET(FOR FRONT FLEXIBLE HOSE) (6 parts) 47313J — HOSE, FLEXIBLE, NO.2(FOR FRONT) (6 parts) 9046808035 — not listed in this catalogue 9046808035 — not listed in this catalogue 9046808035 — not listed in this catalogue 9046808035 — not listed in this catalogue 9046808035 — not listed in this catalogue 9046808035 — not listed in this catalogue 9011908868 — not listed in this catalogue 9011908868 — not listed in this catalogue 9046808035 — not listed in this catalogue 47374B — CLAMP, BRAKE TUBE, NO.4 (7 parts) 47372 — CLAMP, BRAKE TUBE, NO.2 (12 parts) 47373B — CLAMP, BRAKE TUBE, NO.3 (13 parts) 47374B — CLAMP, BRAKE TUBE, NO.4 (7 parts) 90119W0053 — not listed in this catalogue 47371A — CLAMP, BRAKE TUBE, NO.1 (14 parts) 47323 — TUBE, REAR BRAKE, NO.3 (7 parts) 47324 — TUBE, REAR BRAKE, NO.4 (7 parts) 47318F — HOSE, FLEXIBLE(FOR REAR RH) (6 parts) 47319F — HOSE, FLEXIBLE(FOR REAR LH) (6 parts) 47321 — TUBE, REAR BRAKE, NO.1 (7 parts) 47322 — TUBE, REAR BRAKE, NO.2 (7 parts) 47311B — WAY, NO.1(FOR FRONT BRAKE TUBE) (6 parts) 9167180616 — not listed in this catalogue 90119T0260 — not listed in this catalogue 9167180616 — not listed in this catalogue 90119T0260 — not listed in this catalogue 90119W0030 — not listed in this catalogue 47311B — WAY, NO.1(FOR FRONT BRAKE TUBE) (6 parts) 47318D — BOLT, UNION(FOR REAR FLEXIBLE HOSE) (6 parts) 47318D — BOLT, UNION(FOR REAR FLEXIBLE HOSE) (6 parts) 47318E — GASKET(FOR REAR FLEXIBLE HOSE) (6 parts) 47318E — GASKET(FOR REAR FLEXIBLE HOSE) (6 parts) 47316A — HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) (6 parts) 47316A — HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) (6 parts) 47371E — CLAMP, BRAKE TUBE, NO.9 (6 parts) 47371D — CLAMP, BRAKE TUBE, NO.8 (6 parts) 47371F — CLAMP, BRAKE TUBE, NO.10 (6 parts) 9017906274 — not listed in this catalogue 7701 — not listed in this catalogue 7701 — not listed in this catalogue 7701 — not listed in this catalogue 4702 — not listed in this catalogue 9011908415 — not listed in this catalogue 90119W0225 — not listed in this catalogue
479089E · 34 callouts, 22 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
244 parts on this figure
Part number Description Fitment Price
47311 — Tube, Front Brake, NO.1
47311-02850 Tube, Front Brake, NO.1
2014-01 → 2017-01 ended
ZRE18# GEN SAP —
47311-02870 Tube, Front Brake, NO.1
2014-01 → 2017-01 ended
NDE180,NRE180,ZRE18# SA —
47311-02880 note Tube, Front Brake, NO.1
2014-01 → 2017-01 ended
ZRE18# N SA —
47311-02B60 Tube, Front Brake, NO.1
2013-06 → 2015-05 ended
NDE180 TUP —
47311-02B61 Tube, Front Brake, NO.1
2015-05 → 2016-05 ended
NDE180 TUP —
47311-02831 Tube, Front Brake, NO.1
2016-06 → 2018-08 ended
NRE180 TUP —
47311-02831 Tube, Front Brake, NO.1
2016-06 → 2019-01 ended
ZRE18# GEN TUP —
47311-02841 note Tube, Front Brake, NO.1
2016-06 → 2018-08 ended
NRE180 TUP —
47311-02841 note Tube, Front Brake, NO.1
2016-06 → 2019-01 ended
ZRE181 GEN TUP;ZRE182 N +2 —
47311-02B31 Tube, Front Brake, NO.1
2016-06 → 2019-01 ended
ZRE18# GCC —
47311-02B61 Tube, Front Brake, NO.1
2016-06 → 2019-01 ended
NDE180 TUP —
47311-02D20 Tube, Front Brake, NO.1
2017-01 → 2019-12 ended
ZRE18# GEN SAP —
47311-02D30 Tube, Front Brake, NO.1
2017-01 → 2019-12 ended
NDE180,NRE180,ZRE18# SA —
47311-02D50 note Tube, Front Brake, NO.1
2017-01 → 2019-12 ended
ZRE18# SA —
47311-02D40 Tube, Front Brake, NO.1
2019-12 → —
ZRE182 GEN —
47311-02D50 Tube, Front Brake, NO.1
2019-12 → —
ZRE182 SA —
47311B — Way, NO.1(FOR FRONT BRAKE TUBE)
90412-10285 Way, NO.1(FOR FRONT BRAKE TUBE)
2013-06 → 2016-05 ended
NDE180 TUP —
90412-10285 Way, NO.1(FOR FRONT BRAKE TUBE)
2013-06 → 2017-01 ended
NDE180,NRE180,ZRE18# SAP —
90412-10285 Way, NO.1(FOR FRONT BRAKE TUBE)
2016-06 → 2018-08 ended
NRE180 TUP —
90412-10285 Way, NO.1(FOR FRONT BRAKE TUBE)
2016-06 → 2019-01 ended
NDE180,ZRE18# TUP —
90412-10285 Way, NO.1(FOR FRONT BRAKE TUBE)
2016-06 → 2019-12 ended
NDE180,NRE180,ZRE18# SAP —
90412-10285 Way, NO.1(FOR FRONT BRAKE TUBE)
2019-12 → —
ZRE182 —
47312 — Tube, Front Brake, NO.2
47312-02710 Tube, Front Brake, NO.2
2014-01 → 2017-01 ended
ZRE18# GEN SAP —
47312-02730 Tube, Front Brake, NO.2
2014-01 → 2017-01 ended
NDE180,NRE180,ZRE18# SA —
47312-02740 note Tube, Front Brake, NO.2
2014-01 → 2017-01 ended
ZRE18# N SA —
47312-02A30 Tube, Front Brake, NO.2
2013-06 → 2015-05 ended
NDE180 TUP —
47312-02A31 Tube, Front Brake, NO.2
2015-05 → 2016-05 ended
NDE180 TUP —
47312-02691 Tube, Front Brake, NO.2
2016-06 → 2018-08 ended
NRE180 TUP —
47312-02691 Tube, Front Brake, NO.2
2016-06 → 2019-01 ended
ZRE18# GEN TUP —
47312-02A01 Tube, Front Brake, NO.2
2016-06 → 2019-01 ended
ZRE18# GCC —
47312-02A31 Tube, Front Brake, NO.2
2016-06 → 2019-01 ended
NDE180 TUP —
47312-02B20 note Tube, Front Brake, NO.2
2016-06 → 2019-01 ended
ZRE181 GEN TUP;ZRE182 N +2 —
47312-02B20 note Tube, Front Brake, NO.2
2016-06 → 2018-08 ended
NRE180 TUP —
47312-02B60 Tube, Front Brake, NO.2
2017-01 → 2019-12 ended
ZRE18# GEN SAP —
47312-02B70 Tube, Front Brake, NO.2
2017-01 → 2019-12 ended
NDE180,NRE180,ZRE18# SA —
47312-02B90 note Tube, Front Brake, NO.2
2017-01 → 2019-12 ended
ZRE18# SA —
47312-02B80 Tube, Front Brake, NO.2
2019-12 → —
ZRE182 GEN —
47312-02B90 Tube, Front Brake, NO.2
2019-12 → —
ZRE182 SA —
47313 — Tube, Front Brake, NO.3
47313-02A20 Tube, Front Brake, NO.3
2013-06 → 2015-05 ended
NDE180 TUP —
47313-02A21 Tube, Front Brake, NO.3
2015-05 → 2016-05 ended
NDE180 TUP —
47313-02A40 Tube, Front Brake, NO.3
2014-01 → 2017-01 ended
ZRE18# GEN SAP —
47313-02A60 Tube, Front Brake, NO.3
2014-01 → 2017-01 ended
NDE180,NRE180,ZRE18# SA —
47313-02A70 note Tube, Front Brake, NO.3
2014-01 → 2017-01 ended
ZRE18# N SA —
47313-02681 Tube, Front Brake, NO.3
2016-06 → 2019-01 ended
ZRE18# GCC —
47313-02A21 Tube, Front Brake, NO.3
2016-06 → 2018-08 ended
NRE180 TUP —
47313-02A21 Tube, Front Brake, NO.3
2016-06 → 2019-01 ended
NDE180,ZRE18# GEN TUP —
47313-02C80 note Tube, Front Brake, NO.3
2016-06 → 2019-01 ended
ZRE181 GEN TUP;ZRE182 N +2 —
47313-02C80 note Tube, Front Brake, NO.3
2016-06 → 2018-08 ended
NRE180 TUP —
47313-02E10 Tube, Front Brake, NO.3
2017-01 → 2019-12 ended
ZRE18# GEN SAP —
47313-02E20 Tube, Front Brake, NO.3
2017-01 → 2019-12 ended
NDE180,NRE180,ZRE18# SA —
47313-02E40 note Tube, Front Brake, NO.3
2017-01 → 2019-12 ended
ZRE18# SA —
47313-02E30 Tube, Front Brake, NO.3
2019-12 → —
ZRE182 GEN —
47313-02E40 Tube, Front Brake, NO.3
2019-12 → —
ZRE182 SA —
47313A — Hose, Flexible, NO.1(FOR FRONT)
90947-W2042 Hose, Flexible, NO.1(FOR FRONT)
2013-06 → 2016-05 ended
NDE180 TUP —
90947-W2042 Hose, Flexible, NO.1(FOR FRONT)
2013-06 → 2017-01 ended
NDE180,NRE180,ZRE18# SAP —
90947-W2042 Hose, Flexible, NO.1(FOR FRONT)
2016-06 → 2018-08 ended
NRE180 TUP —
90947-W2042 Hose, Flexible, NO.1(FOR FRONT)
2016-06 → 2019-01 ended
NDE180,ZRE18# TUP —
90947-W2042 Hose, Flexible, NO.1(FOR FRONT)
2016-06 → 2019-12 ended
NDE180,NRE180,ZRE18# SAP —
90947-W2042 Hose, Flexible, NO.1(FOR FRONT)
2019-12 → —
ZRE182 —
47313B — Bolt, Union(FOR FRONT FLEXIBLE HOSE)
90401-10058 Bolt, Union(FOR FRONT FLEXIBLE HOSE)
2013-06 → 2016-05 ended
NDE180 TUP —
90401-10058 Bolt, Union(FOR FRONT FLEXIBLE HOSE)
2013-06 → 2017-01 ended
NDE180,NRE180,ZRE18# SAP —
90401-10058 Bolt, Union(FOR FRONT FLEXIBLE HOSE)
2016-06 → 2018-08 ended
NRE180 TUP —
90401-10058 Bolt, Union(FOR FRONT FLEXIBLE HOSE)
2016-06 → 2019-12 ended
NDE180,NRE180,ZRE18# SAP —
90401-10058 Bolt, Union(FOR FRONT FLEXIBLE HOSE)
2016-06 → 2019-01 ended
NDE180,ZRE18# TUP —
90401-10058 Bolt, Union(FOR FRONT FLEXIBLE HOSE)
2019-12 → —
ZRE182 —
47313J — Hose, Flexible, NO.2(FOR FRONT)
90947-W2043 Hose, Flexible, NO.2(FOR FRONT)
2013-06 → 2017-01 ended
NDE180,NRE180,ZRE18# SAP —
90947-W2043 Hose, Flexible, NO.2(FOR FRONT)
2013-06 → 2016-05 ended
NDE180 TUP —
90947-W2043 Hose, Flexible, NO.2(FOR FRONT)
2016-06 → 2018-08 ended
NRE180 TUP —
90947-W2043 Hose, Flexible, NO.2(FOR FRONT)
2016-06 → 2019-01 ended
NDE180,ZRE18# TUP —
90947-W2043 Hose, Flexible, NO.2(FOR FRONT)
2016-06 → 2019-12 ended
NDE180,NRE180,ZRE18# SAP —
90947-W2043 Hose, Flexible, NO.2(FOR FRONT)
2019-12 → —
ZRE182 —
47313P — Gasket(FOR FRONT FLEXIBLE HOSE)
47389-50020 Gasket(FOR FRONT FLEXIBLE HOSE)
2013-06 → 2016-05 ended
NDE180 TUP —
47389-50020 Gasket(FOR FRONT FLEXIBLE HOSE)
2013-06 → 2017-01 ended
NDE180,NRE180,ZRE18# SAP —
47389-50020 Gasket(FOR FRONT FLEXIBLE HOSE)
2016-06 → 2018-08 ended
NRE180 TUP —
47389-50020 Gasket(FOR FRONT FLEXIBLE HOSE)
2016-06 → 2019-01 ended
NDE180,ZRE18# TUP —
47389-50020 Gasket(FOR FRONT FLEXIBLE HOSE)
2016-06 → 2019-12 ended
NDE180,NRE180,ZRE18# SAP —
47389-50020 Gasket(FOR FRONT FLEXIBLE HOSE)
2019-12 → —
ZRE182 —
47314 — Tube, Front Brake, NO.4
47314-02830 Tube, Front Brake, NO.4
2013-06 → 2015-05 ended
NDE180 TUP —
47314-02831 Tube, Front Brake, NO.4
2015-05 → 2016-05 ended
NDE180 TUP —
47314-02850 Tube, Front Brake, NO.4
2014-01 → 2017-01 ended
ZRE18# GEN SAP —
47314-02870 Tube, Front Brake, NO.4
2014-01 → 2017-01 ended
NDE180,NRE180,ZRE18# SA —
47314-02880 note Tube, Front Brake, NO.4
2014-01 → 2017-01 ended
ZRE18# N SA —
47314-02831 Tube, Front Brake, NO.4
2016-06 → 2018-08 ended
NRE180 TUP —
47314-02831 Tube, Front Brake, NO.4
2016-06 → 2019-01 ended
NDE180,ZRE18# GEN TUP —
47314-02B31 Tube, Front Brake, NO.4
2016-06 → 2019-01 ended
ZRE18# GCC —
47314-02C30 note Tube, Front Brake, NO.4
2016-06 → 2018-08 ended
NRE180 TUP —
47314-02C30 note Tube, Front Brake, NO.4
2016-06 → 2019-01 ended
ZRE181 GEN TUP;ZRE182 N +2 —
47314-02D40 Tube, Front Brake, NO.4
2017-01 → 2019-12 ended
ZRE18# GEN SAP —
47314-02D50 Tube, Front Brake, NO.4
2017-01 → 2019-12 ended
NDE180,NRE180,ZRE18# SA —
47314-02D70 note Tube, Front Brake, NO.4
2017-01 → 2019-12 ended
ZRE18# SA —
47314-02D60 Tube, Front Brake, NO.4
2019-12 → —
ZRE182 GEN —
47314-02D70 Tube, Front Brake, NO.4
2019-12 → —
ZRE182 SA —
47316A — Hose, Flexible(FOR REAR BRAKE TUBE)
90947-W2044 Hose, Flexible(FOR REAR BRAKE TUBE)
2013-06 → 2016-05 ended
NDE180 TUP —
90947-W2044 Hose, Flexible(FOR REAR BRAKE TUBE)
2013-06 → 2017-01 ended
NDE180,NRE180,ZRE18# SAP —
90947-W2044 Hose, Flexible(FOR REAR BRAKE TUBE)
2016-06 → 2018-08 ended
NRE180 TUP —
90947-W2044 Hose, Flexible(FOR REAR BRAKE TUBE)
2016-06 → 2019-01 ended
NDE180,ZRE18# TUP —
90947-W2044 Hose, Flexible(FOR REAR BRAKE TUBE)
2016-06 → 2019-12 ended
NDE180,NRE180,ZRE18# SAP —
90947-W2044 Hose, Flexible(FOR REAR BRAKE TUBE)
2019-12 → —
ZRE182 —
47317 — Tube, Front Brake, NO.7
47317-02770 Tube, Front Brake, NO.7
2013-06 → 2015-05 ended
NDE180 TUP —
47317-02771 Tube, Front Brake, NO.7
2015-05 → 2016-05 ended
NDE180 TUP —
47317-02790 Tube, Front Brake, NO.7
2014-01 → 2017-01 ended
ZRE18# GEN SAP —
47317-02810 Tube, Front Brake, NO.7
2014-01 → 2017-01 ended
NDE180,NRE180,ZRE18# SA —
47317-02820 note Tube, Front Brake, NO.7
2014-01 → 2017-01 ended
ZRE18# N SA —
47317-02771 Tube, Front Brake, NO.7
2016-06 → 2018-08 ended
NRE180 TUP —
47317-02771 Tube, Front Brake, NO.7
2016-06 → 2019-01 ended
NDE180,ZRE18# GEN TUP —
47317-02A71 Tube, Front Brake, NO.7
2016-06 → 2019-01 ended
ZRE18# GCC —
47317-02B70 note Tube, Front Brake, NO.7
2016-06 → 2019-01 ended
ZRE181 GEN TUP;ZRE182 N +2 —
47317-02B70 note Tube, Front Brake, NO.7
2016-06 → 2018-08 ended
NRE180 TUP —
47317-02D00 Tube, Front Brake, NO.7
2017-01 → 2019-12 ended
ZRE18# GEN SAP —
47317-02D10 Tube, Front Brake, NO.7
2017-01 → 2019-12 ended
NDE180,NRE180,ZRE18# SA —
47317-02D30 note Tube, Front Brake, NO.7
2017-01 → 2019-12 ended
ZRE18# SA —
47317-02D20 Tube, Front Brake, NO.7
2019-12 → —
ZRE182 GEN —
47317-02D30 Tube, Front Brake, NO.7
2019-12 → —
ZRE182 SA —
47318 — Tube, Front Brake, NO.8
47318-02790 Tube, Front Brake, NO.8
2013-06 → 2015-05 ended
NDE180 TUP —
47318-02791 Tube, Front Brake, NO.8
2015-05 → 2016-05 ended
NDE180 TUP —
47318-02810 Tube, Front Brake, NO.8
2014-01 → 2017-01 ended
ZRE18# GEN SAP —
47318-02830 Tube, Front Brake, NO.8
2014-01 → 2017-01 ended
NDE180,NRE180,ZRE18# SA —
47318-02840 note Tube, Front Brake, NO.8
2014-01 → 2017-01 ended
ZRE18# N SA —
47318-02791 Tube, Front Brake, NO.8
2016-06 → 2018-08 ended
NRE180 TUP —
47318-02791 Tube, Front Brake, NO.8
2016-06 → 2019-01 ended
NDE180,ZRE18# GEN TUP —
47318-02A91 Tube, Front Brake, NO.8
2016-06 → 2019-01 ended
ZRE18# GCC —
47318-02B90 note Tube, Front Brake, NO.8
2016-06 → 2019-01 ended
ZRE181 GEN TUP;ZRE182 N +2 —
47318-02B90 note Tube, Front Brake, NO.8
2016-06 → 2018-08 ended
NRE180 TUP —
47318-02D20 Tube, Front Brake, NO.8
2017-01 → 2019-12 ended
ZRE18# GEN SAP —
47318-02D30 Tube, Front Brake, NO.8
2017-01 → 2019-12 ended
NDE180,NRE180,ZRE18# SA —
47318-02D50 note Tube, Front Brake, NO.8
2017-01 → 2019-12 ended
ZRE18# SA —
47318-02D40 Tube, Front Brake, NO.8
2019-12 → —
ZRE182 GEN —
47318-02D50 Tube, Front Brake, NO.8
2019-12 → —
ZRE182 SA —
47318D — Bolt, Union(FOR REAR FLEXIBLE HOSE)
90401-10058 Bolt, Union(FOR REAR FLEXIBLE HOSE)
2013-06 → 2016-05 ended
NDE180 TUP —
90401-10058 Bolt, Union(FOR REAR FLEXIBLE HOSE)
2013-06 → 2017-01 ended
NDE180,NRE180,ZRE18# SAP —
90401-10058 Bolt, Union(FOR REAR FLEXIBLE HOSE)
2016-06 → 2018-08 ended
NRE180 TUP —
90401-10058 Bolt, Union(FOR REAR FLEXIBLE HOSE)
2016-06 → 2019-01 ended
NDE180,ZRE18# TUP —
90401-10058 Bolt, Union(FOR REAR FLEXIBLE HOSE)
2016-06 → 2019-12 ended
NDE180,NRE180,ZRE18# SAP —
90401-10058 Bolt, Union(FOR REAR FLEXIBLE HOSE)
2019-12 → —
ZRE182 —
47318E — Gasket(FOR REAR FLEXIBLE HOSE)
47389-50020 Gasket(FOR REAR FLEXIBLE HOSE)
2013-06 → 2016-05 ended
NDE180 TUP —
47389-50020 Gasket(FOR REAR FLEXIBLE HOSE)
2013-06 → 2017-01 ended
NDE180,NRE180,ZRE18# SAP —
47389-50020 Gasket(FOR REAR FLEXIBLE HOSE)
2016-06 → 2018-08 ended
NRE180 TUP —
47389-50020 Gasket(FOR REAR FLEXIBLE HOSE)
2016-06 → 2019-01 ended
NDE180,ZRE18# TUP —
47389-50020 Gasket(FOR REAR FLEXIBLE HOSE)
2016-06 → 2019-12 ended
NDE180,NRE180,ZRE18# SAP —
47389-50020 Gasket(FOR REAR FLEXIBLE HOSE)
2019-12 → —
ZRE182 —
47318F — Hose, Flexible(FOR REAR RH)
90947-W2045 Hose, Flexible(FOR REAR RH)
2013-06 → 2016-05 ended
NDE180 TUP —
90947-W2045 Hose, Flexible(FOR REAR RH)
2013-06 → 2017-01 ended
NDE180,NRE180,ZRE18# SAP —
90947-W2045 Hose, Flexible(FOR REAR RH)
2016-06 → 2018-08 ended
NRE180 TUP —
90947-W2045 Hose, Flexible(FOR REAR RH)
2016-06 → 2019-01 ended
NDE180,ZRE18# TUP —
90947-W2045 Hose, Flexible(FOR REAR RH)
2016-06 → 2019-12 ended
NDE180,NRE180,ZRE18# SAP —
90947-W2045 Hose, Flexible(FOR REAR RH)
2019-12 → —
ZRE182 —
47319F — Hose, Flexible(FOR REAR LH)
90947-W2046 Hose, Flexible(FOR REAR LH)
2013-06 → 2016-05 ended
NDE180 TUP —
90947-W2046 Hose, Flexible(FOR REAR LH)
2013-06 → 2017-01 ended
NDE180,NRE180,ZRE18# SAP —
90947-W2046 Hose, Flexible(FOR REAR LH)
2016-06 → 2018-08 ended
NRE180 TUP —
90947-W2046 Hose, Flexible(FOR REAR LH)
2016-06 → 2019-01 ended
NDE180,ZRE18# TUP —
90947-W2046 Hose, Flexible(FOR REAR LH)
2016-06 → 2019-12 ended
NDE180,NRE180,ZRE18# SAP —
90947-W2046 Hose, Flexible(FOR REAR LH)
2019-12 → —
ZRE182 —
47321 — Tube, Rear Brake, NO.1
47321-02410 Tube, Rear Brake, NO.1
2013-06 → 2015-05 ended
NDE180 TUP —
47321-02411 Tube, Rear Brake, NO.1
2015-05 → 2016-05 ended
NDE180 TUP —
47321-02420 Tube, Rear Brake, NO.1
2014-01 → 2017-01 ended
NDE180,NRE180,ZRE18# SAP —
47321-02411 Tube, Rear Brake, NO.1
2016-06 → 2018-08 ended
NRE180 TUP —
47321-02411 Tube, Rear Brake, NO.1
2016-06 → 2019-01 ended
NDE180,ZRE18# TUP —
47321-02610 Tube, Rear Brake, NO.1
2017-01 → 2019-12 ended
NDE180,NRE180,ZRE18# SAP —
47321-02610 Tube, Rear Brake, NO.1
2019-12 → —
ZRE182 —
47322 — Tube, Rear Brake, NO.2
47322-02410 Tube, Rear Brake, NO.2
2013-06 → 2015-05 ended
NDE180 TUP —
47322-02411 Tube, Rear Brake, NO.2
2015-05 → 2016-05 ended
NDE180 TUP —
47322-02420 Tube, Rear Brake, NO.2
2014-01 → 2017-01 ended
NDE180,NRE180,ZRE18# SAP —
47322-02411 Tube, Rear Brake, NO.2
2016-06 → 2018-08 ended
NRE180 TUP —
47322-02411 Tube, Rear Brake, NO.2
2016-06 → 2019-01 ended
NDE180,ZRE18# TUP —
47322-02610 Tube, Rear Brake, NO.2
2017-01 → 2019-12 ended
NDE180,NRE180,ZRE18# SAP —
47322-02610 Tube, Rear Brake, NO.2
2019-12 → —
ZRE182 —
47323 — Tube, Rear Brake, NO.3
47323-02190 Tube, Rear Brake, NO.3
2014-01 → 2017-01 ended
NDE180,NRE180,ZRE18# SAP —
47323-0F020 Tube, Rear Brake, NO.3
2013-06 → 2015-04 ended
NDE180 TUP —
47323-0F030 Tube, Rear Brake, NO.3
2015-05 → 2016-05 ended
NDE180 TUP —
47323-02230 Tube, Rear Brake, NO.3
2017-01 → 2019-12 ended
NDE180,NRE180,ZRE18# SAP —
47323-0F030 Tube, Rear Brake, NO.3
2016-06 → 2018-08 ended
NRE180 TUP —
47323-0F030 Tube, Rear Brake, NO.3
2016-06 → 2019-01 ended
NDE180,ZRE18# TUP —
47323-02230 Tube, Rear Brake, NO.3
2019-12 → —
ZRE182 —
47324 — Tube, Rear Brake, NO.4
47324-02190 Tube, Rear Brake, NO.4
2014-01 → 2017-01 ended
NDE180,NRE180,ZRE18# SAP —
47324-0F020 Tube, Rear Brake, NO.4
2013-06 → 2015-04 ended
NDE180 TUP —
47324-0F030 Tube, Rear Brake, NO.4
2015-05 → 2016-05 ended
NDE180 TUP —
47324-02230 Tube, Rear Brake, NO.4
2017-01 → 2019-12 ended
NDE180,NRE180,ZRE18# SAP —
47324-0F030 Tube, Rear Brake, NO.4
2016-06 → 2018-08 ended
NRE180 TUP —
47324-0F030 Tube, Rear Brake, NO.4
2016-06 → 2019-01 ended
NDE180,ZRE18# TUP —
47324-02230 Tube, Rear Brake, NO.4
2019-12 → —
ZRE182 —
47371A — Clamp, Brake Tube, NO.1
90464-00890 Clamp, Brake Tube, NO.1
2014-01 → 2017-01 ended
NDE180,NRE180,ZRE18# SA —
90464-00892 note Clamp, Brake Tube, NO.1
2014-01 → 2017-01 ended
ZRE18# N SA —
90949-01969 Clamp, Brake Tube, NO.1
2013-06 → 2017-01 ended
ZRE18# GEN SAP —
90949-01969 Clamp, Brake Tube, NO.1
2013-06 → 2015-05 ended
NDE180 TUP —
90949-01D99 Clamp, Brake Tube, NO.1
2015-05 → 2016-05 ended
NDE180 TUP —
90949-01D99 Clamp, Brake Tube, NO.1
2016-06 → 2019-12 ended
ZRE18# GEN SAP —
90949-01D99 Clamp, Brake Tube, NO.1
2016-06 → 2019-01 ended
NDE180,ZRE18# TUP —
90949-01D99 Clamp, Brake Tube, NO.1
2016-06 → 2018-08 ended
NRE180 TUP —
90949-01E17 Clamp, Brake Tube, NO.1
2017-01 → 2019-12 ended
NDE180,NRE180,ZRE18# SA —
90949-01E21 note Clamp, Brake Tube, NO.1
2016-06 → 2018-08 ended
ZRE182 N GEN TUP;NRE180,ZRE181 +2 —
90949-01E22 note Clamp, Brake Tube, NO.1
2017-01 → 2019-12 ended
ZRE18# SA —
90949-01E44 note Clamp, Brake Tube, NO.1
2018-09 → 2019-01 ended
ZRE181 GEN TUP;ZRE182 N +2 —
90949-01E21 Clamp, Brake Tube, NO.1
2019-12 → —
ZRE182 GEN —
90949-01E22 Clamp, Brake Tube, NO.1
2019-12 → —
ZRE182 SA —
47371D — Clamp, Brake Tube, NO.8
90949-01D17 Clamp, Brake Tube, NO.8
2013-06 → 2016-05 ended
NDE180 TUP —
90949-01D17 Clamp, Brake Tube, NO.8
2013-06 → 2017-01 ended
NDE180,NRE180,ZRE18# SAP —
90949-01D17 Clamp, Brake Tube, NO.8
2016-06 → 2019-01 ended
NDE180,ZRE18# TUP —
90949-01D17 Clamp, Brake Tube, NO.8
2016-06 → 2019-12 ended
NDE180,NRE180,ZRE18# SAP —
90949-01D17 Clamp, Brake Tube, NO.8
2016-06 → 2018-08 ended
NRE180 TUP —
90949-01D17 Clamp, Brake Tube, NO.8
2019-12 → —
ZRE182 —
47371E — Clamp, Brake Tube, NO.9
90949-01D29 Clamp, Brake Tube, NO.9
2013-06 → 2016-05 ended
NDE180 TUP —
90949-01D29 Clamp, Brake Tube, NO.9
2013-06 → 2017-01 ended
NDE180,NRE180,ZRE18# SAP —
90949-01D29 Clamp, Brake Tube, NO.9
2016-06 → 2018-08 ended
NRE180 TUP —
90949-01D29 Clamp, Brake Tube, NO.9
2016-06 → 2019-01 ended
NDE180,ZRE18# TUP —
90949-01D29 Clamp, Brake Tube, NO.9
2016-06 → 2019-12 ended
NDE180,NRE180,ZRE18# SAP —
90949-01D29 Clamp, Brake Tube, NO.9
2019-12 → —
ZRE182 —
47371F — Clamp, Brake Tube, NO.10
90461-10843 Clamp, Brake Tube, NO.10
2013-06 → 2016-05 ended
NDE180 TUP —
90461-10843 Clamp, Brake Tube, NO.10
2013-06 → 2017-01 ended
NDE180,NRE180,ZRE18# SAP —
90461-10843 Clamp, Brake Tube, NO.10
2016-06 → 2018-08 ended
NRE180 TUP —
90461-10843 Clamp, Brake Tube, NO.10
2016-06 → 2019-01 ended
NDE180,ZRE18# TUP —
90461-10843 Clamp, Brake Tube, NO.10
2016-06 → 2019-12 ended
NDE180,NRE180,ZRE18# SAP —
90461-10843 Clamp, Brake Tube, NO.10
2019-12 → —
ZRE182 —
47372 — Clamp, Brake Tube, NO.2
90464-00868 Clamp, Brake Tube, NO.2
2013-06 → 2015-05 ended
NDE180 TUP —
90464-00868 Clamp, Brake Tube, NO.2
2013-06 → 2017-01 ended
ZRE18# GEN SAP —
90949-01D43 note Clamp, Brake Tube, NO.2
2014-01 → 2017-01 ended
ZRE18# N SA —
90949-01D45 Clamp, Brake Tube, NO.2
2014-01 → 2017-01 ended
NDE180,NRE180,ZRE18# SA —
90949-01D92 Clamp, Brake Tube, NO.2
2015-05 → 2016-05 ended
NDE180 TUP —
90949-01D45 Clamp, Brake Tube, NO.2
2017-01 → 2019-12 ended
NDE180,NRE180,ZRE18# SA —
90949-01D92 Clamp, Brake Tube, NO.2
2016-06 → 2018-08 ended
NRE180 TUP —
90949-01D92 Clamp, Brake Tube, NO.2
2016-06 → 2019-01 ended
NDE180,ZRE18# TUP —
90949-01D92 Clamp, Brake Tube, NO.2
2016-06 → 2019-12 ended
ZRE18# GEN SAP —
90949-01E20 note Clamp, Brake Tube, NO.2
2017-01 → 2019-12 ended
ZRE18# SA —
90949-01D92 Clamp, Brake Tube, NO.2
2019-12 → —
ZRE182 GEN —
90949-01E20 Clamp, Brake Tube, NO.2
2019-12 → —
ZRE182 SA —
47373B — Clamp, Brake Tube, NO.3
90949-01C82 Clamp, Brake Tube, NO.3
2013-06 → 2015-05 ended
NDE180 TUP —
90949-01C82 Clamp, Brake Tube, NO.3
2014-01 → 2017-01 ended
ZRE18# GEN SAP —
90949-01D32 Clamp, Brake Tube, NO.3
2014-01 → 2017-01 ended
NDE180,NRE180,ZRE18# SA —
90949-01D72 note Clamp, Brake Tube, NO.3
2014-01 → 2017-01 ended
ZRE18# N SA —
90949-01E18 Clamp, Brake Tube, NO.3
2015-05 → 2016-05 ended
NDE180 TUP —
90949-01C82 Clamp, Brake Tube, NO.3
2016-06 → 2018-08 ended
NRE180 TUP —
90949-01C82 Clamp, Brake Tube, NO.3
2016-06 → 2019-12 ended
ZRE18# GEN SAP —
90949-01C82 Clamp, Brake Tube, NO.3
2016-06 → 2019-01 ended
ZRE18# TUP —
90949-01D32 Clamp, Brake Tube, NO.3
2017-01 → 2019-12 ended
NDE180,NRE180,ZRE18# SA —
90949-01E18 Clamp, Brake Tube, NO.3
2016-06 → 2019-01 ended
NDE180 TUP —
90949-01E24 note Clamp, Brake Tube, NO.3
2017-01 → 2019-12 ended
ZRE18# SA —
90949-01C82 Clamp, Brake Tube, NO.3
2019-12 → —
ZRE182 GEN —
90949-01E24 Clamp, Brake Tube, NO.3
2019-12 → —
ZRE182 SA —
47374B — Clamp, Brake Tube, NO.4
90461-10843 Clamp, Brake Tube, NO.4
2013-06 → 2016-05 ended
NDE180 TUP —
90461-10843 Clamp, Brake Tube, NO.4
2013-06 → 2017-01 ended
NDE180,NRE180,ZRE18# SAP —
90461-10843 note Clamp, Brake Tube, NO.4
2014-01 → 2017-01 ended
ZRE18# N SA —
90461-10843 Clamp, Brake Tube, NO.4
2016-06 → 2018-08 ended
NRE180 TUP —
90461-10843 Clamp, Brake Tube, NO.4
2016-06 → 2019-01 ended
NDE180,ZRE18# TUP —
90461-10843 Clamp, Brake Tube, NO.4
2016-06 → 2019-12 ended
NDE180,NRE180,ZRE18# SAP —
90461-10843 Clamp, Brake Tube, NO.4
2019-12 → —
ZRE182 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
