Toyota Corolla
2013-06 → present · chassis NDE180,NRE180,ZRE18#,ZRE21#,ZWE219 · catalogue 164320 · General
Supported model
Data version 2019-11

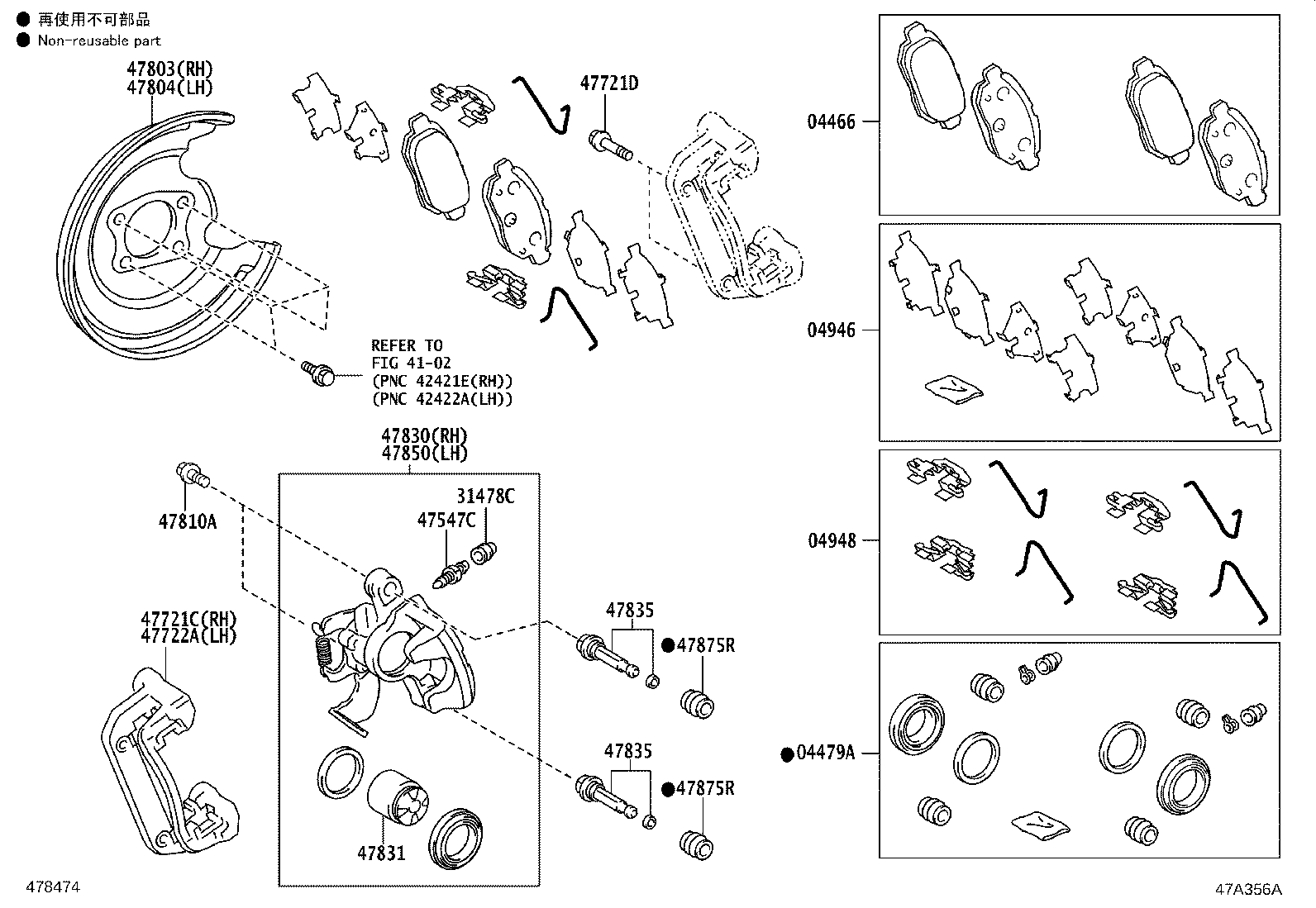

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 04466 — Pad Kit, Disc Brake, Rear | ||||
| 04466-02181 note |
Pad Kit, Disc Brake, Rear
2013-06 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 04466-02181 note |
Pad Kit, Disc Brake, Rear
2013-06 → 2013-11
ended
|
NDE180 | — | |
| 04466-02290 note |
Pad Kit, Disc Brake, Rear
2013-11 → 2015-06
ended
|
NDE180 TUP | — | |
| 04466-02291 note |
Pad Kit, Disc Brake, Rear
2015-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 04466-02291 note |
Pad Kit, Disc Brake, Rear
2016-06 → 2017-01
ended
|
NDE180,NRE180,ZRE18# GEN TUP | — | |
| 04466-02292 note |
Pad Kit, Disc Brake, Rear
2017-02 → 2018-08
ended
|
NRE180 TUP | — | |
| 04466-02292 note |
Pad Kit, Disc Brake, Rear
2017-02 → 2019-01
ended
|
NDE180,ZRE18# GEN TUP | — | |
| 04466-02350 note |
Pad Kit, Disc Brake, Rear
2017-02 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 04466-47080 note |
Pad Kit, Disc Brake, Rear
2016-06 → 2019-01
ended
|
ZRE18# GCC | — | |
| 04466-02350 note |
Pad Kit, Disc Brake, Rear
2019-12 → —
|
ZRE182 | — | |
| 04479A — Cylinder Kit, Disc Brake, Rear | ||||
| 04479-02310 |
Cylinder Kit, Disc Brake, Rear
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 04479-02310 |
Cylinder Kit, Disc Brake, Rear
2013-06 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 04479-02310 |
Cylinder Kit, Disc Brake, Rear
2016-06 → 2019-01
ended
|
NDE180,ZRE18# GEN TUP | — | |
| 04479-02310 |
Cylinder Kit, Disc Brake, Rear
2017-02 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 04479-02310 |
Cylinder Kit, Disc Brake, Rear
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 04479-52170 |
Cylinder Kit, Disc Brake, Rear
2016-06 → 2019-01
ended
|
ZRE18# GCC | — | |
| 04479-02310 |
Cylinder Kit, Disc Brake, Rear
2019-12 → —
|
ZRE182 | — | |
| 04946 — Shim Kit, Anti Squeal(FOR REAR DISC BRAKE) | ||||
| 04946-47070 |
Shim Kit, Anti Squeal(FOR REAR DISC BRAKE)
2016-06 → 2019-01
ended
|
ZRE18# GCC | — | |
| 04948 — Fitting Kit, Disc Brake, Rear | ||||
| 04948-02130 |
Fitting Kit, Disc Brake, Rear
2013-11 → 2016-05
ended
|
NDE180 TUP | — | |
| 04948-02130 |
Fitting Kit, Disc Brake, Rear
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 04948-02130 |
Fitting Kit, Disc Brake, Rear
2016-06 → 2019-01
ended
|
NDE180,ZRE18# GEN TUP | — | |
| 04948-47010 |
Fitting Kit, Disc Brake, Rear
2016-06 → 2019-01
ended
|
ZRE18# GCC | — | |
| 31478C — Cap, Bleeder Plug(FOR REAR DISC BRAKE) | ||||
| 90069-39001 |
Cap, Bleeder Plug(FOR REAR DISC BRAKE)
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 90069-39001 |
Cap, Bleeder Plug(FOR REAR DISC BRAKE)
2013-06 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 31478-52010 |
Cap, Bleeder Plug(FOR REAR DISC BRAKE)
2016-06 → 2019-01
ended
|
ZRE18# GCC | — | |
| 90069-39001 |
Cap, Bleeder Plug(FOR REAR DISC BRAKE)
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 90069-39001 |
Cap, Bleeder Plug(FOR REAR DISC BRAKE)
2016-06 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 90069-39001 |
Cap, Bleeder Plug(FOR REAR DISC BRAKE)
2016-06 → 2019-01
ended
|
NDE180,ZRE18# GEN TUP | — | |
| 90069-39001 |
Cap, Bleeder Plug(FOR REAR DISC BRAKE)
2019-12 → —
|
ZRE182 | — | |
| 47547C — Plug, Bleeder(FOR REAR DISC BRAKE) | ||||
| 90069-39000 |
Plug, Bleeder(FOR REAR DISC BRAKE)
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 90069-39000 |
Plug, Bleeder(FOR REAR DISC BRAKE)
2013-06 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 47847-52050 |
Plug, Bleeder(FOR REAR DISC BRAKE)
2016-06 → 2019-01
ended
|
ZRE18# GCC | — | |
| 90069-39000 |
Plug, Bleeder(FOR REAR DISC BRAKE)
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 90069-39000 |
Plug, Bleeder(FOR REAR DISC BRAKE)
2016-06 → 2019-01
ended
|
NDE180,ZRE18# GEN TUP | — | |
| 90069-39000 |
Plug, Bleeder(FOR REAR DISC BRAKE)
2016-06 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 90069-39000 |
Plug, Bleeder(FOR REAR DISC BRAKE)
2019-12 → —
|
ZRE182 | — | |
| 47721C — Mounting, Rear Disc Brake Cylinder, RH | ||||
| 47821-09020 |
Mounting, Rear Disc Brake Cylinder, RH
2013-06 → 2015-06
ended
|
NDE180 TUP | — | |
| 47821-09020 |
Mounting, Rear Disc Brake Cylinder, RH
2013-06 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 47821-09081 |
Mounting, Rear Disc Brake Cylinder, RH
2015-06 → 2016-02
ended
|
NDE180 TUP | — | |
| 47821-09082 |
Mounting, Rear Disc Brake Cylinder, RH
2016-02 → 2016-05
ended
|
NDE180 TUP | — | |
| 47821-09020 |
Mounting, Rear Disc Brake Cylinder, RH
2017-02 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 47821-09082 |
Mounting, Rear Disc Brake Cylinder, RH
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 47821-09082 |
Mounting, Rear Disc Brake Cylinder, RH
2016-06 → 2019-01
ended
|
NDE180,ZRE18# GEN TUP | — | |
| 47821-12151 |
Mounting, Rear Disc Brake Cylinder, RH
2016-06 → 2019-01
ended
|
ZRE18# GCC | — | |
| 47821-09020 |
Mounting, Rear Disc Brake Cylinder, RH
2019-12 → —
|
ZRE182 | — | |
| 47721D — Bolt(FOR REAR DISC BRAKE CYLINDER MOUTING) | ||||
| 90105-10576 note |
Bolt(FOR REAR DISC BRAKE CYLINDER MOUTING)
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 90105-10576 note |
Bolt(FOR REAR DISC BRAKE CYLINDER MOUTING)
2013-06 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 90105-10576 note |
Bolt(FOR REAR DISC BRAKE CYLINDER MOUTING)
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 90105-10576 note |
Bolt(FOR REAR DISC BRAKE CYLINDER MOUTING)
2016-06 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 90105-10576 note |
Bolt(FOR REAR DISC BRAKE CYLINDER MOUTING)
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 90105-10576 note |
Bolt(FOR REAR DISC BRAKE CYLINDER MOUTING)
2019-12 → —
|
ZRE182 | — | |
| 47722A — Mounting, Rear Disc Brake Cylinder, LH | ||||
| 47822-09020 |
Mounting, Rear Disc Brake Cylinder, LH
2013-06 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 47822-09020 |
Mounting, Rear Disc Brake Cylinder, LH
2013-06 → 2015-06
ended
|
NDE180 TUP | — | |
| 47822-09081 |
Mounting, Rear Disc Brake Cylinder, LH
2015-06 → 2016-02
ended
|
NDE180 TUP | — | |
| 47822-09082 |
Mounting, Rear Disc Brake Cylinder, LH
2016-02 → 2016-05
ended
|
NDE180 TUP | — | |
| 47821-12151 |
Mounting, Rear Disc Brake Cylinder, LH
2016-06 → 2019-01
ended
|
ZRE18# GCC | — | |
| 47822-09020 |
Mounting, Rear Disc Brake Cylinder, LH
2017-02 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 47822-09082 |
Mounting, Rear Disc Brake Cylinder, LH
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 47822-09082 |
Mounting, Rear Disc Brake Cylinder, LH
2016-06 → 2019-01
ended
|
NDE180,ZRE18# GEN TUP | — | |
| 47822-09020 |
Mounting, Rear Disc Brake Cylinder, LH
2019-12 → —
|
ZRE182 | — | |
| 47803 — Cover Sub-assy, Disc Brake Dust, Rear RH | ||||
| 47881-02120 |
Cover Sub-assy, Disc Brake Dust, Rear RH
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 47881-02120 |
Cover Sub-assy, Disc Brake Dust, Rear RH
2013-06 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 47881-02120 |
Cover Sub-assy, Disc Brake Dust, Rear RH
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 47881-02120 |
Cover Sub-assy, Disc Brake Dust, Rear RH
2016-06 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 47881-02120 |
Cover Sub-assy, Disc Brake Dust, Rear RH
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 47881-02120 |
Cover Sub-assy, Disc Brake Dust, Rear RH
2019-12 → —
|
ZRE182 | — | |
| 47804 — Cover Sub-assy, Disc Brake Dust, Rear LH | ||||
| 47882-02120 |
Cover Sub-assy, Disc Brake Dust, Rear LH
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 47882-02120 |
Cover Sub-assy, Disc Brake Dust, Rear LH
2013-06 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 47882-02120 |
Cover Sub-assy, Disc Brake Dust, Rear LH
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 47882-02120 |
Cover Sub-assy, Disc Brake Dust, Rear LH
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 47882-02120 |
Cover Sub-assy, Disc Brake Dust, Rear LH
2016-06 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 47882-02120 |
Cover Sub-assy, Disc Brake Dust, Rear LH
2019-12 → —
|
ZRE182 | — | |
| 47810A — Bolt, Hexagon(FOR REAR CALIPER) | ||||
| 47715-05060 |
Bolt, Hexagon(FOR REAR CALIPER)
2013-06 → 2017-01
ended
|
NDE180;NRE180,ZRE18# SAP | — | |
| 47715-05060 |
Bolt, Hexagon(FOR REAR CALIPER)
2016-06 → 2019-12
ended
|
NDE180,NRE180,ZRE18# GEN,SA | — | |
| 90015-AA102 |
Bolt, Hexagon(FOR REAR CALIPER)
2016-06 → 2019-01
ended
|
ZRE18# GCC | — | |
| 47715-05060 |
Bolt, Hexagon(FOR REAR CALIPER)
2019-12 → —
|
ZRE182 | — | |
| 47830 — Cylinder Assy, Disc Brake, Rear RH | ||||
| 47830-02100 |
Cylinder Assy, Disc Brake, Rear RH
2013-06 → 2015-06
ended
|
NDE180 TUP | — | |
| 47830-02100 |
Cylinder Assy, Disc Brake, Rear RH
2013-06 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 47830-02101 |
Cylinder Assy, Disc Brake, Rear RH
2015-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 47830-02100 |
Cylinder Assy, Disc Brake, Rear RH
2017-01 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 47830-02101 |
Cylinder Assy, Disc Brake, Rear RH
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 47830-02101 |
Cylinder Assy, Disc Brake, Rear RH
2016-06 → 2019-01
ended
|
NDE180,ZRE18# GEN TUP | — | |
| 47830-12250 |
Cylinder Assy, Disc Brake, Rear RH
2016-06 → 2019-01
ended
|
ZRE18# GCC | — | |
| 47830-02100 |
Cylinder Assy, Disc Brake, Rear RH
2019-12 → —
|
ZRE182 | — | |
| 47831 — Piston, Rear Disc Brake | ||||
| 47831-52090 |
Piston, Rear Disc Brake
2016-06 → 2019-01
ended
|
ZRE18# GCC | — | |
| 47835 — Pin, Rear Disc Brake Pad Guide | ||||
| 47835-12150 |
Pin, Rear Disc Brake Pad Guide
2016-06 → 2019-01
ended
|
ZRE18# GCC | — | |
| 47850 — Cylinder Assy, Disc Brake, Rear LH | ||||
| 47850-02100 |
Cylinder Assy, Disc Brake, Rear LH
2013-06 → 2015-06
ended
|
NDE180 TUP | — | |
| 47850-02100 |
Cylinder Assy, Disc Brake, Rear LH
2013-06 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 47850-02101 |
Cylinder Assy, Disc Brake, Rear LH
2015-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 47850-02100 |
Cylinder Assy, Disc Brake, Rear LH
2017-01 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 47850-02101 |
Cylinder Assy, Disc Brake, Rear LH
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 47850-02101 |
Cylinder Assy, Disc Brake, Rear LH
2016-06 → 2019-01
ended
|
NDE180,ZRE18# GEN TUP | — | |
| 47850-12250 |
Cylinder Assy, Disc Brake, Rear LH
2016-06 → 2019-01
ended
|
ZRE18# GCC | — | |
| 47850-02100 |
Cylinder Assy, Disc Brake, Rear LH
2019-12 → —
|
ZRE182 | — | |
| 47875R — Boot, Bush Dust(FOR REAR DISC BRAKE) | ||||
| 47875-12150 |
Boot, Bush Dust(FOR REAR DISC BRAKE)
2016-06 → 2019-01
ended
|
ZRE18# GCC | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
