Toyota Corolla
2013-06 → present · chassis NDE180,NRE180,ZRE18#,ZRE21#,ZWE219 · catalogue 164320 · General
Supported model
Data version 2019-11

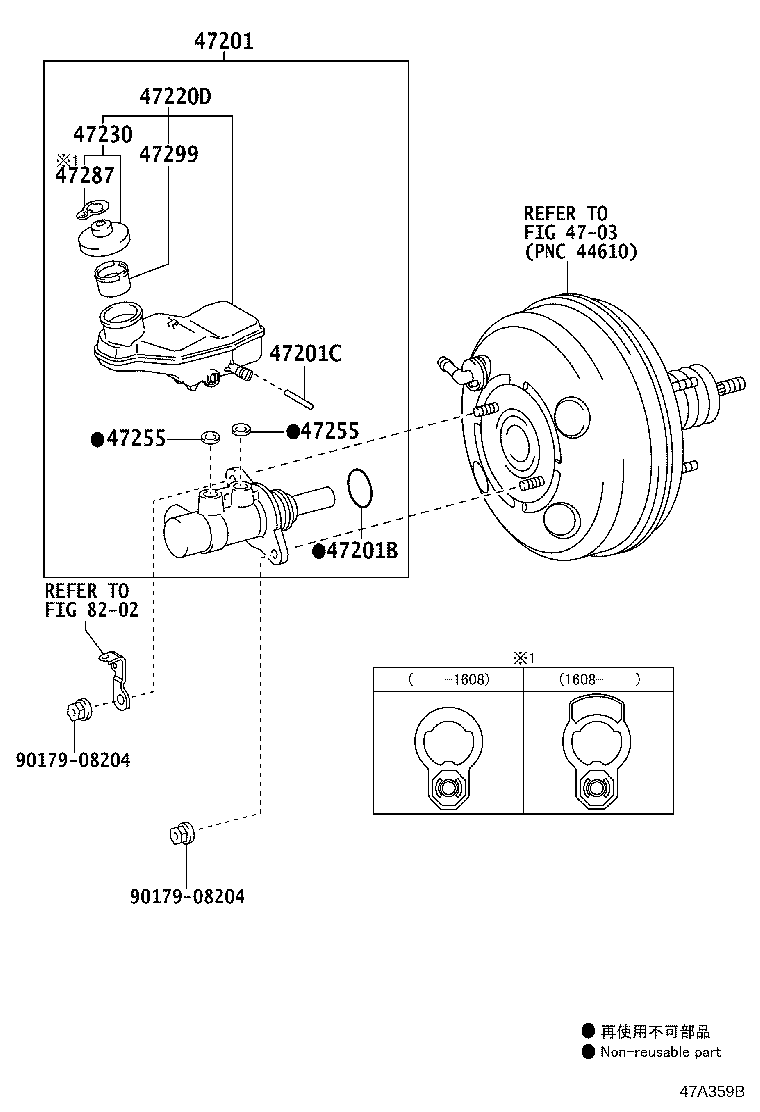

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 47201 — Cylinder Sub-assy, Brake Master | ||||
| 47201-09720 |
Cylinder Sub-assy, Brake Master
2013-06 → 2017-01
ended
|
ZRE18# GEN SAP | — | |
| 47201-09720 |
Cylinder Sub-assy, Brake Master
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 47201-09730 note |
Cylinder Sub-assy, Brake Master
2014-01 → 2017-01
ended
|
ZRE18# N SA | — | |
| 47201-09790 |
Cylinder Sub-assy, Brake Master
2014-01 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SA | — | |
| 47201-09710 note |
Cylinder Sub-assy, Brake Master
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 47201-09710 note |
Cylinder Sub-assy, Brake Master
2016-06 → 2019-01
ended
|
ZRE181 GEN TUP;ZRE182 N +2 | — | |
| 47201-09720 |
Cylinder Sub-assy, Brake Master
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 47201-09720 |
Cylinder Sub-assy, Brake Master
2016-06 → 2019-01
ended
|
NDE180,ZRE18# GEN TUP | — | |
| 47201-09720 |
Cylinder Sub-assy, Brake Master
2016-06 → 2019-12
ended
|
ZRE18# GEN SAP | — | |
| 47201-09730 note |
Cylinder Sub-assy, Brake Master
2017-01 → 2019-12
ended
|
ZRE18# SA | — | |
| 47201-09790 |
Cylinder Sub-assy, Brake Master
2017-01 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SA | — | |
| 47201-12A22 |
Cylinder Sub-assy, Brake Master
2016-06 → 2019-01
ended
|
ZRE18# GCC | — | |
| 47201-09710 |
Cylinder Sub-assy, Brake Master
2019-12 → —
|
ZRE182 GEN | — | |
| 47201-09730 |
Cylinder Sub-assy, Brake Master
2019-12 → —
|
ZRE182 SA | — | |
| 47201B — Ring, O(FOR BRAKE MASTER CYLINDER) | ||||
| 90015-AH002 |
Ring, O(FOR BRAKE MASTER CYLINDER)
2016-06 → 2019-01
ended
|
ZRE18# GCC | — | |
| 47201C — Ring Pin, Brake Master Cylinder | ||||
| 90029-15803 |
Ring Pin, Brake Master Cylinder
2016-06 → 2019-01
ended
|
ZRE18# GCC | — | |
| 47220D — Reservoir Assy, Brake Master Cylinder | ||||
| 47220-09180 |
Reservoir Assy, Brake Master Cylinder
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 47220-09180 |
Reservoir Assy, Brake Master Cylinder
2013-06 → 2017-01
ended
|
ZRE18# GEN SAP | — | |
| 47220-09190 |
Reservoir Assy, Brake Master Cylinder
2014-01 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SA | — | |
| 47220-09090 |
Reservoir Assy, Brake Master Cylinder
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 47220-09090 |
Reservoir Assy, Brake Master Cylinder
2016-06 → 2019-01
ended
|
NDE180,ZRE18# GEN TUP | — | |
| 47220-09180 |
Reservoir Assy, Brake Master Cylinder
2017-01 → 2019-12
ended
|
ZRE18# GEN SAP | — | |
| 47220-09190 |
Reservoir Assy, Brake Master Cylinder
2017-01 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SA | — | |
| 47220-12200 |
Reservoir Assy, Brake Master Cylinder
2016-06 → 2019-01
ended
|
ZRE18# GCC | — | |
| 47220-09090 |
Reservoir Assy, Brake Master Cylinder
2019-12 → —
|
ZRE182 GEN | — | |
| 47220-09190 |
Reservoir Assy, Brake Master Cylinder
2019-12 → —
|
ZRE182 SA | — | |
| 47230 — Cap Assy, Brake Master Cylinder Reservoir Filler | ||||
| 47230-0D010 |
Cap Assy, Brake Master Cylinder Reservoir Filler
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 47230-0D010 |
Cap Assy, Brake Master Cylinder Reservoir Filler
2013-06 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 47230-0D010 |
Cap Assy, Brake Master Cylinder Reservoir Filler
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 47230-0D010 |
Cap Assy, Brake Master Cylinder Reservoir Filler
2016-06 → 2019-01
ended
|
NDE180,ZRE18# GEN TUP | — | |
| 47230-0D010 |
Cap Assy, Brake Master Cylinder Reservoir Filler
2016-06 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 47230-20140 |
Cap Assy, Brake Master Cylinder Reservoir Filler
2016-06 → 2019-01
ended
|
ZRE18# GCC | — | |
| 47230-0D010 |
Cap Assy, Brake Master Cylinder Reservoir Filler
2019-12 → —
|
ZRE182 | — | |
| 47255 — Grommet, Master Cylinder Reservoir | ||||
| 47255-09040 |
Grommet, Master Cylinder Reservoir
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 47255-09040 |
Grommet, Master Cylinder Reservoir
2013-06 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 47255-09040 |
Grommet, Master Cylinder Reservoir
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 47255-09040 |
Grommet, Master Cylinder Reservoir
2016-06 → 2019-01
ended
|
NDE180,ZRE18# GEN TUP | — | |
| 47255-09040 |
Grommet, Master Cylinder Reservoir
2016-06 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 90029-48001 |
Grommet, Master Cylinder Reservoir
2016-06 → 2019-01
ended
|
ZRE18# GCC | — | |
| 47255-09040 |
Grommet, Master Cylinder Reservoir
2019-12 → —
|
ZRE182 | — | |
| 47287 — Label, Brake Fluid Information | ||||
| 47287-02360 |
Label, Brake Fluid Information
2016-08 → 2019-01
ended
|
ZRE18# GCC | — | |
| 47287-20010 |
Label, Brake Fluid Information
2016-06 → 2016-08
ended
|
ZRE18# GCC | — | |
| 47299 — Strainer, Brake Master Cylinder Reservoir | ||||
| 47299-02160 |
Strainer, Brake Master Cylinder Reservoir
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 47299-02160 |
Strainer, Brake Master Cylinder Reservoir
2013-06 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 47299-02160 |
Strainer, Brake Master Cylinder Reservoir
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 47299-02160 |
Strainer, Brake Master Cylinder Reservoir
2016-06 → 2019-01
ended
|
NDE180,ZRE18# GEN TUP | — | |
| 47299-02160 |
Strainer, Brake Master Cylinder Reservoir
2016-06 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 47299-20060 |
Strainer, Brake Master Cylinder Reservoir
2016-06 → 2019-01
ended
|
ZRE18# GCC | — | |
| 47299-02160 |
Strainer, Brake Master Cylinder Reservoir
2019-12 → —
|
ZRE182 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
