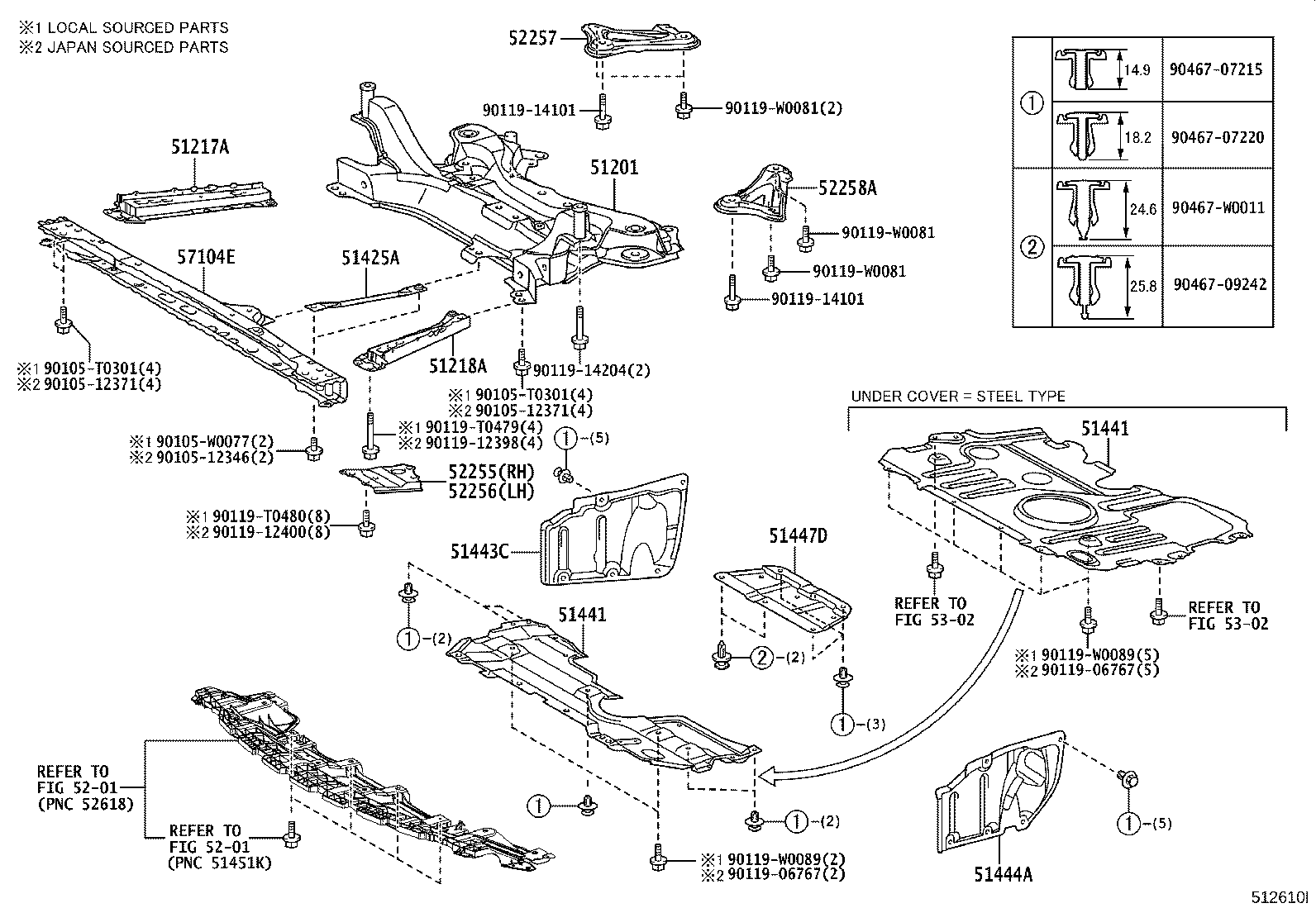

Exploded illustration 512610I 51201 — CROSSMEMBER SUB-ASSY, FRONT SUSPENSION (7 parts) 51217A — REINFORCEMENT, FRONT SUSPENSION MEMBER, RH (7 parts) 51218A — REINFORCEMENT, FRONT SUSPENSION MEMBER, LH (7 parts) 51425A — REINFORCEMENT, ENGINE FRONT MOUNTING BRACKET, LOWER (6 parts) 52255 — BRACE, FRONT SUSPENSION MEMBER, FRONT RH (7 parts) 52256 — BRACE, FRONT SUSPENSION MEMBER, FRONT LH (7 parts) 52257 — BRACE, FRONT SUSPENSION MEMBER, REAR RH (7 parts) 52258A — BRACE, FRONT SUSPENSION MEMBER, REAR LH (7 parts) 90105W0077 — not listed in this catalogue 90119W0081 — not listed in this catalogue 90119W0081 — not listed in this catalogue 9046707215 — not listed in this catalogue 9046707220 — not listed in this catalogue 90467W0011 — not listed in this catalogue 9046709242 — not listed in this catalogue 90119W0081 — not listed in this catalogue 9011914204 — not listed in this catalogue 9011914101 — not listed in this catalogue 9011914101 — not listed in this catalogue 5201 — not listed in this catalogue 5201 — not listed in this catalogue 51441 — COVER, ENGINE UNDER, NO.1 (11 parts) 51447D — COVER, ENGINE UNDER, NO.4 CENTER (6 parts) 51443C — COVER, ENGINE UNDER, REAR RH (6 parts) 51444A — COVER, ENGINE UNDER, REAR LH (6 parts) 90119W0089 — not listed in this catalogue 9011906767 — not listed in this catalogue 90119W0089 — not listed in this catalogue 9011906767 — not listed in this catalogue 9010512346 — not listed in this catalogue 90105T0301 — not listed in this catalogue 9010512371 — not listed in this catalogue 90105T0301 — not listed in this catalogue 9010512371 — not listed in this catalogue 90119T0479 — not listed in this catalogue 9011912398 — not listed in this catalogue 90119T0480 — not listed in this catalogue 9011912400 — not listed in this catalogue 57104E — MEMBER SUB-ASSY, FRONT CROSS (6 parts) 5302 — not listed in this catalogue 5302 — not listed in this catalogue 51441 — COVER, ENGINE UNDER, NO.1 (11 parts)
512610I · 14 callouts, 28 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
90 parts on this figure
Part number Description Fitment Price
51201 — Crossmember Sub-assy, Front Suspension
51201-02101 Crossmember Sub-assy, Front Suspension
2013-06 → 2013-07 ended
NDE180 —
51201-02102 Crossmember Sub-assy, Front Suspension
2013-08 → 2016-05 ended
NDE180 TUP —
51201-02122 Crossmember Sub-assy, Front Suspension
2014-01 → 2017-01 ended
NDE180,NRE180,ZRE18# SAP —
51201-02102 Crossmember Sub-assy, Front Suspension
2016-06 → 2018-08 ended
NRE180 TUP —
51201-02102 Crossmember Sub-assy, Front Suspension
2016-06 → 2019-01 ended
NDE180,ZRE18# TUP —
51201-02122 Crossmember Sub-assy, Front Suspension
2017-01 → 2019-12 ended
NDE180,NRE180,ZRE18# SAP —
51201-02122 Crossmember Sub-assy, Front Suspension
2019-12 → —
ZRE182 —
51217A — Reinforcement, Front Suspension Member, RH
51107-02010 Reinforcement, Front Suspension Member, RH
2013-06 → 2016-05 ended
NDE180 TUP —
51107-02020 Reinforcement, Front Suspension Member, RH
2014-01 → 2017-01 ended
NDE180,NRE180,ZRE18# SAP —
51107-02010 Reinforcement, Front Suspension Member, RH
2016-06 → 2018-08 ended
NRE180 TUP —
51107-02010 Reinforcement, Front Suspension Member, RH
2016-06 → 2019-01 ended
NDE180,ZRE18# TUP —
51107-02020 Reinforcement, Front Suspension Member, RH
2017-01 → 2019-06 ended
NDE180,NRE180,ZRE18# SAP —
51107-02021 Reinforcement, Front Suspension Member, RH
2019-07 → 2019-12 ended
NDE180,NRE180,ZRE18# —
51107-02021 Reinforcement, Front Suspension Member, RH
2019-12 → —
ZRE182 —
51218A — Reinforcement, Front Suspension Member, LH
51108-02010 Reinforcement, Front Suspension Member, LH
2013-06 → 2016-05 ended
NDE180 TUP —
51108-02020 Reinforcement, Front Suspension Member, LH
2014-01 → 2017-01 ended
NDE180,NRE180,ZRE18# SAP —
51108-02010 Reinforcement, Front Suspension Member, LH
2016-06 → 2018-08 ended
NRE180 TUP —
51108-02010 Reinforcement, Front Suspension Member, LH
2016-06 → 2019-01 ended
NDE180,ZRE18# TUP —
51108-02020 Reinforcement, Front Suspension Member, LH
2017-01 → 2019-06 ended
NDE180,NRE180,ZRE18# SAP —
51108-02021 Reinforcement, Front Suspension Member, LH
2019-07 → 2019-12 ended
NDE180,NRE180,ZRE18# —
51108-02021 Reinforcement, Front Suspension Member, LH
2019-12 → —
ZRE182 —
51425A — Reinforcement, Engine Front Mounting Bracket, Lower
51425-02010 Reinforcement, Engine Front Mounting Bracket, Lower
2013-06 → 2016-05 ended
NDE180 TUP —
51425-02020 Reinforcement, Engine Front Mounting Bracket, Lower
2014-01 → 2017-01 ended
NDE180,NRE180,ZRE18# SAP —
51425-02010 Reinforcement, Engine Front Mounting Bracket, Lower
2016-06 → 2019-01 ended
NDE180,ZRE18# TUP —
51425-02010 Reinforcement, Engine Front Mounting Bracket, Lower
2016-06 → 2018-08 ended
NRE180 TUP —
51425-02020 Reinforcement, Engine Front Mounting Bracket, Lower
2017-01 → 2019-12 ended
NDE180,NRE180,ZRE18# SAP —
51425-02020 Reinforcement, Engine Front Mounting Bracket, Lower
2019-12 → —
ZRE182 —
51441 — Cover, Engine Under, NO.1
51408-02070 note Cover, Engine Under, NO.1
2014-01 → 2017-01 ended
NRE180,ZRE18# SAP —
51441-02220 Cover, Engine Under, NO.1
2013-06 → 2016-05 ended
NDE180 TUP —
51441-02240 Cover, Engine Under, NO.1
2014-01 → 2017-01 ended
NDE180,NRE180,ZRE18# SAP —
51408-02050 note Cover, Engine Under, NO.1
2016-06 → 2018-08 ended
NRE180 TUP —
51408-02050 note Cover, Engine Under, NO.1
2016-06 → 2019-01 ended
ZRE18# TUP —
51408-02070 note Cover, Engine Under, NO.1
2017-01 → 2019-12 ended
NRE180,ZRE18# SAP —
51441-02220 Cover, Engine Under, NO.1
2016-06 → 2018-08 ended
NRE180 TUP —
51441-02220 Cover, Engine Under, NO.1
2016-06 → 2019-01 ended
NDE180,ZRE18# TUP —
51441-02240 Cover, Engine Under, NO.1
2017-01 → 2019-12 ended
NDE180,NRE180,ZRE18# SAP —
51408-02070 note Cover, Engine Under, NO.1
2019-12 → —
ZRE182 —
51441-02240 Cover, Engine Under, NO.1
2019-12 → —
ZRE182 —
51443C — Cover, Engine Under, Rear RH
51443-02050 Cover, Engine Under, Rear RH
2013-06 → 2016-05 ended
NDE180 TUP —
51443-02060 Cover, Engine Under, Rear RH
2014-01 → 2017-01 ended
NDE180,NRE180,ZRE18# SAP —
51443-02050 Cover, Engine Under, Rear RH
2016-06 → 2018-08 ended
NRE180 TUP —
51443-02050 Cover, Engine Under, Rear RH
2016-06 → 2019-01 ended
NDE180,ZRE18# TUP —
51443-02060 Cover, Engine Under, Rear RH
2017-01 → 2019-12 ended
NDE180,NRE180,ZRE18# SAP —
51443-02060 Cover, Engine Under, Rear RH
2019-12 → —
ZRE182 —
51444A — Cover, Engine Under, Rear LH
51444-02041 Cover, Engine Under, Rear LH
2013-06 → 2016-05 ended
NDE180 TUP —
51444-02050 Cover, Engine Under, Rear LH
2014-01 → 2017-01 ended
NDE180,NRE180,ZRE18# SAP —
51444-02041 Cover, Engine Under, Rear LH
2016-06 → 2019-01 ended
NDE180,ZRE18# TUP —
51444-02041 Cover, Engine Under, Rear LH
2016-06 → 2018-08 ended
NRE180 TUP —
51444-02050 Cover, Engine Under, Rear LH
2017-01 → 2019-12 ended
NDE180,NRE180,ZRE18# SAP —
51444-02050 Cover, Engine Under, Rear LH
2019-12 → —
ZRE182 —
51447D — Cover, Engine Under, NO.4 Center
51447-02010 Cover, Engine Under, NO.4 Center
2013-06 → 2016-05 ended
NDE180 TUP —
51447-02020 Cover, Engine Under, NO.4 Center
2014-01 → 2017-01 ended
NDE180,NRE180,ZRE18# SAP —
51447-02010 Cover, Engine Under, NO.4 Center
2016-06 → 2018-08 ended
NRE180 TUP —
51447-02010 Cover, Engine Under, NO.4 Center
2016-06 → 2019-01 ended
NDE180,ZRE18# TUP —
51447-02020 Cover, Engine Under, NO.4 Center
2017-01 → 2019-12 ended
NDE180,NRE180,ZRE18# SAP —
51447-02020 Cover, Engine Under, NO.4 Center
2019-12 → —
ZRE182 —
52255 — Brace, Front Suspension Member, Front RH
52255-02010 Brace, Front Suspension Member, Front RH
2013-06 → 2016-05 ended
NDE180 TUP —
52255-02020 Brace, Front Suspension Member, Front RH
2014-01 → 2017-01 ended
NDE180,NRE180,ZRE18# SAP —
52255-02010 Brace, Front Suspension Member, Front RH
2016-06 → 2018-08 ended
NRE180 TUP —
52255-02010 Brace, Front Suspension Member, Front RH
2016-06 → 2019-01 ended
NDE180,ZRE18# TUP —
52255-02020 Brace, Front Suspension Member, Front RH
2017-01 → 2019-06 ended
NDE180,NRE180,ZRE18# SAP —
52255-02021 Brace, Front Suspension Member, Front RH
2019-07 → 2019-12 ended
NDE180,NRE180,ZRE18# —
52255-02021 Brace, Front Suspension Member, Front RH
2019-12 → —
ZRE182 —
52256 — Brace, Front Suspension Member, Front LH
52256-02010 Brace, Front Suspension Member, Front LH
2013-06 → 2016-05 ended
NDE180 TUP —
52256-02020 Brace, Front Suspension Member, Front LH
2014-01 → 2017-01 ended
NDE180,NRE180,ZRE18# SAP —
52256-02010 Brace, Front Suspension Member, Front LH
2016-06 → 2018-08 ended
NRE180 TUP —
52256-02010 Brace, Front Suspension Member, Front LH
2016-06 → 2019-01 ended
NDE180,ZRE18# TUP —
52256-02020 Brace, Front Suspension Member, Front LH
2017-01 → 2019-06 ended
NDE180,NRE180,ZRE18# SAP —
52256-02021 Brace, Front Suspension Member, Front LH
2019-07 → 2019-12 ended
NDE180,NRE180,ZRE18# —
52256-02021 Brace, Front Suspension Member, Front LH
2019-12 → —
ZRE182 —
52257 — Brace, Front Suspension Member, Rear RH
52257-02060 Brace, Front Suspension Member, Rear RH
2013-06 → 2016-05 ended
NDE180 TUP —
52257-02070 Brace, Front Suspension Member, Rear RH
2014-01 → 2017-01 ended
NDE180,NRE180,ZRE18# SAP —
52257-02060 Brace, Front Suspension Member, Rear RH
2016-06 → 2018-08 ended
NRE180 TUP —
52257-02060 Brace, Front Suspension Member, Rear RH
2016-06 → 2019-01 ended
NDE180,ZRE18# TUP —
52257-02070 Brace, Front Suspension Member, Rear RH
2017-01 → 2019-06 ended
NDE180,NRE180,ZRE18# SAP —
52257-02071 Brace, Front Suspension Member, Rear RH
2019-07 → 2019-12 ended
NDE180,NRE180,ZRE18# —
52257-02071 Brace, Front Suspension Member, Rear RH
2019-12 → —
ZRE182 —
52258A — Brace, Front Suspension Member, Rear LH
52258-02060 Brace, Front Suspension Member, Rear LH
2013-06 → 2016-05 ended
NDE180 TUP —
52258-02070 Brace, Front Suspension Member, Rear LH
2014-01 → 2017-01 ended
NDE180,NRE180,ZRE18# SAP —
52258-02060 Brace, Front Suspension Member, Rear LH
2016-06 → 2018-08 ended
NRE180 TUP —
52258-02060 Brace, Front Suspension Member, Rear LH
2016-06 → 2019-01 ended
NDE180,ZRE18# TUP —
52258-02070 Brace, Front Suspension Member, Rear LH
2017-01 → 2019-06 ended
NDE180,NRE180,ZRE18# SAP —
52258-02071 Brace, Front Suspension Member, Rear LH
2019-07 → 2019-12 ended
NDE180,NRE180,ZRE18# —
52258-02071 Brace, Front Suspension Member, Rear LH
2019-12 → —
ZRE182 —
57104E — Member Sub-assy, Front Cross
57104-02250 Member Sub-assy, Front Cross
2013-06 → 2016-05 ended
NDE180 TUP —
57104-47020 Member Sub-assy, Front Cross
2014-01 → 2017-01 ended
NDE180,NRE180,ZRE18# SAP —
57104-02250 Member Sub-assy, Front Cross
2016-06 → 2018-08 ended
NRE180 TUP —
57104-02250 Member Sub-assy, Front Cross
2016-06 → 2019-01 ended
NDE180,ZRE18# TUP —
57104-47020 Member Sub-assy, Front Cross
2017-01 → 2019-12 ended
NDE180,NRE180,ZRE18# SAP —
57104-47020 Member Sub-assy, Front Cross
2019-12 → —
ZRE182 —
