Toyota Corolla
2013-06 → present · chassis NDE180,NRE180,ZRE18#,ZRE21#,ZWE219 · catalogue 164320 · General
Supported model
Data version 2019-11

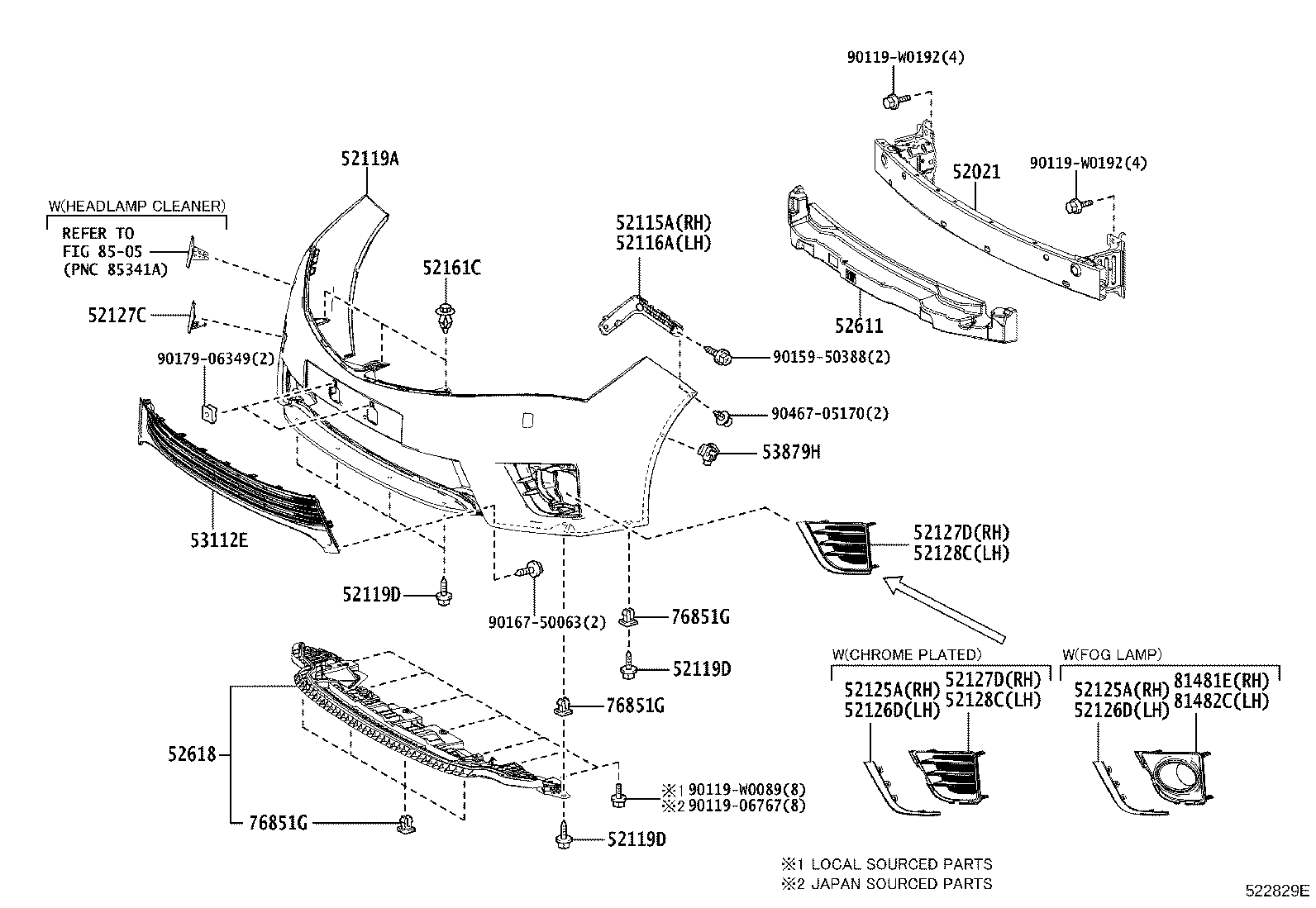

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 52021 — Reinforcement Sub-assy, Front Bumper | ||||
| 52021-02230 |
Reinforcement Sub-assy, Front Bumper
2013-06 → 2013-11
ended
|
NDE180 | — | |
| 52021-02310 |
Reinforcement Sub-assy, Front Bumper
2013-12 → 2016-05
ended
|
NDE180 TUP | — | |
| 52021-02310 |
Reinforcement Sub-assy, Front Bumper
2013-12 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 52021-02310 |
Reinforcement Sub-assy, Front Bumper
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 52021-02310 |
Reinforcement Sub-assy, Front Bumper
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 52021-02310 |
Reinforcement Sub-assy, Front Bumper
2016-06 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 52021-02310 |
Reinforcement Sub-assy, Front Bumper
2019-12 → —
|
ZRE182 | — | |
| 52115A — Support, Front Bumper Side, RH | ||||
| 52115-02250 |
Support, Front Bumper Side, RH
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 52115-02250 |
Support, Front Bumper Side, RH
2013-06 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 52115-02360 |
Support, Front Bumper Side, RH
2016-06 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 52115-02360 |
Support, Front Bumper Side, RH
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 52115-02360 |
Support, Front Bumper Side, RH
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 52115-02360 |
Support, Front Bumper Side, RH
2019-12 → —
|
ZRE182 | — | |
| 52116A — Support, Front Bumper Side, LH | ||||
| 52116-02250 |
Support, Front Bumper Side, LH
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 52116-02250 |
Support, Front Bumper Side, LH
2013-06 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 52116-02350 |
Support, Front Bumper Side, LH
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 52116-02350 |
Support, Front Bumper Side, LH
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 52116-02350 |
Support, Front Bumper Side, LH
2016-06 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 52116-02350 |
Support, Front Bumper Side, LH
2019-12 → —
|
ZRE182 | — | |
| 52119A — Cover, Front Bumper | ||||
| 52119-0Z927 note |
Cover, Front Bumper
2013-06 → 2016-03
ended
|
NDE180 TUP | — | |
| 52119-0Z928 note |
Cover, Front Bumper
2015-05 → 2016-03
ended
|
NDE180 D TUP | — | |
| 52119-0Z928 note |
Cover, Front Bumper
2013-06 → 2016-03
ended
|
NDE180 N TUP | — | |
| 52119-0Z928 note |
Cover, Front Bumper
2013-06 → 2016-03
ended
|
NDE180 TUP | — | |
| 52119-0Z931 note |
Cover, Front Bumper
2014-01 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 52119-0Z932 note |
Cover, Front Bumper
2014-01 → 2017-01
ended
|
NDE180,NRE180,ZRE18# N SAP | — | |
| 52119-0Z932 note |
Cover, Front Bumper
2014-01 → 2017-01
ended
|
NDE180,NRE180,ZRE18# N SAP | — | |
| 52119-0Z989 note |
Cover, Front Bumper
2016-03 → 2016-05
ended
|
NDE180 TUP | — | |
| 52119-0Z991 note |
Cover, Front Bumper
2016-03 → 2016-05
ended
|
NDE180 TUP | — | |
| 52119-0Z991 note |
Cover, Front Bumper
2016-03 → 2016-05
ended
|
NDE180 TUP | — | |
| 52119-0Z970 note |
Cover, Front Bumper
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 52119-0Z970 note |
Cover, Front Bumper
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 52119-0Z971 note |
Cover, Front Bumper
2016-06 → 2019-01
ended
|
NDE180,ZRE18# N TUP | — | |
| 52119-0Z971 note |
Cover, Front Bumper
2016-06 → 2019-01
ended
|
NDE180 TUP;ZRE18# N TUP;ZRE18# +2 | — | |
| 52119-0Z971 note |
Cover, Front Bumper
2016-06 → 2018-08
ended
|
NRE180 N TUP | — | |
| 52119-0Z971 note |
Cover, Front Bumper
2016-06 → 2018-08
ended
|
NRE180 N TUP | — | |
| 52119-0Z972 note |
Cover, Front Bumper
2016-06 → 2019-01
ended
|
NDE180,ZRE18# N TUP | — | |
| 52119-0Z972 note |
Cover, Front Bumper
2016-06 → 2019-01
ended
|
NDE180,ZRE18# N TUP | — | |
| 52119-0Z972 note |
Cover, Front Bumper
2016-06 → 2018-08
ended
|
NRE180 N TUP | — | |
| 52119-0Z972 note |
Cover, Front Bumper
2016-06 → 2018-08
ended
|
NRE180 N TUP | — | |
| 52119-0Z973 note |
Cover, Front Bumper
2016-06 → 2019-01
ended
|
ZRE18# CVT N GEN +1 | — | |
| 52119-0Z973 note |
Cover, Front Bumper
2016-06 → 2019-01
ended
|
ZRE18# CVT N GEN +1 | — | |
| 52119-0Z973 note |
Cover, Front Bumper
2016-06 → 2016-08
ended
|
ZRE18# N GCC | — | |
| 52119-0Z973 note |
Cover, Front Bumper
2016-06 → 2016-08
ended
|
ZRE18# N GCC | — | |
| 52119-0Z974 note |
Cover, Front Bumper
2016-06 → 2019-01
ended
|
NDE180,ZRE18# N TUP | — | |
| 52119-0Z974 note |
Cover, Front Bumper
2016-06 → 2019-01
ended
|
NDE180,ZRE18# N TUP | — | |
| 52119-0Z974 note |
Cover, Front Bumper
2016-06 → 2018-08
ended
|
NRE180 N TUP | — | |
| 52119-0Z974 note |
Cover, Front Bumper
2016-06 → 2018-08
ended
|
NRE180 N TUP | — | |
| 52119-0Z975 note |
Cover, Front Bumper
2016-06 → 2016-08
ended
|
ZRE18# N GCC | — | |
| 52119-0Z975 note |
Cover, Front Bumper
2016-06 → 2016-08
ended
|
ZRE18# N GCC | — | |
| 52119-0Z975 note |
Cover, Front Bumper
2016-06 → 2019-01
ended
|
ZRE18# CVT N GEN +1 | — | |
| 52119-0Z975 note |
Cover, Front Bumper
2016-06 → 2019-01
ended
|
ZRE18# CVT N GEN +1 | — | |
| 52119-0Z976 note |
Cover, Front Bumper
2017-01 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 52119-0Z976 note |
Cover, Front Bumper
2019-12 → —
|
ZRE182 | — | |
| 52119D — Screw, NO.1 | ||||
| 90159-60488 |
Screw, NO.1
2013-06 → 2017-01
ended
|
NDE180;NRE180,ZRE18# SAP | — | |
| 90159-60488 |
Screw, NO.1
2016-06 → 2019-12
ended
|
NDE180,NRE180,ZRE18# | — | |
| 90159-60488 |
Screw, NO.1
2019-12 → —
|
ZRE182 | — | |
| 52125A — Bracket, Fog Lamp Mounting, RH | ||||
| 52125-02150 note |
Bracket, Fog Lamp Mounting, RH
2015-05 → 2016-05
ended
|
NDE180 D TUP | — | |
| 52125-02150 |
Bracket, Fog Lamp Mounting, RH
2013-06 → 2017-01
ended
|
NDE180,NRE180,ZRE18# N SAP | — | |
| 52125-02150 note |
Bracket, Fog Lamp Mounting, RH
2015-05 → 2016-05
ended
|
NDE180 D TUP | — | |
| 52125-02150 |
Bracket, Fog Lamp Mounting, RH
2013-06 → 2016-05
ended
|
NDE180 N TUP | — | |
| 52126D — Bracket, Fog Lamp Mounting, LH | ||||
| 52126-02140 |
Bracket, Fog Lamp Mounting, LH
2013-06 → 2016-05
ended
|
NDE180 N TUP | — | |
| 52126-02140 note |
Bracket, Fog Lamp Mounting, LH
2015-05 → 2016-05
ended
|
NDE180 D TUP | — | |
| 52126-02140 note |
Bracket, Fog Lamp Mounting, LH
2015-05 → 2016-05
ended
|
NDE180 D TUP | — | |
| 52126-02140 |
Bracket, Fog Lamp Mounting, LH
2013-06 → 2017-01
ended
|
NDE180,NRE180,ZRE18# N SAP | — | |
| 52127C — Cover, Front Bumper Hole | ||||
| 52127-02921 |
Cover, Front Bumper Hole
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 52127-02921 |
Cover, Front Bumper Hole
2013-06 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 52127-02930 |
Cover, Front Bumper Hole
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 52127-02930 |
Cover, Front Bumper Hole
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 52127-02930 |
Cover, Front Bumper Hole
2016-06 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 52127-02930 |
Cover, Front Bumper Hole
2019-12 → —
|
ZRE182 | — | |
| 52127D — Cover, Front Bumper Hole, RH | ||||
| 81481-02370 |
Cover, Front Bumper Hole, RH
2013-06 → 2016-05
ended
|
NDE180 D TUP | — | |
| 81481-02370 |
Cover, Front Bumper Hole, RH
2013-06 → 2017-01
ended
|
NDE180,NRE180,ZRE18# D SAP | — | |
| 81481-02420 |
Cover, Front Bumper Hole, RH
2013-06 → 2017-01
ended
|
NDE180,NRE180,ZRE18# N SAP | — | |
| 81481-02420 |
Cover, Front Bumper Hole, RH
2013-06 → 2016-05
ended
|
NDE180 N TUP | — | |
| 81481-02610 |
Cover, Front Bumper Hole, RH
2016-06 → 2018-08
ended
|
NRE180 D TUP | — | |
| 81481-02610 |
Cover, Front Bumper Hole, RH
2016-06 → 2019-01
ended
|
NDE180,ZRE18# D TUP | — | |
| 81481-02610 |
Cover, Front Bumper Hole, RH
2016-06 → 2019-12
ended
|
NDE180,NRE180,ZRE18# D SAP | — | |
| 81481-02620 |
Cover, Front Bumper Hole, RH
2016-06 → 2018-08
ended
|
NRE180 N TUP | — | |
| 81481-02620 |
Cover, Front Bumper Hole, RH
2016-06 → 2019-01
ended
|
NDE180,ZRE18# N TUP | — | |
| 81481-02650 |
Cover, Front Bumper Hole, RH
2017-01 → 2019-12
ended
|
NDE180,NRE180,ZRE18# N SAP | — | |
| 81481-02610 |
Cover, Front Bumper Hole, RH
2019-12 → —
|
ZRE182 D,N | — | |
| 81481-02C20-A0 note |
Cover, Front Bumper Hole, RH
2019-12 → —
|
ZRE182 G | — | |
| 81481-02C20-B0 note |
Cover, Front Bumper Hole, RH
2019-12 → —
|
ZRE182 G | — | |
| 81481-02C20-B1 note |
Cover, Front Bumper Hole, RH
2019-12 → —
|
ZRE182 G | — | |
| 81481-02C20-C0 note |
Cover, Front Bumper Hole, RH
2019-12 → —
|
ZRE182 G | — | |
| 81481-02C20-D0 note |
Cover, Front Bumper Hole, RH
2019-12 → —
|
ZRE182 G | — | |
| 81481-02C20-G0 note |
Cover, Front Bumper Hole, RH
2021-01 → —
|
ZRE182 G | — | |
| 81481-02C20-J0 note |
Cover, Front Bumper Hole, RH
2019-12 → —
|
ZRE182 G | — | |
| 52128C — Cover, Front Bumper Hole, LH | ||||
| 81482-02360 |
Cover, Front Bumper Hole, LH
2013-06 → 2016-05
ended
|
NDE180 D TUP | — | |
| 81482-02360 |
Cover, Front Bumper Hole, LH
2013-06 → 2017-01
ended
|
NDE180,NRE180,ZRE18# D SAP | — | |
| 81482-02410 |
Cover, Front Bumper Hole, LH
2013-06 → 2016-05
ended
|
NDE180 N TUP | — | |
| 81482-02410 |
Cover, Front Bumper Hole, LH
2013-06 → 2017-01
ended
|
NDE180,NRE180,ZRE18# N SAP | — | |
| 81482-02600 |
Cover, Front Bumper Hole, LH
2016-06 → 2018-08
ended
|
NRE180 D TUP | — | |
| 81482-02600 |
Cover, Front Bumper Hole, LH
2016-06 → 2019-01
ended
|
NDE180,ZRE18# D TUP | — | |
| 81482-02600 |
Cover, Front Bumper Hole, LH
2016-06 → 2019-12
ended
|
NDE180,NRE180,ZRE18# D SAP | — | |
| 81482-02610 |
Cover, Front Bumper Hole, LH
2016-06 → 2018-08
ended
|
NRE180 N TUP | — | |
| 81482-02610 |
Cover, Front Bumper Hole, LH
2016-06 → 2019-01
ended
|
NDE180,ZRE18# N TUP | — | |
| 81482-02640 |
Cover, Front Bumper Hole, LH
2017-01 → 2019-12
ended
|
NDE180,NRE180,ZRE18# N SAP | — | |
| 81482-02600 |
Cover, Front Bumper Hole, LH
2019-12 → —
|
ZRE182 D,N | — | |
| 81482-02C20-A0 note |
Cover, Front Bumper Hole, LH
2019-12 → —
|
ZRE182 G | — | |
| 81482-02C20-B0 note |
Cover, Front Bumper Hole, LH
2019-12 → —
|
ZRE182 G | — | |
| 81482-02C20-B1 note |
Cover, Front Bumper Hole, LH
2019-12 → —
|
ZRE182 G | — | |
| 81482-02C20-C0 note |
Cover, Front Bumper Hole, LH
2019-12 → —
|
ZRE182 G | — | |
| 81482-02C20-D0 note |
Cover, Front Bumper Hole, LH
2019-12 → —
|
ZRE182 G | — | |
| 81482-02C20-G0 note |
Cover, Front Bumper Hole, LH
2021-01 → —
|
ZRE182 G | — | |
| 81482-02C20-J0 note |
Cover, Front Bumper Hole, LH
2019-12 → —
|
ZRE182 G | — | |
| 52161C — Piece, Front Bumper | ||||
| 52161-02030 |
Piece, Front Bumper
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 52161-0K040 note |
Piece, Front Bumper
2014-01 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 52161-16010 note |
Piece, Front Bumper
2014-01 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 52161-02030 |
Piece, Front Bumper
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 52161-02030 |
Piece, Front Bumper
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 52161-0K040 note |
Piece, Front Bumper
2017-01 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 52161-16010 note |
Piece, Front Bumper
2017-01 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 52161-0K040 note |
Piece, Front Bumper
2019-12 → —
|
ZRE182 | — | |
| 52161-16010 note |
Piece, Front Bumper
2019-12 → —
|
ZRE182 | — | |
| 52611 — Absorber, Front Bumper Energy | ||||
| 52611-02290 |
Absorber, Front Bumper Energy
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 52611-02300 |
Absorber, Front Bumper Energy
2014-01 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 52611-02390 |
Absorber, Front Bumper Energy
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 52611-02390 |
Absorber, Front Bumper Energy
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 52611-02400 |
Absorber, Front Bumper Energy
2017-01 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 52611-02400 |
Absorber, Front Bumper Energy
2019-12 → —
|
ZRE182 | — | |
| 52618 — Absorber, Front Bumper, Lower | ||||
| 52618-02070 |
Absorber, Front Bumper, Lower
2013-06 → 2015-11
ended
|
NDE180 TUP | — | |
| 52618-02071 |
Absorber, Front Bumper, Lower
2015-12 → 2016-05
ended
|
NDE180 TUP | — | |
| 52618-02080 |
Absorber, Front Bumper, Lower
2014-01 → 2015-11
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 52618-02081 |
Absorber, Front Bumper, Lower
2015-12 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 52618-02071 |
Absorber, Front Bumper, Lower
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 52618-02071 |
Absorber, Front Bumper, Lower
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 52618-02082 |
Absorber, Front Bumper, Lower
2017-01 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 52618-02082 |
Absorber, Front Bumper, Lower
2019-12 → —
|
ZRE182 | — | |
| 53112E — Grille, Radiator, Lower NO.1 | ||||
| 53112-02470 note |
Grille, Radiator, Lower NO.1
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 53112-02470 note |
Grille, Radiator, Lower NO.1
2013-06 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 53112-02690 note |
Grille, Radiator, Lower NO.1
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 53112-02690 note |
Grille, Radiator, Lower NO.1
2016-06 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 53112-02690 note |
Grille, Radiator, Lower NO.1
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 53112-02720 note |
Grille, Radiator, Lower NO.1
2017-01 → 2019-12
ended
|
NDE180,NRE180,ZRE18# N SAP | — | |
| 53112-02720 note |
Grille, Radiator, Lower NO.1
2017-01 → 2019-12
ended
|
NDE180,NRE180,ZRE18# N SAP | — | |
| 53112-02690 note |
Grille, Radiator, Lower NO.1
2019-12 → —
|
ZRE182 | — | |
| 53879H — Retainer, Front Fender Liner | ||||
| 53879-50020 |
Retainer, Front Fender Liner
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 53879-58010 |
Retainer, Front Fender Liner
2014-01 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 53879-50020 |
Retainer, Front Fender Liner
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 53879-50020 |
Retainer, Front Fender Liner
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 53879-50020 |
Retainer, Front Fender Liner
2019-11 → 2019-12
ended
|
NDE180,NRE180,ZRE18# | — | |
| 53879-58010 |
Retainer, Front Fender Liner
2017-01 → 2019-11
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 53879-50020 |
Retainer, Front Fender Liner
2019-12 → —
|
ZRE182 | — | |
| 76851G — Grommet, Screw, NO.1 | ||||
| 90189-06237 |
Grommet, Screw, NO.1
2013-06 → 2017-01
ended
|
NDE180;NRE180,ZRE18# SAP | — | |
| 90189-06237 |
Grommet, Screw, NO.1
2016-06 → 2019-12
ended
|
NDE180,NRE180,ZRE18# | — | |
| 90189-06237 |
Grommet, Screw, NO.1
2019-12 → —
|
ZRE182 | — | |
| 81481E — Cover, Fog Lamp, RH | ||||
| 81481-02400 note |
Cover, Fog Lamp, RH
2013-06 → 2016-05
ended
|
NDE180 N TUP | — | |
| 81481-02400 note |
Cover, Fog Lamp, RH
2013-06 → 2016-05
ended
|
NDE180 N TUP | — | |
| 81481-02400 note |
Cover, Fog Lamp, RH
2015-05 → 2016-05
ended
|
NDE180 D TUP | — | |
| 81481-02400 note |
Cover, Fog Lamp, RH
2015-05 → 2016-05
ended
|
NDE180 D TUP | — | |
| 81481-02400 note |
Cover, Fog Lamp, RH
2013-06 → 2017-01
ended
|
NDE180,NRE180,ZRE18# N SAP | — | |
| 81481-02400 note |
Cover, Fog Lamp, RH
2013-06 → 2017-01
ended
|
NDE180,NRE180,ZRE18# N SAP | — | |
| 81481-02630 note |
Cover, Fog Lamp, RH
2016-06 → 2018-08
ended
|
NRE180 N TUP | — | |
| 81481-02630 note |
Cover, Fog Lamp, RH
2016-06 → 2019-01
ended
|
NDE180,ZRE18# N TUP | — | |
| 81481-02630 note |
Cover, Fog Lamp, RH
2016-06 → 2019-01
ended
|
ZRE18# CVT N GEN +1 | — | |
| 81481-02630 note |
Cover, Fog Lamp, RH
2016-06 → 2019-01
ended
|
NDE180,ZRE18# N TUP | — | |
| 81481-02630 note |
Cover, Fog Lamp, RH
2016-06 → 2019-01
ended
|
NDE180,ZRE18# N TUP | — | |
| 81481-02630 note |
Cover, Fog Lamp, RH
2016-06 → 2019-01
ended
|
ZRE18# CVT N GEN +1 | — | |
| 81481-02630 note |
Cover, Fog Lamp, RH
2016-06 → 2019-01
ended
|
NDE180,ZRE18# N TUP | — | |
| 81481-02630 note |
Cover, Fog Lamp, RH
2016-06 → 2018-08
ended
|
NRE180 N TUP | — | |
| 81481-02630 note |
Cover, Fog Lamp, RH
2016-06 → 2018-08
ended
|
NRE180 N TUP | — | |
| 81481-02630 note |
Cover, Fog Lamp, RH
2016-06 → 2018-08
ended
|
NRE180 N TUP | — | |
| 81481-02630 note |
Cover, Fog Lamp, RH
2016-06 → 2016-08
ended
|
ZRE18# N GCC | — | |
| 81481-02630 note |
Cover, Fog Lamp, RH
2016-06 → 2016-08
ended
|
ZRE18# N GCC | — | |
| 81481-02660 note |
Cover, Fog Lamp, RH
2017-01 → 2019-12
ended
|
NDE180,NRE180,ZRE18# N SAP | — | |
| 81481-02660 note |
Cover, Fog Lamp, RH
2017-01 → 2019-12
ended
|
NDE180,NRE180,ZRE18# N SAP | — | |
| 81482C — Cover, Fog Lamp, LH | ||||
| 81482-02390 note |
Cover, Fog Lamp, LH
2013-06 → 2016-05
ended
|
NDE180 N TUP | — | |
| 81482-02390 note |
Cover, Fog Lamp, LH
2013-06 → 2016-05
ended
|
NDE180 N TUP | — | |
| 81482-02390 note |
Cover, Fog Lamp, LH
2015-05 → 2016-05
ended
|
NDE180 D TUP | — | |
| 81482-02390 note |
Cover, Fog Lamp, LH
2015-05 → 2016-05
ended
|
NDE180 D TUP | — | |
| 81482-02390 note |
Cover, Fog Lamp, LH
2013-06 → 2017-01
ended
|
NDE180,NRE180,ZRE18# N SAP | — | |
| 81482-02390 note |
Cover, Fog Lamp, LH
2013-06 → 2017-01
ended
|
NDE180,NRE180,ZRE18# N SAP | — | |
| 81482-02620 note |
Cover, Fog Lamp, LH
2016-06 → 2018-08
ended
|
NRE180 N TUP | — | |
| 81482-02620 note |
Cover, Fog Lamp, LH
2016-06 → 2019-01
ended
|
NDE180,ZRE18# N TUP | — | |
| 81482-02620 note |
Cover, Fog Lamp, LH
2016-06 → 2019-01
ended
|
ZRE18# CVT N GEN +1 | — | |
| 81482-02620 note |
Cover, Fog Lamp, LH
2016-06 → 2019-01
ended
|
NDE180,ZRE18# N TUP | — | |
| 81482-02620 note |
Cover, Fog Lamp, LH
2016-06 → 2019-01
ended
|
NDE180,ZRE18# N TUP | — | |
| 81482-02620 note |
Cover, Fog Lamp, LH
2016-06 → 2019-01
ended
|
ZRE18# CVT N GEN +1 | — | |
| 81482-02620 note |
Cover, Fog Lamp, LH
2016-06 → 2019-01
ended
|
NDE180,ZRE18# N TUP | — | |
| 81482-02620 note |
Cover, Fog Lamp, LH
2016-06 → 2018-08
ended
|
NRE180 N TUP | — | |
| 81482-02620 note |
Cover, Fog Lamp, LH
2016-06 → 2018-08
ended
|
NRE180 N TUP | — | |
| 81482-02620 note |
Cover, Fog Lamp, LH
2016-06 → 2018-08
ended
|
NRE180 N TUP | — | |
| 81482-02620 note |
Cover, Fog Lamp, LH
2016-06 → 2016-08
ended
|
ZRE18# N GCC | — | |
| 81482-02620 note |
Cover, Fog Lamp, LH
2016-06 → 2016-08
ended
|
ZRE18# N GCC | — | |
| 81482-02650 note |
Cover, Fog Lamp, LH
2017-01 → 2019-12
ended
|
NDE180,NRE180,ZRE18# N SAP | — | |
| 81482-02650 note |
Cover, Fog Lamp, LH
2017-01 → 2019-12
ended
|
NDE180,NRE180,ZRE18# N SAP | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
