Exploded illustration 522889D 52015A — ARM SUB-ASSY, REAR BUMPER, RH (6 parts) 52016A — ARM SUB-ASSY, REAR BUMPER, LH (6 parts) 52152C — CLIP, REAR BUMPER SIDE (6 parts) 52152C — CLIP, REAR BUMPER SIDE (6 parts) 52159 — COVER, REAR BUMPER (14 parts) 52161B — PIECE, REAR BUMPER (9 parts) 52161B — PIECE, REAR BUMPER (9 parts) 89C48B — RETAINER, ULTRASONIC SENSOR, REAR CENTER (3 parts) 89C48A — RETAINER, ULTRASONIC SENSOR, REAR CORNER (3 parts) 52161B — PIECE, REAR BUMPER (9 parts) 52161B — PIECE, REAR BUMPER (9 parts) 52161B — PIECE, REAR BUMPER (9 parts) 52161B — PIECE, REAR BUMPER (9 parts) 52161B — PIECE, REAR BUMPER (9 parts) 52161B — PIECE, REAR BUMPER (9 parts) 52171A — REINFORCEMENT, REAR BUMPER, NO.1 (4 parts) 52197A — BRACKET, REAR BUMPER SEAL, RH (6 parts) 52198A — BRACKET, REAR BUMPER SEAL, LH (6 parts) 52461F — PAD, REAR BUMPER (3 parts) 52562B — RETAINER, REAR BUMPER, UPPER RH (6 parts) 52563A — RETAINER, REAR BUMPER, UPPER LH (6 parts) 52575 — RETAINER, REAR BUMPER SIDE, RH (6 parts) 52576 — RETAINER, REAR BUMPER SIDE, LH (6 parts) 52591 — SEAL, REAR BUMPER SIDE, RH (8 parts) 52592 — SEAL, REAR BUMPER SIDE, LH (8 parts) 90119W0153 — not listed in this catalogue 90119W0153 — not listed in this catalogue 90119W0182 — not listed in this catalogue 90119W0182 — not listed in this catalogue 9015950311 — not listed in this catalogue 9015950311 — not listed in this catalogue 9015960602 — not listed in this catalogue 9015960602 — not listed in this catalogue 9015960602 — not listed in this catalogue 90159W0007 — not listed in this catalogue 9015960431 — not listed in this catalogue 9018906228 — not listed in this catalogue 9018906228 — not listed in this catalogue 9018906228 — not listed in this catalogue 9046705170 — not listed in this catalogue 9046705170 — not listed in this catalogue 5801 — not listed in this catalogue

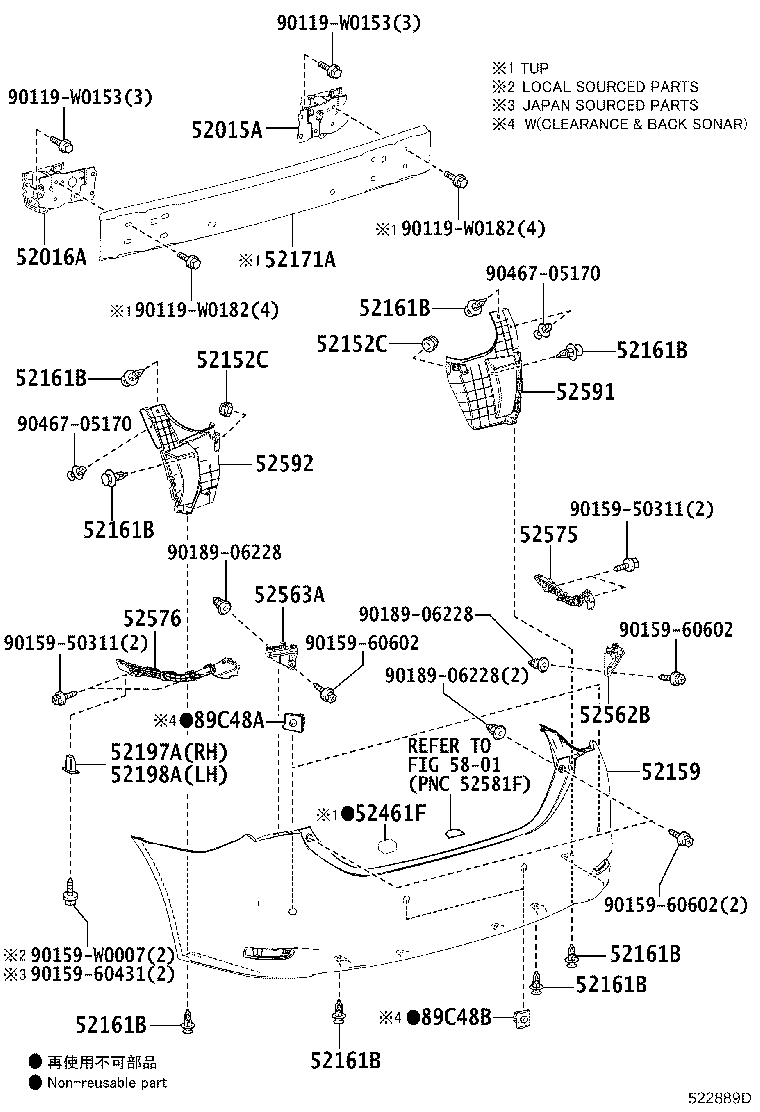

522889D · 25 callouts, 17 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
106 parts on this figure
Part number Description Fitment Price
52015A — Arm Sub-assy, Rear Bumper, RH
52015-02130 Arm Sub-assy, Rear Bumper, RH
2013-06 → 2016-05 ended
NDE180 TUP —
52015-02140 Arm Sub-assy, Rear Bumper, RH
2014-01 → 2017-01 ended
NDE180,NRE180,ZRE18# SAP —
52015-02130 Arm Sub-assy, Rear Bumper, RH
2016-06 → 2018-08 ended
NRE180 TUP —
52015-02130 Arm Sub-assy, Rear Bumper, RH
2016-06 → 2019-01 ended
NDE180,ZRE18# TUP —
52015-02140 Arm Sub-assy, Rear Bumper, RH
2017-01 → 2019-12 ended
NDE180,NRE180,ZRE18# SAP —
52015-02140 Arm Sub-assy, Rear Bumper, RH
2019-12 → —
ZRE182 —
52016A — Arm Sub-assy, Rear Bumper, LH
52016-02100 Arm Sub-assy, Rear Bumper, LH
2013-06 → 2016-05 ended
NDE180 TUP —
52016-02110 Arm Sub-assy, Rear Bumper, LH
2014-01 → 2017-01 ended
NDE180,NRE180,ZRE18# SAP —
52016-02100 Arm Sub-assy, Rear Bumper, LH
2016-06 → 2018-08 ended
NRE180 TUP —
52016-02100 Arm Sub-assy, Rear Bumper, LH
2016-06 → 2019-01 ended
NDE180,ZRE18# TUP —
52016-02110 Arm Sub-assy, Rear Bumper, LH
2017-01 → 2019-12 ended
NDE180,NRE180,ZRE18# SAP —
52016-02110 Arm Sub-assy, Rear Bumper, LH
2019-12 → —
ZRE182 —
52152C — Clip, Rear Bumper Side
90467-06206-C0 note Clip, Rear Bumper Side
2013-06 → 2017-01 ended
NDE180,NRE180,ZRE18# SAP —
90467-06206-C0 note Clip, Rear Bumper Side
2013-06 → 2016-05 ended
NDE180 TUP —
90467-06206-C0 note Clip, Rear Bumper Side
2016-06 → 2018-08 ended
NRE180 TUP —
90467-06206-C0 note Clip, Rear Bumper Side
2016-06 → 2019-01 ended
NDE180,ZRE18# TUP —
90467-06206-C0 note Clip, Rear Bumper Side
2016-06 → 2019-12 ended
NDE180,NRE180,ZRE18# SAP —
90467-06206-C0 note Clip, Rear Bumper Side
2019-12 → —
ZRE182 —
52159 — Cover, Rear Bumper
52159-02999 note Cover, Rear Bumper
2013-06 → 2016-05 ended
NDE180 TUP —
52159-0Z901 note Cover, Rear Bumper
2014-01 → 2017-01 ended
NDE180,NRE180,ZRE18# SAP —
52159-02999 note Cover, Rear Bumper
2016-06 → 2018-08 ended
NRE180 TUP —
52159-02999 note Cover, Rear Bumper
2016-06 → 2019-01 ended
NDE180,ZRE18# TUP —
52159-0Z901 note Cover, Rear Bumper
2017-01 → 2019-12 ended
NDE180,NRE180,ZRE18# SAP —
52159-0Z940 note Cover, Rear Bumper
2016-06 → 2019-01 ended
NDE180,ZRE18# N TUP —
52159-0Z940 note Cover, Rear Bumper
2016-06 → 2019-01 ended
NDE180,ZRE18# N TUP —
52159-0Z940 note Cover, Rear Bumper
2016-06 → 2019-01 ended
ZRE18# CVT N GEN +1 —
52159-0Z940 note Cover, Rear Bumper
2016-06 → 2019-01 ended
ZRE18# CVT N GEN +1 —
52159-0Z940 note Cover, Rear Bumper
2016-06 → 2016-08 ended
ZRE18# N GCC —
52159-0Z940 note Cover, Rear Bumper
2016-06 → 2016-08 ended
ZRE18# N GCC —
52159-0Z940 note Cover, Rear Bumper
2016-06 → 2018-08 ended
NRE180 N TUP —
52159-0Z940 note Cover, Rear Bumper
2016-06 → 2018-08 ended
NRE180 N TUP —
52159-0Z901 note Cover, Rear Bumper
2019-12 → —
ZRE182 —
52161B — Piece, Rear Bumper
52161-02030 Piece, Rear Bumper
2013-06 → 2016-05 ended
NDE180 TUP —
52161-0K040 note Piece, Rear Bumper
2014-01 → 2017-01 ended
NDE180,NRE180,ZRE18# SAP —
52161-16010 note Piece, Rear Bumper
2014-01 → 2017-01 ended
NDE180,NRE180,ZRE18# SAP —
52161-02030 Piece, Rear Bumper
2016-06 → 2018-08 ended
NRE180 TUP —
52161-02030 Piece, Rear Bumper
2016-06 → 2019-01 ended
NDE180,ZRE18# TUP —
52161-0K040 note Piece, Rear Bumper
2017-01 → 2019-12 ended
NDE180,NRE180,ZRE18# SAP —
52161-16010 note Piece, Rear Bumper
2017-01 → 2019-12 ended
NDE180,NRE180,ZRE18# SAP —
52161-0K040 note Piece, Rear Bumper
2019-12 → —
ZRE182 —
52161-16010 note Piece, Rear Bumper
2019-12 → —
ZRE182 —
52171A — Reinforcement, Rear Bumper, NO.1
52171-02080 Reinforcement, Rear Bumper, NO.1
2013-06 → 2013-12 ended
NDE180 —
52171-02080 Reinforcement, Rear Bumper, NO.1
2014-01 → 2016-05 ended
NDE180 TUP —
52171-02080 Reinforcement, Rear Bumper, NO.1
2016-06 → 2018-08 ended
NRE180 TUP —
52171-02080 Reinforcement, Rear Bumper, NO.1
2016-06 → 2019-01 ended
NDE180,ZRE18# TUP —
52197A — Bracket, Rear Bumper Seal, RH
52197-22020 Bracket, Rear Bumper Seal, RH
2013-06 → 2016-05 ended
NDE180 TUP —
52197-22020 Bracket, Rear Bumper Seal, RH
2013-06 → 2017-01 ended
NDE180,NRE180,ZRE18# SAP —
52197-22020 Bracket, Rear Bumper Seal, RH
2016-06 → 2018-08 ended
NRE180 TUP —
52197-22020 Bracket, Rear Bumper Seal, RH
2016-06 → 2019-01 ended
NDE180,ZRE18# TUP —
52197-22020 Bracket, Rear Bumper Seal, RH
2016-06 → 2019-12 ended
NDE180,NRE180,ZRE18# SAP —
52197-22020 Bracket, Rear Bumper Seal, RH
2019-12 → —
ZRE182 —
52198A — Bracket, Rear Bumper Seal, LH
52197-22020 Bracket, Rear Bumper Seal, LH
2013-06 → 2016-05 ended
NDE180 TUP —
52197-22020 Bracket, Rear Bumper Seal, LH
2013-06 → 2017-01 ended
NDE180,NRE180,ZRE18# SAP —
52197-22020 Bracket, Rear Bumper Seal, LH
2016-06 → 2019-12 ended
NDE180,NRE180,ZRE18# SAP —
52197-22020 Bracket, Rear Bumper Seal, LH
2016-06 → 2018-08 ended
NRE180 TUP —
52197-22020 Bracket, Rear Bumper Seal, LH
2016-06 → 2019-01 ended
NDE180,ZRE18# TUP —
52197-22020 Bracket, Rear Bumper Seal, LH
2019-12 → —
ZRE182 —
52461F — Pad, Rear Bumper
52462-02160 Pad, Rear Bumper
2013-06 → 2016-05 ended
NDE180 TUP —
52462-02160 Pad, Rear Bumper
2016-06 → 2018-08 ended
NRE180 TUP —
52462-02160 Pad, Rear Bumper
2016-06 → 2019-01 ended
NDE180,ZRE18# TUP —
52562B — Retainer, Rear Bumper, Upper RH
52562-02220 Retainer, Rear Bumper, Upper RH
2013-06 → 2016-05 ended
NDE180 TUP —
52562-02220 Retainer, Rear Bumper, Upper RH
2013-06 → 2017-01 ended
NDE180,NRE180,ZRE18# SAP —
52562-02220 Retainer, Rear Bumper, Upper RH
2016-06 → 2018-08 ended
NRE180 TUP —
52562-02220 Retainer, Rear Bumper, Upper RH
2016-06 → 2019-01 ended
NDE180,ZRE18# TUP —
52562-02220 Retainer, Rear Bumper, Upper RH
2016-06 → 2019-12 ended
NDE180,NRE180,ZRE18# SAP —
52562-02220 Retainer, Rear Bumper, Upper RH
2019-12 → —
ZRE182 —
52563A — Retainer, Rear Bumper, Upper LH
52563-02220 Retainer, Rear Bumper, Upper LH
2013-06 → 2016-05 ended
NDE180 TUP —
52563-02220 Retainer, Rear Bumper, Upper LH
2013-06 → 2017-01 ended
NDE180,NRE180,ZRE18# SAP —
52563-02220 Retainer, Rear Bumper, Upper LH
2016-06 → 2018-08 ended
NRE180 TUP —
52563-02220 Retainer, Rear Bumper, Upper LH
2016-06 → 2019-12 ended
NDE180,NRE180,ZRE18# SAP —
52563-02220 Retainer, Rear Bumper, Upper LH
2016-06 → 2019-01 ended
NDE180,ZRE18# TUP —
52563-02220 Retainer, Rear Bumper, Upper LH
2019-12 → —
ZRE182 —
52575 — Retainer, Rear Bumper Side, RH
52575-02120 Retainer, Rear Bumper Side, RH
2013-06 → 2016-05 ended
NDE180 TUP —
52575-02120 Retainer, Rear Bumper Side, RH
2013-06 → 2017-01 ended
NDE180,NRE180,ZRE18# SAP —
52575-02120 Retainer, Rear Bumper Side, RH
2016-06 → 2018-08 ended
NRE180 TUP —
52575-02120 Retainer, Rear Bumper Side, RH
2016-06 → 2019-01 ended
NDE180,ZRE18# TUP —
52575-02120 Retainer, Rear Bumper Side, RH
2016-06 → 2019-12 ended
NDE180,NRE180,ZRE18# SAP —
52575-02140 Retainer, Rear Bumper Side, RH
2019-12 → —
ZRE182 —
52576 — Retainer, Rear Bumper Side, LH
52576-02120 Retainer, Rear Bumper Side, LH
2013-06 → 2016-05 ended
NDE180 TUP —
52576-02120 Retainer, Rear Bumper Side, LH
2013-06 → 2017-01 ended
NDE180,NRE180,ZRE18# SAP —
52576-02120 Retainer, Rear Bumper Side, LH
2016-06 → 2018-08 ended
NRE180 TUP —
52576-02120 Retainer, Rear Bumper Side, LH
2016-06 → 2019-12 ended
NDE180,NRE180,ZRE18# SAP —
52576-02120 Retainer, Rear Bumper Side, LH
2016-06 → 2019-01 ended
NDE180,ZRE18# TUP —
52576-02140 Retainer, Rear Bumper Side, LH
2019-12 → —
ZRE182 —
52591 — Seal, Rear Bumper Side, RH
52591-02280 Seal, Rear Bumper Side, RH
2013-06 → 2015-07 ended
NDE180,NRE180,ZRE18# —
52591-02281 Seal, Rear Bumper Side, RH
2015-08 → 2016-05 ended
NDE180 TUP —
52591-02281 Seal, Rear Bumper Side, RH
2015-08 → 2017-01 ended
NDE180,NRE180,ZRE18# SAP —
52591-02281 Seal, Rear Bumper Side, RH
2016-06 → 2018-04 ended
NDE180,NRE180,ZRE18# SAP —
52591-02281 Seal, Rear Bumper Side, RH
2016-06 → 2018-08 ended
NRE180 TUP —
52591-02281 Seal, Rear Bumper Side, RH
2016-06 → 2019-01 ended
NDE180,ZRE18# TUP —
52591-02360 Seal, Rear Bumper Side, RH
2018-04 → 2019-12 ended
NDE180,NRE180,ZRE18# SAP —
52591-02360 Seal, Rear Bumper Side, RH
2019-12 → —
ZRE182 —
52592 — Seal, Rear Bumper Side, LH
52592-02270 Seal, Rear Bumper Side, LH
2013-06 → 2015-07 ended
NDE180,NRE180,ZRE18# —
52592-02271 Seal, Rear Bumper Side, LH
2015-08 → 2017-01 ended
NDE180,NRE180,ZRE18# SAP —
52592-02271 Seal, Rear Bumper Side, LH
2015-08 → 2016-05 ended
NDE180 TUP —
52592-02271 Seal, Rear Bumper Side, LH
2016-06 → 2018-04 ended
NDE180,NRE180,ZRE18# SAP —
52592-02271 Seal, Rear Bumper Side, LH
2016-06 → 2018-08 ended
NRE180 TUP —
52592-02271 Seal, Rear Bumper Side, LH
2016-06 → 2019-01 ended
NDE180,ZRE18# TUP —
52592-02290 Seal, Rear Bumper Side, LH
2018-04 → 2019-12 ended
NDE180,NRE180,ZRE18# SAP —
52592-02290 Seal, Rear Bumper Side, LH
2019-12 → —
ZRE182 —
89C48A — Retainer, Ultrasonic Sensor, Rear Corner
89348-F4030 note Retainer, Ultrasonic Sensor, Rear Corner
2016-06 → 2016-08 ended
ZRE18# CVT N TUP —
89348-F4030 note Retainer, Ultrasonic Sensor, Rear Corner
2016-06 → 2019-01 ended
NDE180,NRE180,ZRE18# N TUP —
89348-F4030 note Retainer, Ultrasonic Sensor, Rear Corner
2016-08 → 2019-01 ended
ZRE18# CVT N GEN +1 —
89C48B — Retainer, Ultrasonic Sensor, Rear Center
89348-02260 note Retainer, Ultrasonic Sensor, Rear Center
2016-06 → 2016-08 ended
ZRE18# CVT N TUP —
89348-02260 note Retainer, Ultrasonic Sensor, Rear Center
2016-06 → 2019-01 ended
NDE180,NRE180,ZRE18# N TUP —
89348-02260 note Retainer, Ultrasonic Sensor, Rear Center
2016-08 → 2019-01 ended
ZRE18# CVT N GEN +1 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
