Toyota Corolla
2013-06 → present · chassis NDE180,NRE180,ZRE18#,ZRE21#,ZWE219 · catalogue 164320 · General
Supported model
Data version 2019-11

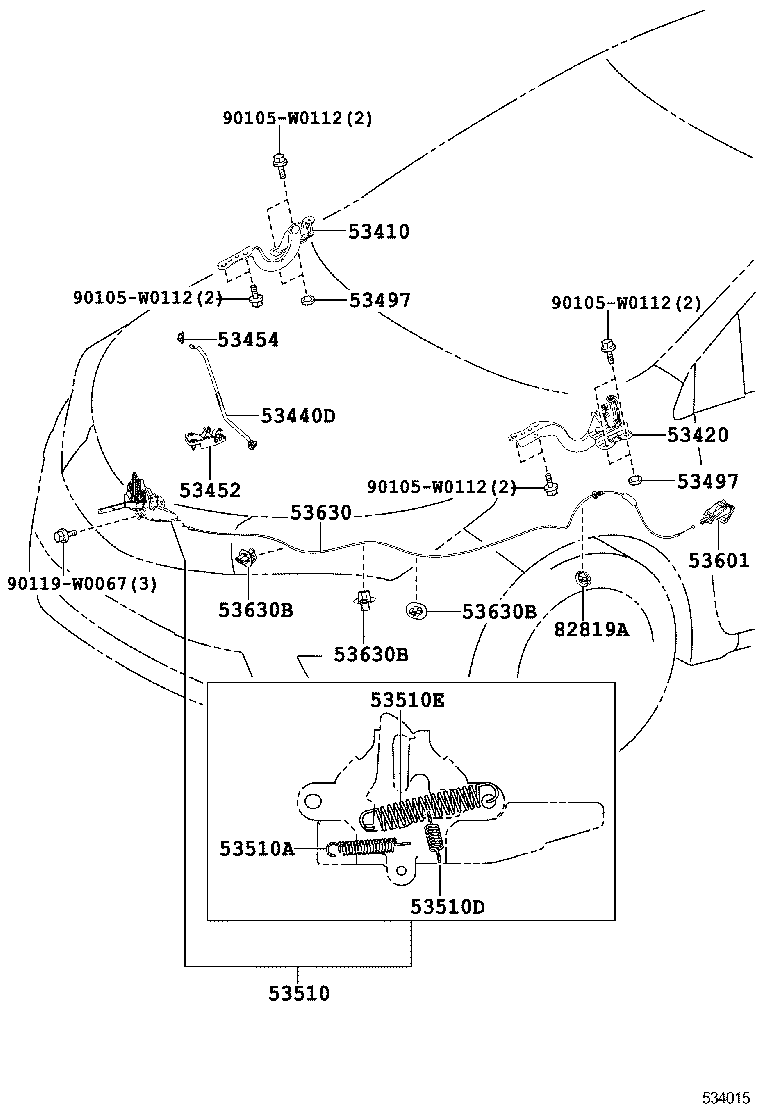

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 53410 — Hinge Assy, Hood, RH | ||||
| 53410-02330 |
Hinge Assy, Hood, RH
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 53410-02340 |
Hinge Assy, Hood, RH
2014-01 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 53410-02330 |
Hinge Assy, Hood, RH
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 53410-02330 |
Hinge Assy, Hood, RH
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 53410-02340 |
Hinge Assy, Hood, RH
2017-01 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 53410-02340 |
Hinge Assy, Hood, RH
2019-12 → —
|
ZRE182 | — | |
| 53420 — Hinge Assy, Hood, LH | ||||
| 53420-02320 |
Hinge Assy, Hood, LH
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 53420-02340 |
Hinge Assy, Hood, LH
2014-01 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 53420-02320 |
Hinge Assy, Hood, LH
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 53420-02320 |
Hinge Assy, Hood, LH
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 53420-02340 |
Hinge Assy, Hood, LH
2017-01 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 53420-02340 |
Hinge Assy, Hood, LH
2019-12 → —
|
ZRE182 | — | |
| 53440D — Support Assy, Hood | ||||
| 53440-02190 |
Support Assy, Hood
2014-01 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 53440-02200 |
Support Assy, Hood
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 53440-02190 |
Support Assy, Hood
2017-01 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 53440-02200 |
Support Assy, Hood
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 53440-02200 |
Support Assy, Hood
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 53440-02190 |
Support Assy, Hood
2019-12 → —
|
ZRE182 | — | |
| 53452 — Holder, Hood Stay | ||||
| 53452-02160 |
Holder, Hood Stay
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 53452-02160 |
Holder, Hood Stay
2013-06 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 53452-02160 |
Holder, Hood Stay
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 53452-02160 |
Holder, Hood Stay
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 53452-02160 |
Holder, Hood Stay
2016-06 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 53452-02160 |
Holder, Hood Stay
2019-12 → —
|
ZRE182 | — | |
| 53454 — Clip, Hood Support Rod | ||||
| 53454-12030 |
Clip, Hood Support Rod
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 53454-12030 |
Clip, Hood Support Rod
2013-06 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 53454-12030 |
Clip, Hood Support Rod
2016-06 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 53454-12030 |
Clip, Hood Support Rod
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 53454-12030 |
Clip, Hood Support Rod
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 53454-12030 |
Clip, Hood Support Rod
2019-12 → —
|
ZRE182 | — | |
| 53497 — Pad, Hood Hinge, NO.1 | ||||
| 53497-05010 note |
Pad, Hood Hinge, NO.1
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 53497-0K020 note |
Pad, Hood Hinge, NO.1
2014-01 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 53497-0K070 note |
Pad, Hood Hinge, NO.1
2014-01 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 53497-05010 note |
Pad, Hood Hinge, NO.1
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 53497-05010 note |
Pad, Hood Hinge, NO.1
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 53497-0K020 note |
Pad, Hood Hinge, NO.1
2017-01 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 53497-0K070 note |
Pad, Hood Hinge, NO.1
2017-01 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 53497-0K020 note |
Pad, Hood Hinge, NO.1
2019-12 → —
|
ZRE182 | — | |
| 53497-0K070 note |
Pad, Hood Hinge, NO.1
2019-12 → —
|
ZRE182 | — | |
| 53510 — Lock Assy, Hood | ||||
| 53510-02560 |
Lock Assy, Hood
2013-06 → 2017-01
ended
|
ZRE18# GEN SAP | — | |
| 53510-02560 |
Lock Assy, Hood
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 53510-02610 |
Lock Assy, Hood
2014-01 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SA | — | |
| 53510-02560 |
Lock Assy, Hood
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 53510-02560 |
Lock Assy, Hood
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 53510-02560 |
Lock Assy, Hood
2016-06 → 2019-12
ended
|
ZRE18# GEN SAP | — | |
| 53510-02610 |
Lock Assy, Hood
2017-01 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SA | — | |
| 53510-02560 |
Lock Assy, Hood
2019-12 → —
|
ZRE182 GEN | — | |
| 53510-02610 |
Lock Assy, Hood
2019-12 → —
|
ZRE182 SA | — | |
| 53510A — Spring, Tension(FOR HOOD LOCK) | ||||
| 90080-50398 note |
Spring, Tension(FOR HOOD LOCK)
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 90080-50398 note |
Spring, Tension(FOR HOOD LOCK)
2013-06 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 90080-50398 note |
Spring, Tension(FOR HOOD LOCK)
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 90080-50398 note |
Spring, Tension(FOR HOOD LOCK)
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 90080-50398 note |
Spring, Tension(FOR HOOD LOCK)
2016-06 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 90080-50398 note |
Spring, Tension(FOR HOOD LOCK)
2019-12 → —
|
ZRE182 | — | |
| 53510D — Spring, Tension(FOR HOOD LOCK) | ||||
| 90506-W0004 note |
Spring, Tension(FOR HOOD LOCK)
2013-06 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 90506-W0004 note |
Spring, Tension(FOR HOOD LOCK)
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 90506-W0004 note |
Spring, Tension(FOR HOOD LOCK)
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 90506-W0004 note |
Spring, Tension(FOR HOOD LOCK)
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 90506-W0004 note |
Spring, Tension(FOR HOOD LOCK)
2016-06 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 90506-W0004 note |
Spring, Tension(FOR HOOD LOCK)
2019-12 → —
|
ZRE182 | — | |
| 53510E — Spring, Tension(FOR HOOD LOCK) | ||||
| 90506-W0007 note |
Spring, Tension(FOR HOOD LOCK)
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 90506-W0007 note |
Spring, Tension(FOR HOOD LOCK)
2013-06 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 90506-W0007 note |
Spring, Tension(FOR HOOD LOCK)
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 90506-W0007 note |
Spring, Tension(FOR HOOD LOCK)
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 90506-W0007 note |
Spring, Tension(FOR HOOD LOCK)
2016-06 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 90506-W0007 note |
Spring, Tension(FOR HOOD LOCK)
2019-12 → —
|
ZRE182 | — | |
| 53601 — Lever Sub-assy, Hood Lock Control | ||||
| 53601-05030-C0 note |
Lever Sub-assy, Hood Lock Control
2013-06 → 2015-05
ended
|
NDE180 TUP | — | |
| 53601-05030-C0 note |
Lever Sub-assy, Hood Lock Control
2014-01 → 2015-05
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 53601-05030-C1 note |
Lever Sub-assy, Hood Lock Control
2015-05 → 2016-05
ended
|
NDE180 TUP | — | |
| 53601-05030-C1 note |
Lever Sub-assy, Hood Lock Control
2015-05 → 2017-01
ended
|
ZRE181 CVT N GEN +1 | — | |
| 53601-05030-C1 note |
Lever Sub-assy, Hood Lock Control
2015-05 → 2017-01
ended
|
ZRE181 D SAP;ZRE181 CVT +5 | — | |
| 53601-05030-C1 note |
Lever Sub-assy, Hood Lock Control
2016-06 → 2018-05
ended
|
ZRE181 6F TUP;ZRE181 LHD +6 | — | |
| 53601-05030-C1 note |
Lever Sub-assy, Hood Lock Control
2017-01 → 2018-05
ended
|
ZRE181 D SAP;ZRE181 CVT +5 | — | |
| 53601-05030-C1 note |
Lever Sub-assy, Hood Lock Control
2018-05 → 2018-06
ended
|
NDE180,NRE180,ZRE18# TUP | — | |
| 53601-05030-C1 note |
Lever Sub-assy, Hood Lock Control
2018-05 → 2019-12
ended
|
ZRE181 D SAP;ZRE181 CVT +5 | — | |
| 53601-05030-C1 note |
Lever Sub-assy, Hood Lock Control
2018-05 → 2019-12
ended
|
ZRE181 CVT N GEN +1 | — | |
| 53601-05030-C2 note |
Lever Sub-assy, Hood Lock Control
2018-05 → 2019-12
ended
|
ZRE181 D SAP;ZRE181 CVT +5 | — | |
| 53601-05030-C2 note |
Lever Sub-assy, Hood Lock Control
2018-05 → 2019-12
ended
|
ZRE181 CVT N GEN +1 | — | |
| 53601-05030-C2 note |
Lever Sub-assy, Hood Lock Control
2018-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 53601-05030-C2 note |
Lever Sub-assy, Hood Lock Control
2018-05 → 2018-06
ended
|
NDE180,NRE180,ZRE18# TUP | — | |
| 53601-05030-C2 note |
Lever Sub-assy, Hood Lock Control
2018-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 53601-05030-C2 note |
Lever Sub-assy, Hood Lock Control
2019-12 → —
|
ZRE182 N | — | |
| 53601-05030-C2 note |
Lever Sub-assy, Hood Lock Control
2019-12 → —
|
ZRE182 D,G | — | |
| 53630 — Cable Assy, Hood Lock Control | ||||
| 53630-02410 |
Cable Assy, Hood Lock Control
2014-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 53630-02410 |
Cable Assy, Hood Lock Control
2014-06 → 2017-01
ended
|
ZRE18# GEN SAP | — | |
| 53630-02420 |
Cable Assy, Hood Lock Control
2014-06 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SA | — | |
| 53630-12700 |
Cable Assy, Hood Lock Control
2013-06 → 2014-05
ended
|
NDE180,ZRE18# GEN | — | |
| 53630-12710 |
Cable Assy, Hood Lock Control
2014-01 → 2014-05
ended
|
NDE180,NRE180,ZRE18# SA | — | |
| 53630-02410 |
Cable Assy, Hood Lock Control
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 53630-02410 |
Cable Assy, Hood Lock Control
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 53630-02410 |
Cable Assy, Hood Lock Control
2016-06 → 2019-12
ended
|
ZRE18# GEN SAP | — | |
| 53630-02420 |
Cable Assy, Hood Lock Control
2017-01 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SA | — | |
| 53630-02410 |
Cable Assy, Hood Lock Control
2019-12 → —
|
ZRE182 GEN | — | |
| 53630-02420 |
Cable Assy, Hood Lock Control
2019-12 → —
|
ZRE182 SA | — | |
| 53630B — Clamp(FOR HOOD LOCK CONTROL CABLE) | ||||
| 90469-06005 |
Clamp(FOR HOOD LOCK CONTROL CABLE)
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 90469-06005 |
Clamp(FOR HOOD LOCK CONTROL CABLE)
2013-06 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 90469-06005 |
Clamp(FOR HOOD LOCK CONTROL CABLE)
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 90469-06005 |
Clamp(FOR HOOD LOCK CONTROL CABLE)
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 90469-06005 |
Clamp(FOR HOOD LOCK CONTROL CABLE)
2016-06 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 90469-06005 |
Clamp(FOR HOOD LOCK CONTROL CABLE)
2019-12 → —
|
ZRE182 | — | |
| 82819A — Grommet, Wire | ||||
| 82817-1A810 |
Grommet, Wire
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 82817-1A810 |
Grommet, Wire
2013-06 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 82817-1A810 |
Grommet, Wire
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 82817-1A810 |
Grommet, Wire
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 82817-1A810 |
Grommet, Wire
2016-06 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 82817-1A810 |
Grommet, Wire
2019-12 → —
|
ZRE182 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
