Toyota Corolla
2013-06 → present · chassis NDE180,NRE180,ZRE18#,ZRE21#,ZWE219 · catalogue 164320 · General
Supported model
Data version 2019-11

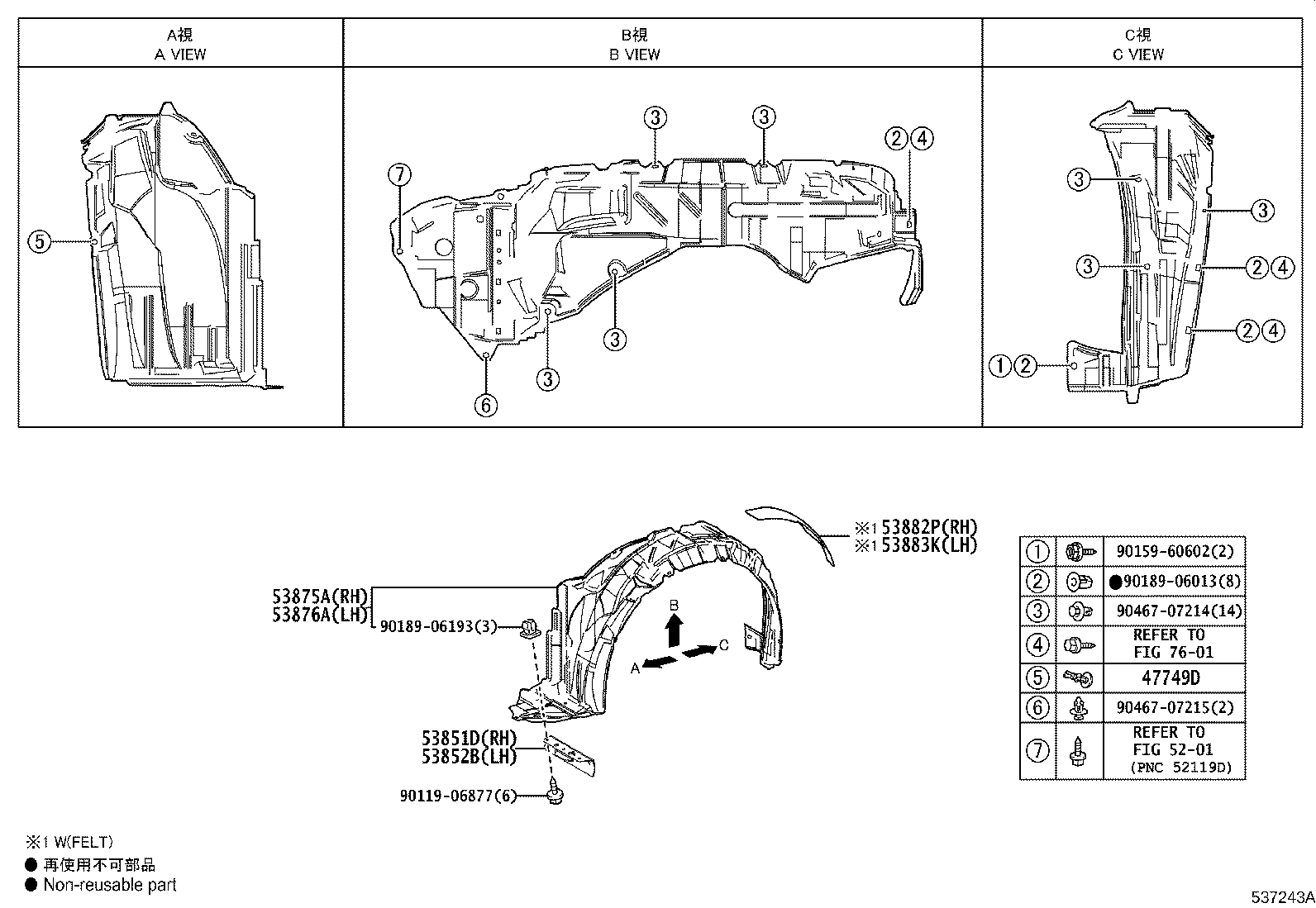

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 47749D — Clip, Pin Hold | ||||
| 47749-50090 |
Clip, Pin Hold
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 47749-58010 |
Clip, Pin Hold
2014-01 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 47749-50090 |
Clip, Pin Hold
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 47749-50090 |
Clip, Pin Hold
2019-08 → 2019-12
ended
|
NDE180,NRE180,ZRE18# | — | |
| 47749-50090 |
Clip, Pin Hold
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 47749-58010 |
Clip, Pin Hold
2017-01 → 2019-08
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 47749-50090 |
Clip, Pin Hold
2019-12 → —
|
ZRE182 | — | |
| 53851D — Pad, Front Wheel Opening Extension, RH | ||||
| 53851-02160 |
Pad, Front Wheel Opening Extension, RH
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 53851-02160 |
Pad, Front Wheel Opening Extension, RH
2013-06 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 53851-02160 |
Pad, Front Wheel Opening Extension, RH
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 53851-02160 |
Pad, Front Wheel Opening Extension, RH
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 53851-02160 |
Pad, Front Wheel Opening Extension, RH
2016-06 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 53851-02160 |
Pad, Front Wheel Opening Extension, RH
2019-12 → —
|
ZRE182 | — | |
| 53852B — Pad, Front Wheel Opening Extension, LH | ||||
| 53852-02140 |
Pad, Front Wheel Opening Extension, LH
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 53852-02140 |
Pad, Front Wheel Opening Extension, LH
2013-06 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 53852-02140 |
Pad, Front Wheel Opening Extension, LH
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 53852-02140 |
Pad, Front Wheel Opening Extension, LH
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 53852-02140 |
Pad, Front Wheel Opening Extension, LH
2016-06 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 53852-02140 |
Pad, Front Wheel Opening Extension, LH
2019-12 → —
|
ZRE182 | — | |
| 53875A — Liner, Front Fender, RH | ||||
| 53875-02470 |
Liner, Front Fender, RH
2014-01 → 2015-10
ended
|
NRE180,ZRE18# | — | |
| 53875-02471 |
Liner, Front Fender, RH
2015-11 → 2017-01
ended
|
NRE180,ZRE18# SAP | — | |
| 53875-02480 |
Liner, Front Fender, RH
2013-06 → 2015-12
ended
|
NDE180 TUP | — | |
| 53875-02481 |
Liner, Front Fender, RH
2016-01 → 2016-05
ended
|
NDE180 TUP | — | |
| 53875-02510 |
Liner, Front Fender, RH
2014-01 → 2015-10
ended
|
NDE180 SAP | — | |
| 53875-02511 |
Liner, Front Fender, RH
2015-11 → 2017-01
ended
|
NDE180 SAP | — | |
| 53875-02471 |
Liner, Front Fender, RH
2017-01 → 2019-12
ended
|
NRE180,ZRE18# SAP | — | |
| 53875-02481 |
Liner, Front Fender, RH
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 53875-02481 |
Liner, Front Fender, RH
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 53875-02511 |
Liner, Front Fender, RH
2017-01 → 2019-12
ended
|
NDE180 SAP | — | |
| 53875-02471 |
Liner, Front Fender, RH
2019-12 → —
|
ZRE182 | — | |
| 53876A — Liner, Front Fender, LH | ||||
| 53876-02490 |
Liner, Front Fender, LH
2014-01 → 2015-10
ended
|
NRE180,ZRE18# | — | |
| 53876-02491 |
Liner, Front Fender, LH
2015-11 → 2017-01
ended
|
NRE180,ZRE18# SAP | — | |
| 53876-02500 |
Liner, Front Fender, LH
2013-06 → 2015-12
ended
|
NDE180 TUP | — | |
| 53876-02501 |
Liner, Front Fender, LH
2016-01 → 2016-05
ended
|
NDE180 TUP | — | |
| 53876-02530 |
Liner, Front Fender, LH
2014-01 → 2015-10
ended
|
NDE180 SAP | — | |
| 53876-02531 |
Liner, Front Fender, LH
2015-11 → 2017-01
ended
|
NDE180 SAP | — | |
| 53876-02491 |
Liner, Front Fender, LH
2017-01 → 2019-12
ended
|
NRE180,ZRE18# SAP | — | |
| 53876-02501 |
Liner, Front Fender, LH
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 53876-02501 |
Liner, Front Fender, LH
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 53876-02531 |
Liner, Front Fender, LH
2017-01 → 2019-12
ended
|
NDE180 SAP | — | |
| 53876-02491 |
Liner, Front Fender, LH
2019-12 → —
|
ZRE182 | — | |
| 53882P — Seal, Front Fender, RH | ||||
| 53882-02060 |
Seal, Front Fender, RH
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 53882-02060 |
Seal, Front Fender, RH
2016-06 → 2019-01
ended
|
NDE180 TUP | — | |
| 53883K — Seal, Front Fender, LH | ||||
| 53883-02120 |
Seal, Front Fender, LH
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 53883-02120 |
Seal, Front Fender, LH
2016-06 → 2019-01
ended
|
NDE180 TUP | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
