Toyota Corolla

2013-06 → present · chassis NDE180,NRE180,ZRE18#,ZRE21#,ZWE219 · catalogue 164320 · General

Supported model Data version 2019-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

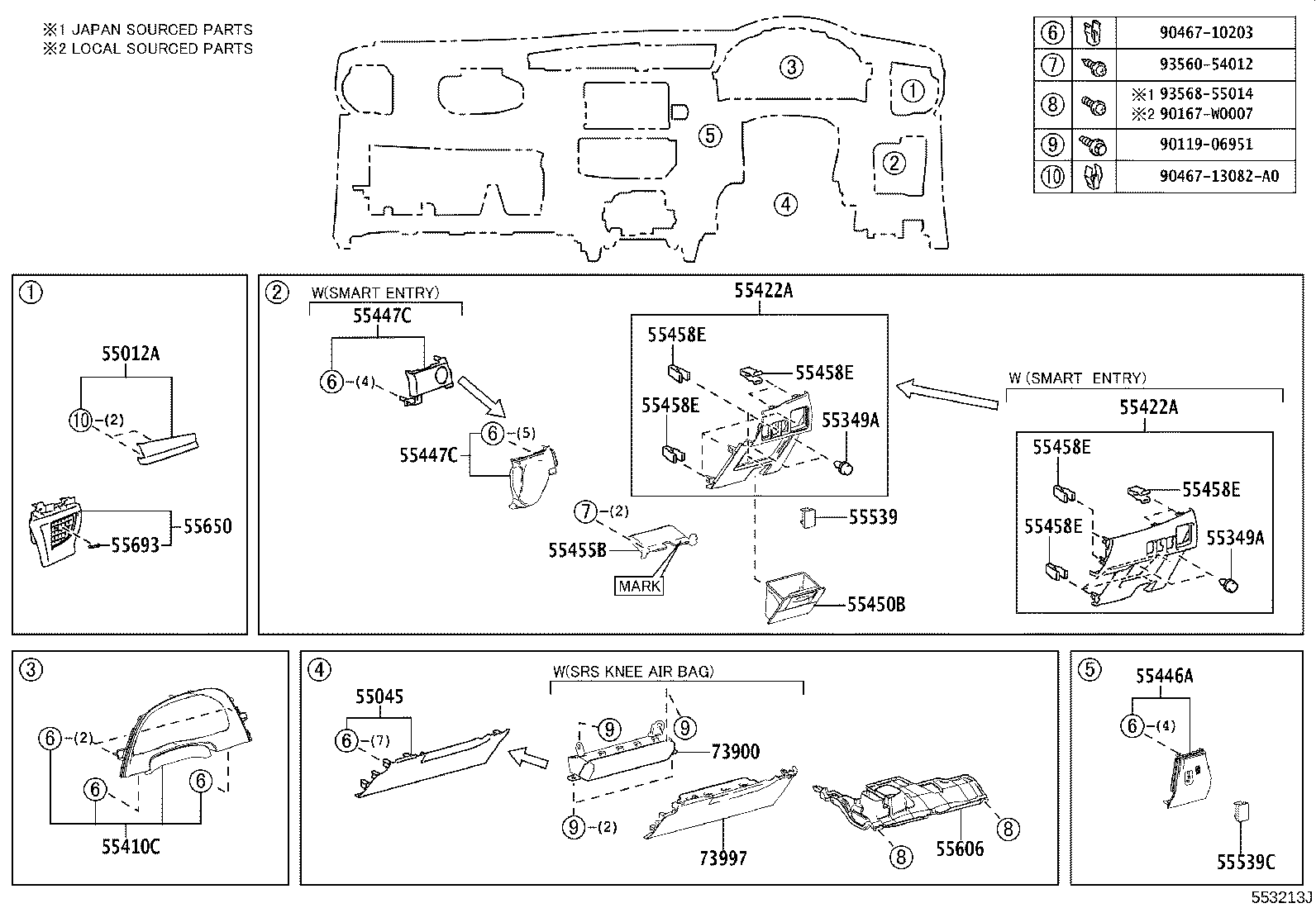

Exploded illustration 553213J 9356054012 — not listed in this catalogue 9046710203 — not listed in this catalogue 9046713082A0 — not listed in this catalogue 9011906951 — not listed in this catalogue 9356855014 — not listed in this catalogue 90167W0007 — not listed in this catalogue 55012A — GARNISH SUB-ASSY, INSTRUMENT PANEL, NO.2 (5 parts) 55410C — PANEL ASSY, INSTRUMENT CLUSTER FINISH (11 parts) 55606 — COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1 (9 parts) 55458E — CLIP(FOR INSTRUMENT LOWER COVER) (12 parts) 55458E — CLIP(FOR INSTRUMENT LOWER COVER) (12 parts) 55458E — CLIP(FOR INSTRUMENT LOWER COVER) (12 parts) 55539 — COVER, SPARE SWITCH HOLE (19 parts) 55447C — BASE, SWITCH HOLE, NO.2 (27 parts) 55447C — BASE, SWITCH HOLE, NO.2 (27 parts) 55450B — BOX ASSY, COIN (16 parts) 55446A — BASE, SWITCH HOLE, NO.1 (34 parts) 55455B — COIN BOX (8 parts) 55349A — CUSHION, INSTRUMENT PANEL (6 parts) 55422A — PANEL, INSTRUMENT CLUSTER FINISH, LOWER (26 parts) 55458E — CLIP(FOR INSTRUMENT LOWER COVER) (12 parts) 55458E — CLIP(FOR INSTRUMENT LOWER COVER) (12 parts) 55458E — CLIP(FOR INSTRUMENT LOWER COVER) (12 parts) 55349A — CUSHION, INSTRUMENT PANEL (6 parts) 55422A — PANEL, INSTRUMENT CLUSTER FINISH, LOWER (26 parts) 73900 — AIRBAG ASSY, INSTRUMENT PANEL, LOWER NO.1 (4 parts) 73997 — DOOR, INSTRUMENT PANEL AIRBAG, LOWER NO.1 (9 parts) 55539C — COVER, SPARE SWITCH HOLE (6 parts) 55045 — PANEL SUB-ASSY, INSTRUMENT PANEL FINISH, LOWER (10 parts) 55650 — REGISTER ASSY, INSTRUMENT PANEL, NO.1 (14 parts) 55693 — PROTECTOR, CONTROL KNOB, NO.1 (3 parts)
553213J · 25 callouts, 6 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
219 parts on this figure
Part number Description Fitment Price
55012A — Garnish Sub-assy, Instrument Panel, NO.2
55012-02050-B0 note Garnish Sub-assy, Instrument Panel, NO.2
2013-06 → 2015-04 ended
NDE180 TUP —
55012-02051-B0 note Garnish Sub-assy, Instrument Panel, NO.2
2015-05 → 2016-05 ended
NDE180 TUP —
55012-02070-B0 note Garnish Sub-assy, Instrument Panel, NO.2
2014-01 → 2017-01 ended
ZRE182 GEN SAP;ZRE181 D +6 —
55012-02070-B0 note Garnish Sub-assy, Instrument Panel, NO.2
2014-01 → 2017-01 ended
ZRE181 CVT N GEN +1 —
55012-02080-B0 note Garnish Sub-assy, Instrument Panel, NO.2
2014-01 → 2017-01 ended
NDE180,NRE180,ZRE18# SA —
55045 — Panel Sub-assy, Instrument Panel Finish, Lower
55045-02320-C0 note Panel Sub-assy, Instrument Panel Finish, Lower
2013-06 → 2015-05 ended
NDE180 TUP —
55045-02320-C1 note Panel Sub-assy, Instrument Panel Finish, Lower
2015-05 → 2016-05 ended
NDE180 TUP —
55045-02370-C0 note Panel Sub-assy, Instrument Panel Finish, Lower
2014-01 → 2017-01 ended
ZRE181 CVT N GEN +1 —
55045-02370-C0 note Panel Sub-assy, Instrument Panel Finish, Lower
2014-01 → 2017-01 ended
ZRE182 GEN SAP;ZRE181 D +6 —
55045-02380-C0 note Panel Sub-assy, Instrument Panel Finish, Lower
2014-01 → 2017-01 ended
NDE180,NRE180,ZRE18# SA —
55045-02320-C1 note Panel Sub-assy, Instrument Panel Finish, Lower
2016-06 → 2018-08 ended
NRE180 TUP —
55045-02320-C1 note Panel Sub-assy, Instrument Panel Finish, Lower
2016-06 → 2019-01 ended
NDE180,ZRE18# TUP —
55045-02370-C0 note Panel Sub-assy, Instrument Panel Finish, Lower
2017-01 → 2019-12 ended
ZRE181 CVT N GEN +1 —
55045-02370-C0 note Panel Sub-assy, Instrument Panel Finish, Lower
2017-01 → 2019-12 ended
ZRE182 GEN SAP;ZRE181 D +6 —
55045-02380-C0 note Panel Sub-assy, Instrument Panel Finish, Lower
2017-01 → 2019-12 ended
NDE180,NRE180,ZRE18# SA —
55349A — Cushion, Instrument Panel
58959-60060 Cushion, Instrument Panel
2013-06 → 2017-01 ended
NDE180,NRE180,ZRE18# SAP —
58959-60060 Cushion, Instrument Panel
2013-06 → 2016-05 ended
NDE180 TUP —
58959-60060 Cushion, Instrument Panel
2016-06 → 2018-08 ended
NRE180 TUP —
58959-60060 Cushion, Instrument Panel
2016-06 → 2019-01 ended
NDE180,ZRE18# TUP —
58959-60060 Cushion, Instrument Panel
2016-06 → 2019-12 ended
NDE180,NRE180,ZRE18# SAP —
58959-60060 Cushion, Instrument Panel
2019-12 → —
ZRE182 —
55410C — Panel Assy, Instrument Cluster Finish
55410-02260-C0 note Panel Assy, Instrument Cluster Finish
2013-06 → 2015-05 ended
NDE180 TUP —
55410-02260-C1 note Panel Assy, Instrument Cluster Finish
2015-05 → 2016-05 ended
NDE180 TUP —
55410-02310-C0 note Panel Assy, Instrument Cluster Finish
2014-01 → 2017-01 ended
ZRE181 CVT N GEN +1 —
55410-02310-C0 note Panel Assy, Instrument Cluster Finish
2014-01 → 2017-01 ended
ZRE182 GEN SAP;ZRE181 D +6 —
55410-02320-C0 note Panel Assy, Instrument Cluster Finish
2014-01 → 2017-01 ended
NDE180,NRE180,ZRE18# SA —
55410-02160 Panel Assy, Instrument Cluster Finish
2016-06 → 2018-08 ended
NRE180 TUP —
55410-02160 Panel Assy, Instrument Cluster Finish
2016-06 → 2019-01 ended
NDE180,ZRE18# TUP —
55410-02300 Panel Assy, Instrument Cluster Finish
2017-01 → 2019-12 ended
ZRE18# GEN SAP —
55410-02460 Panel Assy, Instrument Cluster Finish
2017-01 → 2019-12 ended
NDE180,NRE180,ZRE18# SA —
55410-02300 Panel Assy, Instrument Cluster Finish
2019-12 → —
ZRE182 GEN —
55410-02460 Panel Assy, Instrument Cluster Finish
2019-12 → —
ZRE182 SA —
55422A — Panel, Instrument Cluster Finish, Lower
55422-02290-C0 note Panel, Instrument Cluster Finish, Lower
2013-06 → 2015-05 ended
NDE180 TUP —
55422-02290-C0 note Panel, Instrument Cluster Finish, Lower
2014-01 → 2015-05 ended
ZRE18# GEN —
55422-02290-C1 note Panel, Instrument Cluster Finish, Lower
2015-05 → 2016-05 ended
NDE180 TUP —
55422-02290-C1 note Panel, Instrument Cluster Finish, Lower
2015-05 → 2017-01 ended
ZRE181 CVT N GEN +1 —
55422-02290-C1 note Panel, Instrument Cluster Finish, Lower
2015-05 → 2017-01 ended
ZRE182 GEN SAP;ZRE181 D +6 —
55422-02300-C0 note Panel, Instrument Cluster Finish, Lower
2014-01 → 2015-05 ended
NDE180,NRE180,ZRE18# SA —
55422-02300-C1 note Panel, Instrument Cluster Finish, Lower
2015-05 → 2017-01 ended
NDE180,NRE180,ZRE18# SA —
55422-02340-C0 note Panel, Instrument Cluster Finish, Lower
2014-01 → 2015-05 ended
NDE180,NRE180,ZRE18# N SA —
55422-02340-C1 note Panel, Instrument Cluster Finish, Lower
2015-05 → 2017-01 ended
NDE180,NRE180,ZRE18# N SA —
55422-02290-C1 note Panel, Instrument Cluster Finish, Lower
2016-06 → 2018-05 ended
NDE180,NRE180,ZRE18# TUP —
55422-02290-C1 note Panel, Instrument Cluster Finish, Lower
2017-01 → 2018-06 ended
ZRE182 GEN SAP;ZRE181 D +6 —
55422-02290-C1 note Panel, Instrument Cluster Finish, Lower
2016-06 → 2018-06 ended
ZRE181 CVT N GEN +1 —
55422-02290-C2 note Panel, Instrument Cluster Finish, Lower
2018-05 → 2018-08 ended
NRE180 TUP —
55422-02290-C2 note Panel, Instrument Cluster Finish, Lower
2018-05 → 2019-01 ended
NDE180,ZRE18# TUP —
55422-02290-C2 note Panel, Instrument Cluster Finish, Lower
2018-06 → 2019-12 ended
ZRE181 CVT N GEN +1 —
55422-02290-C2 note Panel, Instrument Cluster Finish, Lower
2018-06 → 2019-12 ended
ZRE182 GEN SAP;ZRE181 D +6 —
55422-02300-C1 note Panel, Instrument Cluster Finish, Lower
2017-01 → 2018-06 ended
NDE180,NRE180,ZRE18# SA —
55422-02300-C2 note Panel, Instrument Cluster Finish, Lower
2018-06 → 2019-12 ended
NDE180,NRE180,ZRE18# SA —
55422-02340-C1 note Panel, Instrument Cluster Finish, Lower
2017-01 → 2019-12 ended
NDE180,NRE180,ZRE18# N SA —
55422-02290-C2 note Panel, Instrument Cluster Finish, Lower
2019-12 → —
ZRE182 N GEN —
55422-02290-C2 note Panel, Instrument Cluster Finish, Lower
2019-12 → —
ZRE182 (D,G) GEN —
55422-02300-C2 note Panel, Instrument Cluster Finish, Lower
2019-12 → —
ZRE182 D SA —
55422-02300-C2 note Panel, Instrument Cluster Finish, Lower
2019-12 → —
ZRE182 N SA —
55422-02340-C1 note Panel, Instrument Cluster Finish, Lower
2019-12 → —
ZRE182 G SA —
55422-02340-C1 note Panel, Instrument Cluster Finish, Lower
2021-01 → —
ZRE182 N SA —
55422-02340-C1 note Panel, Instrument Cluster Finish, Lower
2021-01 → —
ZRE182 D SA —
55446A — Base, Switch Hole, NO.1
55446-02370-C0 note Base, Switch Hole, NO.1
2013-06 → 2015-05 ended
NDE180 N TUP —
55446-02370-C0 note Base, Switch Hole, NO.1
2014-01 → 2015-05 ended
ZRE18# N GEN —
55446-02370-C1 note Base, Switch Hole, NO.1
2015-05 → 2017-01 ended
ZRE181 CVT N GEN +1 —
55446-02370-C1 note Base, Switch Hole, NO.1
2015-05 → 2017-01 ended
ZRE182 N GEN SAP;ZRE181 +4 —
55446-02370-C1 note Base, Switch Hole, NO.1
2015-05 → 2016-05 ended
NDE180 N TUP —
55446-02380-C0 note Base, Switch Hole, NO.1
2014-01 → 2015-05 ended
ZRE18# GEN —
55446-02380-C0 note Base, Switch Hole, NO.1
2013-06 → 2015-05 ended
NDE180 TUP —
55446-02380-C1 note Base, Switch Hole, NO.1
2015-05 → 2016-05 ended
NDE180 TUP —
55446-02380-C1 note Base, Switch Hole, NO.1
2015-05 → 2017-01 ended
ZRE181 CVT N GEN +1 —
55446-02380-C1 note Base, Switch Hole, NO.1
2015-05 → 2017-01 ended
ZRE182 GEN SAP;ZRE181 D +6 —
55446-02390-C0 note Base, Switch Hole, NO.1
2014-01 → 2015-05 ended
NDE180,NRE180,ZRE18# SA —
55446-02390-C1 note Base, Switch Hole, NO.1
2015-05 → 2017-01 ended
NDE180,NRE180,ZRE18# SA —
55446-02370-C1 note Base, Switch Hole, NO.1
2016-06 → 2018-05 ended
NDE180,NRE180,ZRE18# N TUP —
55446-02370-C1 note Base, Switch Hole, NO.1
2016-06 → 2018-06 ended
ZRE181 CVT N GEN +1 —
55446-02370-C1 note Base, Switch Hole, NO.1
2017-01 → 2018-06 ended
ZRE182 N GEN SAP;ZRE181 +4 —
55446-02370-C2 note Base, Switch Hole, NO.1
2018-06 → 2019-12 ended
ZRE181 CVT N GEN +1 —
55446-02370-C2 note Base, Switch Hole, NO.1
2018-06 → 2019-12 ended
ZRE182 N GEN SAP;ZRE181 +4 —
55446-02370-C2 note Base, Switch Hole, NO.1
2018-05 → 2019-01 ended
NDE180,ZRE18# N TUP —
55446-02370-C2 note Base, Switch Hole, NO.1
2018-05 → 2018-08 ended
NRE180 N TUP —
55446-02380-C1 note Base, Switch Hole, NO.1
2017-01 → 2018-06 ended
ZRE182 GEN SAP;ZRE181 D +6 —
55446-02380-C1 note Base, Switch Hole, NO.1
2016-06 → 2018-05 ended
NDE180,NRE180,ZRE18# TUP —
55446-02380-C1 note Base, Switch Hole, NO.1
2016-06 → 2018-06 ended
ZRE181 CVT N GEN +1 —
55446-02380-C2 note Base, Switch Hole, NO.1
2018-05 → 2018-08 ended
NRE180 TUP —
55446-02380-C2 note Base, Switch Hole, NO.1
2018-05 → 2019-01 ended
NDE180,ZRE18# TUP —
55446-02380-C2 note Base, Switch Hole, NO.1
2018-06 → 2019-12 ended
ZRE181 CVT N GEN +1 —
55446-02380-C2 note Base, Switch Hole, NO.1
2018-06 → 2019-12 ended
ZRE182 GEN SAP;ZRE181 D +6 —
55446-02390-C1 note Base, Switch Hole, NO.1
2017-01 → 2018-06 ended
NDE180,NRE180,ZRE18# SA —
55446-02390-C2 note Base, Switch Hole, NO.1
2018-06 → 2019-12 ended
NDE180,NRE180,ZRE18# SA —
55446-02370-C2 note Base, Switch Hole, NO.1
2019-12 → —
ZRE182 G GEN —
55446-02380-C2 note Base, Switch Hole, NO.1
2019-12 → —
ZRE182 D GEN —
55446-02380-C2 note Base, Switch Hole, NO.1
2019-12 → —
ZRE182 N GEN —
55446-02390-C2 note Base, Switch Hole, NO.1
2019-12 → —
ZRE182 N SA —
55446-02390-C2 note Base, Switch Hole, NO.1
2019-12 → —
ZRE182 D SA —
55446-02390-C2 note Base, Switch Hole, NO.1
2020-01 → —
ZRE182 G SA —
55447C — Base, Switch Hole, NO.2
55447-02130-C0 note Base, Switch Hole, NO.2
2014-01 → 2015-05 ended
NDE180,NRE180,ZRE18# N SA —
55447-02130-C1 note Base, Switch Hole, NO.2
2015-05 → 2017-01 ended
NDE180,NRE180,ZRE18# N SA —
55447-02210-C0 note Base, Switch Hole, NO.2
2013-06 → 2015-05 ended
NDE180 TUP —
55447-02210-C0 note Base, Switch Hole, NO.2
2014-01 → 2015-05 ended
ZRE18# GEN —
55447-02210-C1 note Base, Switch Hole, NO.2
2015-05 → 2016-05 ended
NDE180 TUP —
55447-02210-C1 note Base, Switch Hole, NO.2
2015-05 → 2017-01 ended
ZRE181 CVT N GEN +1 —
55447-02210-C1 note Base, Switch Hole, NO.2
2015-05 → 2017-01 ended
ZRE182 GEN SAP;ZRE181 D +6 —
55447-02220-C0 note Base, Switch Hole, NO.2
2014-01 → 2015-05 ended
NDE180,NRE180,ZRE18# SA —
55447-02220-C1 note Base, Switch Hole, NO.2
2015-05 → 2017-01 ended
NDE180,NRE180,ZRE18# SA —
55447-02130-C1 note Base, Switch Hole, NO.2
2017-01 → 2018-06 ended
NDE180,NRE180,ZRE18# N SA —
55447-02130-C2 note Base, Switch Hole, NO.2
2018-06 → 2019-12 ended
NDE180,NRE180,ZRE18# N SA —
55447-02210-C1 note Base, Switch Hole, NO.2
2016-06 → 2018-05 ended
NDE180,NRE180,ZRE18# TUP —
55447-02210-C1 note Base, Switch Hole, NO.2
2016-06 → 2018-06 ended
ZRE181 CVT N GEN +1 —
55447-02210-C1 note Base, Switch Hole, NO.2
2017-01 → 2018-06 ended
ZRE182 GEN SAP;ZRE181 D +6 —
55447-02210-C2 note Base, Switch Hole, NO.2
2018-06 → 2019-12 ended
ZRE182 GEN SAP;ZRE181 D +6 —
55447-02210-C2 note Base, Switch Hole, NO.2
2018-06 → 2019-12 ended
ZRE181 CVT N GEN +1 —
55447-02210-C2 note Base, Switch Hole, NO.2
2018-05 → 2018-08 ended
NRE180 TUP —
55447-02210-C2 note Base, Switch Hole, NO.2
2018-05 → 2019-01 ended
NDE180,ZRE18# TUP —
55447-02220-C1 note Base, Switch Hole, NO.2
2017-01 → 2018-06 ended
NDE180,NRE180,ZRE18# SA —
55447-02220-C2 note Base, Switch Hole, NO.2
2018-06 → 2019-12 ended
NDE180,NRE180,ZRE18# SA —
55447-02130-C2 note Base, Switch Hole, NO.2
2021-01 → —
ZRE182 N SA —
55447-02130-C2 note Base, Switch Hole, NO.2
2021-01 → —
ZRE182 D SA —
55447-02130-C2 note Base, Switch Hole, NO.2
2019-12 → —
ZRE182 G SA —
55447-02210-C2 note Base, Switch Hole, NO.2
2019-12 → —
ZRE182 N GEN —
55447-02210-C2 note Base, Switch Hole, NO.2
2019-12 → —
ZRE182 (D,G) GEN —
55447-02220-C2 note Base, Switch Hole, NO.2
2019-12 → —
ZRE182 N SA —
55447-02220-C2 note Base, Switch Hole, NO.2
2019-12 → —
ZRE182 D SA —
55450B — Box Assy, Coin
55450-02130-C0 note Box Assy, Coin
2013-06 → 2015-05 ended
NDE180 TUP —
55450-02130-C0 note Box Assy, Coin
2014-01 → 2015-05 ended
NDE180,NRE180,ZRE18# SAP —
55450-02130-C1 note Box Assy, Coin
2015-05 → 2015-07 ended
NDE180 TUP —
55450-02130-C1 note Box Assy, Coin
2015-05 → 2015-07 ended
NDE180,NRE180,ZRE18# SAP —
55450-02131-C1 note Box Assy, Coin
2015-08 → 2017-01 ended
ZRE181 CVT N GEN +1 —
55450-02131-C1 note Box Assy, Coin
2015-08 → 2017-01 ended
ZRE181 D SAP;ZRE181 CVT +5 —
55450-02131-C1 note Box Assy, Coin
2015-08 → 2016-05 ended
NDE180 TUP —
55450-02131-C1 note Box Assy, Coin
2016-06 → 2018-05 ended
NDE180,NRE180,ZRE18# TUP —
55450-02131-C1 note Box Assy, Coin
2016-06 → 2018-06 ended
ZRE181 CVT N GEN +1 —
55450-02131-C1 note Box Assy, Coin
2017-01 → 2018-06 ended
ZRE181 D SAP;ZRE181 CVT +5 —
55450-02131-C2 note Box Assy, Coin
2018-05 → 2018-08 ended
NRE180 TUP —
55450-02131-C2 note Box Assy, Coin
2018-05 → 2019-01 ended
NDE180,ZRE18# TUP —
55450-02131-C2 note Box Assy, Coin
2018-06 → 2019-12 ended
ZRE181 CVT N GEN +1 —
55450-02131-C2 note Box Assy, Coin
2018-06 → 2019-12 ended
ZRE181 D SAP;ZRE181 CVT +5 —
55450-02131-C2 note Box Assy, Coin
2019-12 → —
ZRE182 N —
55450-02131-C2 note Box Assy, Coin
2019-12 → —
ZRE182 D,G —
55455B — Coin Box
55455-02160 note Coin Box
2013-06 → 2016-11 ended
NDE180,NRE180,ZRE18# SAP —
55455-02160 note Coin Box
2013-06 → 2016-05 ended
NDE180 TUP —
55455-02161 note Coin Box
2016-11 → 2017-01 ended
NDE180,NRE180,ZRE18# SAP —
55455-02160 note Coin Box
2016-06 → 2017-01 ended
NDE180,NRE180,ZRE18# TUP —
55455-02161 note Coin Box
2017-01 → 2018-08 ended
NRE180 TUP —
55455-02161 note Coin Box
2017-01 → 2019-01 ended
NDE180,ZRE18# TUP —
55455-02161 Coin Box
2017-01 → 2019-12 ended
NDE180,NRE180,ZRE18# SAP —
55455-02161 Coin Box
2019-12 → —
ZRE182 —
55458E — Clip(FOR INSTRUMENT LOWER COVER)
90467-10203 Clip(FOR INSTRUMENT LOWER COVER)
2013-06 → 2016-05 ended
NDE180 TUP —
90467-10203 Clip(FOR INSTRUMENT LOWER COVER)
2013-06 → 2017-01 ended
ZRE18# GEN SAP —
90467-10203 Clip(FOR INSTRUMENT LOWER COVER)
2014-01 → 2017-01 ended
NDE180,NRE180,ZRE18# SA —
90467-10203 note Clip(FOR INSTRUMENT LOWER COVER)
2014-01 → 2017-01 ended
NDE180,NRE180,ZRE18# N SA —
90467-10203 Clip(FOR INSTRUMENT LOWER COVER)
2016-06 → 2019-12 ended
ZRE18# GEN SAP —
90467-10203 note Clip(FOR INSTRUMENT LOWER COVER)
2017-01 → 2019-12 ended
NDE180,NRE180,ZRE18# N SA —
90467-10203 Clip(FOR INSTRUMENT LOWER COVER)
2017-01 → 2019-12 ended
NDE180,NRE180,ZRE18# SA —
90467-10203 Clip(FOR INSTRUMENT LOWER COVER)
2016-06 → 2019-01 ended
NDE180,ZRE18# TUP —
90467-10203 Clip(FOR INSTRUMENT LOWER COVER)
2016-06 → 2018-08 ended
NRE180 TUP —
90467-10203 Clip(FOR INSTRUMENT LOWER COVER)
2019-12 → —
ZRE182 (D,N) SA —
90467-10203 Clip(FOR INSTRUMENT LOWER COVER)
2019-12 → —
ZRE182 G;ZRE182 (D,N) GEN —
90467-10203 note Clip(FOR INSTRUMENT LOWER COVER)
2021-01 → —
ZRE182 (D,N) SA —
55539 — Cover, Spare Switch Hole
55539-02100-C0 note Cover, Spare Switch Hole
2013-06 → 2015-05 ended
NDE180 TUP —
55539-02100-C1 note Cover, Spare Switch Hole
2015-05 → 2016-05 ended
NDE180 TUP —
55539-52060-C0 note Cover, Spare Switch Hole
2014-01 → 2017-01 ended
ZRE181 CVT N GEN +1 —
55539-52060-C0 note Cover, Spare Switch Hole
2014-01 → 2017-01 ended
ZRE181 D SAP;ZRE181 CVT +5 —
55539-52060-C0 note Cover, Spare Switch Hole
2014-01 → 2017-01 ended
ZRE18# N SA —
55539-02100-C1 note Cover, Spare Switch Hole
2016-06 → 2019-01 ended
NDE180,NRE180,ZRE18# N TUP —
55539-02100-C1 note Cover, Spare Switch Hole
2016-06 → 2019-01 ended
ZRE18# CVT N TUP —
55539-02100-C1 note Cover, Spare Switch Hole
2016-06 → 2019-01 ended
ZRE18# N GCC —
55539-02100-C1 note Cover, Spare Switch Hole
2016-06 → 2019-01 ended
NRE180,ZRE18# N GEN TUP —
55539-02100-C1 note Cover, Spare Switch Hole
2016-06 → 2019-01 ended
NDE180,NRE180,ZRE18# N GEN TUP —
55539-02100-C1 note Cover, Spare Switch Hole
2016-06 → 2019-01 ended
NDE180,NRE180,ZRE18# TUP —
55539-52060-C4 note Cover, Spare Switch Hole
2017-01 → 2019-12 ended
ZRE181 CVT N GEN +1 —
55539-52060-C4 note Cover, Spare Switch Hole
2017-01 → 2019-12 ended
ZRE181 D SAP;ZRE181 CVT +5 —
55539-52060-C4 note Cover, Spare Switch Hole
2017-01 → 2019-12 ended
ZRE181 CVT N GEN +1 —
55539-52060-C4 note Cover, Spare Switch Hole
2017-01 → 2019-12 ended
ZRE182 N SAP;ZRE181 CVT +4 —
55539-0D090-C1 note Cover, Spare Switch Hole
2019-12 → —
ZRE182 N —
55539-0D090-C1 note Cover, Spare Switch Hole
2019-12 → —
ZRE182 D,G —
55539-52060-C4 note Cover, Spare Switch Hole
2019-12 → —
ZRE182 N —
55539-52060-C4 note Cover, Spare Switch Hole
2019-12 → —
ZRE182 D,G —
55539C — Cover, Spare Switch Hole
55539-02100-C0 note Cover, Spare Switch Hole
2013-06 → 2015-05 ended
NDE180 TUP —
55539-02100-C0 note Cover, Spare Switch Hole
2013-06 → 2015-05 ended
NDE180 TUP —
55539-02100-C1 note Cover, Spare Switch Hole
2015-05 → 2016-05 ended
NDE180 TUP —
55539-02100-C1 note Cover, Spare Switch Hole
2015-05 → 2016-05 ended
NDE180 TUP —
55539-52060-C0 note Cover, Spare Switch Hole
2014-01 → 2017-01 ended
ZRE181 CVT N GEN +1 —
55539-52060-C0 note Cover, Spare Switch Hole
2014-01 → 2017-01 ended
ZRE181 D SAP;ZRE181 CVT +5 —
55606 — Cover Sub-assy, Instrument Panel Under, NO.1
55606-02160 Cover Sub-assy, Instrument Panel Under, NO.1
2013-06 → 2016-05 ended
NDE180 TUP —
55606-02160 Cover Sub-assy, Instrument Panel Under, NO.1
2013-06 → 2017-01 ended
ZRE18# GEN SAP —
55606-02170 Cover Sub-assy, Instrument Panel Under, NO.1
2014-01 → 2017-01 ended
NDE180,NRE180,ZRE18# SA —
55606-02160 Cover Sub-assy, Instrument Panel Under, NO.1
2016-06 → 2019-01 ended
NDE180,ZRE18# TUP —
55606-02160 Cover Sub-assy, Instrument Panel Under, NO.1
2016-06 → 2019-12 ended
ZRE18# GEN SAP —
55606-02160 Cover Sub-assy, Instrument Panel Under, NO.1
2016-06 → 2018-08 ended
NRE180 TUP —
55606-02170 Cover Sub-assy, Instrument Panel Under, NO.1
2017-01 → 2019-12 ended
NDE180,NRE180,ZRE18# SA —
55606-02160 Cover Sub-assy, Instrument Panel Under, NO.1
2019-12 → —
ZRE182 GEN —
55606-02170 Cover Sub-assy, Instrument Panel Under, NO.1
2019-12 → —
ZRE182 SA —
55650 — Register Assy, Instrument Panel, NO.1
55650-02330-B0 note Register Assy, Instrument Panel, NO.1
2014-01 → 2015-06 ended
NDE180,NRE180,ZRE18# N SA —
55650-02330-B1 note Register Assy, Instrument Panel, NO.1
2015-06 → 2017-01 ended
NDE180,NRE180,ZRE18# N SA —
55650-02340-C0 note Register Assy, Instrument Panel, NO.1
2014-01 → 2015-05 ended
NDE180,NRE180,ZRE18# N SA —
55650-02340-C1 note Register Assy, Instrument Panel, NO.1
2015-05 → 2017-01 ended
NDE180,NRE180,ZRE18# N SA —
55650-02350-B0 note Register Assy, Instrument Panel, NO.1
2014-01 → 2015-06 ended
NDE180,NRE180,ZRE18# N SA —
55650-02350-B1 note Register Assy, Instrument Panel, NO.1
2015-06 → 2017-01 ended
NDE180,NRE180,ZRE18# N SA —
55650-02430-C0 note Register Assy, Instrument Panel, NO.1
2014-01 → 2015-05 ended
ZRE18# GEN —
55650-02430-C1 note Register Assy, Instrument Panel, NO.1
2015-05 → 2017-01 ended
ZRE18# GEN SAP —
55650-02430-C2 note Register Assy, Instrument Panel, NO.1
2016-10 → 2017-01 ended
ZRE181 CVT N GEN +1 —
55650-02440-B0 note Register Assy, Instrument Panel, NO.1
2014-01 → 2015-06 ended
ZRE18# N GEN —
55650-02440-B1 note Register Assy, Instrument Panel, NO.1
2016-10 → 2017-01 ended
ZRE181 CVT N GEN +1 —
55650-02440-B3 note Register Assy, Instrument Panel, NO.1
2015-06 → 2017-01 ended
ZRE18# N GEN SAP —
55650-02450-C0 note Register Assy, Instrument Panel, NO.1
2014-01 → 2015-05 ended
NDE180,NRE180,ZRE18# SA —
55650-02450-C1 note Register Assy, Instrument Panel, NO.1
2015-05 → 2017-01 ended
NDE180,NRE180,ZRE18# SA —
55693 — Protector, Control Knob, NO.1
55693-02290 Protector, Control Knob, NO.1
2013-06 → 2016-05 ended
NDE180 N TUP —
55693-02290 note Protector, Control Knob, NO.1
2014-01 → 2017-01 ended
NDE180,NRE180,ZRE18# N SA —
55693-02290 note Protector, Control Knob, NO.1
2014-01 → 2017-01 ended
NDE180,NRE180,ZRE18# N SAP —
73900 — Airbag Assy, Instrument Panel, Lower NO.1
73900-02081 note Airbag Assy, Instrument Panel, Lower NO.1
2014-01 → 2017-01 ended
ZRE18# N GEN SAP —
73900-02081 note Airbag Assy, Instrument Panel, Lower NO.1
2014-01 → 2017-01 ended
NDE180,NRE180,ZRE18# SA —
73900-02081 note Airbag Assy, Instrument Panel, Lower NO.1
2017-01 → 2019-12 ended
NDE180,NRE180,ZRE18# SA —
73900-02081 Airbag Assy, Instrument Panel, Lower NO.1
2019-12 → —
ZRE182 —
73997 — Door, Instrument Panel Airbag, Lower NO.1
73997-02050-C0 note Door, Instrument Panel Airbag, Lower NO.1
2014-01 → 2015-05 ended
ZRE18# N GEN —
73997-02050-C1 note Door, Instrument Panel Airbag, Lower NO.1
2015-05 → 2017-01 ended
ZRE181 CVT N GEN +1 —
73997-02050-C1 note Door, Instrument Panel Airbag, Lower NO.1
2015-05 → 2017-01 ended
ZRE182 N GEN SAP;ZRE181 +4 —
73997-12070-C0 note Door, Instrument Panel Airbag, Lower NO.1
2014-01 → 2017-01 ended
NDE180,NRE180,ZRE18# SA —
73997-12070-C0 note Door, Instrument Panel Airbag, Lower NO.1
2017-01 → 2019-12 ended
NDE180,NRE180,ZRE18# SA —
73997-02050-C1 note Door, Instrument Panel Airbag, Lower NO.1
2019-12 → —
ZRE182 N GEN —
73997-02050-C1 note Door, Instrument Panel Airbag, Lower NO.1
2019-12 → —
ZRE182 (D,G) GEN —
73997-12070-C0 note Door, Instrument Panel Airbag, Lower NO.1
2019-12 → —
ZRE182 N SA —
73997-12070-C0 note Door, Instrument Panel Airbag, Lower NO.1
2019-12 → —
ZRE182 (D,G) SA —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
