Toyota Corolla
2013-06 → present · chassis NDE180,NRE180,ZRE18#,ZRE21#,ZWE219 · catalogue 164320 · General
Supported model
Data version 2019-11

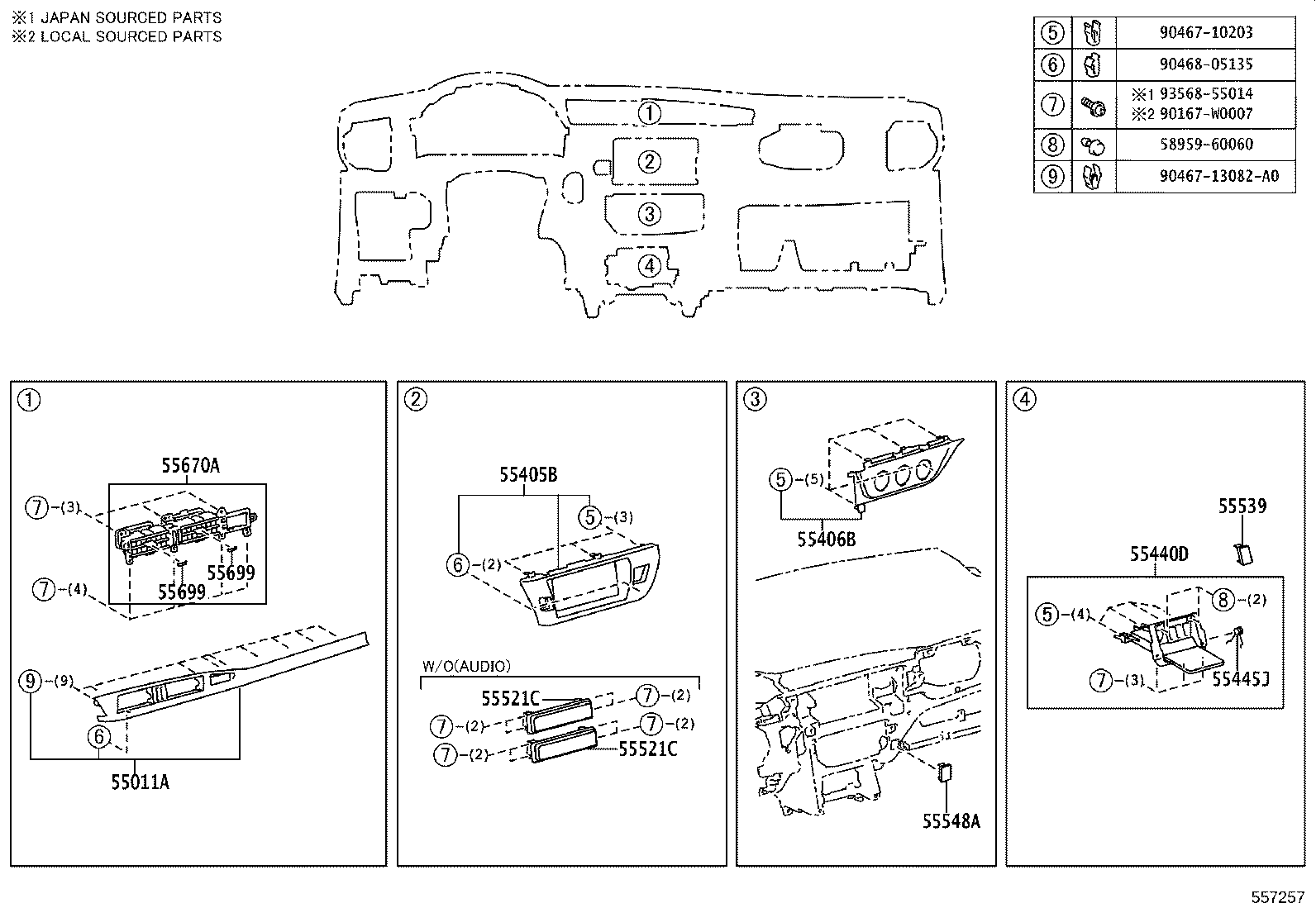

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 55011A — Garnish Sub-assy, Instrument Panel, NO.1 | ||||
| 55011-02040-B0 note |
Garnish Sub-assy, Instrument Panel, NO.1
2013-06 → 2015-04
ended
|
NDE180 TUP | — | |
| 55011-02041-B0 note |
Garnish Sub-assy, Instrument Panel, NO.1
2015-05 → 2016-05
ended
|
NDE180 TUP | — | |
| 55011-02060-B0 note |
Garnish Sub-assy, Instrument Panel, NO.1
2014-01 → 2017-01
ended
|
ZRE182 GEN SAP;ZRE181 D +6 | — | |
| 55011-02060-B0 note |
Garnish Sub-assy, Instrument Panel, NO.1
2014-01 → 2017-01
ended
|
ZRE181 CVT N GEN +1 | — | |
| 55011-02070-B0 note |
Garnish Sub-assy, Instrument Panel, NO.1
2014-01 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SA | — | |
| 55405B — Panel Sub-assy, Instrument Cluster Finish, Center | ||||
| 55405-02531-C2 note |
Panel Sub-assy, Instrument Cluster Finish, Center
2013-06 → 2016-05
ended
|
NDE180 D TUP | — | |
| 55405-02531-C2 note |
Panel Sub-assy, Instrument Cluster Finish, Center
2013-06 → 2016-05
ended
|
NDE180 N TUP | — | |
| 55405-02531-C2 note |
Panel Sub-assy, Instrument Cluster Finish, Center
2013-06 → 2017-01
ended
|
ZRE181 CVT N GEN +1 | — | |
| 55405-02531-C2 note |
Panel Sub-assy, Instrument Cluster Finish, Center
2014-01 → 2017-01
ended
|
ZRE18# D GEN SAP | — | |
| 55405-02531-C2 note |
Panel Sub-assy, Instrument Cluster Finish, Center
2014-01 → 2017-01
ended
|
ZRE182 N GEN SAP;ZRE181 +4 | — | |
| 55405-02540-C2 note |
Panel Sub-assy, Instrument Cluster Finish, Center
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 55405-02551-C2 note |
Panel Sub-assy, Instrument Cluster Finish, Center
2014-01 → 2017-01
ended
|
NDE180,NRE180,ZRE181 D SA | — | |
| 55405-02551-C2 note |
Panel Sub-assy, Instrument Cluster Finish, Center
2014-01 → 2017-01
ended
|
NDE180,NRE180,ZRE18# N SA | — | |
| 55405-02580-C2 note |
Panel Sub-assy, Instrument Cluster Finish, Center
2014-01 → 2017-01
ended
|
ZRE181 CVT N GEN +1 | — | |
| 55405-02580-C2 note |
Panel Sub-assy, Instrument Cluster Finish, Center
2014-01 → 2017-01
ended
|
ZRE182 GEN SAP;ZRE181 D +6 | — | |
| 55405-02600-C2 note |
Panel Sub-assy, Instrument Cluster Finish, Center
2014-01 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SA | — | |
| 55406-02640 |
Panel Sub-assy, Instrument Cluster Finish, Center
2016-06 → 2019-12
ended
|
ZRE18# GEN SAP | — | |
| 55406-02640 |
Panel Sub-assy, Instrument Cluster Finish, Center
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 55406-02640 |
Panel Sub-assy, Instrument Cluster Finish, Center
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 55406-02650 |
Panel Sub-assy, Instrument Cluster Finish, Center
2017-01 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SA | — | |
| 55406-02640 |
Panel Sub-assy, Instrument Cluster Finish, Center
2019-12 → —
|
ZRE182 GEN | — | |
| 55406-02650 |
Panel Sub-assy, Instrument Cluster Finish, Center
2019-12 → —
|
ZRE182 SA | — | |
| 55406B — Panel Sub-assy, Instrument Cluster Finish, Lower Center | ||||
| 55406-02480-C0 note |
Panel Sub-assy, Instrument Cluster Finish, Lower Center
2013-06 → 2015-05
ended
|
NDE180 TUP | — | |
| 55406-02480-C0 note |
Panel Sub-assy, Instrument Cluster Finish, Lower Center
2013-06 → 2015-05
ended
|
NDE180 TUP | — | |
| 55406-02480-C0 note |
Panel Sub-assy, Instrument Cluster Finish, Lower Center
2013-06 → 2015-05
ended
|
NDE180 N TUP | — | |
| 55406-02480-C1 note |
Panel Sub-assy, Instrument Cluster Finish, Lower Center
2015-05 → 2016-05
ended
|
NDE180 TUP | — | |
| 55406-02480-C1 note |
Panel Sub-assy, Instrument Cluster Finish, Lower Center
2015-05 → 2016-05
ended
|
NDE180 TUP | — | |
| 55406-02480-C1 note |
Panel Sub-assy, Instrument Cluster Finish, Lower Center
2015-05 → 2016-05
ended
|
NDE180 N TUP | — | |
| 55406-02500-C0 note |
Panel Sub-assy, Instrument Cluster Finish, Lower Center
2014-01 → 2017-01
ended
|
ZRE181 CVT N GEN +1 | — | |
| 55406-02500-C0 note |
Panel Sub-assy, Instrument Cluster Finish, Lower Center
2014-01 → 2017-01
ended
|
ZRE182 GEN SAP;ZRE181 D +6 | — | |
| 55406-02500-C0 note |
Panel Sub-assy, Instrument Cluster Finish, Lower Center
2014-01 → 2017-01
ended
|
ZRE181 CVT N GEN +1 | — | |
| 55406-02500-C0 note |
Panel Sub-assy, Instrument Cluster Finish, Lower Center
2014-01 → 2017-01
ended
|
ZRE182 N GEN SAP;ZRE181 +4 | — | |
| 55406-02510-C0 note |
Panel Sub-assy, Instrument Cluster Finish, Lower Center
2014-01 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SA | — | |
| 55406-02510-C0 note |
Panel Sub-assy, Instrument Cluster Finish, Lower Center
2014-01 → 2017-01
ended
|
NDE180,NRE180,ZRE18# N SA | — | |
| 55406-02330 |
Panel Sub-assy, Instrument Cluster Finish, Lower Center
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 55406-02330 |
Panel Sub-assy, Instrument Cluster Finish, Lower Center
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 55406-02330 |
Panel Sub-assy, Instrument Cluster Finish, Lower Center
2016-06 → 2019-12
ended
|
ZRE18# GEN SAP | — | |
| 55406-02340 |
Panel Sub-assy, Instrument Cluster Finish, Lower Center
2017-01 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SA | — | |
| 55406-02350 note |
Panel Sub-assy, Instrument Cluster Finish, Lower Center
2016-06 → 2018-08
ended
|
NRE180 N TUP | — | |
| 55406-02350 note |
Panel Sub-assy, Instrument Cluster Finish, Lower Center
2016-06 → 2019-01
ended
|
NDE180,ZRE18# N TUP | — | |
| 55406-02350 note |
Panel Sub-assy, Instrument Cluster Finish, Lower Center
2017-01 → 2019-12
ended
|
ZRE18# N GEN SAP | — | |
| 55406-02630 note |
Panel Sub-assy, Instrument Cluster Finish, Lower Center
2017-01 → 2019-12
ended
|
NDE180,NRE180,ZRE18# N SA | — | |
| 55406-02330 |
Panel Sub-assy, Instrument Cluster Finish, Lower Center
2019-12 → —
|
ZRE182 (D,N) GEN | — | |
| 55406-02340 |
Panel Sub-assy, Instrument Cluster Finish, Lower Center
2019-12 → —
|
ZRE182 (D,N) SA | — | |
| 55406-02350 |
Panel Sub-assy, Instrument Cluster Finish, Lower Center
2019-12 → —
|
ZRE182 G GEN | — | |
| 55406-02630 |
Panel Sub-assy, Instrument Cluster Finish, Lower Center
2019-12 → —
|
ZRE182 G SA | — | |
| 55440D — Box Assy, Instrument Panel | ||||
| 55440-02710-C0 note |
Box Assy, Instrument Panel
2013-06 → 2015-04
ended
|
NDE180 TUP | — | |
| 55440-02710-C0 note |
Box Assy, Instrument Panel
2014-01 → 2015-05
ended
|
ZRE18# GEN | — | |
| 55440-02710-C1 note |
Box Assy, Instrument Panel
2015-05 → 2017-01
ended
|
ZRE181 CVT N GEN +1 | — | |
| 55440-02710-C1 note |
Box Assy, Instrument Panel
2015-05 → 2017-01
ended
|
ZRE182 GEN SAP;ZRE181 D +6 | — | |
| 55440-02711-C1 note |
Box Assy, Instrument Panel
2015-05 → 2016-05
ended
|
NDE180 TUP | — | |
| 55440-02720-C0 note |
Box Assy, Instrument Panel
2014-01 → 2015-05
ended
|
NDE180,NRE180,ZRE18# SA | — | |
| 55440-02720-C1 note |
Box Assy, Instrument Panel
2015-05 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SA | — | |
| 55440-02440-C0 note |
Box Assy, Instrument Panel
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 55440-02440-C0 note |
Box Assy, Instrument Panel
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 55440-02440-C0 note |
Box Assy, Instrument Panel
2016-06 → 2019-12
ended
|
ZRE181 CVT N GEN +1 | — | |
| 55440-02440-C0 note |
Box Assy, Instrument Panel
2017-01 → 2019-12
ended
|
ZRE182 GEN SAP;ZRE181 D +6 | — | |
| 55440-02450-C0 note |
Box Assy, Instrument Panel
2017-01 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SA | — | |
| 55440-02440-C0 note |
Box Assy, Instrument Panel
2019-12 → —
|
ZRE182 N GEN | — | |
| 55440-02440-C0 note |
Box Assy, Instrument Panel
2019-12 → —
|
ZRE182 (D,G) GEN | — | |
| 55440-02450-C0 note |
Box Assy, Instrument Panel
2019-12 → —
|
ZRE182 N SA | — | |
| 55440-02450-C0 note |
Box Assy, Instrument Panel
2019-12 → —
|
ZRE182 (D,G) SA | — | |
| 55445J — Spring, Instrument Panel Box | ||||
| 55445-02200 |
Spring, Instrument Panel Box
2013-06 → 2017-01
ended
|
ZRE18# GEN SAP | — | |
| 55445-02200 |
Spring, Instrument Panel Box
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 55445-02290 |
Spring, Instrument Panel Box
2014-01 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SA | — | |
| 55445-02330 |
Spring, Instrument Panel Box
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 55445-02330 |
Spring, Instrument Panel Box
2016-06 → 2019-12
ended
|
ZRE18# GEN SAP | — | |
| 55445-02330 |
Spring, Instrument Panel Box
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 55445-02340 |
Spring, Instrument Panel Box
2017-01 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SA | — | |
| 55445-02330 |
Spring, Instrument Panel Box
2019-12 → —
|
ZRE182 GEN | — | |
| 55445-02340 |
Spring, Instrument Panel Box
2019-12 → —
|
ZRE182 SA | — | |
| 55521C — Cover, Stereo Opening | ||||
| 55521-05030 note |
Cover, Stereo Opening
2013-06 → 2016-05
ended
|
NDE180 D TUP | — | |
| 55521-05030 note |
Cover, Stereo Opening
2013-06 → 2016-05
ended
|
NDE180 N TUP | — | |
| 55521-05030 note |
Cover, Stereo Opening
2013-06 → 2017-01
ended
|
NDE180,NRE180,ZRE18# D SAP | — | |
| 55521-05030 note |
Cover, Stereo Opening
2013-06 → 2017-01
ended
|
NDE180,NRE180,ZRE18# N SAP | — | |
| 55521-05030 note |
Cover, Stereo Opening
2016-06 → 2018-08
ended
|
NRE180 D TUP | — | |
| 55521-05030 note |
Cover, Stereo Opening
2016-06 → 2018-08
ended
|
NRE180 N TUP | — | |
| 55521-05030 note |
Cover, Stereo Opening
2016-06 → 2019-01
ended
|
NDE180,ZRE18# D TUP | — | |
| 55521-05030 note |
Cover, Stereo Opening
2016-06 → 2019-01
ended
|
NDE180,ZRE18# N TUP | — | |
| 55539 — Cover, Spare Switch Hole | ||||
| 55539-02100-C0 note |
Cover, Spare Switch Hole
2013-06 → 2015-05
ended
|
NDE180 TUP | — | |
| 55539-02100-C1 note |
Cover, Spare Switch Hole
2015-05 → 2016-05
ended
|
NDE180 TUP | — | |
| 55539-52060-C0 note |
Cover, Spare Switch Hole
2014-01 → 2017-01
ended
|
ZRE181 CVT N GEN +1 | — | |
| 55539-52060-C0 note |
Cover, Spare Switch Hole
2014-01 → 2017-01
ended
|
ZRE181 D SAP;ZRE181 CVT +5 | — | |
| 55539-52060-C0 note |
Cover, Spare Switch Hole
2014-01 → 2017-01
ended
|
ZRE18# N SA | — | |
| 55539-02100-C1 note |
Cover, Spare Switch Hole
2016-06 → 2019-01
ended
|
NDE180,NRE180,ZRE18# TUP | — | |
| 55539-02100-C1 note |
Cover, Spare Switch Hole
2016-06 → 2019-01
ended
|
NRE180,ZRE18# N GEN TUP | — | |
| 55539-02100-C1 note |
Cover, Spare Switch Hole
2016-06 → 2019-01
ended
|
NDE180,NRE180,ZRE18# N GEN TUP | — | |
| 55539-02100-C1 note |
Cover, Spare Switch Hole
2016-06 → 2019-01
ended
|
ZRE18# N GCC | — | |
| 55539-02100-C1 note |
Cover, Spare Switch Hole
2016-06 → 2019-01
ended
|
ZRE18# CVT N TUP | — | |
| 55539-02100-C1 note |
Cover, Spare Switch Hole
2016-06 → 2019-01
ended
|
NDE180,NRE180,ZRE18# N TUP | — | |
| 55539-52060-C4 note |
Cover, Spare Switch Hole
2017-01 → 2019-12
ended
|
ZRE181 CVT N GEN +1 | — | |
| 55539-52060-C4 note |
Cover, Spare Switch Hole
2017-01 → 2019-12
ended
|
ZRE181 D SAP;ZRE181 CVT +5 | — | |
| 55539-52060-C4 note |
Cover, Spare Switch Hole
2017-01 → 2019-12
ended
|
ZRE181 CVT N GEN +1 | — | |
| 55539-52060-C4 note |
Cover, Spare Switch Hole
2017-01 → 2019-12
ended
|
ZRE182 N SAP;ZRE181 CVT +4 | — | |
| 55539-0D090-C1 note |
Cover, Spare Switch Hole
2019-12 → —
|
ZRE182 D,G | — | |
| 55539-0D090-C1 note |
Cover, Spare Switch Hole
2019-12 → —
|
ZRE182 N | — | |
| 55539-52060-C4 note |
Cover, Spare Switch Hole
2019-12 → —
|
ZRE182 N | — | |
| 55539-52060-C4 note |
Cover, Spare Switch Hole
2019-12 → —
|
ZRE182 D,G | — | |
| 55548A — Cover, Instrument Panel Hole | ||||
| 55548-02640-C0 note |
Cover, Instrument Panel Hole
2013-06 → 2015-05
ended
|
NDE180 TUP | — | |
| 55548-02640-C1 note |
Cover, Instrument Panel Hole
2015-05 → 2016-05
ended
|
NDE180 TUP | — | |
| 55548-02640-C1 note |
Cover, Instrument Panel Hole
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 55548-02640-C1 note |
Cover, Instrument Panel Hole
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 55670A — Register Assy, Instrument Panel, Center | ||||
| 55670-02390 |
Register Assy, Instrument Panel, Center
2013-06 → 2016-05
ended
|
NDE180 D TUP | — | |
| 55670-02390 |
Register Assy, Instrument Panel, Center
2013-06 → 2017-01
ended
|
ZRE18# GEN SAP | — | |
| 55670-02400 |
Register Assy, Instrument Panel, Center
2014-01 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SA | — | |
| 55670-02410 note |
Register Assy, Instrument Panel, Center
2014-01 → 2017-01
ended
|
ZRE18# N GEN SAP | — | |
| 55670-02410 |
Register Assy, Instrument Panel, Center
2013-06 → 2016-05
ended
|
NDE180 N TUP | — | |
| 55670-02420 note |
Register Assy, Instrument Panel, Center
2014-01 → 2017-01
ended
|
NDE180,NRE180,ZRE18# N SA | — | |
| 55670-02580 |
Register Assy, Instrument Panel, Center
2016-06 → 2018-05
ended
|
NDE180,NRE180,ZRE18# D TUP | — | |
| 55670-02580-C0 note |
Register Assy, Instrument Panel, Center
2018-05 → 2018-08
ended
|
NRE180 D TUP | — | |
| 55670-02580-C0 note |
Register Assy, Instrument Panel, Center
2018-05 → 2019-01
ended
|
NDE180,ZRE18# D TUP | — | |
| 55670-02580-C0 note |
Register Assy, Instrument Panel, Center
2017-01 → 2019-12
ended
|
ZRE181 CVT N GEN +1 | — | |
| 55670-02580-C0 note |
Register Assy, Instrument Panel, Center
2017-01 → 2019-12
ended
|
ZRE182 GEN SAP;ZRE181 D +6 | — | |
| 55670-02590-C0 note |
Register Assy, Instrument Panel, Center
2017-01 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SA | — | |
| 55670-02690-C0 note |
Register Assy, Instrument Panel, Center
2016-06 → 2019-01
ended
|
NDE180,ZRE18# N TUP | — | |
| 55670-02690-C0 note |
Register Assy, Instrument Panel, Center
2017-01 → 2019-12
ended
|
ZRE182 N GEN SAP;ZRE181 +4 | — | |
| 55670-02690-C0 note |
Register Assy, Instrument Panel, Center
2017-01 → 2019-12
ended
|
ZRE181 CVT N GEN +1 | — | |
| 55670-02690-C0 note |
Register Assy, Instrument Panel, Center
2016-06 → 2018-08
ended
|
NRE180 N TUP | — | |
| 55670-02700-C0 note |
Register Assy, Instrument Panel, Center
2017-01 → 2019-12
ended
|
NDE180,NRE180,ZRE18# N SA | — | |
| 55670-02580-C0 note |
Register Assy, Instrument Panel, Center
2019-12 → —
|
ZRE182 D GEN | — | |
| 55670-02580-C0 note |
Register Assy, Instrument Panel, Center
2019-12 → —
|
ZRE182 N GEN | — | |
| 55670-02590-C0 note |
Register Assy, Instrument Panel, Center
2019-12 → —
|
ZRE182 N SA | — | |
| 55670-02590-C0 note |
Register Assy, Instrument Panel, Center
2019-12 → —
|
ZRE182 D SA | — | |
| 55670-02690-C0 note |
Register Assy, Instrument Panel, Center
2019-12 → —
|
ZRE182 G GEN | — | |
| 55670-02700-C0 note |
Register Assy, Instrument Panel, Center
2019-12 → —
|
ZRE182 G SA | — | |
| 55699 — Knob, Instrument Panel Register Control | ||||
| 55693-02110 |
Knob, Instrument Panel Register Control
2013-06 → 2016-05
ended
|
NDE180 N TUP | — | |
| 55693-02110 note |
Knob, Instrument Panel Register Control
2014-01 → 2017-01
ended
|
NDE180,NRE180,ZRE18# N SAP | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
