Toyota Corolla
2013-06 → present · chassis NDE180,NRE180,ZRE18#,ZRE21#,ZWE219 · catalogue 164320 · General
Supported model
Data version 2019-11

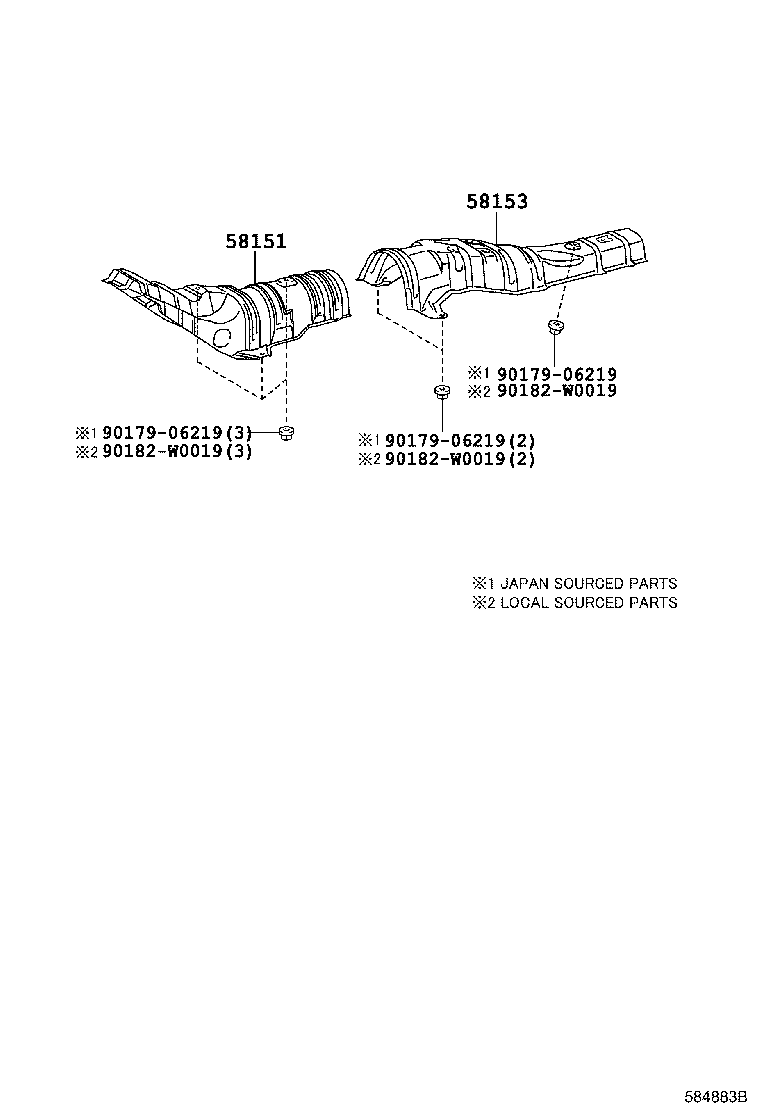

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 58151 — Insulator, Front Floor Heat, NO.1 | ||||
| 58151-02250 |
Insulator, Front Floor Heat, NO.1
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 58151-02260 |
Insulator, Front Floor Heat, NO.1
2014-01 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 58151-02250 |
Insulator, Front Floor Heat, NO.1
2016-06 → 2018-05
ended
|
NDE180,NRE180,ZRE18# TUP | — | |
| 58151-02251 |
Insulator, Front Floor Heat, NO.1
2018-05 → 2018-08
ended
|
NRE180 TUP | — | |
| 58151-02251 |
Insulator, Front Floor Heat, NO.1
2018-05 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 58151-02260 |
Insulator, Front Floor Heat, NO.1
2017-01 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 58151-02260 |
Insulator, Front Floor Heat, NO.1
2019-12 → —
|
ZRE182 | — | |
| 58153 — Insulator, Front Floor Heat, NO.2 | ||||
| 58153-02240 |
Insulator, Front Floor Heat, NO.2
2014-01 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 58153-05040 |
Insulator, Front Floor Heat, NO.2
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 58153-02240 |
Insulator, Front Floor Heat, NO.2
2017-01 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 58153-05040 |
Insulator, Front Floor Heat, NO.2
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 58153-05040 |
Insulator, Front Floor Heat, NO.2
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 58153-02240 |
Insulator, Front Floor Heat, NO.2
2019-12 → —
|
ZRE182 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
