Toyota Corolla

2013-06 → present · chassis NDE180,NRE180,ZRE18#,ZRE21#,ZWE219 · catalogue 164320 · General

Supported model Data version 2019-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

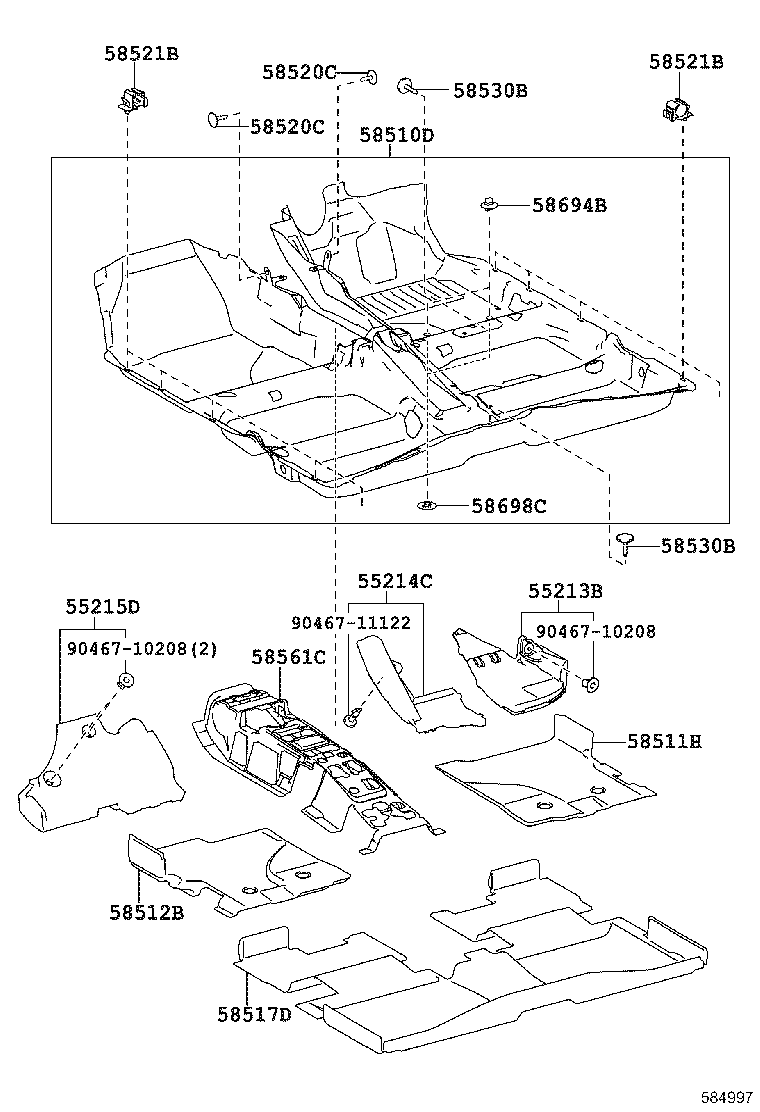

Exploded illustration 584997 58511H — MAT, FLOOR, FRONT RH (3 parts) 58512B — MAT, FLOOR, FRONT LH (3 parts) 58517D — MAT, REAR FLOOR (3 parts) 58694B — PLATE, MAT SET, UPPER (6 parts) 58510D — CARPET ASSY, FLOOR, FRONT (21 parts) 58698C — PLATE, MAT SET, LOWER (6 parts) 58521B — HOOK, FLOOR CARPET (6 parts) 58530B — CLIP(FOR FRONT FLOOR CARPET) (6 parts) 58530B — CLIP(FOR FRONT FLOOR CARPET) (6 parts) 58520C — CLIP(FOR FRONT FLOOR CARPET) (12 parts) 58520C — CLIP(FOR FRONT FLOOR CARPET) (12 parts) 55215D — PAD, DASH PANEL INSULATOR, NO.3 (9 parts) 55214C — PAD, DASH PANEL INSULATOR, NO.2 (9 parts) 55213B — PAD, DASH PANEL INSULATOR, NO.1 (9 parts) 58521B — HOOK, FLOOR CARPET (6 parts) 58561C — SILENCER, FRONT FLOOR, NO.1 (6 parts) 9046710208 — not listed in this catalogue 9046711122 — not listed in this catalogue 9046710208 — not listed in this catalogue
584997 · 16 callouts, 3 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
99 parts on this figure
Part number Description Fitment Price
55213B — Pad, Dash Panel Insulator, NO.1
55213-02220 Pad, Dash Panel Insulator, NO.1
2014-01 → 2017-01 ended
NDE180,NRE180,ZRE18# SA —
55213-02250 Pad, Dash Panel Insulator, NO.1
2013-06 → 2017-01 ended
ZRE18# GEN SAP —
55213-02250 Pad, Dash Panel Insulator, NO.1
2013-06 → 2016-05 ended
NDE180 TUP —
55213-02220 Pad, Dash Panel Insulator, NO.1
2017-01 → 2019-12 ended
NDE180,NRE180,ZRE18# SA —
55213-02250 Pad, Dash Panel Insulator, NO.1
2016-06 → 2019-01 ended
NDE180,ZRE18# TUP —
55213-02250 Pad, Dash Panel Insulator, NO.1
2016-06 → 2018-08 ended
NRE180 TUP —
55213-02250 Pad, Dash Panel Insulator, NO.1
2016-06 → 2019-12 ended
ZRE18# GEN SAP —
55213-02220 Pad, Dash Panel Insulator, NO.1
2019-12 → —
ZRE182 SA —
55213-02250 Pad, Dash Panel Insulator, NO.1
2019-12 → —
ZRE182 GEN —
55214C — Pad, Dash Panel Insulator, NO.2
55214-02010 Pad, Dash Panel Insulator, NO.2
2013-06 → 2016-05 ended
NDE180 TUP —
55214-02030 Pad, Dash Panel Insulator, NO.2
2014-01 → 2017-01 ended
ZRE18# GEN SAP —
55214-02040 Pad, Dash Panel Insulator, NO.2
2014-01 → 2017-01 ended
NDE180,NRE180,ZRE18# SA —
55214-02010 Pad, Dash Panel Insulator, NO.2
2016-06 → 2018-08 ended
NRE180 TUP —
55214-02010 Pad, Dash Panel Insulator, NO.2
2016-06 → 2019-01 ended
NDE180,ZRE18# TUP —
55214-02030 Pad, Dash Panel Insulator, NO.2
2017-01 → 2019-12 ended
ZRE18# GEN SAP —
55214-02040 Pad, Dash Panel Insulator, NO.2
2017-01 → 2019-12 ended
NDE180,NRE180,ZRE18# SA —
55214-02030 Pad, Dash Panel Insulator, NO.2
2019-12 → —
ZRE182 GEN —
55214-02040 Pad, Dash Panel Insulator, NO.2
2019-12 → —
ZRE182 SA —
55215D — Pad, Dash Panel Insulator, NO.3
55215-02010 Pad, Dash Panel Insulator, NO.3
2013-06 → 2016-05 ended
NDE180 TUP —
55215-02030 Pad, Dash Panel Insulator, NO.3
2014-01 → 2017-01 ended
ZRE18# GEN SAP —
55215-02040 Pad, Dash Panel Insulator, NO.3
2014-01 → 2017-01 ended
NDE180,NRE180,ZRE18# SA —
55215-02010 Pad, Dash Panel Insulator, NO.3
2016-06 → 2018-08 ended
NRE180 TUP —
55215-02010 Pad, Dash Panel Insulator, NO.3
2016-06 → 2019-01 ended
NDE180,ZRE18# TUP —
55215-02030 Pad, Dash Panel Insulator, NO.3
2017-01 → 2019-12 ended
ZRE18# GEN SAP —
55215-02040 Pad, Dash Panel Insulator, NO.3
2017-01 → 2019-12 ended
NDE180,NRE180,ZRE18# SA —
55215-02030 Pad, Dash Panel Insulator, NO.3
2019-12 → —
ZRE182 GEN —
55215-02040 Pad, Dash Panel Insulator, NO.3
2019-12 → —
ZRE182 SA —
58510D — Carpet Assy, Floor, Front
58510-02J40-C1 note Carpet Assy, Floor, Front
2014-01 → 2014-06 ended
ZRE18# GEN —
58510-02J40-C2 note Carpet Assy, Floor, Front
2014-06 → 2017-01 ended
ZRE181 CVT N GEN +1 —
58510-02J40-C2 note Carpet Assy, Floor, Front
2014-06 → 2017-01 ended
ZRE182 GEN SAP;ZRE181 D +6 —
58510-02J50-C1 note Carpet Assy, Floor, Front
2014-01 → 2014-06 ended
NDE180,NRE180,ZRE18# SA —
58510-02J50-C2 note Carpet Assy, Floor, Front
2014-06 → 2017-01 ended
NDE180,NRE180,ZRE18# SA —
58510-02J80-C1 note Carpet Assy, Floor, Front
2013-06 → 2014-03 ended
NDE180 TUP —
58510-02J80-C2 note Carpet Assy, Floor, Front
2014-03 → 2015-05 ended
NDE180 TUP —
58510-02J80-C3 note Carpet Assy, Floor, Front
2015-05 → 2016-05 ended
NDE180 TUP —
58510-02J40-C2 note Carpet Assy, Floor, Front
2017-01 → 2019-12 ended
ZRE182 GEN SAP;ZRE181 D +6 —
58510-02J40-C2 note Carpet Assy, Floor, Front
2017-01 → 2019-12 ended
ZRE181 CVT N GEN +1 —
58510-02J50-C2 note Carpet Assy, Floor, Front
2017-01 → 2019-12 ended
NDE180,NRE180,ZRE18# SA —
58510-02J80-C3 note Carpet Assy, Floor, Front
2016-06 → 2019-01 ended
NDE180,ZRE18# TUP —
58510-02J80-C3 note Carpet Assy, Floor, Front
2016-06 → 2018-08 ended
NRE180 TUP —
58510-02J40-C2 note Carpet Assy, Floor, Front
2019-12 → 2021-10 ended
ZRE182 N GEN —
58510-02J40-C2 note Carpet Assy, Floor, Front
2019-12 → 2021-10 ended
ZRE182 (D,G) GEN —
58510-02J50-C2 note Carpet Assy, Floor, Front
2019-12 → 2021-10 ended
ZRE182 N SA —
58510-02J50-C2 note Carpet Assy, Floor, Front
2019-12 → 2021-10 ended
ZRE182 (D,G) SA —
58510-02W60-C0 note Carpet Assy, Floor, Front
2021-10 → —
ZRE182 N GEN —
58510-02W60-C0 note Carpet Assy, Floor, Front
2021-10 → —
ZRE182 (D,G) GEN —
58510-02W70-C0 note Carpet Assy, Floor, Front
2021-10 → —
ZRE182 N SA —
58510-02W70-C0 note Carpet Assy, Floor, Front
2021-10 → —
ZRE182 (D,G) SA —
58511H — Mat, Floor, Front RH
58511-02140 Mat, Floor, Front RH
2014-01 → 2017-01 ended
NDE180,NRE180,ZRE18# SAP —
58511-02140 Mat, Floor, Front RH
2017-01 → 2019-12 ended
NDE180,NRE180,ZRE18# SAP —
58511-02140 Mat, Floor, Front RH
2019-12 → —
ZRE182 —
58512B — Mat, Floor, Front LH
58512-02120 Mat, Floor, Front LH
2014-01 → 2017-01 ended
NDE180,NRE180,ZRE18# SAP —
58512-02120 Mat, Floor, Front LH
2017-01 → 2019-12 ended
NDE180,NRE180,ZRE18# SAP —
58512-02120 Mat, Floor, Front LH
2019-12 → —
ZRE182 —
58517D — Mat, Rear Floor
58513-02130 Mat, Rear Floor
2014-01 → 2017-01 ended
NDE180,NRE180,ZRE18# SAP —
58513-02130 Mat, Rear Floor
2017-01 → 2019-12 ended
NDE180,NRE180,ZRE18# SAP —
58513-02130 Mat, Rear Floor
2019-12 → —
ZRE182 —
58520C — Clip(FOR FRONT FLOOR CARPET)
90467-05164-B2 note Clip(FOR FRONT FLOOR CARPET)
2014-01 → 2017-01 ended
NDE180,NRE180,ZRE18# SAP —
90467-W0006-B3 note Clip(FOR FRONT FLOOR CARPET)
2013-06 → 2016-05 ended
NDE180 TUP —
90467-W0006-B3 note Clip(FOR FRONT FLOOR CARPET)
2014-01 → 2017-01 ended
NDE180,NRE180,ZRE18# SAP —
90467-05164-B2 note Clip(FOR FRONT FLOOR CARPET)
2017-01 → 2019-12 ended
NDE180,NRE180,ZRE18# SAP —
90467-W0006-B3 note Clip(FOR FRONT FLOOR CARPET)
2016-06 → 2017-01 ended
NDE180,NRE180,ZRE18# TUP —
90467-W0006-B3 note Clip(FOR FRONT FLOOR CARPET)
2017-01 → 2019-12 ended
NDE180,NRE180,ZRE18# SAP —
90467-W0006-C2 note Clip(FOR FRONT FLOOR CARPET)
2017-01 → 2018-08 ended
NRE180 TUP —
90467-W0006-C2 note Clip(FOR FRONT FLOOR CARPET)
2017-01 → 2019-01 ended
NDE180,ZRE18# TUP —
90467-05164-B2 note Clip(FOR FRONT FLOOR CARPET)
2019-12 → 2020-08 ended
ZRE182 —
90467-T0004-C1 note Clip(FOR FRONT FLOOR CARPET)
2020-09 → —
ZRE182 N —
90467-T0004-C1 note Clip(FOR FRONT FLOOR CARPET)
2020-09 → —
ZRE182 D,G —
90467-W0006-B3 note Clip(FOR FRONT FLOOR CARPET)
2019-12 → 2020-09 ended
ZRE182 —
58521B — Hook, Floor Carpet
58521-02110 Hook, Floor Carpet
2013-06 → 2016-05 ended
NDE180 TUP —
58521-02110 Hook, Floor Carpet
2013-06 → 2017-01 ended
NDE180,NRE180,ZRE18# SAP —
58521-02110 Hook, Floor Carpet
2016-06 → 2018-08 ended
NRE180 TUP —
58521-02110 Hook, Floor Carpet
2016-06 → 2019-01 ended
NDE180,ZRE18# TUP —
58521-02110 Hook, Floor Carpet
2016-06 → 2019-12 ended
NDE180,NRE180,ZRE18# SAP —
58521-02110 Hook, Floor Carpet
2019-12 → —
ZRE182 —
58530B — Clip(FOR FRONT FLOOR CARPET)
90467-07049-B7 note Clip(FOR FRONT FLOOR CARPET)
2013-06 → 2017-01 ended
NDE180,NRE180,ZRE18# SAP —
90467-07049-B7 note Clip(FOR FRONT FLOOR CARPET)
2013-06 → 2016-05 ended
NDE180 TUP —
90467-07049-B7 note Clip(FOR FRONT FLOOR CARPET)
2016-06 → 2018-08 ended
NRE180 TUP —
90467-07049-B7 note Clip(FOR FRONT FLOOR CARPET)
2016-06 → 2019-01 ended
NDE180,ZRE18# TUP —
90467-07049-B7 note Clip(FOR FRONT FLOOR CARPET)
2016-06 → 2019-12 ended
NDE180,NRE180,ZRE18# SAP —
90467-07049-B7 note Clip(FOR FRONT FLOOR CARPET)
2019-12 → —
ZRE182 —
58561C — Silencer, Front Floor, NO.1
58561-02230 Silencer, Front Floor, NO.1
2013-06 → 2016-05 ended
NDE180 TUP —
58561-02300 Silencer, Front Floor, NO.1
2014-01 → 2017-01 ended
NDE180,NRE180,ZRE18# SAP —
58561-02230 Silencer, Front Floor, NO.1
2016-06 → 2018-08 ended
NRE180 TUP —
58561-02230 Silencer, Front Floor, NO.1
2016-06 → 2019-01 ended
NDE180,ZRE18# TUP —
58561-02300 Silencer, Front Floor, NO.1
2017-01 → 2019-12 ended
NDE180,NRE180,ZRE18# SAP —
58561-02300 Silencer, Front Floor, NO.1
2019-12 → —
ZRE182 —
58694B — Plate, Mat Set, Upper
58694-76010 Plate, Mat Set, Upper
2013-06 → 2016-05 ended
NDE180 TUP —
58694-76010 Plate, Mat Set, Upper
2013-06 → 2017-01 ended
NDE180,NRE180,ZRE18# SAP —
58694-76010 Plate, Mat Set, Upper
2016-06 → 2018-08 ended
NRE180 TUP —
58694-76010 Plate, Mat Set, Upper
2016-06 → 2019-01 ended
NDE180,ZRE18# TUP —
58694-76010 Plate, Mat Set, Upper
2016-06 → 2019-12 ended
NDE180,NRE180,ZRE18# SAP —
58694-76010 Plate, Mat Set, Upper
2019-12 → —
ZRE182 —
58698C — Plate, Mat Set, Lower
58698-76010 Plate, Mat Set, Lower
2013-06 → 2016-05 ended
NDE180 TUP —
58698-76010 Plate, Mat Set, Lower
2013-06 → 2017-01 ended
NDE180,NRE180,ZRE18# SAP —
58698-76010 Plate, Mat Set, Lower
2016-06 → 2018-08 ended
NRE180 TUP —
58698-76010 Plate, Mat Set, Lower
2016-06 → 2019-01 ended
NDE180,ZRE18# TUP —
58698-76010 Plate, Mat Set, Lower
2016-06 → 2019-12 ended
NDE180,NRE180,ZRE18# SAP —
58698-76010 Plate, Mat Set, Lower
2019-12 → —
ZRE182 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
