Toyota Corolla
2013-06 → present · chassis NDE180,NRE180,ZRE18#,ZRE21#,ZWE219 · catalogue 164320 · General
Supported model
Data version 2019-11

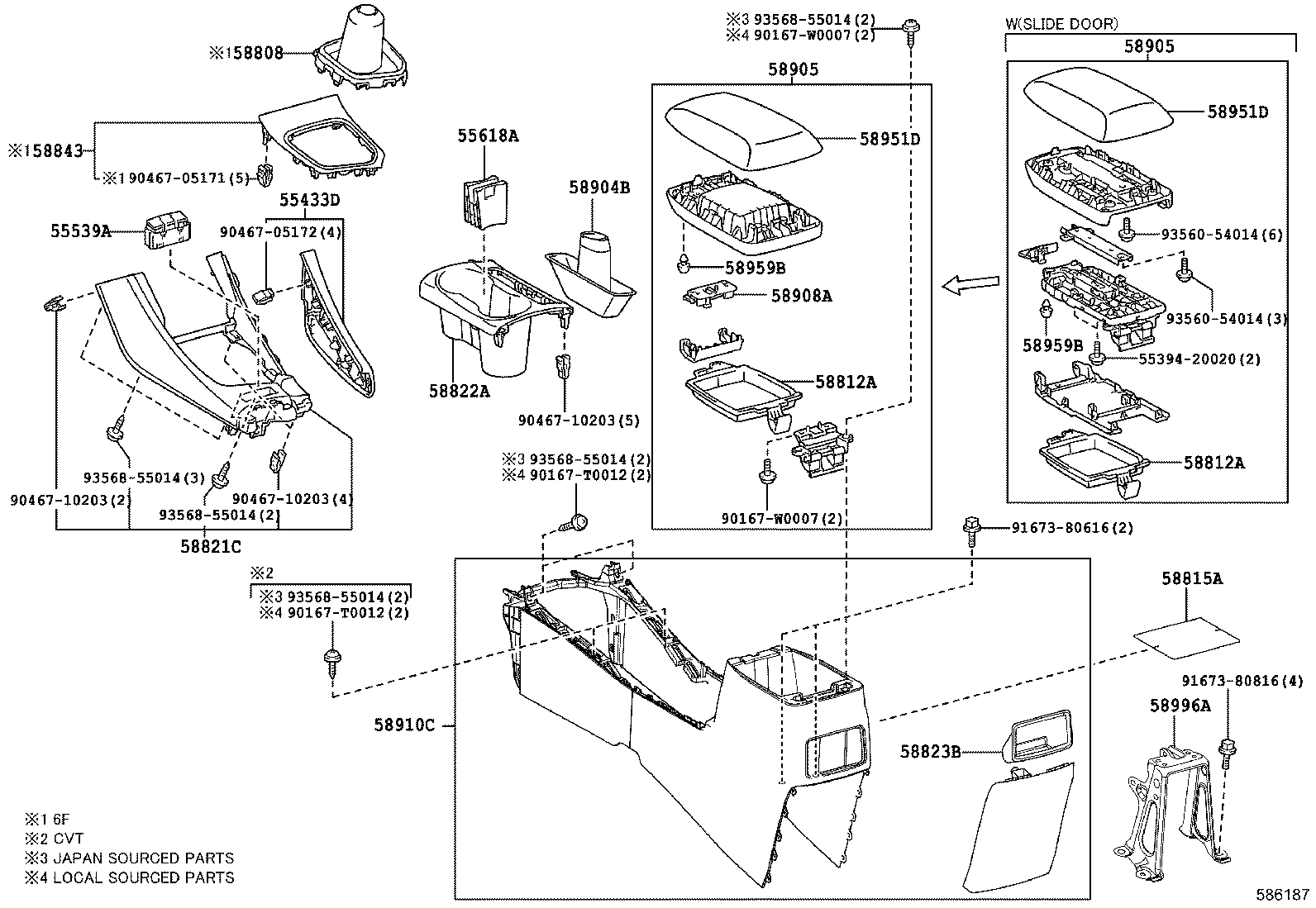

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 55433D — Panel, Instrument Panel Finish, Lower NO.2 | ||||
| 55433-02500-C0 note |
Panel, Instrument Panel Finish, Lower NO.2
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 55433-02500-C0 note |
Panel, Instrument Panel Finish, Lower NO.2
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 55433-02500-C0 note |
Panel, Instrument Panel Finish, Lower NO.2
2017-01 → 2019-12
ended
|
ZRE182 GEN SAP;ZRE181 D +6 | — | |
| 55433-02500-C0 note |
Panel, Instrument Panel Finish, Lower NO.2
2016-06 → 2019-12
ended
|
ZRE181 CVT N GEN +1 | — | |
| 55433-02510-C0 note |
Panel, Instrument Panel Finish, Lower NO.2
2017-01 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SA | — | |
| 55433-02500-C0 note |
Panel, Instrument Panel Finish, Lower NO.2
2019-12 → —
|
ZRE182 (D,G) GEN | — | |
| 55433-02500-C0 note |
Panel, Instrument Panel Finish, Lower NO.2
2019-12 → —
|
ZRE182 N GEN | — | |
| 55433-02510-C0 note |
Panel, Instrument Panel Finish, Lower NO.2
2019-12 → —
|
ZRE182 N SA | — | |
| 55433-02510-C0 note |
Panel, Instrument Panel Finish, Lower NO.2
2019-12 → —
|
ZRE182 (D,G) SA | — | |
| 55539A — Cover, Spare Switch Hole | ||||
| 55539-02100-C0 note |
Cover, Spare Switch Hole
2013-06 → 2015-05
ended
|
NDE180 TUP | — | |
| 55539-02100-C1 note |
Cover, Spare Switch Hole
2015-05 → 2016-05
ended
|
NDE180 TUP | — | |
| 55539-52060-C0 note |
Cover, Spare Switch Hole
2014-01 → 2017-01
ended
|
ZRE181 CVT N GEN +1 | — | |
| 55539-52060-C0 note |
Cover, Spare Switch Hole
2014-01 → 2017-01
ended
|
ZRE181 D SAP;ZRE181 CVT +5 | — | |
| 84970-02150 |
Cover, Spare Switch Hole
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 84970-02150 |
Cover, Spare Switch Hole
2016-06 → 2019-01
ended
|
NDE180,ZRE181 6F TUP | — | |
| 84970-02150 |
Cover, Spare Switch Hole
2016-06 → 2019-12
ended
|
NDE180,NRE180,ZRE18# 6F SAP | — | |
| 55618A — Holder, Console Box Cup | ||||
| 55618-02230-C0 note |
Holder, Console Box Cup
2014-01 → 2017-01
ended
|
ZRE181 CVT N GEN +1 | — | |
| 55618-02230-C0 note |
Holder, Console Box Cup
2014-01 → 2017-01
ended
|
ZRE181 D SAP;ZRE181 CVT +5 | — | |
| 55618-02210-C1 note |
Holder, Console Box Cup
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 55618-02210-C1 note |
Holder, Console Box Cup
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 55618-02230-C0 note |
Holder, Console Box Cup
2017-01 → 2019-12
ended
|
ZRE181 CVT N GEN +1 | — | |
| 55618-02230-C0 note |
Holder, Console Box Cup
2017-01 → 2019-12
ended
|
ZRE181 D SAP;ZRE181 CVT +5 | — | |
| 55618-02230-C0 note |
Holder, Console Box Cup
2019-12 → —
|
ZRE182 N | — | |
| 55618-02230-C0 note |
Holder, Console Box Cup
2019-12 → —
|
ZRE182 D,G | — | |
| 58808 — Cover Sub-assy, Shifting Hole | ||||
| 58808-02280-C0 note |
Cover Sub-assy, Shifting Hole
2013-06 → 2015-06
ended
|
NDE180 N TUP | — | |
| 58808-02280-C0 note |
Cover Sub-assy, Shifting Hole
2014-01 → 2015-06
ended
|
ZRE18# 6F N GEN | — | |
| 58808-02280-C1 note |
Cover Sub-assy, Shifting Hole
2015-06 → 2016-05
ended
|
NDE180 N TUP | — | |
| 58808-02280-C1 note |
Cover Sub-assy, Shifting Hole
2015-06 → 2017-01
ended
|
ZRE18# 6F N GEN +1 | — | |
| 58808-02360-C0 note |
Cover Sub-assy, Shifting Hole
2014-01 → 2015-06
ended
|
NDE180,NRE180,ZRE18# 6F N SA | — | |
| 58808-02360-C1 note |
Cover Sub-assy, Shifting Hole
2015-06 → 2017-01
ended
|
NDE180,NRE180,ZRE18# 6F N SA | — | |
| 58808-02480-C0 note |
Cover Sub-assy, Shifting Hole
2013-06 → 2015-05
ended
|
NDE180 D TUP | — | |
| 58808-02480-C0 note |
Cover Sub-assy, Shifting Hole
2014-01 → 2015-06
ended
|
ZRE181 6F D GEN | — | |
| 58808-02480-C1 note |
Cover Sub-assy, Shifting Hole
2015-05 → 2016-05
ended
|
NDE180 D TUP | — | |
| 58808-02480-C1 note |
Cover Sub-assy, Shifting Hole
2015-06 → 2017-01
ended
|
ZRE181 6F D GEN +1 | — | |
| 58808-02490-C0 note |
Cover Sub-assy, Shifting Hole
2014-01 → 2015-06
ended
|
NDE180,NRE180,ZRE181 D SA | — | |
| 58808-02490-C1 note |
Cover Sub-assy, Shifting Hole
2015-06 → 2017-01
ended
|
NDE180,NRE180,ZRE181 D SA | — | |
| 58808-02540-C3 note |
Cover Sub-assy, Shifting Hole
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 58808-02540-C3 note |
Cover Sub-assy, Shifting Hole
2016-06 → 2019-01
ended
|
NDE180,ZRE181 6F TUP | — | |
| 58808-02540-C3 note |
Cover Sub-assy, Shifting Hole
2017-01 → 2019-12
ended
|
ZRE18# 6F GEN SAP | — | |
| 58808-02550-C3 note |
Cover Sub-assy, Shifting Hole
2017-01 → 2019-12
ended
|
NDE180,NRE180,ZRE18# 6F SA | — | |
| 58808-02700-C0 note |
Cover Sub-assy, Shifting Hole
2019-12 → —
|
ZRE182 D GEN | — | |
| 58808-02710-C0 note |
Cover Sub-assy, Shifting Hole
2019-12 → —
|
ZRE182 6F N | — | |
| 58808-02710-C0 note |
Cover Sub-assy, Shifting Hole
2019-12 → —
|
ZRE182 6F (D,G) SA | — | |
| 58812A — Box, Console, Lower | ||||
| 58812-02290-C0 note |
Box, Console, Lower
2014-01 → 2015-05
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 58812-02290-C0 note |
Box, Console, Lower
2013-06 → 2015-05
ended
|
NDE180 TUP | — | |
| 58812-02290-C1 note |
Box, Console, Lower
2015-05 → 2016-05
ended
|
NDE180 TUP | — | |
| 58812-02290-C1 note |
Box, Console, Lower
2015-05 → 2017-01
ended
|
ZRE181 CVT N GEN +1 | — | |
| 58812-02290-C1 note |
Box, Console, Lower
2015-05 → 2017-01
ended
|
ZRE181 D SAP;ZRE181 CVT +5 | — | |
| 58812-02290-C1 note |
Box, Console, Lower
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 58812-02290-C1 note |
Box, Console, Lower
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 58812-02290-C1 note |
Box, Console, Lower
2016-06 → 2019-12
ended
|
ZRE181 CVT N GEN +1 | — | |
| 58812-02290-C1 note |
Box, Console, Lower
2017-01 → 2019-12
ended
|
ZRE181 D SAP;ZRE181 CVT +5 | — | |
| 58815A — Carpet, Console Box | ||||
| 58815-02240 |
Carpet, Console Box
2013-06 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 58815-02240 |
Carpet, Console Box
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 58815-02240 |
Carpet, Console Box
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 58815-02240 |
Carpet, Console Box
2016-06 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 58815-02240 |
Carpet, Console Box
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 58815-02240 |
Carpet, Console Box
2019-12 → —
|
ZRE182 | — | |
| 58821C — Panel, Console, Upper | ||||
| 58821-02700-C0 note |
Panel, Console, Upper
2013-06 → 2015-05
ended
|
NDE180 TUP | — | |
| 58821-02700-C1 note |
Panel, Console, Upper
2015-05 → 2016-05
ended
|
NDE180 TUP | — | |
| 58821-02840-C0 note |
Panel, Console, Upper
2014-01 → 2017-01
ended
|
ZRE181 CVT N GEN +1 | — | |
| 58821-02840-C0 note |
Panel, Console, Upper
2014-01 → 2017-01
ended
|
ZRE182 GEN SAP;ZRE181 D +6 | — | |
| 58821-02850-C0 note |
Panel, Console, Upper
2014-01 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SA | — | |
| 58821-02740-C0 note |
Panel, Console, Upper
2016-06 → 2018-05
ended
|
NDE180,NRE180,ZRE18# TUP | — | |
| 58821-02740-C0 note |
Panel, Console, Upper
2016-06 → 2018-06
ended
|
ZRE181 CVT N GEN +1 | — | |
| 58821-02740-C0 note |
Panel, Console, Upper
2017-01 → 2018-06
ended
|
ZRE182 GEN SAP;ZRE181 D +6 | — | |
| 58821-02740-C2 note |
Panel, Console, Upper
2018-05 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 58821-02740-C2 note |
Panel, Console, Upper
2018-06 → 2019-12
ended
|
ZRE182 GEN SAP;ZRE181 D +6 | — | |
| 58821-02740-C2 note |
Panel, Console, Upper
2018-06 → 2019-12
ended
|
ZRE181 CVT N GEN +1 | — | |
| 58821-02740-C2 note |
Panel, Console, Upper
2018-05 → 2018-08
ended
|
NRE180 TUP | — | |
| 58821-02770-C0 note |
Panel, Console, Upper
2017-01 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SA | — | |
| 58821-02740-C2 note |
Panel, Console, Upper
2019-12 → —
|
ZRE182 N GEN | — | |
| 58821-02740-C2 note |
Panel, Console, Upper
2019-12 → —
|
ZRE182 (D,G) GEN | — | |
| 58821-02770-C0 note |
Panel, Console, Upper
2019-12 → —
|
ZRE182 N SA | — | |
| 58821-02770-C0 note |
Panel, Console, Upper
2019-12 → —
|
ZRE182 (D,G) SA | — | |
| 58822A — Panel, Console, Upper Rear | ||||
| 58822-02230-C1 note |
Panel, Console, Upper Rear
2016-06 → 2019-01
ended
|
NDE180,NRE180,ZRE18# TUP | — | |
| 58822-02250-C1 note |
Panel, Console, Upper Rear
2017-01 → 2019-12
ended
|
ZRE181 CVT N GEN +1 | — | |
| 58822-02250-C1 note |
Panel, Console, Upper Rear
2017-01 → 2019-12
ended
|
ZRE182 GEN SAP;ZRE181 D +6 | — | |
| 58822-02260-C1 note |
Panel, Console, Upper Rear
2017-01 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SA | — | |
| 58822-02250-C1 note |
Panel, Console, Upper Rear
2019-12 → —
|
ZRE182 (D,G) GEN | — | |
| 58822-02250-C1 note |
Panel, Console, Upper Rear
2019-12 → —
|
ZRE182 N GEN | — | |
| 58822-02260-C1 note |
Panel, Console, Upper Rear
2019-12 → —
|
ZRE182 N SA | — | |
| 58822-02260-C1 note |
Panel, Console, Upper Rear
2019-12 → —
|
ZRE182 (D,G) SA | — | |
| 58823B — Box, Console Compartment | ||||
| 58823-02020-C0 note |
Box, Console Compartment
2014-01 → 2015-09
ended
|
ZRE181 CVT N GEN | — | |
| 58823-02020-C0 note |
Box, Console Compartment
2014-01 → 2017-01
ended
|
ZRE181 D SAP;ZRE181 CVT +5 | — | |
| 58823-02020-C0 note |
Box, Console Compartment
2015-09 → 2017-01
ended
|
ZRE181 CVT N GEN +1 | — | |
| 58823-02030-C0 note |
Box, Console Compartment
2013-06 → 2015-05
ended
|
NDE180 TUP | — | |
| 58823-02030-C1 note |
Box, Console Compartment
2015-05 → 2016-05
ended
|
NDE180 TUP | — | |
| 58823-02020-C0 note |
Box, Console Compartment
2017-01 → 2019-12
ended
|
ZRE181 D SAP;ZRE181 CVT +5 | — | |
| 58823-02020-C0 note |
Box, Console Compartment
2017-01 → 2019-12
ended
|
ZRE181 CVT N GEN +1 | — | |
| 58823-02030-C1 note |
Box, Console Compartment
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 58823-02030-C1 note |
Box, Console Compartment
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 58823-02020-C0 note |
Box, Console Compartment
2019-12 → —
|
ZRE182 N | — | |
| 58823-02020-C0 note |
Box, Console Compartment
2019-12 → —
|
ZRE182 D,G | — | |
| 58843 — Bezel, Shifting Hole | ||||
| 58843-02460 |
Bezel, Shifting Hole
2013-06 → 2016-05
ended
|
NDE180 D TUP | — | |
| 58843-02460 |
Bezel, Shifting Hole
2013-06 → 2017-01
ended
|
ZRE181 6F D GEN +1 | — | |
| 58843-02470 |
Bezel, Shifting Hole
2014-01 → 2017-01
ended
|
ZRE18# CVT D SAP | — | |
| 58843-02480 |
Bezel, Shifting Hole
2013-06 → 2016-05
ended
|
NDE180 N TUP | — | |
| 58843-02480 |
Bezel, Shifting Hole
2013-06 → 2017-01
ended
|
ZRE18# 6F N GEN +1 | — | |
| 58843-02490 |
Bezel, Shifting Hole
2014-01 → 2017-01
ended
|
ZRE18# CVT N GEN +1 | — | |
| 58843-02540 |
Bezel, Shifting Hole
2014-01 → 2017-01
ended
|
NDE180,NRE180,ZRE181 D SA | — | |
| 58843-02560 |
Bezel, Shifting Hole
2014-01 → 2017-01
ended
|
ZRE18# CVT SA | — | |
| 58843-02710 |
Bezel, Shifting Hole
2014-01 → 2017-01
ended
|
NDE180,NRE180,ZRE18# 6F N SA | — | |
| 58843-02580 |
Bezel, Shifting Hole
2016-06 → 2019-01
ended
|
NDE180,ZRE181 6F TUP | — | |
| 58843-02580 |
Bezel, Shifting Hole
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 58843-02580 |
Bezel, Shifting Hole
2016-06 → 2019-12
ended
|
ZRE18# 6F GEN SAP | — | |
| 58843-02880 |
Bezel, Shifting Hole
2017-01 → 2019-12
ended
|
NDE180,NRE180,ZRE18# 6F SA | — | |
| 58843-02580 |
Bezel, Shifting Hole
2019-12 → —
|
ZRE182 D GEN | — | |
| 58843-02880 |
Bezel, Shifting Hole
2019-12 → —
|
ZRE182 6F SA | — | |
| 58904B — Cover Sub-assy, Parking Brake Hole | ||||
| 58904-02240-C0 note |
Cover Sub-assy, Parking Brake Hole
2013-06 → 2015-05
ended
|
NDE180 TUP | — | |
| 58904-02240-C1 note |
Cover Sub-assy, Parking Brake Hole
2015-05 → 2016-05
ended
|
NDE180 TUP | — | |
| 58904-02200-C0 note |
Cover Sub-assy, Parking Brake Hole
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 58904-02200-C0 note |
Cover Sub-assy, Parking Brake Hole
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 58904-02200-C0 note |
Cover Sub-assy, Parking Brake Hole
2016-06 → 2019-12
ended
|
ZRE181 CVT N GEN +1 | — | |
| 58904-02200-C0 note |
Cover Sub-assy, Parking Brake Hole
2017-01 → 2019-12
ended
|
ZRE181 D SAP;ZRE181 CVT +5 | — | |
| 58904-02450-C0 note |
Cover Sub-assy, Parking Brake Hole
2019-12 → —
|
ZRE182 N | — | |
| 58904-02450-C0 note |
Cover Sub-assy, Parking Brake Hole
2019-12 → —
|
ZRE182 D,G | — | |
| 58905 — Door Sub-assy, Console Compartment | ||||
| 58905-02781-A0 note |
Door Sub-assy, Console Compartment
2013-06 → 2015-05
ended
|
NDE180 D TUP | — | |
| 58905-02781-A2 note |
Door Sub-assy, Console Compartment
2015-05 → 2016-05
ended
|
NDE180 D TUP | — | |
| 58905-02781-C2 note |
Door Sub-assy, Console Compartment
2013-06 → 2015-05
ended
|
NDE180,NRE180,ZRE18# D | — | |
| 58905-02781-C4 note |
Door Sub-assy, Console Compartment
2015-05 → 2017-01
ended
|
NDE180,NRE180,ZRE18# D SAP | — | |
| 58905-02781-C4 note |
Door Sub-assy, Console Compartment
2015-05 → 2016-05
ended
|
NDE180 D TUP | — | |
| 58905-02A61-A2 note |
Door Sub-assy, Console Compartment
2013-06 → 2015-05
ended
|
NDE180 N TUP | — | |
| 58905-02A61-A3 note |
Door Sub-assy, Console Compartment
2015-05 → 2016-05
ended
|
NDE180 N TUP | — | |
| 58905-02A61-C2 note |
Door Sub-assy, Console Compartment
2013-06 → 2015-05
ended
|
NDE180 N TUP | — | |
| 58905-02A61-C2 note |
Door Sub-assy, Console Compartment
2014-01 → 2015-05
ended
|
NDE180,NRE180,ZRE18# N SAP | — | |
| 58905-02A61-C2 note |
Door Sub-assy, Console Compartment
2014-01 → 2015-05
ended
|
NDE180,NRE180,ZRE18# N SAP | — | |
| 58905-02A61-C4 note |
Door Sub-assy, Console Compartment
2015-05 → 2016-05
ended
|
NDE180 N TUP | — | |
| 58905-02A61-C4 note |
Door Sub-assy, Console Compartment
2015-05 → 2017-01
ended
|
NDE180,NRE180,ZRE18# N SAP | — | |
| 58905-02A61-C4 note |
Door Sub-assy, Console Compartment
2015-05 → 2017-01
ended
|
NDE180,NRE180,ZRE18# N SAP | — | |
| 58905-02C21-A1 note |
Door Sub-assy, Console Compartment
2013-06 → 2015-05
ended
|
NDE180 N TUP | — | |
| 58905-02C21-A3 note |
Door Sub-assy, Console Compartment
2015-05 → 2016-05
ended
|
NDE180 N TUP | — | |
| 58905-02C21-A3 note |
Door Sub-assy, Console Compartment
2016-10 → 2017-01
ended
|
ZRE181 CVT N GEN +1 | — | |
| 58905-02C21-C1 note |
Door Sub-assy, Console Compartment
2013-06 → 2015-05
ended
|
NDE180,NRE180,ZRE18# N | — | |
| 58905-02C21-C3 note |
Door Sub-assy, Console Compartment
2015-05 → 2016-05
ended
|
NDE180 N TUP | — | |
| 58905-02C21-C3 note |
Door Sub-assy, Console Compartment
2015-05 → 2017-01
ended
|
NDE180,NRE180,ZRE18# N SAP | — | |
| 58905-02781-A3 note |
Door Sub-assy, Console Compartment
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 58905-02781-A3 note |
Door Sub-assy, Console Compartment
2016-06 → 2019-12
ended
|
ZRE181 CVT N GEN +1 | — | |
| 58905-02781-A3 note |
Door Sub-assy, Console Compartment
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 58905-02781-C5 note |
Door Sub-assy, Console Compartment
2016-06 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 58905-02781-C5 note |
Door Sub-assy, Console Compartment
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 58905-02781-C5 note |
Door Sub-assy, Console Compartment
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 58905-02A61-A6 note |
Door Sub-assy, Console Compartment
2016-06 → 2019-01
ended
|
NDE180,ZRE18# N TUP | — | |
| 58905-02A61-A6 note |
Door Sub-assy, Console Compartment
2016-06 → 2018-08
ended
|
NRE180 N TUP | — | |
| 58905-02A61-C6 note |
Door Sub-assy, Console Compartment
2016-06 → 2018-08
ended
|
NRE180 N TUP | — | |
| 58905-02A61-C6 note |
Door Sub-assy, Console Compartment
2016-06 → 2019-01
ended
|
NDE180,ZRE18# N TUP | — | |
| 58905-02A61-C6 note |
Door Sub-assy, Console Compartment
2017-01 → 2019-12
ended
|
NDE180,NRE180,ZRE18# N SAP | — | |
| 58905-02A61-C6 note |
Door Sub-assy, Console Compartment
2017-01 → 2019-12
ended
|
NDE180,NRE180,ZRE18# N SAP | — | |
| 58905-02A90-C4 note |
Door Sub-assy, Console Compartment
2019-12 → —
|
ZRE182 D | — | |
| 58905-02B10-C1 note |
Door Sub-assy, Console Compartment
2019-12 → —
|
ZRE182 G | — | |
| 58905-02B10-C1 note |
Door Sub-assy, Console Compartment
2019-12 → —
|
ZRE182 N | — | |
| 58908A — Lock Sub-assy, Console Compartment Door | ||||
| 58908-02031 |
Lock Sub-assy, Console Compartment Door
2013-06 → 2016-05
ended
|
NDE180 D TUP | — | |
| 58908-02031 |
Lock Sub-assy, Console Compartment Door
2013-06 → 2017-01
ended
|
NDE180,NRE180,ZRE18# D SAP | — | |
| 58908-02031 |
Lock Sub-assy, Console Compartment Door
2016-06 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 58908-02031 |
Lock Sub-assy, Console Compartment Door
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 58908-02031 |
Lock Sub-assy, Console Compartment Door
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 58908-02120 |
Lock Sub-assy, Console Compartment Door
2019-12 → —
|
ZRE182 | — | |
| 58910C — Box Assy, Console, Rear | ||||
| 58910-02350-C0 note |
Box Assy, Console, Rear
2013-06 → 2015-05
ended
|
NDE180 TUP | — | |
| 58910-02350-C1 note |
Box Assy, Console, Rear
2015-05 → 2015-08
ended
|
NDE180 TUP | — | |
| 58910-02351-C1 note |
Box Assy, Console, Rear
2015-09 → 2016-05
ended
|
NDE180 TUP | — | |
| 58910-02380-C0 note |
Box Assy, Console, Rear
2014-01 → 2015-08
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 58910-02381-C0 note |
Box Assy, Console, Rear
2015-09 → 2017-01
ended
|
ZRE181 CVT N GEN +1 | — | |
| 58910-02381-C0 note |
Box Assy, Console, Rear
2015-09 → 2017-01
ended
|
ZRE181 D SAP;ZRE181 CVT +5 | — | |
| 58910-02351-C1 note |
Box Assy, Console, Rear
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 58910-02351-C1 note |
Box Assy, Console, Rear
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 58910-02381-C0 note |
Box Assy, Console, Rear
2017-01 → 2019-12
ended
|
ZRE181 CVT N GEN +1 | — | |
| 58910-02381-C0 note |
Box Assy, Console, Rear
2017-01 → 2019-12
ended
|
ZRE181 D SAP;ZRE181 CVT +5 | — | |
| 58910-02600-C0 note |
Box Assy, Console, Rear
2019-12 → —
|
ZRE182 N | — | |
| 58910-02600-C0 note |
Box Assy, Console, Rear
2019-12 → —
|
ZRE182 D,G | — | |
| 58951D — Door, Console Compartment, Outer | ||||
| 58951-02570-A0 note |
Door, Console Compartment, Outer
2013-06 → 2016-05
ended
|
NDE180 D TUP | — | |
| 58951-02570-C3 note |
Door, Console Compartment, Outer
2013-06 → 2016-05
ended
|
NDE180 D TUP | — | |
| 58951-02570-C3 note |
Door, Console Compartment, Outer
2013-06 → 2017-01
ended
|
NDE180,NRE180,ZRE18# D SAP | — | |
| 58951-02A90-A1 note |
Door, Console Compartment, Outer
2016-10 → 2017-01
ended
|
ZRE181 CVT N GEN +1 | — | |
| 58951-02A90-A1 note |
Door, Console Compartment, Outer
2013-06 → 2016-05
ended
|
NDE180 N TUP | — | |
| 58951-02A90-C1 note |
Door, Console Compartment, Outer
2013-06 → 2017-01
ended
|
NDE180,NRE180,ZRE18# N SAP | — | |
| 58951-02A90-C1 note |
Door, Console Compartment, Outer
2013-06 → 2016-05
ended
|
NDE180 N TUP | — | |
| 58951-02B00-A1 note |
Door, Console Compartment, Outer
2013-06 → 2016-05
ended
|
NDE180 N TUP | — | |
| 58951-02B00-C1 note |
Door, Console Compartment, Outer
2013-06 → 2016-05
ended
|
NDE180 N TUP | — | |
| 58951-02B00-C1 note |
Door, Console Compartment, Outer
2014-01 → 2017-01
ended
|
NDE180,NRE180,ZRE18# N SAP | — | |
| 58951-02B00-C1 note |
Door, Console Compartment, Outer
2015-05 → 2017-01
ended
|
NDE180,NRE180,ZRE18# N SAP | — | |
| 58951-02B00-C1 note |
Door, Console Compartment, Outer
2014-01 → 2015-05
ended
|
NDE180,NRE180,ZRE18# N SAP | — | |
| 58951-02570-A2 note |
Door, Console Compartment, Outer
2016-06 → 2019-12
ended
|
ZRE181 CVT N GEN +1 | — | |
| 58951-02570-A2 note |
Door, Console Compartment, Outer
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 58951-02570-A2 note |
Door, Console Compartment, Outer
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 58951-02570-C5 note |
Door, Console Compartment, Outer
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 58951-02570-C5 note |
Door, Console Compartment, Outer
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 58951-02570-C5 note |
Door, Console Compartment, Outer
2016-06 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 58951-02B00-A4 note |
Door, Console Compartment, Outer
2016-06 → 2019-01
ended
|
NDE180,ZRE18# N TUP | — | |
| 58951-02B00-A4 note |
Door, Console Compartment, Outer
2016-06 → 2018-08
ended
|
NRE180 N TUP | — | |
| 58951-02B00-C4 note |
Door, Console Compartment, Outer
2016-06 → 2018-08
ended
|
NRE180 N TUP | — | |
| 58951-02B00-C4 note |
Door, Console Compartment, Outer
2016-06 → 2019-01
ended
|
NDE180,ZRE18# N TUP | — | |
| 58951-02B00-C4 note |
Door, Console Compartment, Outer
2017-01 → 2019-12
ended
|
NDE180,NRE180,ZRE18# N SAP | — | |
| 58951-02B00-C4 note |
Door, Console Compartment, Outer
2017-01 → 2019-12
ended
|
NDE180,NRE180,ZRE18# N SAP | — | |
| 58951-02860-C0 note |
Door, Console Compartment, Outer
2019-12 → —
|
ZRE182 N | — | |
| 58951-02860-C0 note |
Door, Console Compartment, Outer
2019-12 → —
|
ZRE182 G | — | |
| 58951-02870-C0 note |
Door, Console Compartment, Outer
2019-12 → —
|
ZRE182 D | — | |
| 58959B — Cushion, Console Compartment Door | ||||
| 90541-03078 |
Cushion, Console Compartment Door
2013-06 → 2016-05
ended
|
NDE180 TUP | — | |
| 90541-03078 |
Cushion, Console Compartment Door
2013-06 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 90541-03078 |
Cushion, Console Compartment Door
2016-06 → 2018-08
ended
|
NRE180 TUP | — | |
| 90541-03078 |
Cushion, Console Compartment Door
2016-06 → 2019-01
ended
|
NDE180,ZRE18# TUP | — | |
| 90541-03078 |
Cushion, Console Compartment Door
2016-06 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 90541-03078 |
Cushion, Console Compartment Door
2019-12 → —
|
ZRE182 | — | |
| 58996A — Bracket, Console Box Mounting, NO.2 | ||||
| 58996-02100 |
Bracket, Console Box Mounting, NO.2
2014-01 → 2017-01
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 58996-02100 |
Bracket, Console Box Mounting, NO.2
2017-01 → 2019-12
ended
|
NDE180,NRE180,ZRE18# SAP | — | |
| 58996-02100 |
Bracket, Console Box Mounting, NO.2
2019-12 → —
|
ZRE182 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
